Complete Chevrolet Impala Radio Wiring Guide with Color Codes and Connector Pinout
For a 2002-2006 model sedan, the factory-installed sound unit relies on a 12-pin harness connector at the rear of the head unit. Pins A1 (yellow), A4 (light green), and A5 (dark gray) deliver constant 12V, switched ignition, and ground respectively. Tapping these three wires lets you retain stock chimes and OnStar without splicing into the data bus.
Speaker outputs follow a consistent 3.5 mm blade-style pinout: front left (B5, white), front right (B2, violet), rear left (B4, gray), rear right (B1, green). Each channel carries maximum 4 ohms–verify impedance before installing aftermarket amplifiers to prevent overheating the stock harness.
Steering wheel controls interface via the orange/black data lead (pin A6). Use an ASWC-1 adapter or a resistor-based circuit to retain functionality; direct splicing risks GM’s Class 2 communication errors. Always disconnect the negative terminal for at least 10 minutes before probing blue/white (pin A8) for accessory trigger output.
If static persists, test the pink/black wire (pin C3) for antenna power–shorted grounds here cause continuous interference. For navigation-enabled vehicles, pins C1 and C2 (purple/white and light blue) handle serial data; keep original connectors intact unless replacing the entire infotainment stack.
Chevy Sedan Audio System Connection Guide
Locate the factory harness behind the dashboard on the driver’s side, near the fuse box. The connector will have 12–18 pins, with colors matching these functions: constant power (yellow), switched ignition (red), ground (black), and speaker leads (gray, violet, green, and tan pairs). If the harness is absent, splice directly into the OEM wires using solder or crimp connectors–avoid twisting as it causes intermittent failures.
Identify aftermarket unit compatibility by checking the harness adapter. Most GM models use a standardized Axxess or Metra plug (ASWC-1 for steering controls). Verify the adapter’s pinout against the vehicle’s wiring–misalignment risks damaging the amplifier or fusing circuits. For non-factory amplifiers, bypass the stock harness entirely and run new 16-gauge speaker wires directly to the rear deck or door speakers.
- Constant 12V (yellow) – Connect to battery via a 10A fuse (max 18A for peak loads).
- Switched 12V (red) – Trigger from ignition circuit; never combine with yellow.
- Ground (black) – Secure to bare chassis metal, sanded clean for solid contact.
- Front left (+ gray, – light gray) – Polarity-sensitive; reverse causes phase cancellation.
- Front right (+ violet, – light violet) – Impedance must match (typically 4Ω).
- Rear left (+ green, – light green) – Cross-check against rear amp if equipped.
- Rear right (+ tan, – light tan) – Subwoofer outputs may require high-power RCA.
Disable OnStar or vehicle security modules if static occurs. Cut the pink wire (OnStar) or orange/white (data bus) to prevent interference–consult service manual for model-specific disarm procedures. For retained accessory power, add a relay between the ignition and constant power lines, ensuring the head unit powers off when the key is removed. Test all connections with a multimeter before securing the dash; voltages should read 12V±0.5V when keyed on.
Upgrade speakers by confirming wattage ratings. Door speakers often handle 20–50W RMS, while tweeters may require crossovers. Use 18-gauge wire for tweeters, 16-gauge for midrange, and 14-gauge for woofers. Avoid running power wires parallel to RCA cables–keep a 6-inch separation to prevent alternator whine. For dual-zone systems, splice the blue/white wire (remote turn-on) to the amplifier’s trigger; failure to do so leaves subs silent.
Matching the Right Electrical Link for Chevrolet’s 2004-2006 Sedan Audio System

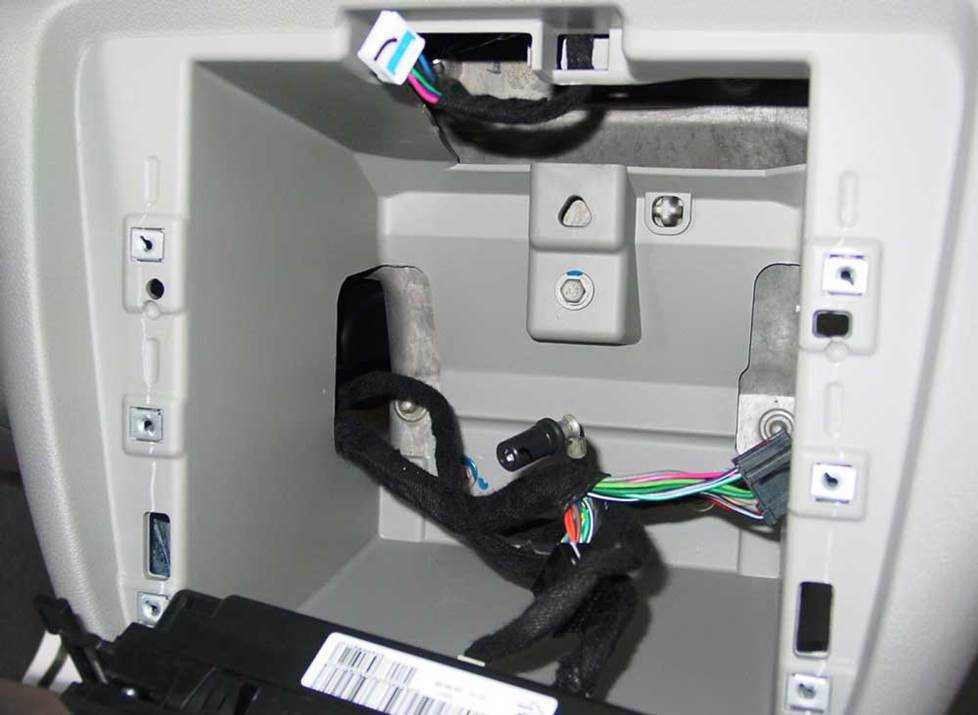

Locate the original OEM harness behind the dash panel–it terminates in a 12-pin rectangular connector with color-coded leads. Black (ground), yellow (constant 12V), red (switched 12V), and orange/white (illumination) are absolute; verify each against a multimeter before proceeding.
Aftermarket kits often bundle adapters labeled “Metra 70-1858” or “Axxess ASWC-1″–cross-reference the pinout layout with GM’s part #10466727. Confirm the harness matches the vehicle’s RPO code (UQ3 for premium sound, U2K for base models) to avoid signal loss or amplifier damage.
For clarity, strip back 5mm of insulation on each wire, twist strands tightly, and solder joints; crimp caps corrode over time. Avoid relying on butt connectors for high-current feeds (yellow, red), as heat buildup can melt cheap plastic housings under sustained load.
Check for factory harness modifications–some variants include a 4-pin auxiliary input pigtail (white, brown, blue, green) near the climate control module. If absent, source part #15881750 or splice into the Data Link Connector (DLC) pins 2 (ground) and 11 (serial data) for retained accessory power.
Non-standard installations (BOSE, OnStar retrofit) require decoding the gray connector with 8 additional pins–purple (rear left), gray (rear right), light blue (front left), dark green (front right). Mismatches here force phase cancellation, killing stereo imaging.
Test speaker polarity by playing a 1kHz sine wave; reverse wires if the cone moves inward instead of outward. Label every connection with automotive-grade tape (3M Super 33+)–generic electrical tape degrades within months under dashboard temperatures.
If the connector’s locking tab snaps off, replace the entire harness with GM #22850969; third-party duplicates often omit the retention clip, causing intermittent disconnects when the steering column adjusts.
How to Trace Electrical Connections in Your Vehicle’s Audio System Documentation
Begin by identifying the color-coded reference sheet typically included in service manuals. Locate the main power feed–usually marked with red or orange insulation–connected to a 12V constant source, often labeled as “B+” or “Memory.” Verify its path to the fuse box, noting splices or intermediate connectors that may affect signal integrity.
Next, pinpoint the switched power lead, distinguishable by its yellow or pink coating, which activates only when the ignition is turned on. Cross-reference this with the accessory circuit in the electrical schematic, ensuring it bypasses unnecessary modules to prevent voltage drop. Measure continuity at the harness plug to rule out corroded terminals.
Ground and Signal Circuit Verification
Trace the black or brown ground wires to their chassis attachment points–commonly bolted near the transmission tunnel or under dashboard panels. Scrape away paint or corrosion at the mounting surface, then test resistance with a multimeter (should read below 0.5 ohms). Confirm all ground paths converge at a single clean connection to avoid signal interference.
For speaker outputs, follow purple/green or gray/orange pairs from the head unit to each door or rear deck. Check for balanced impedance (usually 4 ohms) and continuity through crossover networks if present. Rear channels often split at the firewall, requiring inspection of grommet integrity where wires pass through metal.
Label each wire with tape after verification, noting any deviations from standard color coding found in aftermarket diagrams. Use a probe tester to confirm signal polarity while the system is powered on–left channels should synchronously pulse with a scope or tone generator. Document splices and crimp quality for future troubleshooting.
Standard Harness Color Codes and Signal Purposes for the Chevy Sedan Audio System
Identify the black ground lead first–it’s the most critical reference point for any installation. On the OEM connector, this wire is always labeled GND or paired with a thick black sleeve near the harness clip. Connecting this incorrectly will cause intermittent failures or complete system shutdown. For power, locate the yellow (B+) wire, which provides constant 12V to retain presets and clock settings, even when the ignition is off. The red (ACC/RAP) circuit delivers voltage only when the key is in the “accessory” or “on” position; mixing these two will drain the battery. Verify each connection with a multimeter before securing splices–minimum 20 gauge for signal paths, 16 gauge for power feeds.
| Wire Color | ISO Pin Label | Signal Type | Voltage (Key On) |
|---|---|---|---|
| Yellow | B+ / 30 | Permanent power | ~12.6V |
| Red | ACC / 15 | Switched power | ~12V–14.2V |
| Orange | Illumination / 58 | Dimmer control | ~0V–11V (adjusts with dash lights) |
| Gray | LF+ / 8 | Front left speaker (+) | ~2–8V AC (audio signal) |
| Gray/Black | LF– / 8 | Front left speaker (–) | ~2–8V AC (audio signal) |
| White | RF+ / 6 | Front right speaker (+) | ~2–8V AC (audio signal) |
| White/Black | RF– / 6 | Front right speaker (–) | ~2–8V AC (audio signal) |
| Green | LR+ / 3 | Rear left speaker (+) | ~2–8V AC (audio signal) |
| Green/Black | LR– / 3 | Rear left speaker (–) | ~2–8V AC (audio signal) |
| Purple | RR+ / 5 | Rear right speaker (+) | ~2–8V AC (audio signal) |
| Purple/Black | RR– / 5 | Rear right speaker (–) | ~2–8V AC (audio signal) |
Strip only the outer jacket back 3–4 mm to avoid shorting adjacent strands–this harness uses thin-wall insulation prone to nicking. Speaker outputs are differential: never ground either the plus or minus lead. The orange illumination wire requires a 1K ohm resistor to ground if integrating aftermarket units lacking dimmer compatibility. Retrieve antenna control via the pink wire (triangular connector); it triggers the motorized mast on key cycles. Ambient noise reduction systems often splice into the light blue wire–leave this intact unless replacing the entire audio stack with a DSP-capable head unit.
