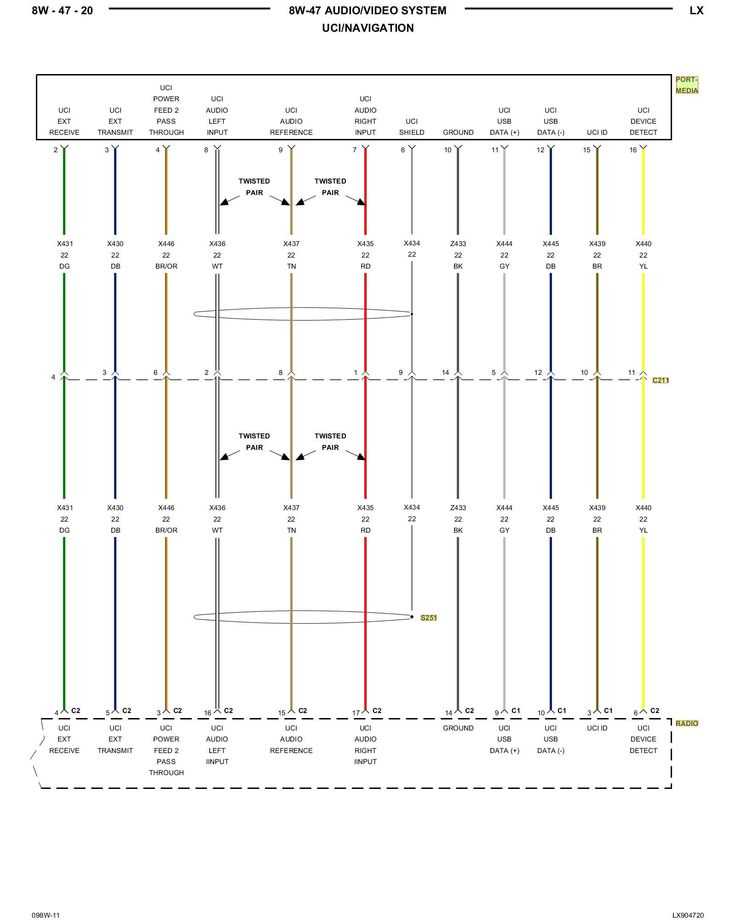

Dodge Charger 2006 Radio Wiring Diagram Full Color Connection Guide

Locate the fuse box under the dashboard on the driver’s side–remove cover by pressing the release tab. Identify fuse #23 (20A, pink) for the entertainment cluster; use a multimeter to confirm continuity before proceeding. If blown, replace with an identical amperage fuse–never exceed factory specifications. Trace the power wire from the back of the head unit; it follows a red/yellow striped path along the firewall grommet, entering through the passenger-side kick panel.

Disconnect the negative battery terminal first–minimum 10-minute wait ensures capacitors fully discharge. Remove the center console trim by gently prying upward from the rear edge using a plastic trim tool, then unsnap the climate control bezel by sliding it forward. The ISO harness connector sits directly behind–release the locking tab with a flathead screwdriver while pulling downward. Note pin assignments: constant 12V (yellow), switched 12V (red), ground (black), illumination (orange/white).

For aftermarket upgrades, match wire gauge–18 AWG minimum for power leads to prevent voltage drop. Solder connections and insulate with heat-shrink tubing; crimp connectors degrade over time. If integrating a subwoofer, splice into the rear speaker outputs (gray/light green pairs)–verify polarity with a 9V battery test. Factory amplified systems require bypassing the amplifier turn-on wire (blue/white) to trigger external amplifiers.

Reassemble in reverse order–ensure all retaining clips snap securely. Reconnect the battery, then test each function before finalizing trim installation. If static persists, inspect antenna grounding under the trunk liner; corrosion here causes intermittent signal loss. For vehicles with navigation, the purple/green GPS antenna wire must remain uninterrupted–reroute carefully along existing harness channels.

Electrical Guide for Your Sedan’s Infotainment System

Locate the harness behind the dashboard’s center console–pin #12 (violet wire, labeled “B+”) supplies constant 12V power, while pin #8 (yellow wire, “Illumination”) activates dimming with the headlight switch. Ground connections split into two: the primary ground (black, pin #4) and secondary (brown, pin #5) for antenna motor control. Verify each connection with a multimeter set to DC 20V before securing crimps; resistance above 0.5 ohms indicates corrosion or loose terminals. Replace any oxidized wires entirely–splicing tape or butt connectors fail under engine vibration.

Wire Color	Function	Harness Pin	Voltage (Key On)
Dark Green/Orange	Left Front Speaker (+)	1	4.5V
Gray/Black	Right Front Speaker (-)	7	0V
Pink/Light Green	Ignition Switched Power	9	12V
Blue/White	Amp Remote Turn-On	14	12V

Troubleshooting Signal Loss

Check the coaxial cable (RG58, white shielding) between the tuner module and roof-mounted antenna–kinks or breaks cause intermittent AM/FM reception. For CD changers, ensure the data bus (orange/white wire, pin #15) maintains 5V logic levels; voltage drops below 4V trigger error code “ERR.” If retrofitting an aftermarket unit, bypass the factory amplifier by connecting speaker wires directly to the head unit–factory crossovers (330Hz low-pass) distort high-frequency signals.

Locating Original Audio System Harness Plugs in Your Sedan

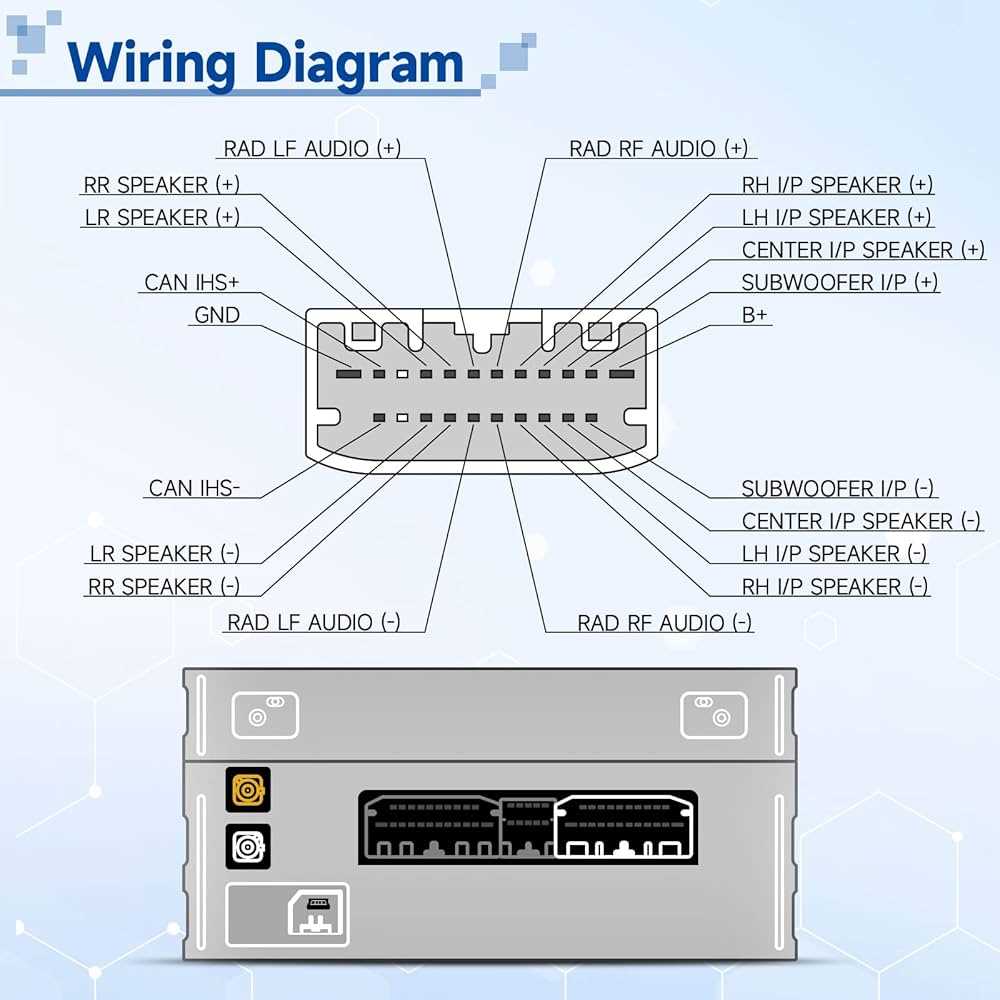

Begin by accessing the rear of the factory stereo deck–remove the trim panel secured by snap clips using a plastic pry tool to avoid scratches. The primary harness plug consists of a 24-pin connector (typically gray or white) with staggered pin rows; this mates directly to the back of the OEM head unit. A secondary 4-pin power plug (often yellow with a red/green stripe) supplies constant and switched voltage–confirm these wires with a multimeter before splicing.

Check for a separate 8-pin amplifier harness beneath the dashboard on models equipped with premium sound systems; it includes wires for front and rear speaker outputs, ground, and turn-on leads. Trace each wire bundle back to its source–speaker cables are color-coded with solid and striped combinations matching door tweeters, mid-range, and subwoofer outputs. Label every wire immediately to prevent signal misrouting during upgrades.

Identify the antenna lead–usually a single coaxial cable terminating in a thin, silver-threaded plug–and ensure it’s firmly seated; loose connections cause weak reception. Behind the glovebox, locate the satellite signal interface (if present) bundled with GPS or hands-free microphone wiring; these share a common 6-pin mini-DIN connector distinguishable by its smaller pin grid.

For vehicles with rear entertainment options, find the auxiliary video connector–a distinct 10-pin harness feeding signals to passenger monitors–typically routed along the roof liner. Examine harness boots for brittle insulation; brittle wires often crack near hinge points in the dashboard frame. Use heat-shrink tubing when repairing exposed conductors to maintain water resistance.

Verify harness compatibility with aftermarket adapters by cross-referencing pin assignments; Chrysler’s OEM setup differs from standard ISO configurations. Reference technical service manual pinout tables (e.g., harness #82210219 for non-navigation units) to match wire colors precisely–green/purple may carry right-front positive in one variant but rear-left ground in another.

Test continuity between connectors before finalizing connections; a faulty harness piggyback (frequently brown in clamp-style connectors) can introduce ground loops or audio distortion. Secure all harnesses away from moving components (e.g., pedals, steering column) using zip ties–exposed wires near these areas wear rapidly due to friction.

Precision Color Codes for Audio System Connections in Factory Harnesses

Identify the orange wire with a bright green stripe as the primary constant 12V power supply–connect this directly to the ignition-switched output of the head unit to prevent battery drain. Verify continuity with a multimeter before soldering; nominal resistance should read below 0.5 ohms.

Speaker outputs follow a symmetrical pattern across left and right channels:

• Front left (+): gray with black stripe
• Front left (–): gray with orange stripe
• Front right (+): white with violet stripe
• Front right (–): white with brown stripe
• Rear left (+): green with yellow stripe
• Rear left (–): green with black stripe
• Rear right (+): purple with red stripe
• Rear right (–): purple with gray stripe

Ground connections require bare copper or black wires with faint white hash marks–locate these near the climate control cluster. Secure with a 10mm ring terminal crimped to the chassis, applying dielectric grease to inhibit corrosion. Avoid splicing into existing grounds; dedicate a new path for stable reference voltage.

For amplifier trigger circuits, tap the dark blue wire with a tan stripe (rear amplifier enable). Confirm activation by monitoring a 5V rise during power-on sequences. Misrouting this signal may cause intermittent mute functions or distorted output.

Illumination control is handled by a light blue wire with a white stripe–this dims display brightness in sync with vehicle dash lighting. Connect through a 1kΩ resistor if aftermarket interfaces exhibit flickering at low brightness levels. Failure to isolate this line can result in backlight failure or erratic dimming behavior.

Factory antenna leads consist of two distinct conductors:

1. Coaxial core: solid pink wire (RF signal)
2. Shield: pink with black stripe (ground return)

Use a coaxial crimp tool rated for 75Ω impedance to prevent signal reflection. Verify reception by tuning to a weak FM station before finalizing connections.

Auxiliary harness integration requires matching the following data bus wires:

• CAN High: yellow with black stripe (termination resistor 120Ω)
• CAN Low: brown with orange stripe (termination resistor 120Ω)

Solder using rosin flux only–acid-core flux will corrode traces within 6 months. Test data transfer by accessing diagnostic menus; error codes indicate improper termination resistance.

Step-by-Step Guide to Locating and Testing Ground Connections for Aftermarket Audio System Installation

Begin by identifying the factory ground points near the original head unit’s mounting bracket. Most vehicles cluster these connections behind dashboard panels or along the firewall. Use a multimeter set to continuity mode to verify a clean, direct path to the battery’s negative terminal. If resistance exceeds 0.5 ohms, the connection is compromised–strip corrosion or paint before proceeding.

Trace the existing harness’s ground wire (typically black or brown with a ring terminal) back to its factory splice. Cutting this wire prematurely risks disrupting the vehicle’s CAN bus or accessory circuits. Instead, use a T-tap or solder a new 16-gauge wire to the existing ground, ensuring a secure, vibration-proof joint with heat-shrink tubing.

For aftermarket installations, avoid relying on chassis screws shared with other components like airbags or ECUs. These screws often serve as secondary grounds and may introduce noise. Instead, drill a dedicated M6 hole in an unpainted section of the crossmember or firewall, deburr the edges, and secure a new ring terminal with a stainless-steel bolt and star washer.

Test each ground point with a load before finalizing. Connect a 10-watt resistor between the ground and a 12V source, then measure voltage drop across the connection. A drop above 0.1V indicates high resistance–reclean the surface or relocate the ground. Repeat this test after installation to confirm stability under load.

Tools Required:

• Digital multimeter (autoranging)
• Wire strippers (16-14 AWG)
• Soldering iron (60W minimum)
• Heat-shrink tubing (various diameters)
• Drill with M6 bit and deburring tool
• Stainless-steel hardware (bolt, nut, star washer)
• 10-watt, 1-ohm power resistor

When routing new ground wires, avoid sharp edges, moving parts, or heat sources like exhaust manifolds. Secure the wire every 12 inches with adhesive-lined clamps or plastic ties. If routing through grommets, apply dielectric grease to prevent chafing. Never bundle ground wires with signal or power cables to minimize interference.

For vehicles with aluminum or composite panels, use a self-tapping ground screw designed for thin metal. Pre-drill a pilot hole 1mm smaller than the screw’s shank, then drive the screw in until firm–over-tightening can strip the threads. Verify the connection with a torque screwdriver set to 8-10 Nm.

Final validation involves powering the system at max volume with all accessories turned on (blower, headlights, etc.). Any hum, distortion, or dimming indicates insufficient grounding. Re-examine all connections, focusing on the cleanliness of the metal-to-metal contact and the integrity of soldered joints.
