Complete 2006 Dodge Magnum Radio Wiring Diagram and Color Codes Guide

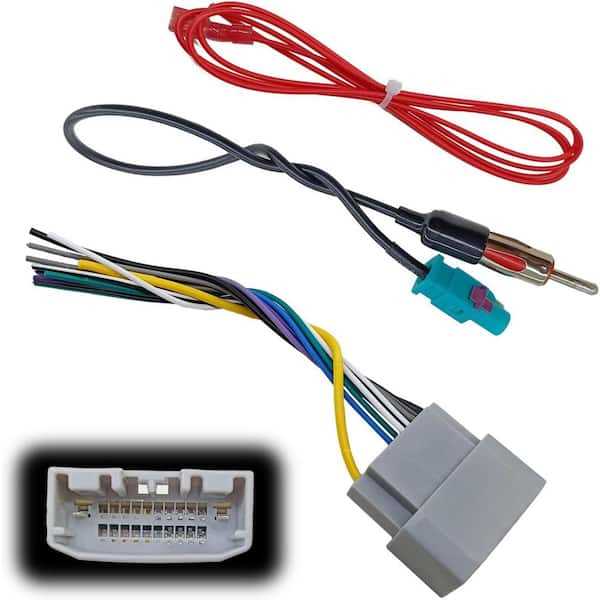

To locate the aftermarket stereo power harness adapter, check behind the lower dashboard panel on the driver’s side–this is where the vehicle’s factory connector terminates. The adapter should match the 16-pin square plug used in this model series, color-coded as follows: yellow (constant 12V), red (switched 12V), black (ground), orange/white (illumination dimmer), blue/white (power antenna trigger), and remaining wires for speakers–front left, front right, rear left, rear right–each paired with their respective ground lines.

If factory integration fails or adapter leads are missing, manually splice into the OEM harness using the pinout below. Strip 6mm of insulation on each wire, then crimp and solder connections before securing them with heat shrink tubing. Avoid tap splicing–this creates intermittent faults over time. For Bose-equipped trims, confirm the presence of an amplifier trigger wire (dark green/white) near the climate control module; without it, the upgraded head unit won’t deliver full output.

Verify speaker polarity before finalizing connections. A 9-volt battery test reveals phase: touch leads to the speaker terminals–if the cone pushes outward, polarity is correct. Reverse pairs for rear channels often occur in this generation, leading to weak bass response. Double-check the purple/white (rear right positive) and purple (rear right negative) arrangement; a single miswire inverts stereo imaging.

For navigation interfaces, the gray/black CAN bus wire must remain intact–tapping here powers the vehicle’s retained accessory settings. Disconnect the battery negative terminal before soldering to avoid shorting the 130-amp fuse linked to the alternator circuit. Reassemble panels in reverse order, ensuring no wires rest against rotating pedals or sharp metal edges under the dash.

Aftermarket Sound System Installation Guide for 2006 Charger Variant

Start by disconnecting the negative battery terminal to prevent short circuits during installation. Locate the factory harness behind the dashboard trim–it’s a 16-pin connector colored dark gray with blue accents. Match these wires to the aftermarket unit using the following pinout:

• Constant 12V power (red/yellow stripe): Connects to the battery via a dedicated 10A fuse, not the cigarette lighter circuit.
• Switched 12V access (pink): Draws power when the ignition is in ACC or RUN position.
• Ground (black): Attach directly to the chassis near the stereo mount, sanding down paint for a clean contact.
• Front speaker outputs: White (+) and white/black (-) for left channel; gray (+) and gray/black (-) for right.
• Rear speaker outputs: Green (+) and green/black (-) for left; purple (+) and purple/black (-) for right.
• Illumination control (orange): Reduces head unit brightness in sync with dashboard lights.
• Mute wire (brown): Disables audio during phone calls if the vehicle has hands-free integration.

For amplifier integration, identify the factory amp’s remote turn-on wire (blue/white stripe) behind the glovebox. Splice this into the aftermarket head unit’s remote lead to ensure the amplifier powers on simultaneously with the stereo. Verify all connections with a multimeter before reattaching the battery–ohm readings should show no breaks in speaker wires.

If replacing the entire harness, use a 22-gauge wire for signal connections and 18-gauge for power/ground. Crimp connections with butt splices, then solder and heat-shrink for corrosion resistance. Avoid twisting wires together–poor connections degrade over time due to vibration and thermal cycling.

Test the system in stages:

1. Reconnect the battery, turn the ignition to ACC, and confirm the head unit powers on.
2. Play audio through each channel individually, checking for distortion at 75% volume.
3. Engage parking lights to verify illumination dimming functions.
4. Trigger a simulated phone call (if applicable) to test mute functionality.

For vehicles with steering wheel controls, use an adapter like Metra ASWC-1 or PAC SWI-RC. Connect it to the data bus wire (yellow/light blue stripe) in the factory harness–this wire carries CAN signals. Program the adapter according to the manufacturer’s instructions, mapping each button press to the aftermarket unit’s inputs.

Finding the Audio System Cable Clusters in a Chrysler LX Platform Vehicle

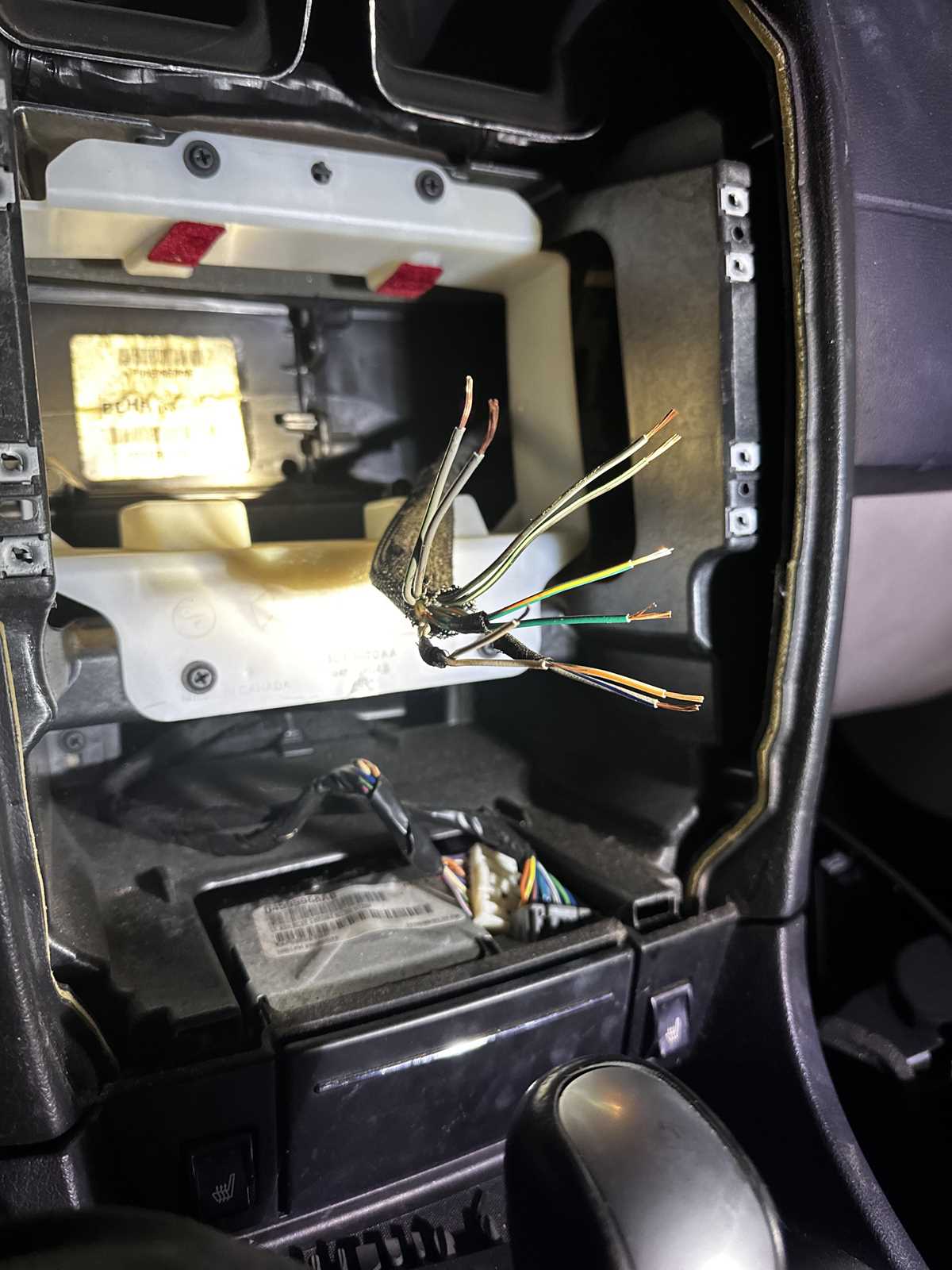

Begin by removing the center console trim panel. This panel is secured with four clips–two at the top and two at the bottom–requiring a firm pull to release. Slide a plastic trim tool between the panel and the dashboard to avoid scratching the surfaces. Once removed, you’ll expose the rear of the head unit and its connectors. The primary harness sits directly behind the stereo casing, typically a 16-pin rectangular plug with color-coded leads. On the passenger side, a secondary 8-pin or 12-pin connector handles power, ground, and amplifier triggers; trace the bundle upward to confirm its path toward the fuse box.

• Disconnect the negative battery terminal before handling any electrical components to prevent short circuits or accidental airbag deployment.
• Label each connector with masking tape before unplugging–note the pin count and wire colors (e.g., dark green for left front speaker, gray/light blue for right rear).
• Check behind the climate control module for hidden clusters if the main harness isn’t visible; some models route cables through this cavity.
• Use a multimeter to verify voltages: constant 12V (yellow), switched 12V (red), ground (black), and illumination (orange/black stripe).

Access Points for Rear Speakers and Amplifier Connections

For vehicles equipped with a premium sound system, the amplifier is located behind the left rear cargo panel. Remove the side trim by unscrewing two Torx T20 bolts and popping the clips. The amp harness includes thicker gauge wires (typically 14-16 AWG) for high-current paths, distinguishable by their bundled routing. The rear speaker connectors, often a 4-pin plug per channel, are found near the tailgate latch mechanism–follow the wiring loom upward from the subwoofer enclosure.

Step-by-Step Guide to Identifying Wire Colors and Functions

Locate the vehicle’s audio system harness behind the dashboard unit–look for a 12-pin connector on the back of the stereo or a separate wiring adapter. The yellow wire delivers constant 12V power straight from the battery, ensuring memory retention when the ignition is off. Pair it with the red wire, which supplies switched 12V from the ignition circuit, activating only when the key is turned to the ACC or ON position. Ground connections are universally black; verify continuity between this wire and the chassis to prevent intermittent failures or system noise.

Matching Speaker Outputs

Front speakers follow a standard color code: gray (positive) and gray with a stripe (negative) for the right front, and white (positive) with white-striped (negative) for the left front. Rear speakers use purple (right) and green (left), with their respective striped variants indicating ground. Test each pair using a 9V battery–briefly touching the terminals should produce an audible click from the corresponding speaker. If no sound results, inspect for broken strands, corroded contacts, or a blown fuse labeled “AMP” or “RADIO” in the under-hood power distribution box.

Illumination control for the display typically uses a light green or orange wire, drawing power from the vehicle’s lighting circuit to automatically dim when headlights are engaged. If the unit remains fully lit or dark, trace this wire to the headlight switch harness. For antennas, a blue wire or blue with a white stripe activates the power antenna relay or amplifier. If satellite or navigation features are integrated, additional harnesses may include pink (speed sensor), violet (reverse signal), and brown (mute) wires–always confirm against the service manual’s pinout for accuracy.

Steps to Securely Detach and Reattach the Original Audio System Harness

Disconnect the vehicle’s battery negative terminal first to prevent short circuits or damage to sensitive electronics. Use a 10mm socket to loosen the clamp, then set the cable aside in a dry location away from metal surfaces. Wait at least 10 minutes before proceeding to allow residual current to dissipate from capacitors in the unit or amplifier.

Locate the retaining clips or screws securing the stereo fascia–generally two on the upper corners and occasionally one at the bottom center. Press or unscrew these, then pull the unit forward gently. Insert a trim removal tool between the dash and the bezel to release hidden clips without scratching surfaces. Avoid using excessive force; wiggle the tool side-to-side if resistance is felt.

Identify the harness connector attached to the back of the device–typically a rectangular plug with multiple color-coded wires. Depress the locking tab on the connector while pulling it straight out; never twist or yank wires to avoid damaging pins. For models with a separate antenna cable, loosen the threaded collar by turning counterclockwise until free. Label both connectors with masking tape to simplify reconnection later.

Inspect the harness and pins for corrosion, bent terminals, or debris before reattaching. Clean contacts with electronic-safe cleaner and a soft brush if needed. Align the plug with the socket, ensuring all pins match their slots–misalignment risks bending or breaking connectors. Push firmly until the locking tab clicks into place, confirming a secure fit. Reattach the antenna by screwing the collar clockwise until snug, without overtightening.

Replace the stereo into the dash opening, tilting it slightly to guide any rails back into position. Reinstall screws or clips in the reverse order of removal, applying even pressure to avoid warping the fascia. Check for proper alignment before final tightening–a crooked unit may rattle or interfere with dash vents.

Reconnect the battery negative terminal, tightening the clamp securely. Turn the ignition to the “accessory” position to power on the system and verify functionality. Test all inputs (AM/FM, auxiliary, CD if equipped) and volume controls. If errors appear, recheck connections–common issues include loose plugs or antenna signal loss. Reset stored stations or equalizer settings as needed after power loss.
