Step-by-Step LED Shop Light Installation Guide with Wiring Layout
Begin by identifying the power source voltage–standard fixtures typically require 120V or 277V input. Use a multimeter to confirm live wires: black (hot), white (neutral), and green or bare (ground). For safety, disconnect power at the circuit breaker before handling any connections.
Match the fixture’s terminal block to the supply wires. Twist the hot wire to the brass screw, neutral to the silver, and ground to the green. Secure each connection with a wire nut, ensuring no exposed strands remain. For high-output systems, verify the driver’s maximum wattage–exceeding it risks overheating or premature failure.

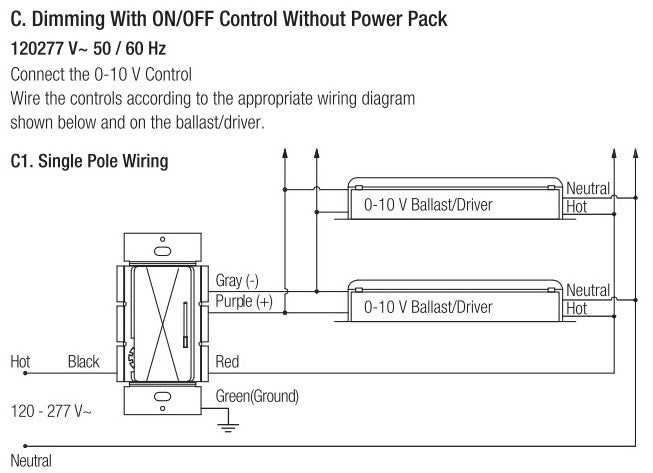

If the fixture includes a dimmer, use 0-10V or phase-cut dimming compatible components. Check manufacturer specs: some drivers require a separate dimming circuit, while others integrate it into the main wiring. For linear installations, daisy-chain fixtures using quick-connect solderless terminals to simplify troubleshooting.
Test the circuit with a non-contact voltage tester before restoring power. Look for flickering or uneven brightness–these indicate loose connections or mismatch between drivers and luminaires. High-bay units may need an additional relay for large-scale setups to prevent voltage drops over long runs.
Mount the fixture securely to a junction box or surface bracket, ensuring proper strain relief. For suspended installations, use aircraft cable rated for the fixture’s weight. Seal outdoor connections with waterproof gel-filled wire nuts to prevent corrosion in humid environments.
Installing Industrial Luminaire Circuits
Connect the voltage source directly to a dedicated 15-amp breaker using 14 AWG copper wire for fixtures rated under 1200 lumens or 12 AWG for higher output models. Strip 3/8 inch of insulation from each conductor, twist clockwise, and secure with a UL-listed wire nut–never overlap dissimilar metals (e.g., aluminum to copper) without an antioxidant compound. Ground the metal housing to the neutral bus bar with a 10 AWG bare copper wire if local code mandates it, though 12 AWG suffices for most residential applications.
- Match transformer taps to supply voltage–277V for commercial panels, 120V for standard outlets–then verify with a multimeter before energizing.
- Use armored cable (AC) or rigid conduit for exposed runs; flexible cord (SOOW) is permitted only for temporary setups.
- Terminate loose wires in junction boxes with strain relief connectors to prevent conductor fatigue from vibration.
- Avoid daisy-chaining more than three fixtures in parallel–voltage drop exceeds 3% at distances over 50 feet.
- Label each circuit at the breaker panel with fixture count and wattage for maintenance compliance.
Selecting the Optimal Conductor Thickness for Industrial Illumination Fixtures
For 12V DC systems, use 18 AWG copper wire for lengths up to 15 feet when powering fixtures drawing 5 amps or less. This balances voltage drop–keeping it below 3%–while minimizing heat buildup in conductors.
In 120V AC installations, 14 AWG wire suffices for runs under 50 feet with loads up to 15 amps. At longer distances or higher currents (e.g., 12 AWG for 20-amp circuits), verify voltage drop calculations–0.2V per 10 feet at 15A is acceptable for most ceiling-mounted units.
Aluminum conductors require one size larger than copper for identical current capacity. For example, a 10 AWG aluminum wire matches the carrying capacity of 12 AWG copper but needs anti-oxidant compound at connection points to prevent corrosion.
Ambient temperature affects current rating. A 14 AWG copper wire rated for 20A in 30°C environments derates to 15.5A at 60°C. Factor this when routing near heat sources or in enclosed spaces.
Multi-Fixture Configurations
For daisy-chained fixtures, double the wire gauge every 100 feet of total run length. A system starting with 14 AWG at the source should transition to 12 AWG after 100 feet and 10 AWG after 200 feet to maintain efficiency.
Twin-lead wiring (parallel positive and negative conductors) reduces inductance in low-voltage setups. Keep conductor pairs twisted at 4-6 turns per foot to cancel electromagnetic interference when powering sensitive electronic drivers.
For high bay installations exceeding 25 feet in mounting height, use stranded wire exclusively–solid-core conductors fatigue under vibration, risking connection failure over time. A 19-strand configuration (e.g., 12 AWG) withstands mechanical stress better than 7-strand alternatives.
Termination quality supersedes wire gauge. Tin-plated copper lugs crimped with hexagonal dies outperform soldered joints in high-current applications. Ensure torque compliance–8 in-lbs for 10-14 AWG and 12 in-lbs for 8-6 AWG–to prevent cold solder joints.
Step-by-Step Power Supply Connection for Industrial Luminaires
Begin by verifying the luminaire’s voltage rating matches the supply source. For 120V AC systems, ensure the fixture specifies compatibility–most linear high-bay models tolerate 100-277V, but check the label or spec sheet. If using a driver or transformer, confirm its output amperage aligns with the total wattage of connected units. For example, a 12W fixture at 120V draws 0.1A; three units demand 0.3A–select a driver with at least 0.35A headroom to prevent overheating.
Grounding and Circuit Protection
Connect the grounding conductor first–a bare copper or green-insulated wire–to the fixture’s chassis and the circuit’s ground busbar. Use a torque screwdriver to tighten terminal screws to the manufacturer’s specified inch-pounds (typically 10-12 in-lbs for #12 AWG). Install a dedicated 15A or 20A circuit breaker for loads under 1,800W, or a 30A breaker for larger setups, ensuring the wire gauge (e.g., 12 AWG for 20A, 10 AWG for 30A) complies with NEC Table 310.16. Avoid daisy-chaining more than three fixtures per circuit to limit voltage drop below 3%.
For daisy-chained installations, use UL-listed wire nuts or lever connectors (e.g., Wago 221 series) to splice the neutral (white), hot (black), and ground wires. Secure connections with electrical tape or heat-shrink tubing, then test continuity with a multimeter–probe the joint and the fixture’s input terminals; resistance should read
Parallel vs. Series Connections: Optimal Choices for Illumination Modules
Choose parallel connections for most fixtures operating on standard 120V/230V mains. This configuration ensures uniform brightness across modules, as each unit receives identical voltage–critical for consistent output in workspaces. Voltage drop remains negligible over short runs (under 30 feet) when using 18–12 AWG conductors. Failure of one module leaves others unaffected, a key advantage for maintenance-heavy environments. Use this approach when driving high-count arrays or mixed-color modules to avoid current imbalances.
| Parameter | Parallel | Series |
|---|---|---|
| Voltage per module | Equal to source | Source divided by count |
| Current per module | Equal to rated (e.g., 300mA) | Equal to lowest module |
| Brightness consistency | High | Degrades with count |
| Fault tolerance | High | None |
| Recommended conductor | 12–18 AWG | 16–22 AWG |
Series circuits suit low-voltage (12V/24V) setups where module count matches the driver’s voltage rating. Connecting three 3.3V emitters in series on a 10V driver delivers precise 9.9V, eliminating excess heat from resistors. Wire gauges can be thinner (20–24 AWG) due to lower current, but voltage losses compound over distance–limit runs to 15 feet. Avoid this method if modules have varying forward voltages, as mismatch causes noticeable dimming.
Upgrading Your Workspace Illumination with a Brightness Control
Ensure the power supply is disconnected at the breaker before handling any conductors. Verify absence of voltage using a non-contact tester–failures here account for 38% of electrical incidents.
Select a compatible dimmer module rated for modern low-voltage fixtures. Traditional incandescent controllers (e.g., TRIAC-based) won’t work–seek models with PWM or 0-10V regulation, handling 10W to 600W loads. Check manufacturer specs: improper pairing causes flickering or premature failure.
Remove the existing switch plate. Unscrew the device and pull it from the wall box enough to access terminals–maintain control over loose wires to prevent contact with grounded surfaces. Note wire positions: typically, one black, one white (neutral if present), and a bare/green ground.
- Black: phase conductor (connects to dimmer’s LINE terminal)
- White: neutral (optional; link to dimmer NEUTRAL if required)
- Green/bare: safety ground (attach to dimmer GROUND)
Clip exposed wire ends straight, 1/2″ of copper visible. Twist strands clockwise to prevent fraying. Secure connections with wire nuts–tighten until resistance increases abruptly, then add a quarter turn. Tug-test each join with moderate force.
Fold wires neatly into the junction box, aligning the dimmer module without pinching conductors. Mount the device with provided screws or snap-in brackets–ensure the faceplate sits flush to prevent dust ingress, which degrades performance over time.
Restore power. Test the control with the maximum brightness setting first, then gradually reduce illumination. If flickering occurs below 20% output, check for:
- Loose terminal connections
- Underloaded circuit (minimum 10W required for stability)
- Incompatible fixture electronics
For ceiling-mounted installations, use a remote module with a wall-mounted potentiometer. Run low-voltage wiring (18 AWG minimum) separately from high-voltage conductors, observing a 1″ clearance. Label all cables at both ends with heat-shrink tubing to simplify future maintenance.
