Complete 2006 Chevrolet Trailblazer Stereo Wiring Color Code Guide
Begin with the harness connector behind the factory receiver–pinout labels rarely match across aftermarket brands. Identify the constant 12V (orange, typically pin 6), switched accessory (yellow, pin 5), and ground (black, pin 4) leads immediately. Incorrect pairing here can trip the BCM fuse, rendering power seats and climate controls unresponsive. Test each wire with a multimeter before soldering or using crimp connectors; voltage drops above 0.2V indicate corroded terminals requiring replacement. Avoid relying on color-coded references alone; 2005-2009 GM models share harness layouts but differ at the antenna amplifier stage (gray plug, pins 8-9).
For amplifier bypass, route RCA cables directly to the door speakers–factory amplification (20W per channel) operates at 2 ohms, incompatible with most aftermarket units. Cut the pink/white wire (pin 10) on the Bose harness to disable the chime module; failure to do so causes intermittent feedback through the tweeters. If retaining the stock subwoofer, confirm the impedance matches your new head unit (typically 4 ohms) to prevent overheating. Rear seat audio controls interface via a single 3.5mm jack (green, pin 12); splicing here disrupts steering wheel functions unless using an ASWC-1 adapter.
Ground loops manifest as low-frequency hum. Isolate the head unit’s ground from the chassis using a 10-gauge copper wire connected to the battery’s negative terminal–avoid the vehicle’s frame. Parking brake sensor override requires bridging a specific resistor (330 ohms) between the light green/black wire (pin 3) and ground; skipping this step may trigger video playback safety locks. Antenna lead (blue, pin 7) carries 12V logic signaling–mishandling can fry the amplifier circuit. Always disconnect the battery’s negative terminal before modifying any harness to prevent airbag module errors.
Dim lighting integration: tap the brown wire (pin 2) for dashboard illumination sync–pulse-width modulation here requires a 1k ohm resistor to prevent flickering. Subaru Metra 70-2103 adapter plate fits but lacks HVAC button spacing; modify with a dremel for a seamless install. For rearview camera input, use the purple/white wire (pin 11) only–alternate wires risk overloading the reverse gear sensor. Final step: re-seal all connections with adhesive-lined heat shrink tubing–exposed wires under the dash corrode within 18 months in humid climates.
Chevy SUV Audio System Color-Coded Connections
Locate the purple (LT Purple) and gray (DK Gray) wires behind the factory head unit harness–these carry constant 12V power and ground respectively. Splice them first when integrating aftermarket receivers to prevent power loss or electrical interference. For speaker outputs, match the vehicle’s native wiring to the radio’s harness using this reference:
| Vehicle Wire Color | Aftermarket Connector | Function |
|---|---|---|
| Light Blue (LT Blue) | White/Violet | Front Right (+) |
| Dark Blue (DK Blue) | White/Green | Front Right (-) |
| Tan (TN) | Gray/Violet | Front Left (+) |
| Gray (GY) | Gray/Green | Front Left (-) |
| Green (GN) | Green/Violet | Rear Right (+) |
| Dark Green (DK GN) | Green/Blue | Rear Right (-) |
| Brown (BN) | Orange/Violet | Rear Left (+) |
| Yellow (YL) | Orange/Green | Rear Left (-) |
Avoid splicing the orange (OR) illumination wire unless you’re retaining dimmer functionality–this wire adjusts display brightness in sync with dashboard lights. If installing a navigation unit, tap into the pink (PK) memory wire (switched 12V) for retained GPS data; failed connections here cause frequent satellite re-acquisition. Always test harness integrity with a multimeter before powering up–a single reversed polarity pair can fry amplifier modules.
Troubleshooting Common Issues
If the radio powers on but emits no sound, verify the black (BK) chassis ground is secured to bare metal–paint or corrosion here causes intermittent audio dropouts. For steering wheel controls, use an ASWC-1 adapter; manual splicing risks CAN bus errors, triggering dashboard warning lights. When static persists, reroute RCA cables away from the vehicle’s blue (BU) antenna trigger wire–proximity induces signal distortion. For retained OnStar, preserve the white (WH/OR) data link without modification.
Finding the Electrical Connections Behind Your OEM Head Unit
Start by prying off the trim panel surrounding the dashboard unit with a flat plastic tool–insert it into the top left corner and gently work your way around. The panel clips snap into place without screws, so apply steady pressure to avoid breaking tabs. Once removed, you’ll expose the head unit’s mounting bracket and the bundled harness on the right side. This connector grouping includes power leads, speaker outputs, and accessory lines, all color-coded for identification.

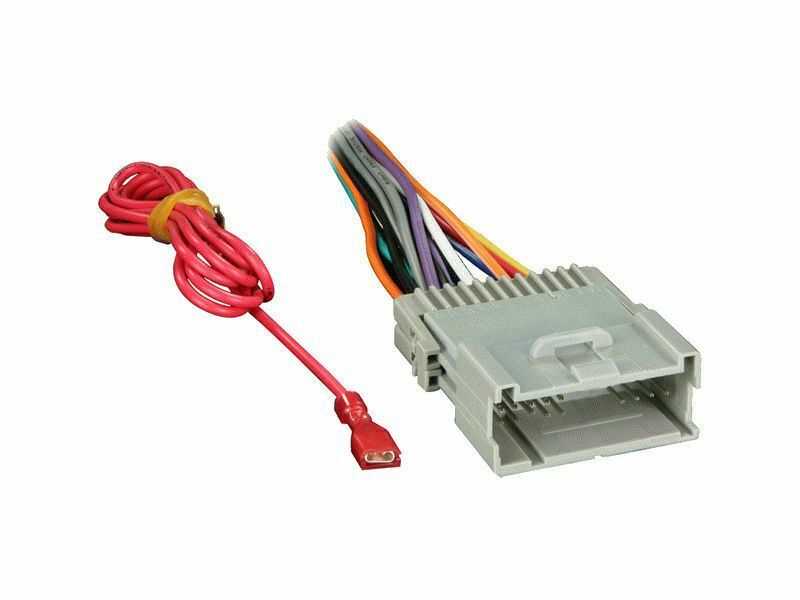

Disconnect the battery before handling any wires to prevent short circuits or blown fuses. The factory harness typically uses a 12-pin rectangular plug (often white or gray) that locks into the back of the head unit. Press the release tab on the side of the connector while pulling firmly to detach it–forceful tugging can damage pins. If the plug resists, check for hidden screws or secondary latches securing it to the frame.
Behind the head unit, trace the wires downward into the dashboard cavity. The main harness runs along the firewall and branches into smaller connectors for climate controls and vehicle data links. A secondary harness, usually taped or zip-tied to the main bundle, carries amplifier signals (if equipped) or steering wheel controls. Cut zip ties carefully–scissors can nick insulation, leading to intermittent faults.
Use a multimeter to verify wire functions before splicing or adding aftermarket components. Ground wires (black/black with stripe) should show 0 ohms to chassis ground. Memory power (yellow) retains settings and should hold 12V even with the ignition off. Speaker wires alternated with solid and stripped colors–match positive leads (gray, green, purple) to their corresponding negatives (gray/black, green/black, purple/black) to avoid reversed polarity.
Color Codes for Power, Ground, and Audio System Connections
Identify the main power feed by locating the yellow (B+) wire–this connects directly to the battery for constant 12V supply. Verify ground using the black (GND) wire, which must attach to a clean, bare-metal chassis point to prevent noise or intermittent failures. For accessory power, the red (ACC) wire activates when the ignition switch is turned to “ON” or “ACC,” ensuring the system powers down when the vehicle is off.
Speaker outputs follow a consistent color scheme across most aftermarket and OEM setups. Front left positive is typically white, with its negative pair white/black stripe. Front right positive uses gray, paired with gray/black stripe. Rear left positive defaults to green with green/black stripe, while rear right positive is purple, matched to purple/black stripe. Always confirm polarity with a multimeter before finalizing connections to avoid phase cancellation.
- Yellow (B+): Permanent 12V, fused at 10A–20A.
- Red (ACC): Switched 12V, powers down with ignition.
- Orange (optional): Illumination dimmer control in some vehicles.
- Blue/white: 12V remote turn-on for amplifiers.
- Brown: Mute/speed-sensitive volume wire (uncommon in base models).
Match any additional harness connectors using the OEM pinout: pink often carries vehicle speed sensor data, while light green may handle antenna motor control. If integrating an amplifier, splice the blue/white remote wire into the head unit’s corresponding output. Avoid relying solely on memory–cross-reference colors with the vehicle’s service manual or a verified repair database, as regional or trim-specific variations exist. Secure all splices with solder and heat-shrink tubing to prevent corrosion or short circuits.
Steps to Remove the Dashboard Trim for Audio Unit Access
Disconnect the negative battery terminal to prevent electrical shorts before starting. Use a trim removal tool or flathead screwdriver wrapped in tape to pry up the climate control panel bezel. Work slowly around the edges, releasing the clips securing it–there are 6 clips on most models, located at each corner and midway along the top and bottom.
Lift the bezel gently to expose the screw covers beneath. Remove the two screws (typically 7mm) holding the center vent assembly in place. Slide the vent out carefully–it may still be connected by a small wiring harness for illumination. Disconnect the harness if present, pressing the release tab before pulling.
- Next, locate the two screws (one on each side) securing the main trim panel. These are often hidden behind small plastic plugs–pop them out with a small screwdriver.
- Remove the screws (usually 8mm or 10mm) and set them aside in a labeled container.
- Pull the trim panel outward, starting from the bottom. It’s held by clips along the edges, so apply even pressure to avoid breaking them.
Once the trim is free, tilt it upward to access the factory head unit. It’s secured by a metal bracket or cage–remove the four screws (typically Torx T20) holding it. Slide the unit out, disconnecting any wiring harnesses or antenna cables by pressing the release tabs. Reinstallation follows the reverse order, ensuring all clips and screws are fully seated.
Integrating a New Audio Head Unit with Factory Harness Connections
Start by locating the vehicle’s original connector behind the dash panel–typically a 12-pin or 16-pin plug with color-coded leads. Match each wire from the aftermarket device to the corresponding harness using a multimeter for verification. Constant 12V power (often yellow) and ground (usually black) must align precisely to prevent malfunctions or electrical damage. Ignore splice kits that claim universal compatibility; OEM harness adapters designed for the specific model ensure reliable signal transfer without cutting original wires.
Identify the speaker outputs by checking resistance values–factory leads should read between 2 and 8 ohms. Reverse polarity (swapping positive and negative) during connection will distort sound or cancel audio entirely. If the vehicle has a factory amplifier, bypassing it may require an interface module; otherwise, the new unit’s internal amp will lack sufficient power. Test each channel individually before finalizing the installation to isolate issues like muted outputs or phase cancellation.
For retained steering wheel controls, procure a dedicated integration adapter–generic solutions often fail to map commands correctly. Program the adapter’s firmware if the aftermarket unit supports it, following the manufacturer’s pairing sequence. Factory chimes (seatbelt alerts, turn signals) rely on specific voltage signals; disrupting these can disable critical warnings. Use a wiring schematic tailored to the trim level to avoid misrouting wires intended for other systems like OnStar or parking sensors.
Secure all connections with soldered joints and heat-shrink tubing to prevent corrosion or intermittent failures. Avoid electrical tape–it degrades over time, exposing wires to moisture. Route cables away from heat sources and moving parts to avert insulation damage or short circuits. If the vehicle has a premium sound system with active noise cancellation, additional wiring for microphones or signal processors may be necessary to maintain functionality.
Troubleshooting Common Issues
If the display dims erratically, verify the illumination wire (often orange or gray) connects to a variable voltage source, not a constant 12V. Factory dimmers adjust brightness dynamically, and miswiring can cause flickering or no backlight. For vehicles with automatic headlights, the same wire may control both dash lights and audio unit dimming–test with the lights on and off to confirm behavior.
Bluetooth or USB functionality may require a separate ground connection directly to the chassis to avoid interference. If the unit resets intermittently, check for parasitic draws from other systems sharing the fuse. Re-seat all connections after testing, as vibrations can loosen temporary splices. For persistent errors, consult the aftermarket unit’s pinout diagram–some models require jumpers between unused terminals to simulate factory signal conditions.
Finalize the setup by calibrating the equalizer for the cabin’s acoustics. Factory-installed speakers often compensate for road noise or poor soundstage; aftermarket tweeters may reveal harsh frequencies without proper tuning. If the vehicle has a subwoofer output, ensure the new unit’s crossover settings match the original amplifier’s filters to avoid muddy or clipped audio.
