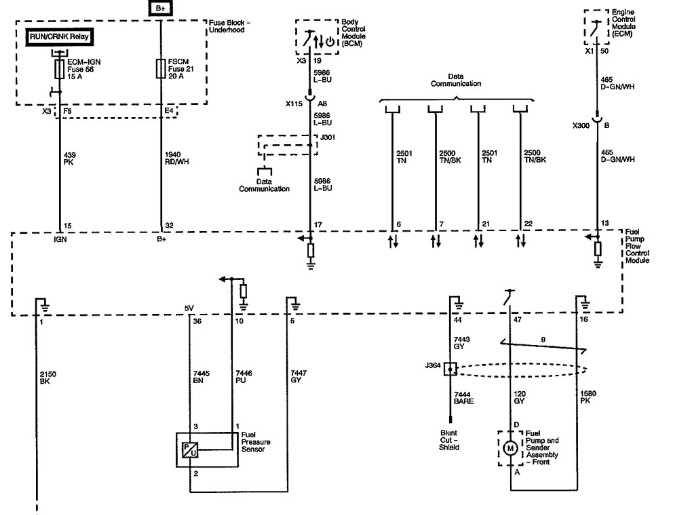

2007 Chevy Silverado Fuel Pump Module Wiring Schematic Guide
Start by disconnecting the negative battery terminal before handling any electrical components under the vehicle’s hood or near the chassis. The power management unit for the high-pressure delivery mechanism in this truck model is mounted on the passenger-side frame rail, directly beneath the fuel tank. Trace the wiring harness from the sending unit–four primary wires exit the assembly: pink/black (ignition feed, 12V+), dark green/white (signal return, typically 0-5V), gray (ground reference), and light green (ECU control, 12V PWM). Identify these colors on the connector at the control box before proceeding.
Use a multimeter set to DC voltage–probe the pink/black wire while cycling the key to the ON position; readings should stabilize at 12.6V battery voltage. If values fluctuate below 11.5V, inspect the ignition relay and corresponding fuse (20A, slot #25 in the under-dash panel). The light green circuit regulates fuel delivery via pulse-width modulation; accessing its signal requires back-probing the connector with a non-invasive pin or T-tap. Confirm continuity between the dark green/white and chassis ground–resistance should measure
Antennae-style interference can disrupt the PWM signal; route the harness away from other high-current wires such as alternator output (thick yellow) and starter solenoid (brown). The factory service manual specifies a maximum harness bend radius of 3 mm–exceeding this may fracture internal wire strands. Replace any corroded connectors using OEM terminals (part #25036476) and dielectric grease. Avoid soldering splices; instead, use crimp connectors rated for 20A continuous current.
If the system fails to prime, verify the inertia switch located behind the glovebox–it interrupts voltage to the pump during sudden deceleration. A 10-second delay is normal upon initial ignition; if no humming is audible from the tank assembly, check the relay (rear fuse block, position #37) for proper switching. Diagnostic trouble codes related to this circuit typically manifest as P0230 or P0627–erase with a scan tool after repairs.
Electrical Circuit Layout for GM Pickup Fuel Delivery System Processor
Locate the processor beneath the driver-side rear cargo rail, adjacent to the frame rail. Harness connector C3 (16-pin gray) carries power, ground, and sensor signals essential for pressure regulation. Pin assignments are as follows:
- Pin 3: Ignition voltage (12V) via fuse E (20A), red wire
- Pin 14: Chassis ground (braided strap to frame), black/white wire
- Pin 12: Pressure sender return (variable 0.5-4.5V), pink wire
- Pin 7: Output to high-pressure solenoid (PWM 250Hz), dark green/white tracer
Trace the wiring bundle along the left frame rail; secure any chafed sections with split-loom tubing rated for 105°C. Verify continuity between the processor and the main harness using a multimeter set to 200Ω scale–readings above 5Ω indicate corroded terminals requiring replacement.
Critical Signal Paths and Failure Points
Three primary paths dictate reliable operation:
- Power feed must maintain ≥11.8V under cranking; measure at Pin 3 while an assistant engages the starter. Voltage drops below 10.5V suggest a weak battery or faulty starter solenoid.
- The ground path at Pin 14 must show
- The PWM output (dark green/white) should produce a clean 5V square wave when viewed on an oscilloscope at idle. Noise on this line–often caused by improper shielding–triggers false lean codes, forcing the ECM into a limp mode.
Split the harness at the rear axle crossmember to inspect the 12-gauge pink sender wire; oxidation at this splice is a common failure, manifesting as fluctuating fuel gauge readings on the instrument cluster.
Replace the entire C3 connector if corrosion is visible on the pin terminals; GM part number 12147124 includes new seals and terminal locks. After reconnection, cycle the ignition five times without cranking to allow the processor to calibrate the pressure sender baseline–failure to perform this step may result in hard-start conditions on the next drive cycle.
Finding the Fuel Management Processor in Your Pickup
The electronic regulator is mounted under the chassis near the rear axle, adjacent to the driver-side frame rail. Look for a black plastic housing roughly 20 cm long secured by a single 10 mm bolt and two snap clips. Peel back the under-vehicle shield if installed; the unit sits approximately 30 cm forward of the rear wheel well.
Use a scanner capable of bidirectional controls to command the relay on–listen for a faint hum lasting 2–3 seconds. Trace the sound to confirm. If silent, disconnect the negative battery terminal for 10 minutes to reset any fault codes before re-testing.
| Connector Pin | Wire Color | Function | Expected Voltage |
|---|---|---|---|
| A | Orange/Black stripe | Ignition feed | 12.0–14.5 V key-on |
| B | Pink | Battery constant | 12.0–14.5 V at all times |
| C | Dark Blue/White stripe | PCM control | Pulsing 5–8 V when running |
| D | Black/White stripe | Ground | below 0.1 V |
Physical Removal
Clear debris around the bracket. Slide the unit downward to release the clips; no tabs or screws hold it in place. Pull the 4-way connector straight back–twisting risks fracturing the locking tang. Inspect the pins for corrosion or bent terminals before reinstallation.
If replacement is needed, ensure the new part number matches 15860036 or equivalent. Compare the connector shape; some off-market units use incorrect housing geometry that won’t fully seat, causing intermittent malfunctions. Test drive within 50 miles of installation to verify no pending DTCs return.
Step-by-Step Guide to Accessing the Electrical Connector for the Power Delivery System
Disconnect the negative battery terminal first to prevent short circuits. Locate the rear axle beneath the cargo bed; the harness attaches to the underside frame rail near the spare tire well. Use a 10mm socket to remove the heat shield bolt securing the protective cover over the connector.
Release the wiring clip by pressing the tabs on both sides simultaneously while pulling outward. Separate the two halves carefully–excessive force may damage the pin connectors. If corrosion is present, apply dielectric grease to restore conductivity before reassembly.
Trace the harness upward toward the bed floor. Three retaining clips fasten it along the frame; pry these loose with a flathead screwdriver, pivoting gently to avoid snapping the plastic. The third clip sits adjacent to the exhaust hanger–ensure the harness remains clear of moving suspension components.
Once free from the frame, follow the bundle to the transfer case region. A sealed junction box containing relay safeguards is mounted here; squeeze the lower latch to open it. Inside, a 20-pin connector interfaces with the primary circuit–note the lock position before detaching.
Inspect the cables for abrasions, particularly where they pass over sharp edges near the rear differential. Replace any chafed sections with automotive-grade braided tubing, securing it every 6 inches with spiral wrap to prevent vibration wear.
For reprogramming or sensor testing, reconnect the battery briefly with the ignition off. Probe the designated pins using a multimeter: the supply line should read 12.6V, while ground should show continuity to chassis metal. If readings deviate, check fuses F47 (10A) and F54 (15A) under the instrument panel.
Reattach components in reverse order, ensuring the harness follows its original routing. Verify all clips snap securely and no wires sag. Tighten the heat shield bolt to 22 lb-ft torque. Start the vehicle and monitor for proper function during a 30-second idle test before driving.
Color-Coded Wire Identification for the Electric Delivery System Circuit
Locate the primary power feed for the high-pressure circuit by tracing the orange (VT) conductor–this carries 12V ignition-switched voltage from the underhood junction block directly to the relay. Confirm continuity with a multimeter before proceeding; resistance should read below 0.5 ohms. The opposing relay terminal connects to an dark green/white (DG/W) harness branch, which energizes the solenoid assembly once the relay closes. Verify this path under load–spikes above 0.3V indicate parasitic resistance requiring splice repair or wire replacement.
Ground return paths use black (BK) or black/white (BK/W) strands, typically bolted to chassis points near the rear frame rail or bedliner reinforcement plate. Crimp corrosion or loose mounting hardware can introduce intermittent faults–clean mating surfaces with dielectric grease and torque bolts to 8-10 ft-lbs. For sensor feedback loops, the light blue/yellow (LB/Y) lead carries variable frequency signals; test waveform integrity at 50% load using an oscilloscope–the signal should display consistent 0.5-4.5V square pulses without distortion or noise spikes.
Verifying Power and Ground Integrity at ECU Terminals
Disconnect the electrical connector from the assembly before probing any circuits. Use a digital multimeter set to DC voltage (20V range) for accurate readings. Probe the designated power terminal with the positive lead while grounding the negative lead to the chassis or a known clean ground point. A stable reading of 12–14V should appear under ignition-on conditions; inconsistencies here indicate either a faulty relay, blown fuse, or corroded feed line.
Check ground integrity by reversing the multimeter probes–positive to chassis, negative to suspected ground terminal. Voltage drop exceeding 0.2V signifies compromised grounding. Inspect attachment points for rust, loose fasteners, or stripped threads; tighten or replace components as necessary to restore proper conductivity.
For dynamic testing, back-probe the harness connector with T-pins while the system remains operational. Monitor voltage fluctuations during engine cranking–expected values should drop no lower than 10V. If readings dip below this threshold, inspect the battery’s state of charge, starter draw, and alternator output before condemning the circuitry.
Trace the red/white (or equivalent) power feed wire from the relay to its source. Non-conductive splices, melted insulation, or rodent damage often disguise themselves as intermittent failures. Use a tone generator or circuit tracer to identify breaks without damaging the harness.
Examine the brown or black ground wire for continuity from terminal to chassis. Stubborn corrosion inside crimped connectors resists visual detection–apply dielectric grease after cleaning or soldering repairs to prevent recurrence.
Inspect the relay socket for carbon deposits or melted plastic; these often result from prolonged voltage spikes rather than relay failure. Swap the relay with a known-good unit from an adjacent circuit (e.g., horn or A/C relay) to isolate faults.
Check inline fuses even if they appear intact–use a multimeter in continuity mode to detect internal fractures. Replace any fuse exhibiting resistance greater than zero ohms, regardless of physical appearance.
For intermittent issues, gently wiggle the harness while monitoring voltage. A flickering or disappearing signal pinpoints a weak connection–resolder or replace the affected segment rather than applying temporary fixes like tape or crimps.
