Full Wiring Guide for 2007 Chevy Uplander Radio Installation
Begin by locating the factory harness connector beneath the dashboard on the driver’s side. Pinout labels follow standard GM color codes: yellow (constant 12V), red (accessory), black (ground), and blue/white stripe (amplifier trigger). Verify voltage readings with a multimeter–misconnections risk blowing fuses or damaging aftermarket units.
For steering wheel control integration, splice the orange data line into the vehicle’s Class 2 network. Adapter modules (e.g., PAC RP5-GM52) simplify this step but require firmware updates for full functionality. Avoid cutting the OEM harness; instead, use T-taps or solderless connectors for reversibility.
Speaker outputs follow this layout: front left (gray/dark gray), front right (white/dark green), rear left (green/gray), rear right (purple/dark purple). Check impedance before installing amplifiers–GM vehicles typically use 2-ohm speakers, while aftermarket systems may require 4-ohm replacements.

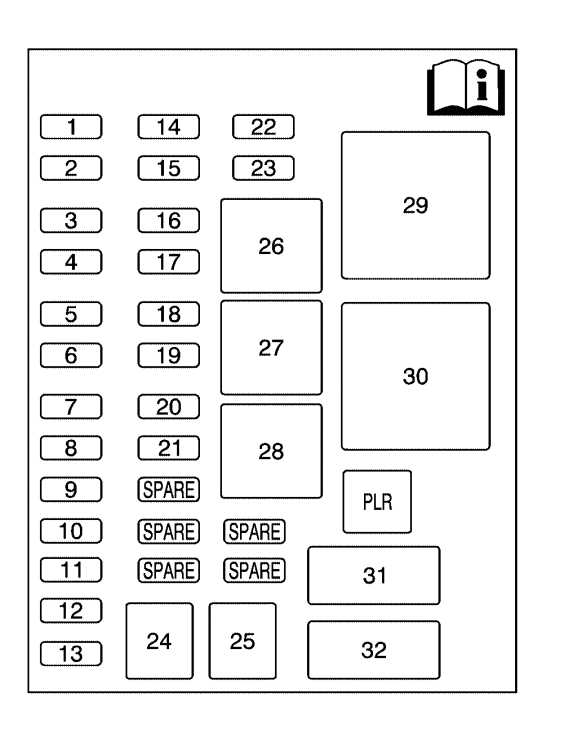

Fuse ratings for the audio system sit in the under-hood box at position F5 (10A) and F6 (15A). Replace faded wire labels using heat-shrink tubing to prevent shorts. If static persists during engine starts, add a noise filter capacitor (2200µF/25V) between the yellow and ground wires.
Bluetooth and USB retrofits demand tapping into the light blue (serial data) and pink (illumination) wires. Factory auxiliary ports often lack power; install a 12V-to-5V converter for modern media devices. Verify ground paths–corrosion at the firewall bulkhead can cause intermittent signal loss.
Installation Guide for GM Minivan Audio System Connections

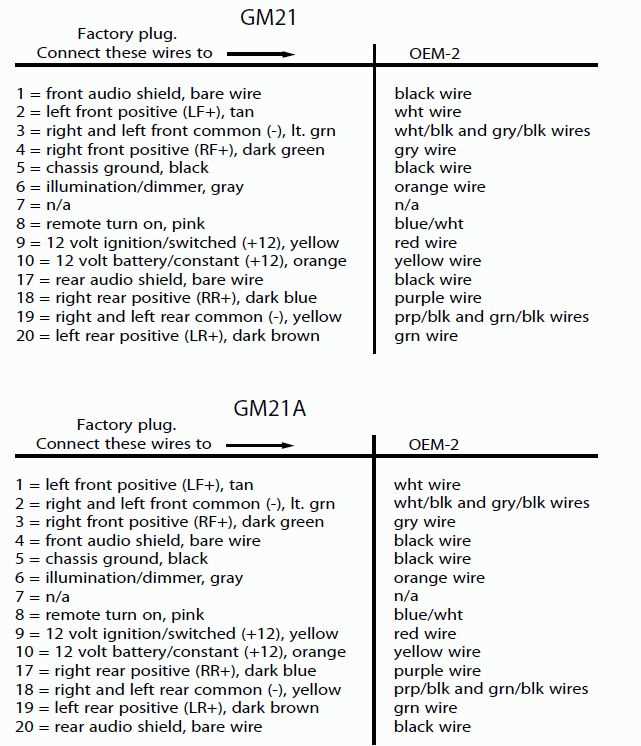

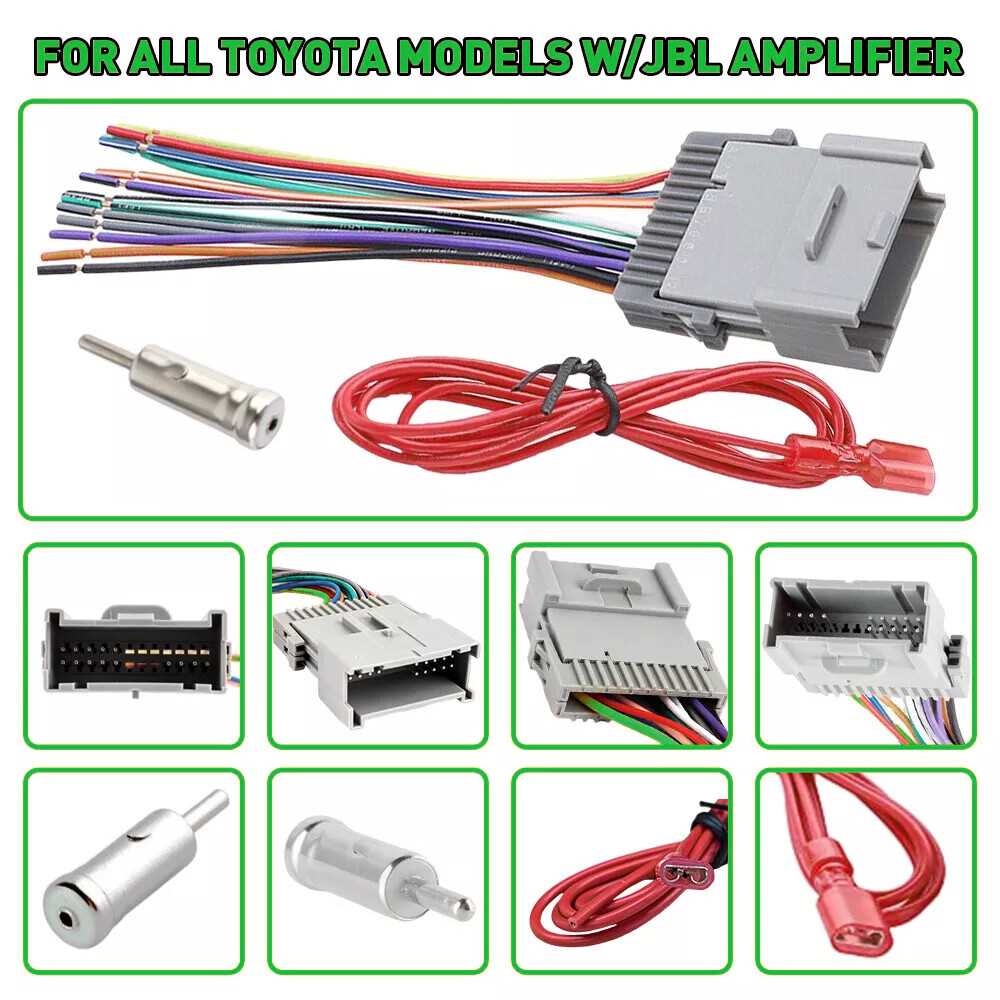

Begin by locating the factory harness behind the dashboard on the driver’s side. Remove the lower trim panel beneath the steering column to access the wiring bundle. Match the color codes from the aftermarket harness to the vehicle’s connectors:
- Yellow: Constant 12V memory (fused at 10A)
- Red: Switched 12V power (fused at 15A)
- Black: Ground (chassis connection, minimum 10-gauge wire)
- Blue/White: Amplifier turn-on (connect to stereo accessory wire)
- Gray: Front right speaker (+)
- Gray/Black: Front right speaker (-)
- Green: Rear right speaker (+)
- Green/Black: Rear right speaker (-)
- White: Front left speaker (+)
- White/Black: Front left speaker (-)
- Purple: Rear left speaker (+)
- Purple/Black: Rear left speaker (-)
Use a multimeter to verify all connections before securing the head unit. Set the meter to DC voltage (20V range) and probe the yellow and red wires with the ignition off (yellow should read 12V, red 0V). Turn the key to ACC–red must register 12V. If readings deviate, check fuses F40 (10A) and F41 (15A) in the under-hood fuse box.
For vehicles with OnStar or navigation, retain the orange data bus wire (18-gauge, twisted pair). Splice this into the new harness using a 6-pin METRA 70-2003 adapter to maintain steering wheel controls. Failure to connect this wire will disable voice command functionality and trip a “Service Stereo” warning on the DIC.
Secure ground connections at factory bolt locations. Avoid using sheet metal screws–drill a 3/16″ hole and thread a star washer with a 1/4″-20 bolt. Scrape paint around the contact point until bare metal is exposed. Poor grounding causes whine, dim lights, or intermittent power loss.
Troubleshooting Common Issues
If the display flickers or resets randomly:
- Disconnect the battery for 10 minutes to reset modules.
- Recheck yellow wire voltage–must hold 12V even with the ignition off.
- Inspect the ground wire for corrosion; clean with a wire brush.
- Add a 1000μF 25V capacitor between the red and yellow wires if voltage drops below 11.8V.
For no sound output on rear speakers, confirm the amp relay (RPO code UTJ) is present. If missing, splice the blue/white wire directly to the factory amplifier’s trigger input (located behind the rear seat, right side). Factory amplifiers in this model often fail–test with a 12V test light before proceeding.
Finalize installation by tucking excess wire into plastic conduit along the dashboard’s firewall pass-through. Reinstall trim panels using original clips–replace any broken retainers with GM part #10296234 (2.5mm x 15mm). Tighten all connections with zip ties at 6″ intervals to prevent vibration-induced shorts.
Finding the Audio System Cable Clusters in Your Minivan
Begin by removing the center console trim panel. Use a plastic pry tool to carefully detach the clips securing the lower storage compartment beneath the climate controls. This exposes the rear of the head unit and its primary conduit bundle.
Locate the two main connectors at the back of the stereo enclosure. The upper plug, a 12-pin grey socket, handles power delivery, speaker outputs, and antenna control. The lower connector, an 8-pin black interface, manages auxiliary inputs, illumination, and data communication for the vehicle’s entertainment network.
The conduit bundles are color-coded for identification. Refer to the following breakdown:
| Connector Position | Wire Color | Function |
|---|---|---|
| Upper 12-pin (Pin 1) | Yellow | Constant 12V power |
| Upper 12-pin (Pin 4) | Red | Switched 12V ignition |
| Upper 12-pin (Pin 6) | Black | Ground |
| Lower 8-pin (Pin 3) | Orange/White | Dimmed illumination |
| Upper 12-pin (Pins 8-11) | Grey/Dark Grey/White/Dark Green | Front and rear speaker outputs |
Trace the cables from the stereo housing downward. They terminate behind the climate control module, where a secondary harness merges into the main vehicle loom. Disconnecting requires pressing the release tabs on each connector–no tools are needed unless corrosion is present.
For aftermarket installations, identify the harness adapters matching the vehicle’s year range. The minivan uses a standard GM Class 2 serial data bus; splicing into it incorrectly disrupts OnStar, chimes, and dashboard displays. Verify compatibility with a multimeter before connecting new components.
If the conduit bundle appears damaged, inspect the firewall grommet where wires enter the cabin. Rodents commonly nest here, chewing insulation. Use heat-shrink tubing or liquid electrical tape to repair exposed sections before reconnecting.
Test all circuits before reassembling. Reattach the trim panels only after confirming audio playback and auxiliary functions operate normally. Misaligning clips during reinstallation may cause rattling or interfere with future access.
Decoding Factory Audio System Connector Wire Hues and Purposes
Locate the 16-pin harness adapter behind the dashboard unit–pin #1 (yellow with a thin red stripe) delivers constant 12V power from the battery, ensuring memory retention for presets and clock settings even when the ignition is off.
Identify ignition-switched voltage on pin #4 (solid purple), which activates the head unit when the key is turned to ACC or ON positions, preventing parasitic drain during prolonged inactivity.
Speaker Output Terminals
Front left and right outputs use pins #5 and #6 (gray/black stripe and gray, respectively) for positive signals, while their negative counterparts occupy pins #7 and #8 (gray/black stripe and gray with a white stripe)–check for mismatches here if audio distortion occurs.
Rear speaker wiring follows a similar convention: orange (pin #9) and orange/black stripe (pin #10) for rear right positive and negative; tan (pin #11) and tan/black stripe (pin #12) handle the rear left side–confirm continuity with a multimeter if sound cuts out intermittently.
Additional Circuit Functions
Antenna trigger sits on pin #13 (light blue), sending a signal to automatically extend the mast when the entertainment system powers on–test for 12V here if the antenna fails to deploy.
Illumination control resides on pin #16 (light green/white stripe), dimming display brightness in sync with exterior lights–observer voltage fluctuations between 0-12V during night driving conditions.
Ground connections utilize pins #2 and #3 (black), forming a reliable return path–ensure solid chassis contact to prevent static interference or intermittent shutdowns.
Step-by-Step Guide to Safely Removing Your Original Sound System
Disconnect the negative battery terminal first. Use a 10mm wrench to loosen the clamp on the post–this prevents short circuits and accidental airbag deployment. Wait at least 10 minutes before proceeding to allow capacitors in the dashboard to fully discharge.
Remove the trim panel surrounding the head unit. Insert a plastic pry tool into the seam at the bottom edge, starting near the climate controls. Apply steady pressure to pop the clips–work in a circular motion around the perimeter to avoid breaking the plastic tabs. The panel on this model typically has six retention clips.
Locate the mounting screws securing the stereo. Two 7mm bolts are positioned vertically on the faceplate, with an additional screw hidden behind the upper trim near the hazard button. A magnetic screwdriver helps prevent dropped fasteners, which can fall into overlooked dashboard cavities.
Slide the head unit out carefully, tilting it forward once free. The electrical connector and antenna cable are attached at the rear–press the release tab on the wiring harness while gently pulling the plug apart. For models with OnStar or satellite receivers, an additional coaxial cable may require unscrewing to detach.
Inspect the antenna cable for corrosion. If present, clean the contact with isopropyl alcohol and a soft-bristle brush. A corroded connection can degrade signal strength in the replacement system, leading to static or weak reception even with proper installation.
Store removed components in a labeled container. Keep screws, clips, and the wiring adapter together to prevent misplacement. If reinstalling the factory unit later, ensure all connectors align flush to avoid inconsistent power delivery or intermittent functionality.
Before closing the dash, test the new stereo’s compatibility with steering wheel controls and vehicle settings. Some aftermarket systems require an adapter module–confirm voltage levels on the harness pins with a multimeter to prevent damage to integrated circuits during reconnection.
