Complete 2007 Dodge Charger Fuel Pump Wiring Diagram Guide for Repairs
Locate the central power relay under the dashboard near the driver’s side–pin 30 supplies constant battery voltage, while pin 87 activates the circuit when ignition is engaged. Disconnect the negative terminal before probing connectors to prevent shorting sensitive modules.
Trace the main injector harness from the powertrain control module (PCM) to the inline connector beneath the rear seat. The gray wire with violet stripe carries 12V output to the delivery module; verify continuity with a multimeter set to 200Ω range. Any reading above 5Ω indicates corrosion or a frayed conductor requiring immediate repair.
Check the ground splice near the left rear wheel well–G101 should measure near 0.1V drop under load. If voltage exceeds 0.3V, clean the mounting stud with a wire brush and reapply dielectric grease to prevent oxidation.
Use a non-powered test light to confirm voltage at the module’s green connector terminal B–illumination confirms PCM command signal. Absence points to a broken feed wire or failed relay, often mistaken for internal pump failure.
For 5.7L engines, the secondary pressure sensor shares a harness with the delivery unit; disconnect it before back-probing to avoid false trouble codes. The yellow wire with light blue stripe transmits signal to the ECM–ensure it reads between 0.5V and 4.5V at idle.
Reassembly requires torquing electrical connectors to 8 in-lbs–excessive force cracks plastic housings, leading to intermittent faults. Route excess harness away from exhaust shields; secure with zip ties every 10 inches to prevent abrasion.
Electrical Layout for 2007 Sedan’s Fuel Delivery System
Locate the primary relay control module beneath the driver-side dashboard–specifically adjacent to the internal fuse panel. Identify pins 85 and 86; these terminals send activation commands to the power distribution junction. Verify continuity between relay socket pin 30 and the 12-gauge red/light blue striped conductor leading to the tank sender assembly. A resistance reading below 0.5 ohms confirms proper ground connection at G101, a chassis grounding point near the left rear wheel well.
Critical connections:
- Relay coil excitation path: Pin 85 → ignition switch (run/start position) → switched 12V source.
- Relay power feed: Pin 30 → maxi-fuse F12 (20A) → battery positive via starter solenoid.
- Load output: Pin 87 → pink/dark green 10-gauge wire → in-line connector C250 → in-tank module electrical feed.
Inspect the inertia switch mounted on the firewall behind the brake master cylinder. Its single 18-gauge white/orange conductor must show uninterrupted continuity to relay socket pin 86. Tripping this safety device severs the relay coil circuit, interrupting current flow to the submerged unit. Reset manually by depressing the center button until an audible click confirms re-engagement.
Voltage verification protocol:
- Back-probe relay socket pin 30 with engine off–expect 12.6V.
- Crank engine; maintain 10.5V minimum at pin 87 during startup.
- Operate fuel sender test connector T25 (located under rear seat cushion); measure 5V reference voltage on gray/red wire.
Replace the in-line 10-amp fuse F38 if the submerged component fails to prime within three seconds of ignition activation. This fuse protects the continuous-duty circuit that also powers the evaporative emissions purge solenoid. Trace the brown/dark blue wire from F38 back to spliced connector S105–ensure corrosion-free crimps at each junction.
Disconnect the negative battery terminal before servicing the tank-mounted assembly. The sender float arm operates on a 0–90 Ω variable resistance scale; resistance values outside this range indicate faulty level sensing. Clean the brass push-on terminals at the tank top connector with electrical contact cleaner–oxidation here mimics intermittent starvation symptoms.
Diagnostic trouble codes related to delivery circuit:
- P0230–Primary relay control failure.
- P0231–Low voltage detected at submerged unit.
- P0232–Voltage spike during operation.
- P0460–Incorrect sender signal to ECM.
Clear stored codes using OBD-II scanner after repairs to prevent false re-triggers.
Upgrade the factory relay to a premium 40A unit if frequent cycling occurs during prolonged idling. Route the heavy-gauge output wire away from exhaust heat shields and suspension components to prevent chafing. Secure all harness sections with nylon zip ties every 150 mm–vibration-induced abrasion at the rear subframe causes sporadic delivery interruptions.
Locating the Electrical Connector for the Fuel Delivery Module in Your Sedan

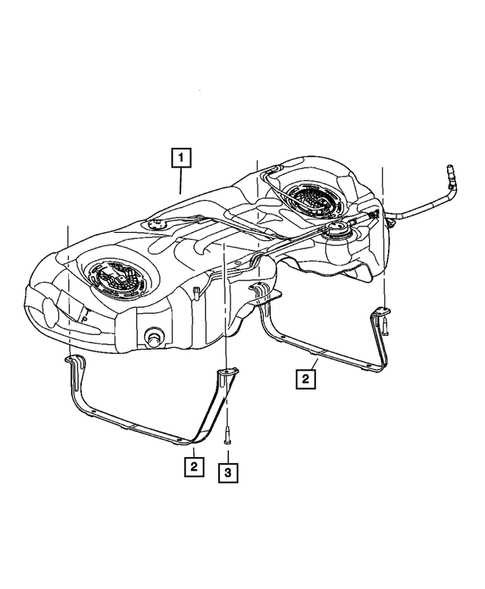

Begin beneath the rear seat area. Remove the seat cushion by pulling upward firmly at the front edge–it secures with clips, not bolts. Once lifted, inspect the central section of the floorpan; a circular metal cover, roughly 20 cm in diameter, conceals the module. Rotate the cover counterclockwise to release it, exposing the assembly.
The harness exits the reservoir vertically, terminating in a six-pin weatherproof connector. Trace the wires upward–typically bundled in a black corrugated conduit–until they merge into the main chassis loom near the rear suspension tower. Mark this junction; it simplifies reconnection later.
For models equipped with a rear-mounted auxiliary battery tray, the harness routes alongside the left frame rail. Identify the two 10 mm bolts securing the battery bracket–the wires tuck beneath this assembly, protected by a thin plastic shield. Gently pry the shield away to access the connector without damaging its seals.
In sedan variants with sport suspension, the loom splits earlier. Follow the conduit toward the rear wheel well; a small rubber grommet penetrates the trunk floor. Push the grommet inward to free the wires, then pull the harness into the cabin through the opening. Avoid tugging–friction may fray insulation.
The ground reference attaches to the frame near the spare tire well. Locate the single 8 mm bolt on a welded stud; corrosion commonly requires cleaning with a wire brush before disconnecting. A faint yellow stripe on the brown wire confirms this terminal–label it before removal.
Test continuity before disassembly. Probe the orange and violet leads of the connector with a multimeter set to 20V DC. Ignition “on,” engine off should register 12V; anything below 10V suggests relay or fuse degradation upstream. Refer to fuse box TIPM layout–pins 11 and 14 correspond to the circuit.
Reassembly reverses disassembly. Lubricate the O-ring on the cover with dielectric grease to prevent leaks. Ensure all retaining clips snap audibly when reconnecting the harness; incomplete engagement triggers false “no start” codes within 10 ignition cycles.
Step-by-Step Guide to Tracing Electrical Connections in the Fuel Delivery System
Begin by locating the vehicle’s power distribution center beneath the hood. Identify the relay labeled “Fuel System” or “ECU-FP”–typically found in slot 8W or 20A on the fuse block. Use a multimeter set to 20V DC to verify voltage at the relay’s 85 (coil ground) and 86 (coil power) terminals. Probe terminal 30 (input) while the ignition is ON; readings should match battery voltage (12.6–14.4V). If absent, inspect the fuse (15A–20A) linked to the circuit, often positioned adjacent to the relay. Disconnect the negative battery terminal before handling the wiring harness to prevent short circuits.
| Component | Terminal | Expected Reading | Troubleshooting Action |
|---|---|---|---|
| Relay (ECU-FP) | 85 (Coil Ground) | 0V (Ignition OFF) 5V–12V Pulse (Ignition ON) |
Check ECM ground wire integrity; replace relay if no pulse |
| Inertia Switch | Input/Output | 12.6V (Continuity) | Reset switch if tripped; bypass temporarily to test |
| Harness Connector (Sender Unit) | Pin A (Power) Pin B (Ground) |
12V–14V (Pin A) 0.1V–0.5V (Pin B) |
Clean terminals; test for corrosion with ohmmeter ( |
Trace the harness from the relay to the sender unit beneath the rear seat or cargo area. Unplug the sender’s electrical connector and inspect for green/white (positive) and black (negative) wires. Use a test light to confirm power at the positive terminal–the bulb should illuminate brightly. If dim or off, follow the harness toward the inertia switch, a safety device that cuts power during collisions; locate it near the rear axle or under the driver’s seat. Bypass it briefly using a jumper wire to isolate faults. For ground issues, scrape paint from the chassis mounting point and reattach the black wire with a star washer to ensure conductivity.
Critical Measurements During Diagnosis
At the sender’s connector, measure voltage drop across the positive and ground terminals with the circuit under load. Voltage should remain >11.8V; drops below 10.5V indicate resistance in the harness or poor ground. Use an oscilloscope to verify the ECM’s pulse-width signal to the relay–expect a 5V square wave at ~50Hz during cranking. If the signal is absent, test the ECM’s ground reference (pin 51 on the 104-pin connector) for continuity to the chassis. Replace any wire exhibiting >2Ω resistance per foot or brittle insulation.
Standard Conductor Hues in the Energy Delivery System for a Mid-2000s Sedan
Begin troubleshooting by locating the dark green with yellow striped cable–this is the primary power feed for the high-pressure assembly. It typically originates at the relay box beneath the under-hood fuse panel, terminating at the tank-mounted sender unit. Verify continuity with a multimeter; expect 12-14V when the ignition is in the “ON” position without engine cranking.
Identify the black with light blue stripe wire as the ground return path. This conductor connects directly to chassis ground near the rear subframe or, in some cases, routes through a dedicated grounding stud adjacent to the tank assembly. Poor grounding here manifests as intermittent operation or complete system dropout–clean connections using fine-grit abrasive, ensuring bare metal contact.
Critical Conductor Pairs and Their Roles
- Light blue with orange stripe: Carries the sender signal to the PCM. Voltage fluctuates between 0.5V (full) – 4.5V (empty). Probe with a scan tool to confirm proper sweep.
- Gray with red stripe: Delivers power to the pressure regulator solenoid. Expect constant battery voltage when ignition is active.
- Violet with white stripe: Often mistaken for sensor wiring, this conductor links to the EVAP purge valve–disregard unless diagnosing emissions-related issues.
When replacing the assembly or sender, note the tan with black stripe cable–this serves as an auxiliary 12V feed for aftermarket upgrades or redundant safety circuits. Factory configurations leave this unconnected, but aftermarket harnesses frequently repurpose it for dual-pump setups. Cap the terminal with heat-shrink tubing if unused to prevent shorting against the tank wall.
For vehicles equipped with flex-fuel systems, an additional brown with yellow stripe conductor relays ethanol content data to the engine control module. This wire routes alongside the primary sender harness but requires a specialized scanner for accurate diagnostics. Non-flex models terminate this cable at the tank connector–insulate it to avoid sensor confusion.
