Complete Wiring Diagram Guide for 2007 Ford F250 Super Duty Models
Start troubleshooting or modifications by locating the central fuse box under the dashboard–pinout labels match OEM documentation directly. Reference wire colors from manufacturer specs rather than third-party sources; inconsistencies in aftermarket manuals often mislabel circuits, especially for trailer brake and auxiliary power feeds. Ground points cluster near the driver-side kick panel and engine bay, marked “GND” on the factory schematic–verify continuity with a multimeter before assuming connection integrity.
Critical circuits include:
Power distribution: Red (10-gauge) wires handle high-current paths; trace these from the battery to the alternator and starter relay first.
Lighting systems: Brown wires control parking lights, yellow manage turn signals–identify splice points behind the instrument cluster where corrosion commonly disrupts signal flow.
Engine management: Grey (fuel injectors) and white (coil packs) wires require direct ECU connections; bypassing relays or switches introduces voltage drop, triggering diagnostic trouble codes.
Use a pin extraction tool when accessing the PCM connector–standard bladed screwdrivers damage terminals, causing intermittent failures.
Document every modification separately–color-code alterations with heat-shrink tubing or flag connectors to prevent future diagnostic confusion. Overlapping circuits, such as the 4×4 module or factory-installed navigation, demand isolation testing; disconnect suspected components one at a time while monitoring voltage fluctuations.
Electrical Schematics for Heavy-Duty Pickup: Hands-On Reference
Start by locating the under-dash fuse box–positioned to the left of the steering column in the 6.0L Power Stroke models. Remove the plastic cover to reveal the color-coded relays and fuses. Use a multimeter set to continuity mode to verify the 30A “Trailer Tow Battery Charge” fuse before replacing it; corrosion here often mimics a blown fuse. For the 5.4L Triton variant, check the inline fuse near the brake controller harness (white/black wire) if trailer lights fail–common failure point due to road vibration.

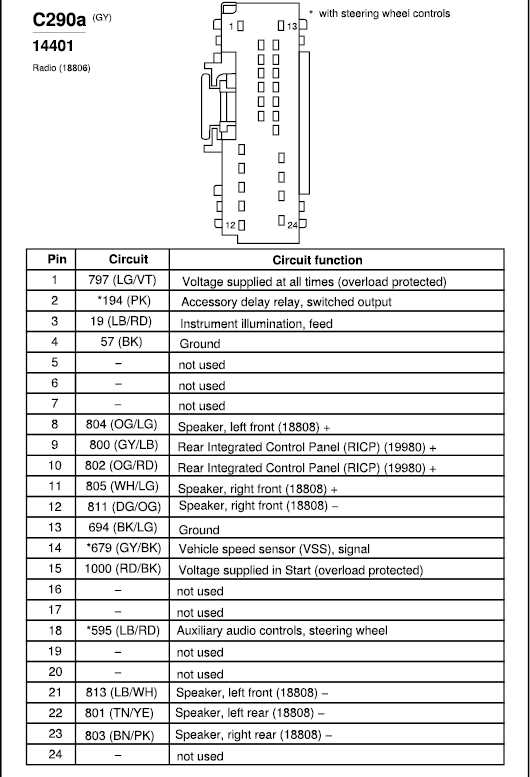

Key Harness Pinouts and Voltage Checks
- PCM Connector C175: Pins 71 (gray/yellow) and 97 (dark green/light blue) supply 5V reference. Probe with engine off–values below 4.8V indicate a short in the EGR sensor circuit.
- Instrument Cluster Plug C220: Pin 2 (orange/light blue) delivers ignition-switched 12V to gauges. If oil pressure gauge fluctuates, bypass the sender wire (tan/light blue) directly to ground–failure confirms a faulty sender.
- Trailer Brake Controller Plug: Pin 6 (red/light green) carries brake signal voltage. Measure while pressing the brake pedal–proper reading should rise from 0.2V to 5V at full application. Drops indicate a corroded ground at frame rail (G200).
For the 4×4 system, trace the transfer case motor wiring (pinout diagram below) using a wiring probe. The yellow (pin 1) and brown/white (pin 3) wires complete the circuit when shifted to 4LO. If the motor stalls mid-shift, test for 12V on the brown/white wire at the motor connector–absence means a failed rear axle shift relay (R56, behind glove box). Replace the relay before condemning the motor.
Isolate HVAC blower resistor issues by checking the brown/white wire at the resistor plug (located behind the glovebox) for 12V when the fan is set to “HI.” If voltage is present but the fan runs only on “HI,” the resistor block is burned out–common failure due to water intrusion from windshield leaks. For power windows, verify the window motor connectors (2-wire, 18AWG) show 12V and ground continuity. Window switches fail frequently; swap with a known-good switch from the passenger side to confirm.
Locating the Original Electrical Schematic for Your Heavy-Duty Pickup
Begin with the manufacturer’s official repair portal: motorcraftservice.com. Owners require a valid subscription to access OEM documents, including the exact circuit layout for models built during that production year. Select “Vehicle Information” then input your VIN to pull the precise model variant–this step eliminates guesswork from aftermarket sources that often mislabel connectors or omit critical color codes.
Helm Incorporated’s technical publications distribute Ford’s authorized service manuals, available for digital purchase directly from their site (helminc.com). The “Electrical & Vacuum Troubleshooting” section mirrors the dealership-level schematic, detailing fuse boxes, relay locations, and ground distribution for every trim. Bulk pricing discounts apply when ordering the complete chassis volume, making it practical for repeated repairs.
Visit Ford Fleet Ownership (fordpro.com) if your truck was originally sold to a commercial account. Fleet portals host legacy documentation archives and may allow download without individual subscription fees. Contact support via chat, specifying your 10-digit build sheet code–this triggers faster retrieval of historical schematics no longer listed under public menus.
Independent enthusiast sites like TheDieselStop.com or Ford-Trucks.com forums archive owner-scanned PDFs. Verify uploaded files against the official 50-page schematic: authentic versions include an insulated wire guide plate, harness routing overlays, and pin assignments for the instrument cluster, trailer towing module, and powertrain control module. Cross-reference any public uploads with the original documentation to avoid incomplete diagrams.
Local libraries with automotive reference sections often maintain physical copies of Ford Truck Shop Manuals through partnerships with Chilton or Haynes. Request the volume covering 6.0L diesel engines–this book contains the factory-approved circuit chart in appendix form, printed at full scale for tracing wires during diagnostics.
Decoding Electrical Schematics: Color Codes Made Clear
Locate the legend first–typically in the bottom corner or along the margins of the schematic. This key defines each hue’s role: solid colors mark primary circuits, while stripes signify secondary branches. A BK/YL wire, for instance, carries black as its base and yellow as the tracer, indicating a ground path with a signal overlay.
| Base Color | Common Function | Stripe Color | Sub-Function |
|---|---|---|---|
| White (WH) | Constant power | Red | Switched accessory |
| Black (BK) | Chassis ground | Light Blue | Sensor return |
| Brown (BN) | Lighting circuits | Orange | High-current feed |
| Pink (PK) | Fused ignition | Purple | Data link |
Check harness routing notes–color codes can shift at splice points or module interfaces. A dark green wire (DG) entering the instrument cluster may exit as dark green with a white stripe (DG/WH), denoting a switch from input to output post-processing. Measure voltage at two points: identical colors should show identical readings unless a relay or resistor alters the path.
Use a highlighter to trace each circuit on the schematic before probing with a multimeter. Mark transitions where a stripe begins or ends; these often indicate grounding points, sensor taps, or power distribution nodes. If a beige wire splits into beige/orange and beige/gray, expect separate paths for low-beam and high-beam filaments–test continuity between the fuse block and each bulb socket.
Store a printed copy of the legend in the glovebox alongside a spare fuse kit. When diagnosing intermittent faults, compare actual wire jackets against the schematic–fading or discoloration from heat can mimic legitimate stripe patterns, leading to misdiagnosis. Replace any wire whose jacket deviates from the documented hue by more than a 10% shade variation.
Step-by-Step Electrical System Repairs for Heavy-Duty Trucks
Locate the power distribution box under the driver-side dashboard to address non-functional trailer lights. Remove the cover by releasing the three retaining clips. Pinpoint fuse F38 (15A) for trailer tow park lamps–use a multimeter to verify continuity. Replace the fuse if blown, but inspect the trailer connector first for corroded pins or shorted wires. Strip ¼ inch of insulation from the brown wire (pin 7) at the seven-way connector and test for 12V with the headlights activated. If voltage is absent, trace the circuit to the body control module (BCM) and check connector C101B (white wire, terminal 24) for oxidation.
Dead battery despite recent charge? Disconnect the negative terminal and measure parasitic draw with an ammeter set to 10A. Exceeding 50 milliamps indicates a drain. Pull fuses one by one while monitoring the meter–start with the radio (F60, 20A), instrument panel (F58, 10A), and rear defroster relay (R36). If the draw persists, disconnect the alternator’s B+ terminal and retest. Replace the alternator’s internal diode trio if the ammeter drops below 30 milliamps upon removal.
For intermittent power window failures, remove the door panel by prying off the inner handle bezel and unscrewing the seven T20 Torx fasteners. The window motor’s wiring harness often frays near the hinge–inspect the six-pin connector for melted plastic or broken strands. Probe the grey/orange wire (pin 2) for 12V when the switch is pressed. If absent, check the master switch’s circuit breaker (F62, 25A in the fuse block). Reflow solder joints on the window regulator’s printed circuit board if signals flicker.
Engine cranks but won’t start? Probe the crankshaft position sensor (CKP) connector (two-pin, grey). Backprobe terminal B (white wire) for 5V reference voltage with the key in the “ON” position. Terminal A (black/white wire) should read near 0 ohms to ground. If readings are incorrect, inspect the 6.0L’s high-pressure oil pump wiring–chafing often occurs near the turbocharger oil feed line. Replace the CKP sensor if resistance exceeds 1,000 ohms.
Dashboard Warning Light Diagnostics
Disconnect the battery and remove the instrument cluster by unsnapping the trim ring and removing four 8mm screws. Flip the cluster to access the PCB. Inspect the surface-mount resistors near the “ABS” and “Brake” warning LEDs–cold solder joints are frequent. Reheat joints with a 60W soldering iron and add fresh solder. For the “Check Engine” light stuck on, locate the J1962 OBD-II port’s pin 16 (12V) and pin 4 (ground). Probe pin 16 for consistent voltage; if pulse-width fluctuates, replace the powertrain control module’s main relay (K20).
Troubleshoot flickering headlights by accessing the lighting control module (LCM) behind the glovebox. Remove the glovebox by squeezing the sides to release the stops. Unplug the LCM’s 12-pin connector and inspect for green corrosion on terminals C1 (headlamp low beam) and C3 (high beam). Clean with electrical contact cleaner and a wire brush. Test resistance between LCM ground (terminal E) and the chassis–values above 0.2 ohms require scraping paint from the mounting surface for a clean bond.
Elevated idle speeds often trace to the throttle position sensor (TPS) on the 5.4L’s intake manifold. Disconnect the three-wire connector and probe the black/light blue wire (pin 1) for 5V reference. The grey/red wire (pin 2) should vary between 0.5V (closed) and 4.5V (wide-open). Adjust the sensor’s mounting screws if readings plateau. If unresolved, replace the idle air control (IAC) valve–remove the intake hose and unbolt the two 10mm fasteners securing the IAC to the manifold.
Advanced Circuit Testing
For transmission shifting irregularities, probe the transmission range sensor (TRS) at the transmission case. Shift the gear selector while monitoring voltage between the purple/white wire (pin H) and ground–values should step from 0V (Park) to 5V (Overdrive). If erratic, replace the TRS by draining the transmission fluid, removing the valve body, and unscrewing the two T30 Torx bolts. For no-start conditions tied to the fuel pump, locate the inertia switch under the driver seat. Press the reset button and probe the pink/black wire (terminal A) for 12V. If absent, bypass the relay by jumping terminals 30 and 87 in the under-hood relay box (fuel pump relay R30).
