2007 Toyota Camry Ignition Coil Wiring Schematic Guide for DIY Repairs

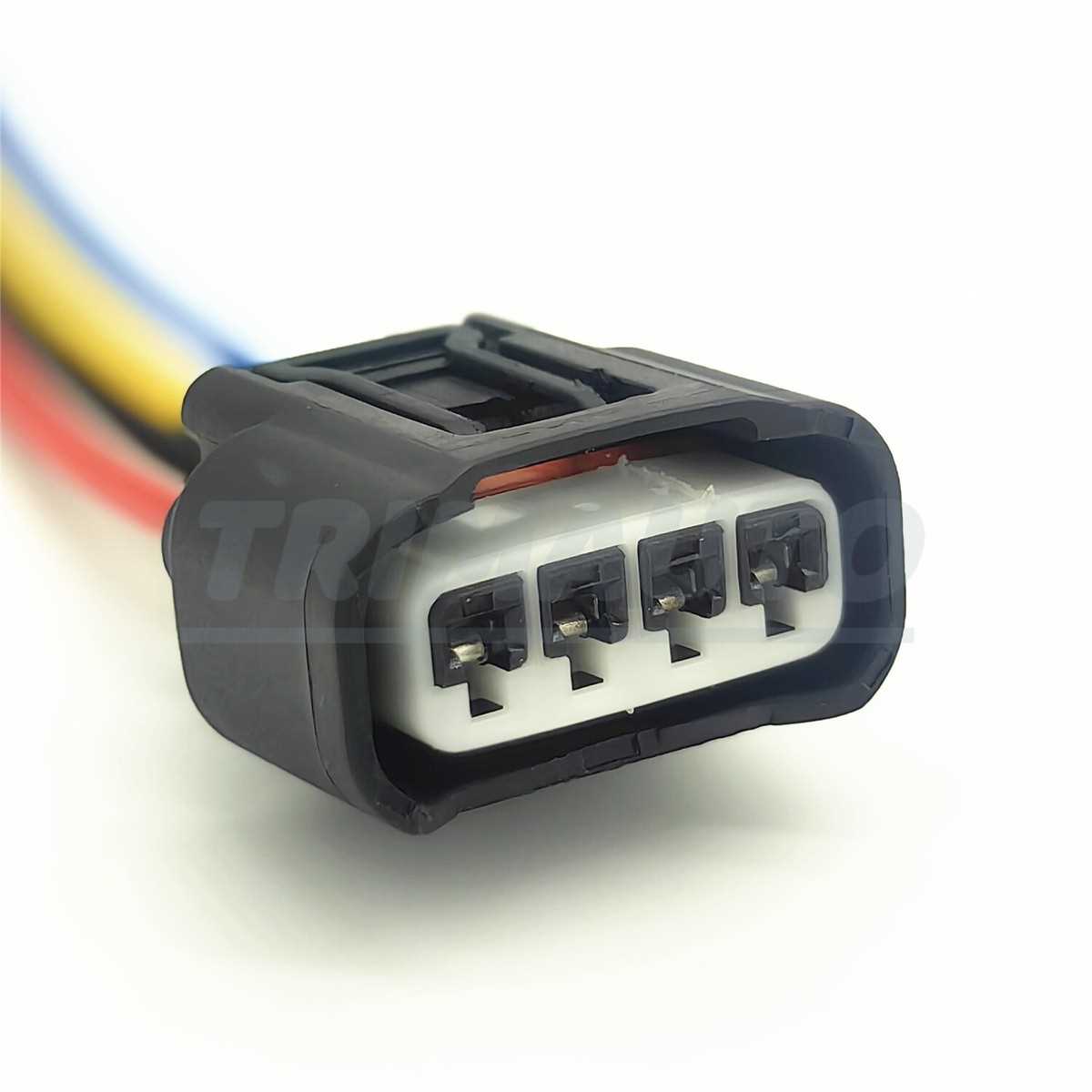

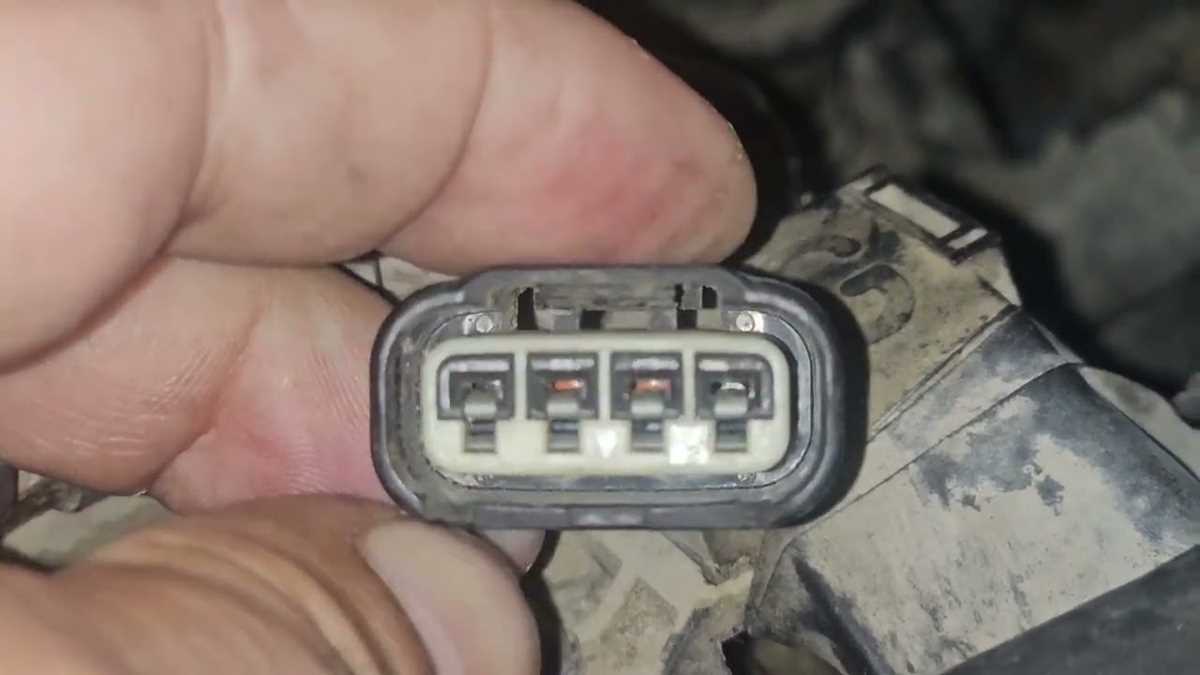

Locate the primary harness connector near cylinder four–this is where critical signal paths converge. The four-pin plug (typically black or dark gray) receives power from the ECU via a yellow/black wire delivering 12V during cranking, while a thinner white/red trace carries ground reference. Verify these first if misfires appear on bank two.
Step-by-step inspection: Trace each lead from the ignition module to its corresponding cylinder. Pin one (white/blue) serves cylinder one, pin two (black/yellow) feeds cylinder two, pin three (blue/white) connects to cylinder three, and pin four (black/green) fires cylinder four. Corrosion or chafing near the intake manifold often disrupts these thin-gauge wires–strip back insulation and probe continuity with a multimeter set to 200 ohms.
When symptoms suggest weak spark at cylinders three or four, swap the suspect coil pack with a known-good unit from cylinders one or two. If the issue moves to the new location, replace the faulty unit immediately–don’t ignore intermittent stumbling at cold idle. Resistance across primary windings should measure between 0.7 and 1.0 ohms; secondary windings require 10–14 kΩ for proper voltage amplification.
For voltage drop testing, back-probe the connector while cranking–expect 9–11V at the coil positive terminal. Anything below 8.5V indicates a failing ignition relay or corroded ground strap beneath the strut tower. Always clean the engine block ground connection near cylinder two before condemning components.
Upstream issues like a failing crankshaft position sensor can mimic ignition faults–monitor signal amplitude on an oscilloscope. A clean square wave between 0.5V and 4.5V eliminates sensor malfunction as the root cause. If waveforms show glitches or amplitude drop below 0.3V, the sensor’s reluctor ring may have debris buildup.
Wiring Schematic for 2.4L Engine Spark Plug Connections
Locate the igniter assembly (black plastic box near the valve cover) and trace the primary trigger cables (thick red and black) to pinpoints C2-1 (power input) and C2-2 (ground return). Secondary circuits route through four identical connectors–each feeds a single spark emitter. Verify continuity using a multimeter: resistance between any coil’s terminal and its plug terminal should read 10–16 kΩ. Cross-reference these readings with the chart below.
| Cylinder | Connector Color | Pin A (Signal) | Pin B (Ground) | ECU Pin |
|---|---|---|---|---|
| 1 | White | +12V | Black/Yellow | #10 |
| 2 | Red | +12V | Black/Red | #20 |
| 3 | Black | +12V | Black/Blue | #30 |
| 4 | Green | +12V | Black/White | #40 |
Disconnect the battery before probing circuits to avoid damaging the ECU’s internal drivers. If voltage at any spark emitter connector drops below 11.5V during cranking, suspect a corroded ground strap (located behind the left strut tower) or a failing ignition relay (fuse box slot IG2, 10A). Swap suspect components with known-good units; parasitic draws exceeding 50 mA indicate shorted diode packs inside the control module.
Finding the Engine Spark Plug Connector on a V6 Sedan
Start by removing the plastic engine cover fastened with four bolts. The connector assembly sits behind the valve cover on the rear bank of cylinders, near the firewall. Use a 10mm socket to detach the bracket securing the harness–this exposes the six individual plug leads arranged in two rows.
The front bank wires exit the ignition module beneath the intake manifold. Trace each cable from the control unit outward; the third lead from the left connects to the #4 cylinder, while the second from the right serves #5. Labeling these with tape prevents misrouting during reassembly–mismatches cause rough idle and misfires.
Pro tip: Disconnect the battery negative terminal before handling–the system carries residual voltage even when off. Slide the locking tab on each male connector laterally with a small flathead screwdriver; pulling without releasing the tab risks snapping the plastic housing.
Decoding Signal Wire Hues in the Engine Spark Connector
Locate the four-pin plug at the base of the cylinder ignition unit to begin tracing each lead. The first terminal, marked by a white stripe on black, carries the 12V switched power feed–critical for triggering the magnetic field. Opposite it, a solid blue wire delivers the ECM pulse signal; verify continuity with a multimeter reading between 0.5-3.0V AC during cranking. Adjacent, the black with yellow tracer serves as the ground return–test for sub-0.1V drop under load to confirm integrity. The final wire, solid pink, links to the tachometer circuit but may show intermittent voltage spikes up to 5V; suppress noise by ensuring its crimp connection is corrosion-free.
- White/black: Verify battery voltage when ignition is ON; no reading indicates a blown fuse (#20, 15A) or open in the main relay output.
- Blue: Probe frequency at 500-700Hz during idle; deviations suggest faulty ECM outputs or shorted injector drivers.
- Black/yellow: Scrape oxide buildup at the chassis splice–use dielectric grease post-cleaning to prevent resistance creep.
- Pink: Inspect for chafing near the intake manifold; reroute if insulation is compromised to avoid misfire codes P0301-P0304.
Step-by-Step Guide to Testing High-Voltage Circuit Power Supply
Disconnect the battery’s negative terminal before handling any electrical components to prevent short circuits. Set a digital multimeter to DC voltage (20V range) and connect the black probe to a known ground–such as the engine block or chassis–and the red probe to the positive terminal of the power connector feeding the primary side of the component. With the ignition switched to the “ON” position (engine off), verify a reading between 11.5V and 14V. Anything below 10.5V indicates a weak power source, corroded wiring, or a faulty relay.
Probe the trigger signal at the control module’s input pin using the same multimeter settings. While an assistant cranks the engine, the reading should fluctuate between 0.1V and 3V, alternating rapidly–a flat line suggests a broken sensor, damaged wiring, or a failed engine control unit. For deeper diagnostics, use an oscilloscope to capture the waveform; a clean square wave with sharp transitions confirms proper operation, while rounded edges or irregular patterns point to resistance or interference in the circuit.
Inspect all connectors for moisture, oxidation, or bent pins–clean contacts with electrical cleaner and a nylon brush, then apply dielectric grease to prevent future corrosion. Check the resistance of the primary and secondary circuits using an ohmmeter: primary windings should measure 0.4–2.0 ohms, secondary windings 6,000–30,000 ohms. Values outside these ranges confirm internal damage requiring component replacement. Test spark output by reconnecting the harness, grounding a spark plug to the engine, and observing the spark while cranking–consistent blue sparks indicate proper function; weak orange sparks or misfires signal a faulty unit.
If troubleshooting reveals no faults but the issue persists, swap the suspect part with a known-good one from another cylinder bank. This isolates whether the problem lies in the original component or elsewhere in the electrical loop. Document all measurements for reference–voltage, resistance, and spark quality–to streamline future diagnostics and ensure consistent repairs.
Interpreting Electrical Schematics for Spark Plug Circuit Hookups
Locate the primary and secondary circuit paths on the schematic first. The primary circuit–typically shown as thicker lines–connects to the ECU harness via a multi-pin plug, often labeled “IG1” or “IG2” on the legend. Trace this path backward to identify the power source (usually a 12V feed from the main relay) and forward to the component’s input terminal. Secondary paths–thinner, often color-coded–link directly to each cylinder’s plug terminal. Verify polarity: the control module side uses a ground-switched signal, while the opposite terminal receives constant voltage. Cross-reference colors with the vehicle’s service manual; misalignment here risks backfiring or misfires.
Use a multimeter to confirm continuity before attaching connectors. Set the meter to ohms and probe the primary terminals; resistance should read 0.4–1.0 ohms. Secondary resistance must fall between 9,000–15,000 ohms at room temperature–deviations indicate internal shorting or corrosion. Inspect plug boots for carbon tracking, a silent but frequent culprit behind erratic sparks. Replace any cracked or hardened boots immediately to prevent voltage leaks. Secure crimps with heat-shrink tubing; standard insulation tape degrades within months under hood temperatures.
Critical Pinouts and Error Traps
Refer to the legend’s pin numbering system–common pitfalls include swapping pin assignments between primary and secondary circuits. On models with integrated ECU controls, pin 1 often carries the switched ground, while pin 2 delivers battery voltage. Reverse these, and the unit remains inert. Another trap: confusing cylinder-specific outputs. Label each wire during disassembly using a non-permanent marker or numbered tags; ad-hoc labeling (“the red one”) invites confusion during reassembly. Test each plug wire’s resistance after reinstallation–consistent readings across all cylinders confirm correct routing.
