Complete 2007 Toyota Camry Wiring Harness Diagram Guide with Connector Locations

If you’re troubleshooting or repairing the electrical system of this mid-2000s sedan, begin by locating Pinout Reference EWD-464 from the official manufacturer’s service manual. This document provides exact wire colors, terminal assignments, and connector numbering for all major circuits. Avoid generic online schematics–they often omit critical details like splice points and ground locations, leading to misdiagnosis.

Focus on the instrument cluster harness first. A common failure point in this generation involves corrosion at Connector C100, where brown (BR) and white (W) wires connect. Use a multimeter to verify continuity before replacing components–resistances above 2 ohms indicate a break. For interior lighting issues, check the BCM (Body Control Module) outputs at Connector I19, specifically pins 1 (LGR) and 4 (LGY).

When dealing with the engine bay harness, isolate the MFI (Multiport Fuel Injection) section. The crankshaft position sensor circuit (G2-R) frequently develops shorts near the firewall grommet. Use heat-shrink tubing over repaired sections to prevent moisture intrusion. For ignition problems, examine Connector E6 (IG1) and Connector E7 (IG2) for voltage fluctuations–any drop below 11.8V during cranking means a weak battery or corroded connections at Battery Terminal 3.

Never splice wires directly–use crimped butt connectors with adhesive-lined heat shrink. For under-dash repairs, label every wire before disconnecting; a single misplaced YL (yellow) wire in the HVAC harness can disable both the blower motor and A/C compressor. Keep a digital copy of the factory schematic handy–paper versions degrade quickly in automotive environments.

Electrical Blueprint Guide for 2007 Sedan Model

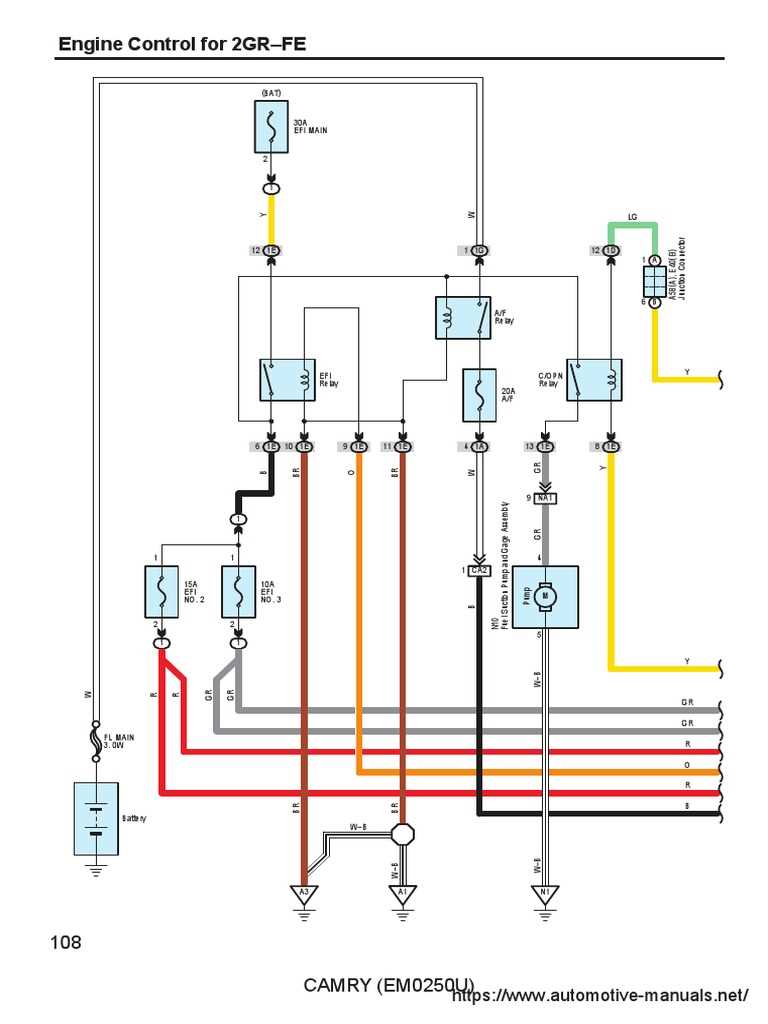

Locate the main junction under the driver’s side dashboard adjacent to the fuse box–this central node distributes power to the instrument cluster, ECU, and climate controls. Pin assignments differ between the 2.4L 2AZ-FE and 3.5L 2GR-FE engines; verify your engine code via the emissions label before proceeding.

Use a multimeter set to 20V DC to test continuity on exposed terminals–expected readings are 12V+ on red/black wires (constant power), 8V-10V on yellow/green (ignition-switched), and 0V-2V on solid green (ground). Deviations signal corrosion or severed connections, common in door hinges and rear tailgate flex points. Example: rear defogger grid connects via a dense gray loom; inspect terminals for green oxidation.

Wire Color	Primary Function	Typical Voltage	Failure Symptoms
Solid Black	Primary ground	0V	Intermittent electronics, flickering dash
Pink/White Stripe	Ignition feed (ECU)	12V switched	Stalling, no-start condition
Blue/Yellow Stripe	Headlight relay signal	12V when on	No low beams, erratic high beams
Green/Red Stripe	O2 sensor heater	10V-12V pulsed	Rough idle, elevated emissions (CEL P0135)

Replace crimped connectors with gold-plated terminals (TE Connectivity part #1-1638839-1) to prevent oxidation–standard tin-plated contacts fail within 36 months in humid climates. For splices, solder joints last indefinitely versus crimp sockets; use 60/40 rosin-core solder and heat-shrink tubing with adhesive lining.

Underdash looms split into three sub-harnesses: powertrain (ECU, MAF, injectors), body (doors, locks, window regulators), and lighting (headlights, turn signals, license plate). Each sub-harness routes through a dedicated firewall plug–identify the correct grommet by color: yellow (powertrain), white (body), blue (lighting). Pulling the wrong grommet risks damaging brittle plastic tabs.

For abs sensor circuits (front left wheel sensor shown as W/B stripe on schematics), clean the tone ring with brake cleaner and verify 500-1200 mV AC signal at 30 mph via oscilloscope. Shielded twisted-pair cables must remain unbroken–replace the entire wheel speed harness if outer jacket is compromised, as chafing causes false ABS activation.

Matching the Right Electrical Connector for Specific Sedan Editions

Start by verifying the engine type–whether your vehicle runs a 2.4L 2AZ-FE inline-four, a 3.5L 2GR-FE V6, or the less common 3.0L 1MZ-FE V6. The main fuse box layout differs between these powertrains, particularly in the arrangement of ignition coils and oxygen sensor connectors. For the base 2.4L model, expect a thicker bundle near the ECU, while the V6 variants include additional splices for the secondary air injection system. Ignoring this distinction risks mismatching plug configurations during installation.

Trim-Specific Variations in Connector Layouts

The LE trim lacks the JBL premium audio subsystem, meaning its audio-related plugs–like the amplifier harness behind the glove box–are simplified or absent. Conversely, XLE and SE trims demand extra attention to the rear door harnesses, which include circuits for power windows and side mirrors with integrated turn signals. The SE sport package also introduces a unique sub-harness for the steering wheel controls, identifiable by a black connector with six pins rather than the standard four-pin setup found in other trims.

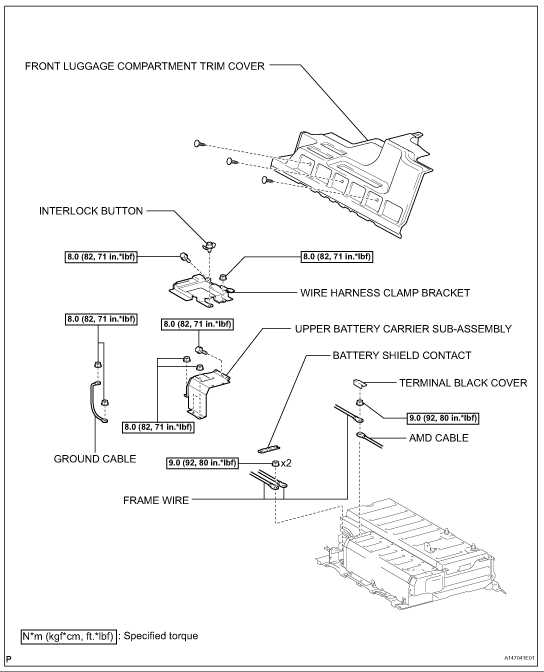

Hybrids require a separate identification process. Look for the orange-colored insulation on the high-voltage cables leading to the inverter and battery pack. The dashboard connector for these models splits into dual 24-pin plugs instead of the single 32-pin unit used in gasoline-only versions. Failure to recognize this split can lead to mistakenly ordering a non-hybrid connector, rendering the entire electrical system incompatible. Check the under-hood relay labels–hybrids will have an “H” prefix (e.g., H-IG1) where standard models show a “D” or “E” prefix.

Regional markets introduce further complexity. North American models feature Daytime Running Lights (DRL) circuitry that isn’t present in Middle Eastern or Southeast Asian variants. The DRL harness branches off from the headlight loom and merges into the multifunction switch connector. European editions include an additional CAN bus splice near the OBD-II port for adaptive headlight control, distinguishable by a twist-lock connector instead of the push-in type used elsewhere. Always cross-reference the part number stamped on the original connector’s plastic housing–numbers like 82611-33010 (for 2AZ-FE) or 82611-06070 (for 2GR-FE) indicate exact matches.

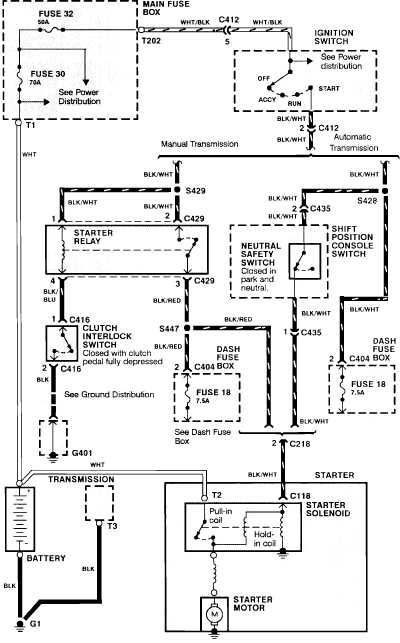

For sedans with manual transmissions, the neutral safety switch wiring diverges from automatics. Manuals use a three-wire configuration (input, output, ground), while automatics require a five-wire setup incorporating a reverse signal wire. The connector shape also differs: manuals have a rectangular plug with rounded corners, whereas automatics use an asymmetrical trapezoidal design. A misfired order here prevents starter engagement or reverse lights from functioning. Always detach the original connector and compare the pin layout directly with the replacement before finalizing any purchase.

Step-by-Step Guide to Locating the Central Electrical Connector Beneath the Instrument Panel

Begin by removing the lower knee bolster panel on the driver’s side–it’s held by five 10mm bolts and three plastic clips. Slide your hand behind the left vent duct; the primary loom runs vertically along the firewall, wrapped in gray conduit with a single black zip tie securing it near the pedal assembly.

Tracing the Bundle to Key Junctions

Follow the conduit upward until it branches into three distinct paths: one routes to the fuse box (left), another to the diagnostic port (center), and the third connects to the body control module behind the glove compartment. Use a flashlight to spot the white 40-pin plug–it’s the main interface for dashboard components.

For precision, disconnect the battery’s negative terminal first. Peeling back the acoustic insulator reveals the harness’s exact path; crimp connectors and twisted pairs will confirm you’ve found the correct bundle. Use needle-nose pliers to gently separate individual wires if repairs are needed–avoid pulling on the sheath itself.

Decoding Electrical System Color Schemes and Conductor Thickness Standards

For precise troubleshooting or modification, match each colored strand to its functional group using this breakdown:

• Black (B): Ground connections – trace these back to chassis points or designated terminals.
• White (W): Primary power feed (ignition-switched or constant) – verify 12V+ at source.
• Red (R): Secondary power circuits – fuse ratings typically 10A or 15A.
• Yellow (Y): Illumination or accessory triggers – load limits around 5A.
• Blue (L): Sensor signals – low-current (under 1A), shielded variants exist.
• Green (G): Control outputs (relays, solenoids) – medium-load up to 7.5A.
• Brown (BR): Data links (CAN bus) – twisted pairs for noise immunity.

Current-carrying capacity directly correlates to strand diameter, measured in American Wire Gauge (AWG). Critical paths follow these standards:

1. AWG 20 (0.52 mm²): Sensor circuits, alarm modules – max 7.5A continuous.
2. AWG 18 (0.82 mm²): Lighting branches, low-power actuators – max 10A.
3. AWG 16 (1.31 mm²): Ignition components, electric windows – max 13A.
4. AWG 14 (2.08 mm²): Main power distribution, fuse box feeds – max 15A.
5. AWG 12 (3.31 mm²): Heavy-duty circuits (starter relay) – max 20A.

Bypass replacements only with identical gauge – undersizing risks overheating.

Strip insulation precisely: 8–10 mm for terminals, 12–15 mm for splicing. Use crimp connectors rated for the corresponding gauge, applying dielectric grease at mating points to prevent corrosion. For harness extensions, employ heat-shrink tubing (minimum 3:1 shrink ratio) over joints, ensuring full coverage of exposed conductors.

Signal integrity hinges on proper grounding. Locate chassis grounds near load points – primary attachment points include the firewall driver-side panel, near the battery tray, and behind rear taillight assemblies. Secure connections with M6 or M8 bolts, removing paint/undercoating at contact surfaces for unobstructed conductivity. Test continuity with a multimeter: resistance should read under 0.2 Ω between any load and ground point.

Temperature-sensitive circuits (fuel injection, oxygen sensors) utilize specialized cables:

• Teflon-coated strands for heat resistance (operating range -40°C to 260°C).
• Aluminum conductors in some auxiliary systems – solder connections only, never crimp.
• EMI-shielded bundles terminate with grounding pigtails – verify these are bonded to the chassis.
