Complete Powermaster Starter Wiring Schematic and Installation Guide
Begin by locating the solenoid connector on the replacement assembly–most aftermarket units use a standardized four-terminal layout. The main power input (typically labeled B+ or 30) connects directly to the battery’s positive terminal via a 4-gauge cable or thicker to handle cranking amps. Secure this connection with a copper lug crimped and soldered for corrosion resistance. Avoid using automotive-grade fuse links here; instead, opt for a ANL fuse holder rated at least 300A for marine or heavy-duty applications.
The control circuit (often marked S or 50) requires a 18-20 AWG wire leading to the ignition switch. Route this wire away from exhaust manifolds and rotating components, using loom tubing or heat-resistant braid where temperatures exceed 120°C. A relay may be necessary if the original switch lacks sufficient current capacity–calculate voltage drop across the circuit to ensure minimum 9V at the solenoid during engine turnover.
For ground connections, use a dedicated chassis point near the assembly’s mounting bracket, cleaned to bare metal and treated with dielectric grease. Avoid shared grounds with fuel pumps or ECUs, as transient voltages during startup can cause erratic behavior. Verify all terminals with a multimeter–resistance between the B+ and M (motor) posts should not exceed 0.2Ω. If readings are higher, check for oxidized contacts or undersized wiring.
When integrating aftermarket remote engagement features, isolate the primary trigger signal behind a transistor-based driver to prevent backfeeding into vehicle electronics. For systems with permanent magnet motors, confirm compatibility with the OEM alternator–some configurations require a voltage suppressor diode across the M terminal to prevent demagnetization. Test operation in short bursts (under 5 seconds) before extended use to monitor for excessive heat buildup.
Connecting Your High-Torque Electric Motor: Key Hookup Steps
Begin by identifying the solenoid’s terminals–S (switch), B (battery), and M (motor). Connect a 10-gauge red cable from the battery’s positive post to the B terminal, ensuring a 100-amp fuse is within 7 inches of the post. The M terminal requires a 6-gauge purple wire routed directly to the motor’s primary lug, avoiding any intermediate connections. For the S terminal, use a 12-gauge yellow wire linked to the ignition switch’s start position, but verify the circuit’s voltage drop remains below 0.5V during cranking–higher readings indicate corrosion or undersized wiring. Ground the motor’s case with a 6-gauge black strap to the engine block, prepping the surface with a wire brush to eliminate paint or oxidation.
| Component | Wire Gauge | Color Code | Max Resistance (Ohms/ft) |
|---|---|---|---|
| Battery to Solenoid (B) | 10 | Red | 0.003 |
| Motor Lug (M) | 6 | Purple | 0.001 |
| Ignition Trigger (S) | 12 | Yellow | 0.005 |
| Case Ground | 6 | Black | 0.0005 |
Use a multimeter to confirm no continuity exists between the M and B terminals with the solenoid disengaged. Test cranking amperage with a clamp meter–expect 150-220A for small-block engines and 250-350A for big-blocks. If readings exceed specifications, inspect the flywheel ring gear for worn teeth or the brushes for uneven wear, which can skew current draw. For remote mounting, extend the M terminal cable no longer than 3 feet to prevent voltage sag, and seal all connectors with heat-shrink tubing containing adhesive liner to resist moisture ingress.
Key Elements in an Aftermarket Cranking System Circuit

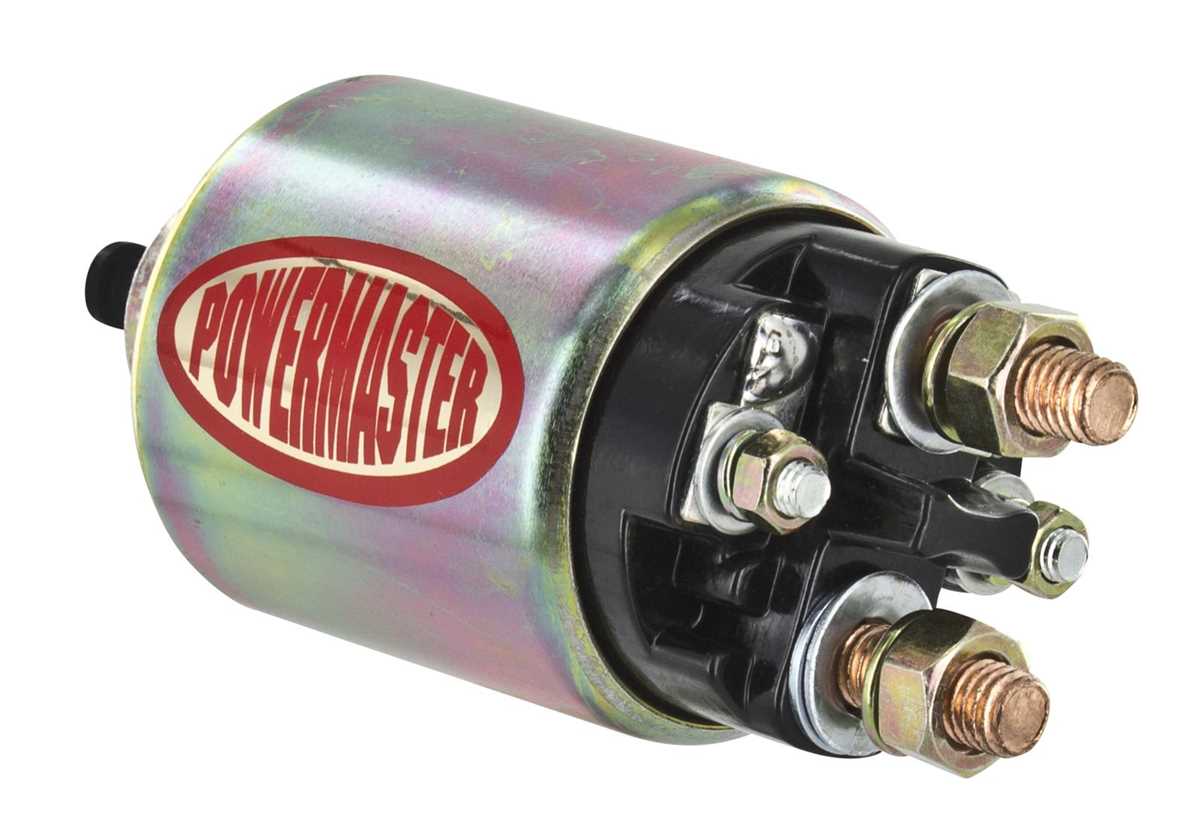

Locate the solenoid relay first–its cylindrical shape and two heavy-gauge terminals distinguish it from other parts. Check for corrosion on the M-terminal (connected to the motor’s field coils) and B-terminal (linked to the battery positive), as resistance here reduces torque. Use a multimeter set to ohms; readings above 0.2Ω indicate internal faults.
Verify the ignition switch connections: the S-terminal (thin wire) must receive 12V when the key reaches the “start” position, while the I-terminal (if present) powers accessory circuits during engagement. A voltage drop test under load confirms integrity; anything below 9.5V suggests a failing switch or corroded contacts.
Critical Safety and Performance Links
Inspect the fusible link–a short length of high-gauge wire near the battery post. This component acts as a sacrificial fail-safe, melting under excessive current. Replace with the exact gauge specified for the model (typically 8-10 AWG) to avoid overheating risks.
Trace the grounding strap: its path should directly connect the motor housing to the chassis or engine block. Use a wire brush to clean contact points before reinstalling–a poor ground causes intermittent failures under load. For aluminum blocks, add a secondary strap to the transmission bellhousing for redundancy.
- Neutral safety switch: Bypasses temporarily for testing, but restore wiring after. Terminals on automatic transmissions require adjusted clearance (0.020–0.040 inches) to prevent premature wear.
- Flywheel ring gear: Examine for missing or chipped teeth; even one damaged tooth disrupts meshing, causing a distinct “click-whirr” sound.
- Brush holder: Four carbon contacts align with the commutator. Replace if worn below 0.2 inches or if springs show pitting.
Measure pull-in and hold-in coil resistance on the actuator: pull-in should read 0.3–0.4Ω, hold-in 1.2–1.6Ω. Deviations signal internal shorts. Ensure the plunger moves freely–apply white lithium grease sparingly to bushings, avoiding excess on electrical surfaces.
Diagnostic Pitfalls and Proven Fixes
Address intermittent voltage drops by probing connections with a voltmeter under cranking load. A common overlooked culprit is the battery cable clamp–disconnect, clean posting surfaces with emery cloth, and torque to 8 foot-pounds. For remote mounts, extend the positive lead with welding cable (not generic copper) to preserve amperage.
Silence the solenoid by installing a diode (1N4001 or equivalent) across the S-terminal and ground–this suppresses transient spikes that erode ignition system components. Polarity marks must align with the schematic; reversed installation creates immediate failure. Finally, wrap exposed terminals with adhesive-lined heat shrink tubing to prevent moisture ingress.
How to Install Your High-Torque Motor Relay Connections
Locate the battery-positive terminal on the solenoid–typically marked with an “S” or “30”–and attach the heavy-gauge cable directly from the vehicle’s power source. Ensure the connection is tight; corrosion or loose contacts can drop voltage below the required 12.6V threshold, causing slow engagement. Use a dielectric grease coating on terminals to prevent oxidation, especially in humid or salty environments.

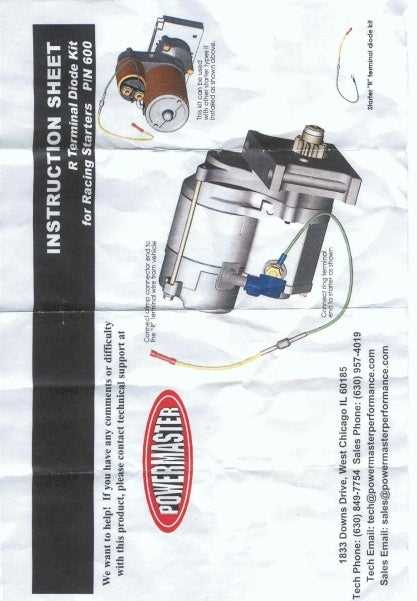

Identify the ignition switch lead–often a smaller, color-coded wire–and connect it to the solenoid’s “I” or “50” post. This triggers the relay when the key turns, sending a 4-8 amp signal to the pull-in coil. Test continuity with a multimeter before securing; a resistance reading above 0.5 ohms indicates a faulty circuit requiring replacement. For GM-style units, note the additional “R” post for bypass circuits–route this wire only if your vehicle’s ECM demands it.
Ground the solenoid base directly to the engine block using a minimum 8-gauge strap; never rely on painted or coated surfaces. Verify all connections with a load test: crank the engine while measuring voltage at the solenoid posts–drops below 9.5V suggest undersized cables or poor ground. For high-compression builds, upgrade to 4-gauge wiring to handle inrush currents exceeding 250 amps.
Common Electrical Connection Errors and Diagnosis
Mismatched cable gauges between the control circuit and motor terminals create excessive resistance, triggering voltage drops under load. Measure the cross-section of each conductor–ideal sizing for 12V systems is 6 AWG for high-current paths and 10 AWG for signal lines. Replace undersized wires immediately; even a 1-mm reduction in diameter doubles resistance over a 3-meter run. Use a multimeter to verify less than 0.2V drop across connections at full draw.
Loose crimp terminals corrode within weeks, increasing contact resistance exponentially. Inspect every joint under magnification for micro-fractures in the insulation crimp. Re-terminate using ratcheting crimpers calibrated to the wire gauge–generic pliers compress unevenly, forming cold joints. Apply dielectric grease before securing to prevent oxidation; clean existing terminals with a brass brush and reflow solder if corrosion is visible.
Incorrect polarity in solenoid trigger circuits fries the relay coil instantly–verify positive and ground feed with a probe before energizing. Trace each path backward from the activation point, marking positive wires with red tape and grounds with black. Test the solenoid separately with a 9V battery to confirm operation; clicking without motor rotation indicates internal contact welds, requiring replacement.
Voltage Leak Diagnosis
Parasitic draw from improperly routed sense lines drains batteries overnight. Disconnect all auxiliary taps, then measure current at the main fuse–values above 50mA point to shorted diodes or relay coils left engaged. Isolate circuits systematically, starting with the smallest branch, until readings normalize. Replace any components showing zero voltage across terminals when disconnected; this confirms internal failure.
Intermittent faults often stem from damaged insulation allowing ground shorts–inspect harnesses where they bend, especially near sharp edges. Use a tone generator to trace hidden shorts; a sudden signal loss pinpoints compromised sheathing. Wrap exposed conductors with heat-shrink tubing rated for at least 150°C, sealing both ends with adhesive-lined sleeves to prevent moisture ingress.
