Complete Ford Taurus 2008 Electrical System Wiring Schematic Guide
Locate ground points first–common failures stem from corroded connections at G102 (near the driver-side strut tower), G103 (under the rear seat), and G104 (behind the right taillight). Use a multimeter set to continuity mode to verify paths; resistance above 0.5 ohms indicates partial opens requiring cleaning or wire replacement. Replace factory crimps with soldered joints for circuits handling over 10A, particularly the alternator’s B+ line and ignition feed wires labeled 33 (red) and 34 (pink).
Test fuse F28 (10A) for parasitic drains before addressing starter circuits–this protects the PCM’s keep-alive memory. The starter relay (K46) receives a 12V trigger through pin 85 via the transmission range sensor’s neutral safety switch; verify this path with a test light at connector C2500. For ignition issues, probe the crankshaft position sensor’s two-wire harness–yellow and black conductors–while cycling the key; expected output ranges from 4.8 to 5.2V AC.
Re-color coded replacement wires using automotive-grade PVC insulation (minimum 18AWG for signal, 10AWG for power). Label each splice with heat-shrink tubing displaying the circuit number (e.g., “C57”) to match OEM documentation. Isolate the CAN bus wires–orange/light green and white/light green–from high-current circuits to prevent voltage spikes corrupting module communication. Install a secondary fuse block rated at 30A for aftermarket additions, tapering directly from the battery’s positive terminal rather than the alternator’s output.
Scan for fault codes P0562 or U0100 before disconnecting modules; these often resolve after battery reconnection. Document all modifications with timestamped photos of connector layouts, noting pin orientations–critical for diagnosing intermittent faults later. Replace the instrument cluster’s bulkhead connector if dimming functions fail; pins 1 and 6 (gray and violet wires) oxidize first. For horn inoperative issues, trace the dark blue/yellow wire from the horn relay (K7) to the steering column clock spring–breaks here mimic switch failures.
Electrical Schematic for the 2008 Sedan: Hands-On Reference
Locate the primary fuse box under the dashboard on the driver’s side–split-screw terminals marked #36 and #42 deliver twelve volts to the fuel pump and ignition coils. Trace the violet stripe on the 18-gauge wire from the inertial switch to the pump relay; corrosion here mimics pump failure, confirmed by a multimeter reading below 0.3 ohms.
For the ABS module, follow the twisted pair (black/orange and black/light blue) from the six-pin connector at the right-front wheel sensor back to pin #26 on the EBCM. Clip leads directly to the sensor–open circuits above 1.4k ohms indicate a broken wire inside the chassis harness, often near the lower control arm.
Dashboard Circuit Shortcuts
Replace the climate-control illumination bulbs by removing the center stack; four T5 wedge bulbs (#3157NA) sit in sockets behind the rotary knobs. The dimmer signal (gray/red) runs separately from the instrument cluster–if the rheostat adjusts the gauges but not the buttons, probe the single 470-ohm resistor on the back of the HVAC panel.
Headlight switch failures often stem from the internal 7-pin encoder. Jumper pin #5 (dark green) to ground with the switch in the ON position–if low beams engage, replace the encoder rather than the entire stalk. Keep a spare encoder (part #SW-3157A) on hand; it matches several Lincoln sedans of the same vintage.
For power mirrors, note the mirror-select switch feeds both motors through a shared violet/orange wire. If one mirror moves but the other hesitates, strip the door harness 6 inches from the mirror; frayed strands inside the corrugated tubing are common and require soldered splices, not crimped connectors.
Ground Junctions and Data Bus Checks
The G103 ground junction behind the left kick panel services the BCM, PCM, and transmission controller. Clean the M6 stud with a wire brush, then coat with dielectric grease–voltage drop here exceeding 0.1V triggers false transmission codes. On the CAN bus, pin #6 and #14 on the OBD-II port should read between 2.3V and 3.0V with the key ON; readings outside this range point to a faulty door module pulling the bus low.
Locating Precise Electrical Schematics for Your Vehicle Model
The official manufacturer service portal remains the most reliable source for factory-issued schematics. Access Ford’s subscription-based service at motorcraftservice.com, where full-color, printable diagrams are available for individual purchase. Expect to pay around $20–$35 per section, but gain exact representations of fuse boxes, ground points, and connector pinouts as originally engineered.
Forums dedicated to this make often host member-uploaded resources. TaurusClub archives threads with attached PDFs shared by experienced owners and mechanics. Search for threads tagged “electrical layout” or “harness map”; some contributors embed diagrams directly in posts. Verify upload dates–schematics from 2012–2015 align best with OEM revisions.
Document Repositories with Downloadable Archives
- ManualsLib (manualslib.com): aggregates scanned service manuals, including 300+ page electrical supplements. Filter by year-equivalent filters to isolate relevant scans. Downloads are free but watermarked.
- JustAnswer (justanswer.com): premium Q&A platform where verified mechanics attach original schematics in response to paid inquiries. Budget $30–$50 for a single detailed reply containing multi-page diagrams.
- ChiltonDIY (chiltondiy.com): offers complete workshop manual accessed via $25 monthly subscription. Diagrams are vector-based, zoomable, and include component locators overlaid on vehicle body graphics.
Salvage yard databases sometimes list vehicles with intact documentation. Car-Part.com allows filtering by make-model and includes an “original manuals” checkbox. Contact yards directly–some sell harness diagrams scanned from parted-out units for $10–$15.
Independent repair shops occasionally publish troubleshooting guides with simplified schematics. Search PDF aggregators like Scribd using queries like “sedan electrical blueprint” or “mid-2000s American sedan circuit map.” Paywalled documents can often be accessed via free trial subscriptions.
Alternative Digital Resources
- YouTube: channels such as EricTheCarGuy or South Main Auto overlay schematic screenshots in video walkthroughs. Timestamp annotations link directly to specific circuit segments.
- GitHub repositories: tech-savvy owners upload scanned diagrams to public repos. Search GitHub with keywords like “[make] electrical schematic” or “[model] wiring pdf”–commits from 2018–2020 often include high-resolution files.
- Facebook Groups: private communities like “Ford [Model] Enthusiasts” or “Automotive Electrical Repair” share diagrams in locked albums. Request access; admins typically approve within hours.
Aftermarket manual publishers such as Haynes or AllData offer DVD-ROMs containing the complete electrical layout. Physical discs ship with interactive menus for navigating between power distribution, sensor, and actuator circuits. Expect $90–$120 but gain lifetime offline access without recurring fees.
How to Decode the Electrical Layout Schematic
Locate the fuse box legend at the top-left corner of the schematic–each fuse number corresponds to a colored line tracing power flow. For instance, Fuse 28 (10A) feeds the rear defroster relay via a red/light blue stripe; any break in this path will disable the system. Cross-reference the legend with the vehicle’s manual to confirm amp ratings and circuit protection.
Identify ground points marked by black triangles–these are non-negotiable termination spots. G101, for example, anchors the instrument panel cluster; corrosion here mimics a dead battery. Use a multimeter set to continuity mode to verify resistance below 0.5 ohms between the ground lug and chassis rail. Skip this step and intermittent faults will persist.
Tracing Circuits Under Load
Activate the component in question before probing–voltage drops under load reveal flaws invisible at idle. For the blower motor, switch the fan to high and measure voltage at the resistor pack connector. A reading below 11.5V signals a frayed yellow/black wire between the switch and pack, or a failing motor drawing excessive current.
Interpreting Relay Logic

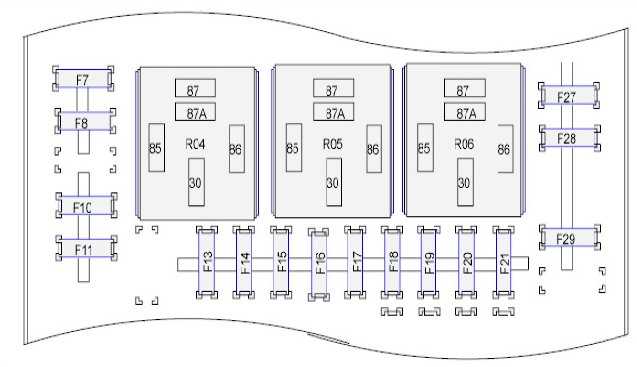

Examine relay pinouts using the grid overlay: pin 85 connects to the control switch, pin 86 to ground, 30 to power, and 87 to the load. The anti-lock brake relay (R05) demonstrates this clearly–swapping pins 87 and 30 will destroy the pump. Desolder suspect relays and test with a 12V bench supply; if the coil clicks but contacts refuse to close, the internal contact plate has welded shut.
Step-by-Step Guide to Locating Fuse and Relay Connections for Electrical Issues
Begin by accessing the vehicle’s primary power distribution center, typically located under the hood near the battery or inside the cabin beneath the dashboard. Remove the protective cover by pressing the release clips or unscrewing any retaining bolts. Label each clip or bolt to ensure proper reassembly.
Use a multimeter to verify fuse integrity before removal. Set the multimeter to continuity mode or a low resistance setting. Probe both metal caps of each fuse; a reading of zero or near-zero indicates functionality, while an open circuit confirms a blown fuse. Replace defective units with fuses of identical amperage–refer to the legend on the distribution center’s cover for specifications.
For relay diagnosis, locate the relay panel adjacent to the fuse block. Gently pull each relay straight upward to avoid damaging the socket contacts. Test relays by swapping them with known-good units of the same part number; if the issue resolves, the original relay is faulty. Inspect relay sockets for corrosion or bent pins–clean with electrical contact cleaner and a small brush if needed.
Trace circuits using a wiring chart available in the vehicle’s service manual. Identify the circuit associated with the malfunctioning component (e.g., headlights, power windows, or HVAC). Follow the color-coded wires from the component back to the distribution center, checking for chafed insulation, shorts, or disconnections at connectors.
Common Fuse and Relay Assignments
| Component | Fuse Rating (Amps) | Relay Type | Location Notes |
|---|---|---|---|
| Headlamps | 20 | SPDT | Left side of under-hood box |
| Power Windows | 30 | SPST | Passenger compartment fuse panel |
| Blower Motor | 40 | Double SPST | Rear of distribution center |
| Anti-Lock Brakes | 10 | SPDT | Near ABS module |
If visual inspection and swapping components fail to resolve the issue, use a test light or oscilloscope to check for voltage at the component’s connector while activating the circuit. Probe the connector’s terminals with the ignition on (for switched circuits) or off (for constant power sources). Absence of voltage indicates a break in the circuit between the distribution center and the component–inspect intermediate connectors and harnesses for damage.
Reassemble the distribution center by aligning the cover’s tabs with the slots, then press firmly until it clicks. Reinstall any removed trim panels, ensuring all fasteners are secure. Test the repaired circuit immediately–if the issue persists, re-examine the component itself (e.g., motor, switch, or bulb) for internal faults.
