Complete Liftmaster Garage Door Opener Wiring Guide with Detailed Diagram
Start with the power supply: verify the device operates on 120V AC and locate the neutral (white), hot (black or red), and ground (green) wires. Terminate these at the terminal block in the motor housing–never reverse polarity. For models with backup batteries, connect the battery leads last to prevent surge damage. Check the motor’s compatibility with 24V DC safety sensors; mismatched voltage will trigger error codes.
Sensor alignment critical: mount the infrared emitters 6 inches above the floor, facing each other with no obstructions. Wire the sensors in series–white to white (common), black to red (power/signal). Faulty connections cause the system to revert to manual operation. If the LED on either sensor flickers, recalibrate the optical path or test with a multimeter for <0.5V drop across the circuit.
Remote signal integration: solder a 315MHz/390MHz receiver to the logic board, matching the transceiver’s frequency. For MYQ-compatible units, pair the wall console first–hold the “learn” button for 6 seconds until the LED flashes. Replace the antenna wire if the signal range drops below 50 feet; use RG-6 coaxial cable for extended reach.
Limit switch adjustments: turn the up/down adjustment screws ¼ turn clockwise to modify travel distance. Over-tightening strips the gears–use a Torx T20 driver to avoid cam slippage. For chain-driven models, lubricate the track with PTFE spray every 6 months to prevent binding.
Emergency release cord: attach it to a vertical pull-down mechanism, never a horizontal lever. Test the release monthly by confirming the trolley disengages within 3 seconds of activation. If re-engaging fails, inspect the carriage plate for misalignment–realign with a hex key.
Understanding Your Automatic Gate Motor Electrical Layout

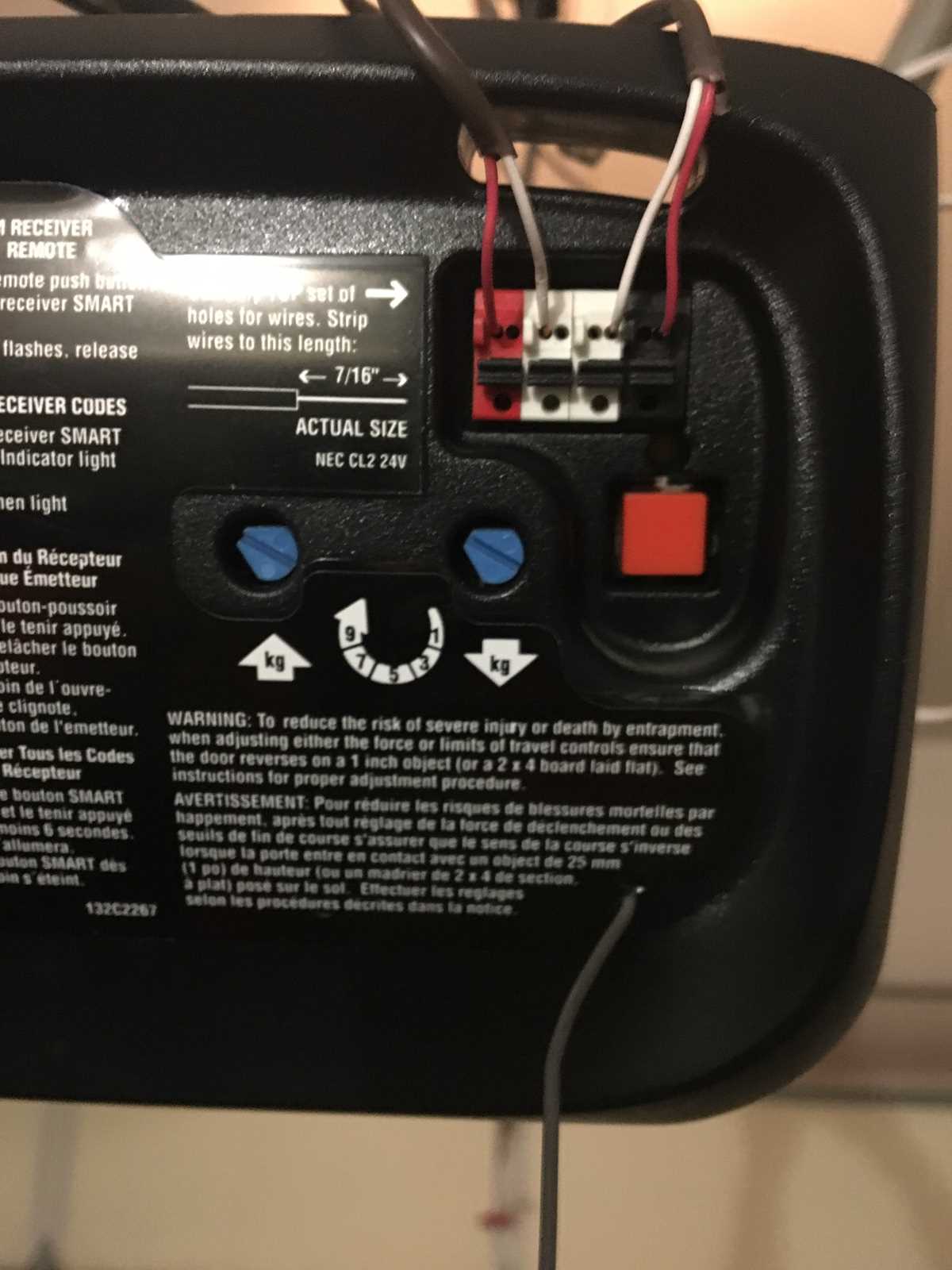

Connect the safety sensors to terminals 3 (white) and 4 (black) on the control module using 18-gauge stranded wire. Polarity matters–white wires attach to the left sensor, black to the right. Verify alignment at installation; misaligned sensors prevent operation and trigger error lights.
Attach the motor’s power input to terminals 1 (red) and 2 (white) using 14-gauge wire. Secure connections with ring terminals crimped tightly–loose wiring causes overheating or intermittent failures. Route wires away from moving components to prevent abrasion.
For wall-mounted controls, link the push button to terminals 2 (white) and 5 (blue) with two-conductor cable. If integrating keyless entry, wire the receiver’s output relay in parallel with the push button circuit. Use twisted pair wiring to minimize interference from nearby electronics.
Ground the system at terminal 6 (green/yellow) by connecting to a grounding rod or metal frame with a dedicated wire. Avoid daisy-chaining grounds; poor grounding risks damaging the logic board during power surges. Test continuity with a multimeter before powering on.
After assembly, disconnect the battery or power source while verifying each connection matches the schematic. Reconnect power, then observe the LED indicators–they signal functional segments. If errors persist, check for reversed sensor wires or corroded terminals. Replace damaged components immediately to prevent motor strain.
Finding the Schematic for Your Motorized Entry System
Check the product manual first–most models include a fold-out page or appendix with a visual guide. If the physical booklet is missing, locate the model number on the back of the unit’s housing or inside the motor casing, then search the manufacturer’s official support portal using that identifier.
If online resources fail, inspect the interior surface of the cover plate. Many devices have a printed schematic adhered directly beneath the removable panel, often protected by a thin plastic film or laminated sheet. Peel back any obstruction carefully to avoid tearing the paper.
Alternative Methods for Digital Retrieval
- Use the serial number (not just the model) for precise results–older units may share model codes but require distinct schematics.
- Search forums like Home Improvement Stack Exchange or DIY Electric communities; users frequently upload scanned copies of rare manuals.
- Try reverse-image searching a photo of the internal layout if text-based queries return no matches.
For newer units, the manufacturer’s app may store digital copies of all documentation. Install the proprietary software, register your model, and navigate to the “support” or “resources” section to download the PDF directly.
If the device predates 2010, contact customer service with the model and serial numbers–archived schematics for discontinued units are often available upon request, though response times may vary.
Physical Inspection Shortcuts
- Remove the light cover lens; some designs embed the schematic on the underside to save space.
- Disconnect power, then pry off the control panel faceplate–older models sometimes conceal reference materials behind the circuit board.
- Examine the wiring harness itself; certain units imprint color codes or terminal labels on the insulation.
Always cross-reference found materials with the unit’s actual configuration–manufacturing revisions occasionally alter wiring without updating documentation.
Step-by-Step Guide to Connecting Safety Sensor Cables
Identify the sensor terminals marked “Sender” (typically white/black wires) and “Receiver” (white/red wires) on the unit’s control board. Verify polarity by locating the stripe or solid color indicators–most systems follow this convention, though exceptions exist in older models with alternate color coding. Check the manual for confirmation if wiring differs.
Prepare the cables:
- Strip ¼ inch of insulation from each wire end using wire strippers, avoiding nicks to the copper strands.
- Twist strands clockwise to prevent fraying during attachment.
- Thread wires through conduit if running along walls, securing them every 3 feet with insulated clips to prevent sagging or interference.
Attach the sender sensor first by inserting the white wire into the terminal labeled “Sender White” and the black wire into “Sender Black.” Tighten terminal screws firmly–use a torque screwdriver set to 0.5 Nm to avoid overtightening, which can strip threads or crush wires. Repeat for the receiver sensor, connecting white to “Receiver White” and red to “Receiver Red.”
Testing and Troubleshooting
Power on the system and observe the sensor LEDs. A solid amber light on the sender confirms alignment, while a blinking red light on the receiver indicates misalignment or obstruction. Adjust sensors by loosening mounting brackets and angling them until both LEDs glow steadily. If lights remain erratic:
- Inspect wire lengths for damage or loose connections.
- Measure voltage between sender/receiver terminals–expect 5–6V DC; deviations suggest a faulty control board or wire short.
- Replace sensors if LEDs stay off despite correct voltage.
Secure all cables with zip ties, leaving slack near moving parts to prevent strain. Conceal exposed wiring in split loom tubing if routed outdoors, sealing ends with silicone to block moisture. Label each connection with a permanent marker for future reference, noting any deviations from standard color codes.
Resolving Frequent Electrical Faults in Automated Entry Systems
Check the power supply terminals first if the motor fails to respond. Voltage should read 120V AC at the input; deviations indicate a faulty outlet or breaker. Use a multimeter to verify continuity between the power cord and the main board–interrupted connections often cause intermittent operation.
Inspect the wall control unit wiring for loose strands or corrosion. Strip 1/4 inch of insulation from wire ends before reattaching to terminals. Secure connections with wire nuts or crimp connectors, ensuring no bare copper remains exposed to prevent short circuits.
Signal issues between the remote and receiver frequently stem from improper antenna placement. Extend the antenna wire fully and route it away from metal objects or parallel to power lines. Replace the receiver if LED indicators blink erratically after verifying the antenna position.
Common Fault Codes and Corrective Measures
| Code | Symptom | Diagnosis | Fix |
|---|---|---|---|
| 1-1 | Motor hums but不会run | Drive gear stripped | Replace trolley assembly |
| 2-2 | Unit beeps, no movement | Travel module misaligned | Recalibrate limit switches |
| 4-5 | LED flashes continuously | Overheated motor | Wait 15 minutes, check ventilation |
Verify safety sensor alignment by placing a 1.5V AA battery between the sensor wires. If the system responds, clean the sensor lenses with isopropyl alcohol and realign them to ensure infrared beams intersect within 6 inches of the floor.
Tighten all terminal screws on the logic board to 3-4 inch-pounds using a torque screwdriver. Over-tightening can strip threads, while loose connections lead to voltage drops and erratic behavior. Apply dielectric grease to outdoor terminals to prevent corrosion.
Replace frayed or brittle cables immediately–resistance increases over damaged sections, causing intermittent failures. Route new cables through conduits or along secure paths to avoid pinching by moving components. Test continuity after installation with a multimeter set to ohms.
Testing Motor Windings
Disconnect the motor leads before measuring winding resistance. Typical readings range between 4Ω and 8Ω per phase. Values outside this range indicate burned windings, requiring motor replacement. Use a megohmmeter at 500V DC to check insulation resistance–anything below 1MΩ requires immediate service.
