Complete Wiring Guide for 2008 Chevrolet Silverado Stereo Installation
For the GM 1500 series pickup models from this production year, the factory audio harness follows a standardized pinout configuration accessible behind the dash. Locate the 20-pin connector–typically black–attached to the original head unit’s rear panel. Pins 1 (yellow), 4 (light green), and 5 (dark green) deliver the front left, right, and rear speaker signals respectively, while pin 2 (gray) handles the accessory power feed. Ground corresponds to pin 3 (black), critical for preventing interference.
Factory color-coding remains consistent across trim levels: white with a stripe for constant 12V (pin 6), purple with a stripe for illumination (pin 10), and orange for memory retention (pin 12). When retrofitting aftermarket components, bypass the OnStar interface (pins 7–9) unless retaining factory telemetry–unnecessary connections introduce signal noise. Use a crimp connector rated for 18-gauge wire to secure splices, avoiding solder alone due to vibration risks.
Amplifier triggers require tapping pin 15 (pink), but check local electrical codes–some regions mandate inline fuses (15A max) for accessory circuits. For vehicles with premium Bose systems, an additional 12-pin connector sits adjacent to the primary harness; ignore this unless integrating the original amplifier–its impedance-matching (2Ω) outputs differ from standard aftermarket setups.
Verify connections with a multimeter before reassembly: confirm 12.0V–14.5V at the constant power wire, 0Ω continuity between ground and chassis, and 4–8Ω resistance across speaker terminals. Miswires cause amplifier failures or blown fuses–never override factory fusible links. For vehicles equipped with steering wheel controls, retain the data bus (pin 18, blue/white) or risk disabling auxiliary functions.
Chevy Truck Audio System Electrical Guide
Locate the orange retained accessory power (RAP) wire near the harness–it provides 12V even when the ignition is off, critical for memory functions. Splice this directly to the aftermarket head unit’s constant power lead to prevent clock and preset resets. Avoid using the pink ignition wire for this purpose; it only energizes when the key is in the “on” position.
The dark blue/white speaker wire delivers front-right high-frequency signals to tweeters or midrange drivers; verify impedance compatibility–most factory systems run 4Ω but aftermarket components may require 2Ω bridging. Test continuity with a multimeter before connecting; a resistance reading above 1 Ohm indicates corrosion or faulty connections in the door jamb harness.
Connect ground cables to bare metal chassis points within 18 inches of the amplifier or head unit location. Sand paint down to bare steel for solid conductivity–factory grounds often corrode under the dash, causing alternator whine. Twist ground and power wires together when routing to reduce electromagnetic interference, especially near the instrument cluster wiring loom.
For Bose-equipped models, identify the light green/pink data bus wire–interrupting this risks setting a vehicle communication error code. Use a bypass module or tap into the CAN bus via OBD-II port adapters if integrating auxiliary inputs. Factory amplifiers in premium trims require signal processing modules; installing aftermarket units directly may result in distorted audio or system shutdowns.
Label each wire with masking tape before disconnecting–the original harness often lacks color standardization across trim packages. Check for fused circuits in the fuse box: the audio system typically draws from the 10A “Radio” fuse, but trailer brake controllers or HVAC systems may share this circuit. Upgrade to a 20A fuse if adding high-power amplifiers to prevent nuisance blows.
Route RCA cables perpendicular to vehicle wiring harnesses to minimize signal noise. Avoid running cables parallel to the alternator or ignition coil leads–these generate strong magnetic fields. Secure connections with insulated butt splices rather than electrical tape; vibrations from road travel degrade tape adhesion rapidly, leading to intermittent shorts.
Finding the OEM Audio System Plug in Your Chevy Crew Cab
Pull the right-side dashboard trim panel away from the console starting at the upper corner. Disconnect the door-jamb switch by releasing the tab with a small flat-bladed screwdriver and wiggle the switch free. Slide the ash-tray module straight back and lift it out; the retaining clip is visible once the module clears the opening. Behind the ash-tray pocket, locate the rectangular black connector locked to the metal brace–this is the main factory radio plug.
| Plug Color | Pin Count | Function | Wire Gauge |
|---|---|---|---|
| Black | 24 | Primary harness | 18 AWG |
| Gray | 12 | Rear amplifier link | 20 AWG |
| Orange | 8 | OnStar/Sirius antenna feed | 22 AWG |
If the main plug remains elusive, check beneath the glove compartment door. Remove two 7 mm bolts securing the fuse-block cover, then tilt the cover downward to expose a secondary cavity. The gray 12-pin plug is often tucked here for vehicles equipped with the Bose premium system.
Wire Harness Visual Markers
Look for a white label wrapped around the harness bundle stamped “GM LAN” near the ignition feed wire; this denotes the Class 2 data bus conductor. A pinkish-red stripe on pin #16 identifies the constant 12 V hot lead. Ensure the aftermarket adapter mates fully with these before restoring power.
Understanding Cable Hues and Their Associated Sound System Roles
Start by locating the yellow 12-gauge conductor–this delivers constant power from the battery to maintain presets and clock settings. Pair it with a black wire (with or without a gray stripe) grounded to the chassis or a dedicated bolt near the audio unit’s mounting bracket. For switched ignition feed, identify the orange or pinkish wire (sometimes marked with a thin purple stripe) that activates only when the key is in the “on” or accessory position. Wire gauges vary: thinner strands (16–18 AWG) typically handle speaker signals, while thicker (14 AWG) manage power.
Match speaker outputs using this key:
- Front Left (+): Light green or green with a white stripe
- Front Left (-): Purple or purple with a black stripe
- Front Right (+): Gray or gray with a red stripe
- Front Right (-): Dark blue or blue with a brown stripe
- Rear Left (+): Tan or tan with a yellow stripe
- Rear Left (-): Dark green or green with an orange stripe
- Rear Right (+): Brown or brown with a violet stripe
- Rear Right (-): Light blue or blue with a white stripe
Amplifier triggers often use a single solid white or violet wire, while dimmer controls may appear as a gray wire with a black tracer. Twist same-function cables together before crimping or soldering to prevent signal interference.
Step-by-Step Guide to Integrating Custom Audio with Factory Harnesses
Begin by locating the vehicle’s OEM electrical connector behind the dash panel. Remove the factory radio using a trim removal tool–avoid metal tools to prevent scratches. Disconnect the battery’s negative terminal to eliminate electrical hazards during installation.

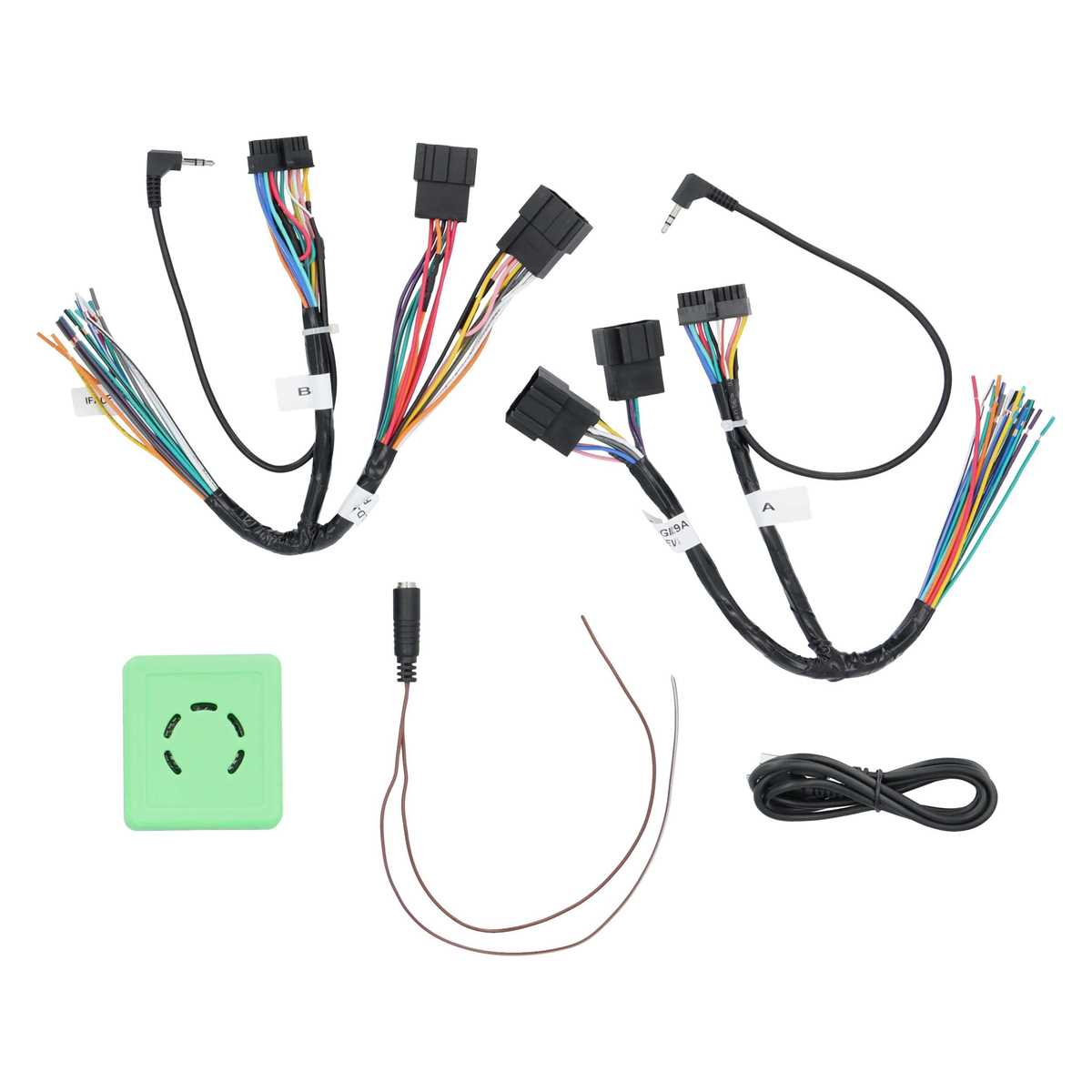

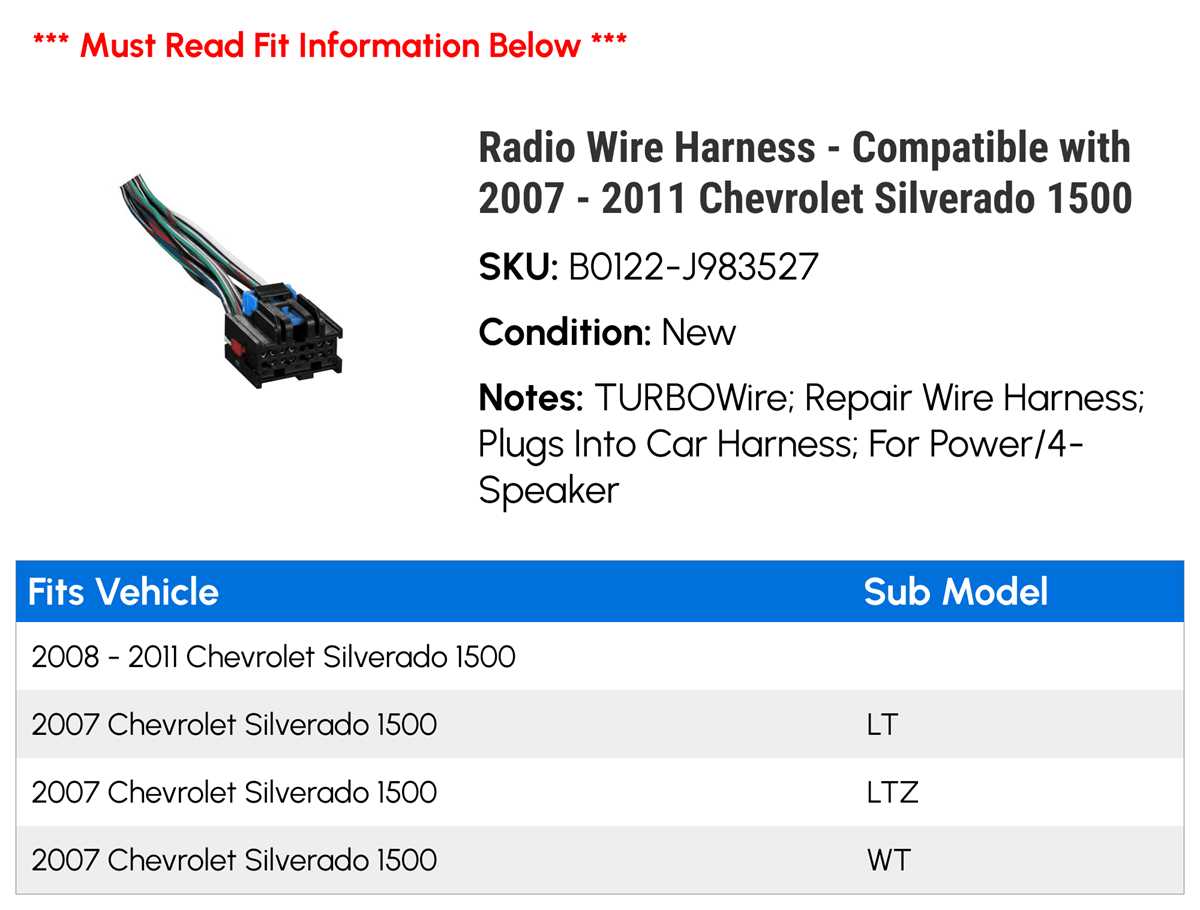

Identify the 12-pin GM Class 2 data bus adapter if your model retains OnStar or steering wheel controls. Use a wiring interface module (e.g., Metra AX-ADGM24 or Axxess ASWC-1) to bridge aftermarket and stock connections without cutting original wires.
Match the new head unit’s harness colors to the adapter’s provided chart. Key wires include: constant power (yellow), ignition-switched power (red), ground (black), front left/right speakers (gray/white and gray/purple), and rear channels (green/white and green/purple). Verify each connection with a multimeter–12V DC should register on power leads.
For amplified systems, splice the aftermarket blue/white remote turn-on wire to the factory amplifier trigger (often a pink/black wire in GM trucks). Skip this step if using a standalone mono block amplifier, as the head unit’s signal alone suffices for passive speakers.
Secure all connections with solder or crimp splices, then insulate with heat-shrink tubing. Avoid electrical tape for long-term durability. Reattach the dashboard trim panel carefully, ensuring no wires are pinched. Test each speaker, balance, and fader function before finalizing the installation.
If retaining factory chimes (e.g., seatbelt alerts), connect the brown/green chime wire to the aftermarket unit’s pink/black lead using a 1-amp diode to prevent feedback. Failure to isolate this circuit may cause erratic alerts or blown fuses.
Route the antenna cable from the new unit to the vehicle’s roof-mounted receiver. Use a GM-compatible antenna adapter (e.g., Metra 40-GM10) if the factory coaxial connector differs from the aftermarket brand’s standard. Test AM/FM reception before closing the installation.
Reconnect the battery and check for error codes (e.g., U1000) using an OBD-II scanner. Reset the vehicle’s computer if warnings appear–common when disconnecting power. Adjust time delay settings in the custom head unit’s menu to prevent battery drain during extended engine-off periods.
Diagnosing Electrical Problems in Your GM Truck Audio System
Check the fuse for the audio unit first–it’s located in the under-dash fuse box, labeled “RADIO” or “AUDIO.” A blown fuse often causes no power to the head unit, but also inspect the fuse block for corrosion or loose connections if replacing it doesn’t restore functionality.
If the speakers produce no sound despite the head unit powering on, test the speaker wires for continuity using a multimeter. Probe the wires at the harness connector–resistance should read below 4 ohms per channel. Higher readings indicate broken wires or disconnected grounds, often found behind the kick panel on the driver’s side.
Static or distortion during playback typically points to a grounding issue. Locate the ground wire (bare or with black insulation) attached to the chassis near the radio cavity. Sand the contact surface to bare metal, re-secure the wire with a star washer, and apply dielectric grease to prevent oxidation. If static persists, trace the RCA cables (if equipped) for interference from power wires running parallel.
Dim or flickering display on the head unit suggests voltage drops. Connect a voltmeter to the constant 12V (yellow) and ground wires while the engine runs–readings below 11.8V indicate a weak alternator or corroded battery terminals. Clean terminals with a wire brush and retest. For intermittent power loss, inspect the ignition wire (red) for frays where it passes through the firewall grommet.
Bluetooth pairing failures often stem from outdated firmware or a faulty antenna module. Reset the unit by holding the power button for 10 seconds, then reconnect the antenna cable at the rear–the connection is prone to loosening over time. If the problem persists, replace the antenna amplifier mounted behind the rear seat.
Subwoofer rattling or lack of bass output usually means incorrectly matched impedance. Verify the subwoofer’s impedance matches the amplifier’s specifications (typically 2 or 4 ohms). If the subwoofer still doesn’t respond, check the amplifier’s fuse or relay in the engine bay–look for a secondary fuse block near the battery labeled “AMP” or “AUDIO SYS.”
For aftermarket installations causing erratic behavior, ensure all accessory wires are properly isolated. Wrap exposed connections in heat-shrink tubing to prevent short circuits, and avoid tapping into factory wires without a relay–direct splices can overload the circuit. Use a dedicated power wire (4-gauge minimum) for high-current setups, routed directly from the battery with an inline fuse.
If the clock or presets reset repeatedly, the memory wire (yellow) isn’t receiving constant power. Confirm the connection at the harness and inspect the wire for nicks near the instrument panel. For vehicles with OnStar, the integral wiring can interfere–disable OnStar temporarily to isolate the issue. If memory loss continues, replace the head unit’s internal battery backup, a common failure in older units.
