Detailed Wiring Diagram for the 2009 GMC Acadia Radio System Guide

Locate the connector harness behind the vehicle’s central console. Pin assignments follow a consistent pattern: pin 1 (yellow) carries constant 12V power–verify with a multimeter before soldering. Pin 2 (light green) handles the audio signal ground, while pin 3 (gray) transmits the right rear speaker output. Ensure crimp connections are insulated with shrink tubing; exposed wires risk intermittent failures.

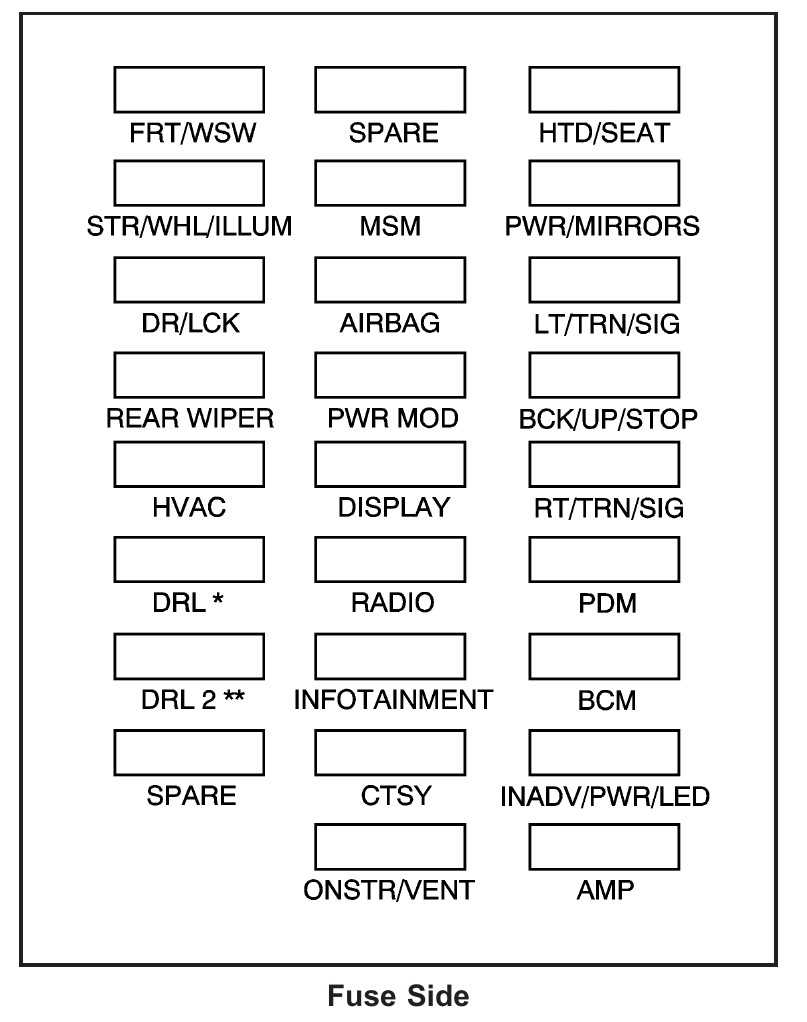

Rear-mounted amplifiers require specific impedance matching–4 ohms is standard for factory-installed units. Use 18-gauge wire for signal paths; thicker gauges introduce noise. The vehicle’s fuse box, positioned under the dashboard, includes a 10A fuse dedicated to audio circuits. Replace blown fuses with identical ratings to prevent damage to the head unit’s internal components.

Color-coded cables simplify identification: dark blue (left front speaker), purple (right front speaker), brown (left rear), white (ground). Aftermarket adapters may reverse polarity–test with a speaker to confirm correct waveform phase. Secure connections with solder, not twist connectors, to avoid corrosion.

For auxiliary inputs, use the 3.5mm jack or USB port located beneath the climate controls. The data bus runs at CAN protocol speeds of 500 kbps–interference from aftermarket devices can disrupt vehicle diagnostics. Always disconnect the battery’s negative terminal before working near airbag modules.

How to Connect Your SUV’s Audio System Correctly

Locate the main harness behind the factory stereo unit. The connector labeled “C1” (gray, 24-pin) carries power, ground, and speaker signals. Pin assignments differ between base and premium sound systems–verify colors before connecting aftermarket head units.

• Constant power (yellow): Pin 2 on C1, fused at 10A. Check voltage with a multimeter before tapping.
• Switched power (red): Pin 3 on C1, active only when ignition is ON. Avoid bridging with constant power to prevent battery drain.
• Ground (black): Pin 15 on C1. Use a dedicated chassis point for clean grounding–oxidized factory grounds cause static.

Speaker outputs use a common negative (-) wiring scheme: white (-) with white/orange (+) for front left, gray (-) with gray/black (+) for front right. Rear channels follow the same pattern–gray/white (-) with gray/violet (+) on C2 (brown, 12-pin). Phase matters: reversing polarity weakens bass and staging.

Amplifier turn-on lead (blue/white) is located on C1, pin 11. This triggers external amps. Never splice this wire with speaker outputs–voltage differences will damage the head unit’s internal amp. For OEM amplifier retention, connect this lead to the factory harness without cutting.

The steering wheel control interface requires a resistor-based adapter. Factory controls use variable resistance values (2.2K–470 ohms). Measure with a multimeter before selecting an aftermarket adapter–incorrect values cause erratic button function or no response.

1. Disconnect battery negative terminal before working.
2. Remove lower dashboard trim (four 7mm bolts).
3. Release stereo with U-shaped removal keys (insert, push out tabs).
4. Unplug C1/C2 harnesses–label immediately to avoid confusion.
5. Test all speaker outputs with a 1kHz sine wave at 2V RMS. Distorted signals indicate shorts or reversed polarity.
6. Secure splices with solder and heat-shrink tubing–temporary connectors corrode within months.

Factory Bluetooth and OnStar integration rely on the serial data bus (purple/white on C1, pin 18). Aftermarket units lose hands-free calling and vehicle information unless paired with a compatible interface module (iDatalink Maestro RR retains full functionality).

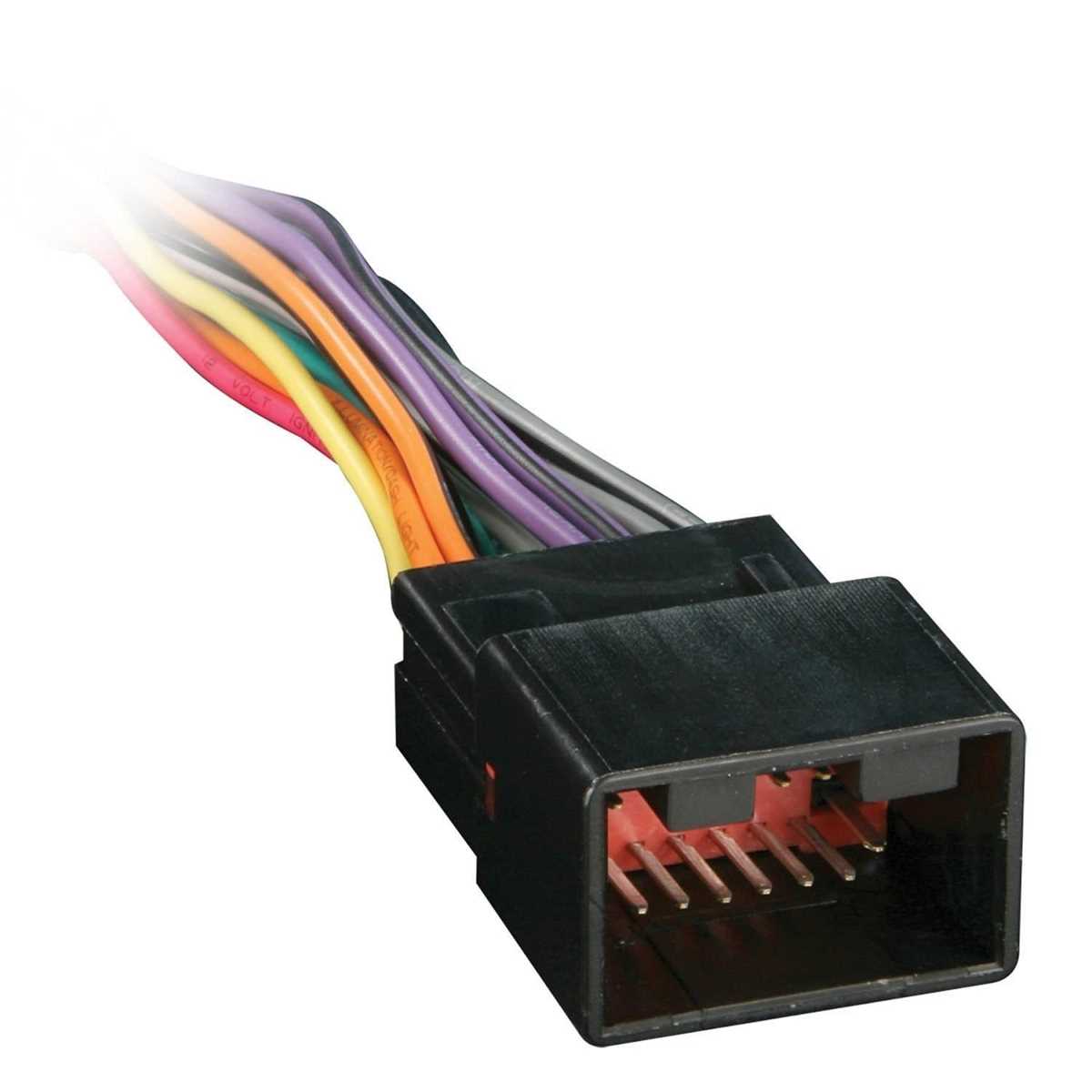

Matching the Right Electrical Linkage Plug for Your Vehicle’s Audio System

Locate the OEM harness designated for factory-installed infotainment interfaces by checking its part number imprinted on the plastic casing–typically 22810314 or 13378620. These connectors integrate seamlessly with stock head units, preserving original steering wheel controls and amplified outputs without aftermarket adaptors.

Inspect the pin arrangement: twelve-pin plugs feature a distinctive offset-clockwise layout, while eight-pin variants follow a symmetrical pattern. Verify cross-compatibility with Axxess ASWC-1 or Metra 70-2003 harnesses if retaining OEM functions while upgrading to third-party receivers, but ensure pinouts align–ground discrepancies risk damaging the antenna motor or data bus.

For vehicles equipped with OnStar or navigation units, the auxiliary harness (22947090) includes a separate coaxial connector for satellite signals; failing to connect it results in no audio from navigation prompts or phone calls, even if the primary interface appears functional.

If the plug shows signs of oxidation–common in models parked outdoors for extended periods–clean contacts with DeoxIT D5 rather than abrasives, which may strip the gold plating on signal pins. Replace brittle connectors entirely if cracking occurs near the strain relief, as intermittent failures often develop over time.

Color-coding follows ISO standards, but verify against a factory service manual: yellow (constant 12V), red (switched 12V), black (ground), orange (illumination), blue/white (remote turn-on). Deviations indicate prior modifications or incorrect replacements, necessitating a full circuit test with a multimeter before installation.

Store unused harnesses in static-shielded bags to prevent dust accumulation on contacts; even minor debris can create shorts in high-frequency lines, degrading audio quality or causing erratic Bluetooth pairing in systems linked via CAN bus.

Step-by-Step Guide to Locating the Head Unit Cable Colors and Functions

Begin by disconnecting the vehicle’s negative battery terminal to prevent electrical shorts. Remove the trim panel surrounding the audio system using a trim removal tool–insert it into the seam near the climate controls and gently pry outward. Work clockwise to avoid damaging clips. Once the panel is free, disconnect the climate control harness by pressing the release tab and pulling the connector straight out. The audio system’s main harness will now be visible; it’s secured by a 10mm bolt–remove it to access the rear of the unit.

Refer to the following color codes for the most common connections, verified against original manufacturer documentation:

• Yellow (B+) – Constant 12V power, fused at 10A, connects directly to the battery.
• Red (ACC) – Switched 12V, active when the ignition is in the ON or accessory position.
• Black – Ground, often paired with a 14-16 AWG wire; ensure a clean metal surface for termination.
• Orange (ILL) – Illumination, dims with headlights; connect to the dash lighting circuit.
• Gray/Purple (FR+) / Gray (FR-) – Front right speaker, positive and negative.
• White/Dark Blue (FL+) / White (FL-) – Front left speaker, positive and negative.
• Violet/Light Blue (RR+) / Violet (RR-) – Rear right speaker, positive and negative.
• Green/Brown (RL+) / Green (RL-) – Rear left speaker, positive and negative.
• Blue/White (AMP) – Remote turn-on for aftermarket amplifiers.
• Pink – Mute wire, typically grounded to mute audio during phone calls.

Trace each wire from the harness to its termination point–use a digital multimeter set to DC voltage to confirm functionality. For speaker wires, set the multimeter to ohms (Ω) and probe the positive and negative leads; a reading between 2-8Ω indicates a functioning circuit. If resistance exceeds 10Ω, inspect for breaks or corroded connectors. Secure all connections with crimp caps or solder, then wrap with electrical tape for moisture resistance before reassembling the dash.

Common Pitfalls When Upgrading the Factory Audio System

First, disconnect the negative battery terminal before touching any electrical connectors. Factory harnesses often retain power even when the ignition is off, risking short circuits that fry the new head unit or vehicle fuse box. Use a multimeter to verify zero voltage across all wires before proceeding.

Check for hidden theft-deterrent codes embedded in the original system. Many newer aftermarket receivers default to anti-theft mode if they detect sudden power loss, requiring a manufacturer-specific reset procedure. Locate the security code card in the owner’s manual or glovebox–failing to input this before cutting power can render the upgrade unusable.

Install a dedicated antenna adapter, not just a simple coaxial connector. Factory antennas integrate signal amplification and diversity switching that generic adapters disrupt. Brands like Metra and Scosche provide vehicle-specific harnesses preserving FM sensitivity and satellite connectivity, avoiding weak reception or dropped stations.

The steering wheel control interface often relies on resistive multiplexing unique to the stock setup. Aftermarket adapters like iDatalink or PAC require precise programming; incorrect resistance settings lead to non-functional buttons or erratic behavior. Follow the included software calibration steps exactly–skipping this step leaves volume or track skip controls useless.

Harness Compatibility and Power Requirements

Verify the new head unit’s power draw against the vehicle’s wiring gauge. Stock systems typically handle 10A continuous, while high-powered amplifiers in upgraded units may demand 15A or more. Insufficient wiring causes voltage drops, distorted output, or overheating connectors. Upgrade to thicker 14-gauge or 12-gauge wires if the replacement exceeds 50W RMS per channel.

Amplifier turn-on leads (typically a blue or blue/white wire) must connect to a switched 12V source. Tapping into the wrong circuit (like constant 12V) keeps amplifiers permanently powered, draining the battery overnight. Trace the correct feed using a wiring schematic–factory service manuals label these as “ACC” or “radio power” circuits.
