Step-by-Step EV Charging Cable Wiring Connections and Safety Guide

For a standard Type 2 (IEC 62196) connector setup, use 6 mm² copper conductors for power lines: brown (L1), black (L2), grey (L3), and blue (neutral). Ground must be 10 mm² green/yellow. Terminate each lead with crimped ring terminals rated for 60 A minimum, ensuring solder-free connections to prevent thermal degradation under load.

Position the control pilot (CP) and proximity pilot (PP) circuits parallel to power lines, separated by at least 50 mm to mitigate EMI. CP requires a 2.5 mm² shielded twisted pair, terminated with a 1 kΩ resistor between PP and ground. PP uses a 0.75 mm² conductor with a 270 Ω resistor for plug detection accuracy.

Secure the assembly in a watertight enclosure with IP67-rated glands. Stress-relieve the conduit entry with a flexible rubber grommet to prevent conductor fatigue. Label each lead at both ends with heat-shrink tubing: “L1-Input,” “PE-Safety,” “CP-Comms,” etc., using permanent ink resistant to solvents.

Test continuity with a 1 kV megohmmeter–insulation resistance must exceed 10 MΩ. Verify CP signal integrity with an oscilloscope: expect a 1 kHz ±12 V square wave (duty cycle reflecting current capacity). Replace any connector showing >0.2 Ω resistance across contacts after 50 mating cycles.

For Mode 3 installations, route the entire harness in steel conduit if running adjacent to high-voltage AC lines (e.g., HVAC). Cross power and control circuits at 90° angles to reduce inductive coupling. Ground the conduit at both ends with dedicated 16 mm² bonding straps.

Key Electrical Layout for EV Power Connector Assembly

Begin by sourcing an IEC 62196 Type 2 plug for AC systems or a CCS Combo Type 2 for DC fast setups–both must match the target vehicle’s inlet specifications. Verify the conductor cross-section: 16 mm² for 32A single-phase (7.2 kW) or 25 mm² for 63A three-phase (43 kW). Larger diameters like 35 mm² are required for 80A DC fast units (50 kW+). Skipping this step risks overheating and connector failure under load.

Follow this pin assignment strictly to avoid reversed polarity or communication errors:

• L1, L2, L3: Line conductors for three-phase (brown, black, grey in EU/UK); skip L2/L3 if single-phase.
• N: Neutral (blue) – mandatory for AC; omit only in DC setups.
• PE: Ground (yellow-green) – terminate directly to the connector’s grounding lug; never daisy-chain.
• PP (Proximity Pilot): 48V signal via 1.5 mm² wire, detects plug insertion.
• CP (Control Pilot): Modulates PWM at ±12V (pin 1.5 kΩ resistor); faulty resistor values disrupt handshake protocols.

Use crimp terminals rated for at least 90°C insulation (e.g., TE Connectivity PIDG or Wago 231-412). Tin all stranded ends before crimping to prevent oxidation; failure here causes intermittent resistance buildup. Secure the connector housing with torque settings specified in the datasheet–typically 1.2–1.5 Nm for screw terminals–to prevent loosening under vibration or thermal cycling.

Critical Safety Checks Before Energizing

Test continuity between PE and all metal parts using a multimeter–resistance should read <0.5 Ω. Verify isolation between all live pins (L/N/CP) and PE with a 500V megohmmeter; readings must exceed 1 MΩ. Confirm PWM signaling on CP with an oscilloscope: a 1 kHz square wave dropping from +12V to -12V during communication validates proper resistor selection (680 Ω for 100% duty cycle). Ignoring these steps risks vehicle communication errors or RCD trips.

Route conductors in a spiral pattern inside flexible conduit (IP55 minimum) to absorb mechanical stress. Separate high-current paths (L1/L2/L3/N) from low-voltage signals (PP/CP) by at least 50 mm to minimize EMI. Label each conductor at both ends with heat-shrink tubing (e.g., “L1,” “PP”)–colored electrical tape degrades under UV exposure. For outdoor installations, apply dielectric grease to connector pins and seal the gland with a weatherproof boot (IP67 rated) to prevent moisture ingress, a leading cause of resistive faults in temperate climates.

Key Elements for Assembling an Electric Vehicle Power Link

Opt for industry-certified conductors rated for 600V or higher, such as tinned copper with cross-sectional areas of 16mm² (6 AWG) for Mode 3 Type 2 connectors or 35mm² (2 AWG) for high-power DC fast interfaces. Stranded wiring outperforms solid core in flexibility and vibration resistance, critical for prolonged outdoor deployment. Verify insulation materials: XLPE (cross-linked polyethylene) withstands 125°C continuous operation, while TPE (thermoplastic elastomer) offers superior UV stability for mobile applications.

Connector selection dictates compatibility and safety margins. IEC 62196-2 Type 2 couplers handle 32A single-phase or 63A three-phase AC, while CCS Combo 2 variants support 500A DC rapid energy transfer. For stationary installations, hardwire ingress protection must meet IP55 minimum; IP67-rated enclosures prevent moisture ingress during high-pressure cleaning. Include a dedicated 2.5mm² control pilot conductor for communication between vehicle and supply equipment, ensuring compliance with SAE J1772 signaling protocols.

Termination and Protective Hardware

Component	Specification	Quantity
Crimp terminals	UL-certified, insulated ring/spade, 6-35mm²	8-12
Strain relief gland	PG16 or M25 thread, neoprene seal	1
Ferrule splices	Heat-shrink, adhesive-lined, 0.5-4mm²	6
Residual current device	Type A 30mA, 40A rating	1

Integrate a 30mA RCD upstream of the termination point to prevent leakage currents from exceeding safety thresholds. For outdoor assemblies, apply dielectric grease (silicone-based, non-conductive) to connector pins and socket interfaces to inhibit oxidation. Terminate shielded conductors at both ends to minimize electromagnetic interference; use a 360° shield clamp to bond the drain wire to the metallic enclosure. Test continuity with a 500V megohmmeter, ensuring insulation resistance exceeds 1MΩ between phases and to ground.

Supplementary Safeguards

Embed a temperature sensor (NTC thermistor, 10kΩ @ 25°C) within the connector housing to monitor excessive heat during peak load cycles–configure cutoff at 85°C. For retractable power links, select a nylon-braided jacket with a minimum bend radius of 4× conductor diameter to prevent fatigue fractures. Color-code conductors per UL 508A standards: brown (L1), black (L2), grey (L3), blue (neutral), green/yellow (ground). Document serial numbers and test reports for each component to streamline troubleshooting and warranty claims.

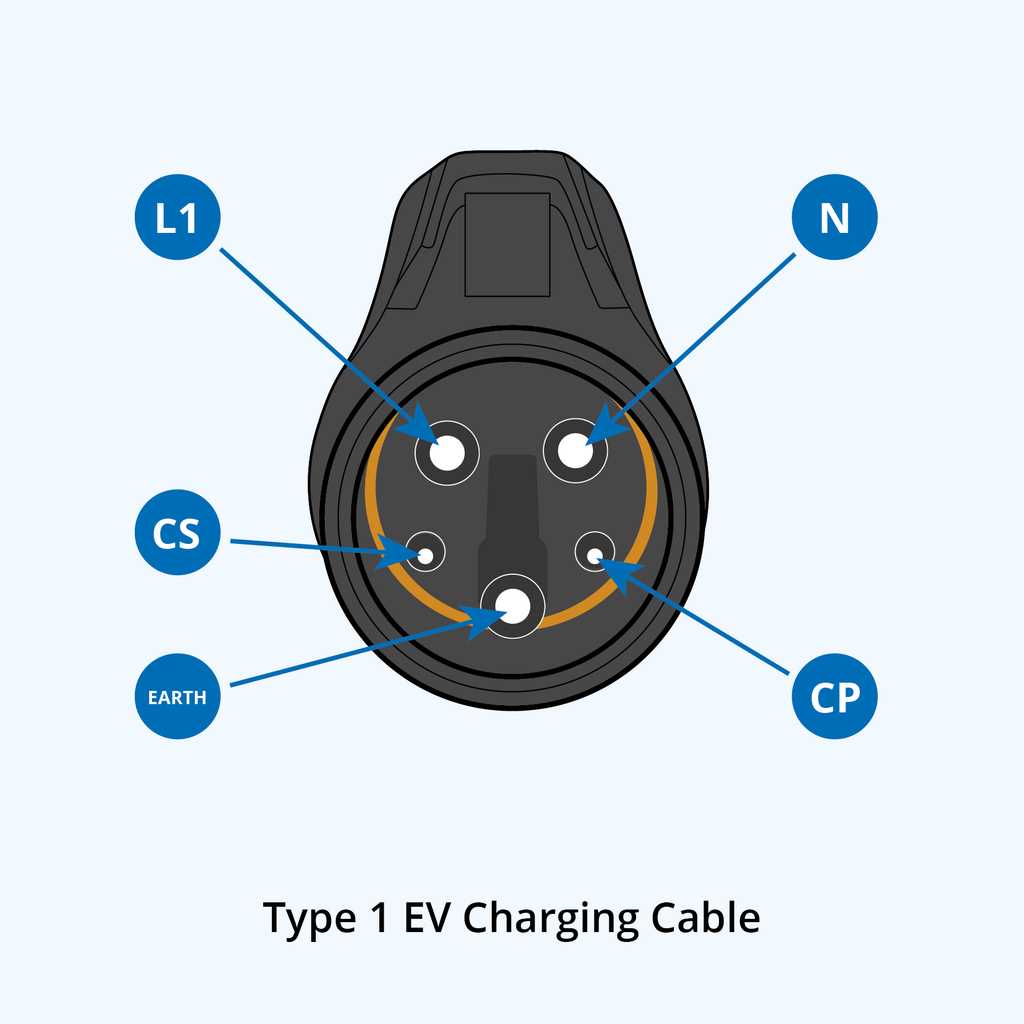

Step-by-Step Assembly for Type 1 (SAE J1772) EV Plugs

Begin by verifying the voltage rating of your conductive link matches the target power source. Type 1 connectors, adhering to SAE J1772 standards, support up to 240V AC single-phase at 80A. Failure to confirm this risks overheating or incomplete energy transfer.

• Proximity Pilot (PP): 1.5 mm² green/yellow wire (⌀1.4 mm)
• Control Pilot (CP): 0.5 mm² orange wire (⌀0.8 mm)
• Ground (PE): 2.5 mm² green/yellow wire (⌀1.8 mm)
• Phase L1/L2/L3: 6 mm² brown/black/grey wires (⌀2.8 mm) for 32A circuits

Strip 8 mm of insulation from each conductor using precision cutters–excess stripping increases exposure while insufficient length prevents proper termination. Twist strands clockwise before insertion to maintain integrity during crimping.

Insert the wires into the plug housing in this sequence:

1. Ground wire (PE) to the central terminal
2. Phase conductors clockwise from L1 to L3 (or L2 for two-phase)
3. Control Pilot (CP) adjacent to the phase terminals
4. Proximity Pilot (PP) in the designated slot

Use a calibrated torque wrench to tighten terminal screws–SAE J1772 specifies 1.2 Nm for signal lines and 2.5 Nm for power terminals. Over-tightening damages threads; under-tightening causes intermittent faults detected by vehicle systems.

Inspect the assembled plug with a multimeter set to continuity mode. Verify:

• Resistance <0.5Ω between PE and vehicle chassis
• Isolation >1 MΩ between all conductors and PE
• CP line toggles between +12V and +6V (±0.5V) when probed against PE

Reject units showing deviation–manufacturing defects in plastic housing often compromise sealing, allowing moisture ingress during outdoor use.

Type 2 (IEC 62196) Connector Color Standards and Terminal Layout

Always verify the conductor hues against IEC 62196-2 specifications before terminating strands in a Type 2 plug or socket. Phase L1 must use brown insulation, L2 black, and L3 grey–swapping these risks unbalanced loads or inverter faults in three-phase EVSE systems. The neutral conductor requires mandatory blue sheathing; deviations violate safety protocols and invalidate compliance certifications.

Proximity pilot (PP) and control pilot (CP) lines demand strict adherence to green/yellow and white/black coding respectively. Green/yellow–the reserved earth hue–never repurposes for PP; white or light grey serves PP in most European assemblies, though some OEMs substitute purple. CP typically appears in white with a black stripe, but solid black CP variants complicate troubleshooting–always consult the mating connector’s datasheet.

Pin assignments follow a rotational symmetry critical for keying: L1-L3 occupy the upper-left trio, neutral sits mid-left, earth spans the lower center, PP upper-right, and CP lower-right. Misaligned crimping–even a 3 mm offset–prevents insertion or damages the locking mechanism. Verify torque specs: 0.5 Nm for signal pins (PP/CP), 1.2 Nm for power conductors.

Multi-core harnesses bundling AC and DC lines often merge PE and shield grounds; this violates IEC 61851-1 clause 10.4.2. Maintain discrete green/yellow for PE and a bare drain wire for shield terminations at the vehicle inlet. ADAS sensors and battery preconditioning modules draw 12V auxiliary power–route these via separate red (+) and black (-) leads, not the main power matrix.

For retrofitted installations, cross-reference legacy BMW i3 (2014-2016) Type 2 ports against Renault ZOE infrastructure plugs–both use identical L1-L3 hues but invert PP and CP pin positions. Use a breakout box with LED indicators to confirm signal integrity before applying 16A continuous current; brown/black/grey phase leads tolerate 90°C XLPE insulation, while pilot lines require 125°C PTFE sheathing.

Field repairs on damaged assemblies must preserve original stranding: L1-L3 use 2.5 mm² solid copper, neutral 1.5 mm², PE 4 mm². Crimp ferrules follow DIN 46228 profile–yellow for power, red for pilots. Never solder; cold junctions corrode under vibration. Final lock testing applies 1000V megger across all conductors after termination–any leakage >0.5MΩ requires disassembly and strand re-inspection.
