Complete Wiring Diagram for 2009 Nissan Altima Car Stereo System Installation

For accurate speaker and power connections in your sedan’s multimedia setup, refer to the left-side harness: pin 1 (gray) delivers front left speaker (+), pin 2 (gray/black) delivers front left speaker (–), pin 3 (white) carries front right speaker (+), and pin 4 (white/black) handles front right speaker (–). Rear channels follow the same color logic–pin 5 (green) for rear left (+), pin 6 (green/black) for rear left (–), pin 7 (purple) for rear right (+), pin 8 (purple/black) for rear right (–).

Power feeds require definitive voltage levels: constant 12V attaches to the yellow wire (pin 9), switched 12V hooks to the red wire (pin 10), and chassis ground ties to the black wire (pin 11). A single blue/white wire (pin 12) activates the amplifier trigger, while illumination control for the panel backlight runs through the orange wire (pin 13).

If the stock interface retains chimes or steering-wheel controls, verify the teal wire (pin 14) for data bus signals and the brown wire (pin 15) for antenna motor activation. Miswiring ground loops or reverse polarity will trip fuses–always meter each lead before finalizing connections. Use a crimp connector rated for 20 AWG minimum to prevent intermittent dropouts.

Replace any brittle, torn sheathing with cross-linked polyethylene heat-shrink tubing and secure tie-wraps every 10 cm to eliminate vibration-induced fatigue. For aftermarket head units exceeding 25 W RMS per channel, insert a fuse tap (15–20 A) inline with the yellow constant feed to protect the battery cable from overload.

Electrical Schematic for Factory Audio System in Mid-2000s Sedans

Begin by locating the 12-pin harness connector behind the stereo unit–pin assignments follow this sequence: 1 (constant 12V+ from fuse #32), 2 (switched ignition 12V+ from fuse #24), 3 (ground via chassis bolt near driver’s kick panel), 4–6 (front/rear speaker outputs, polarity critical for fade/balance), 7 (illumination dimmer signal), 8 (antenna trigger, 12V+ during power-on). Disconnect battery negative terminal before probing or splicing to prevent short circuits.

For aftermarket integration, match wire gauges–18 AWG for signal paths, 14 AWG for power feeds. Original factory colors simplify tracing: yellow (memory backup), red (accessory), black (ground), white/black stripe (LF+), white (LF−), gray/black stripe (RF+), gray (RF−), green/black stripe (LR+), green (LR−), purple/black stripe (RR+), purple (RR−). Verify voltages with a multimeter–memory retain should hold ≥11.5V; ignition-switched line must drop to 0V when key removed.

Troubleshooting Inconsistent Power Delivery

If display flickers or unit resets mid-operation, test fuse #32 (10A) and #24 (15A) for continuity. Corrosion at connector pins often causes intermittent failures–clean with electrical contact spray, not sandpaper. For persistent issues, bypass factory wiring by tapping fused ignition (15A) from the under-dash fuse box (slot 14, labeled “AUDIO”), using a relay if current draw exceeds 10A. Avoid splicing into cigarette lighter circuits–shared loads may cause voltage sag.

Retain the factory amplifier when replacing the head unit. It’s mounted behind the rear seatback, powered via a separate 16-pin harness–purple/white wire supplies 12V+, blue/white is the remote turn-on trigger. Bypass the amp only if using a higher-powered aftermarket model; otherwise, maintain OEM signal flow to preserve equalization curves tuned for the cabin’s acoustic profile. Speaker impedance remains 4Ω across all channels–verify with an ohmmeter before connecting aftermarket equipment.

Steering wheel controls require a specific resistor network outline: volume up (390Ω), volume down (750Ω), preset seek (1.5kΩ), mode (2.2kΩ). Replicate these values precisely if modifying or adding an interface module. Bluetooth retrofit kits tap into the combined display harness (light green/black wire for microphone input, pink/black for audio return), but delay installation until confirming the factory wiring’s integrity–ground loops are common.

For satellite or HD radio add-ons, integrate power through fuse #42 (7.5A, “NAV/AUDIO”) rather than the stereo harness. Signal inputs route through the brown connector (pin 15 for audio left, 16 for right), requiring shielded RCA cables to prevent RF interference. Document all modifications–label each connection point with heat-shrink sleeves and cross-reference against the vehicle’s service manual schematic.

Final steps: re-secure wiring harnesses with zip ties every 4 inches, route away from sharp edges or moving components (e.g., steering column, pedal assembly), and perform a full function test–including illumination sync, dimmer response, and antenna extension–before reassembling dashboard panels. Errors in polarity or grounding will damage amplifiers and may trigger the body control module’s overload protection.

Matching the Right Aftermarket Harness Adapter for Your Sedan’s Audio System

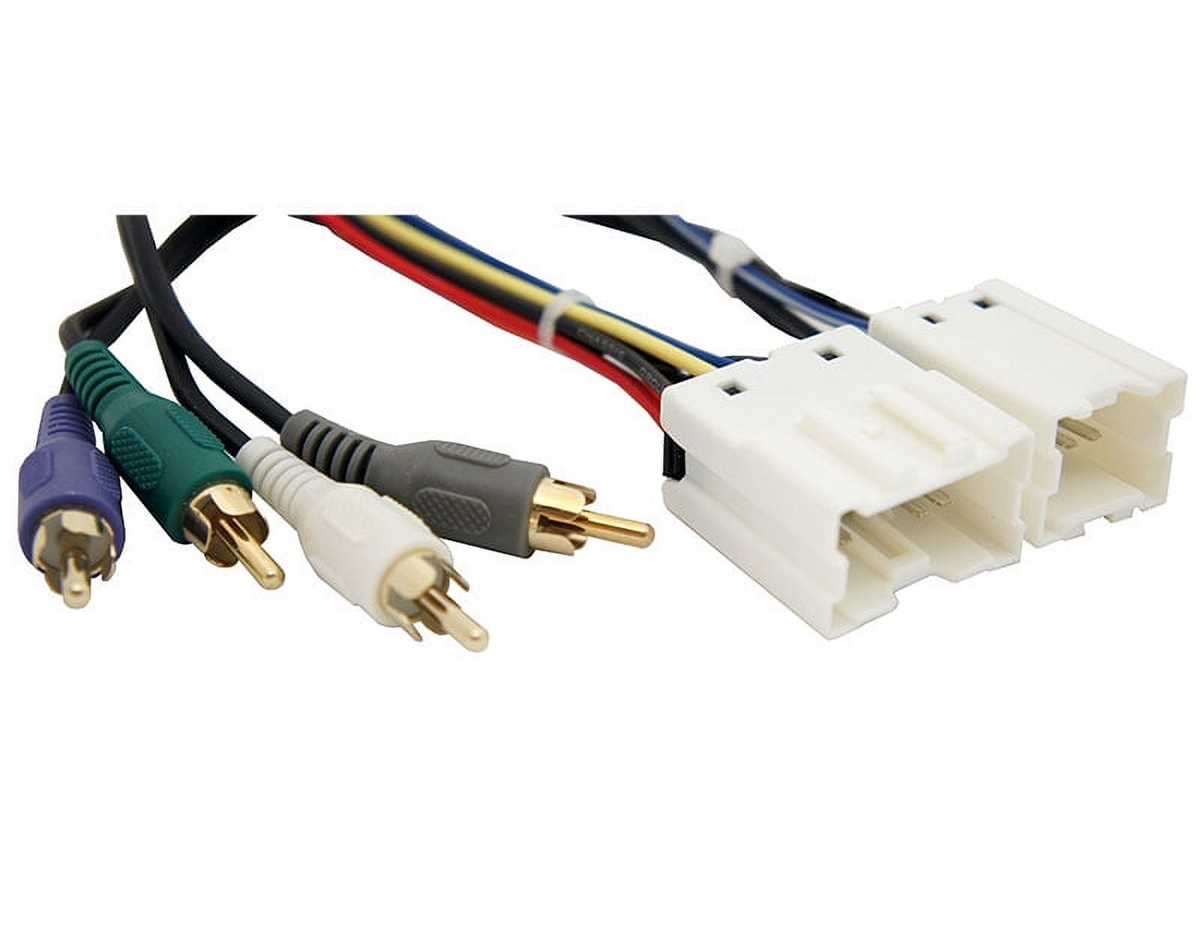

Locate the Metra 70-7552 wiring interface adapter–this unit aligns directly with the OEM connector pinout for factory-installed head units from the specified model year. Verify the color-coding on the adapter’s leads against the vehicle’s service manual: orange-white (ILL+), blue-white (Remote), and black (Ground) must correspond exactly to avoid power surges or shorts. Third-party harnesses lacking pin-for-pin compatibility often require additional splicing, increasing failure risks during installation.

Cross-reference the existing stereo’s plug layout with the replacement harness. The factory head unit uses a 12-pin male connector (A XXXXXX-XXXX), while aftermarket receivers typically require a female adapter with matching terminals. If substituting an older Metra part, confirm the 70-7552 variant includes updated illumination wiring (ILL+ and ILL-) to sync with the instrument cluster’s dimmer circuit. Incorrect adapter selection can disable steering wheel controls or trigger malfunctions in the amplifier’s retained accessory power.

Key Pin Assignments to Validate Before Installation

Check these critical connections using a multimeter set to continuity mode:

• BATT (Yellow) – 12V constant from the main fuse box (J/B #30 or #60, 10A)
• ACC (Red) – Switched 12V from ignition (IPDM E/R connector, pin 27)
• Ground (Black) – Direct chassis connection (bolt near glovebox)
• LF/RF/LR/RR – Speaker outputs (resistance 4Ω±0.5Ω)

Avoid using “universal” harnesses claiming fitment–these omit critical signal wires like the speed sensor input (gray/violet) or antenna trigger (pink), leading to degraded audio quality or erratic receiver behavior.

Step-by-Step Connector Pinouts and Signal Assignments for Audio System Integration

Disconnect the vehicle’s battery before handling harness connections to prevent short circuits or damage to sensitive components. Use a multimeter set to continuity mode to verify each wire’s function prior to splicing.

Primary harness colors and purposes:

• Pink (+) – Switched power from ignition; delivers 12V when the key is turned to “ACC” or “ON,” cutting off in “LOCK” to preserve battery. Tap this for aftermarket units requiring constant voltage access.
• Yellow (+) – Continuous battery power (memory keep-alive); maintains presets, clock, and anti-theft data. Wire gauge must match or exceed factory specifications to avoid voltage drop.
• Black (-) – Chassis ground; ensure a clean, corrosion-free connection to the vehicle’s frame or designated grounding point. Poor grounding causes noise, intermittent operation, or unit failure.
• Orange/White stripe – Illumination control; dims the head unit display in sync with dashboard lights. Polarization matters–reverse connection may disable brightness adjustment.
• Gray (+) – Antenna power; provides 12V to motorized or amplified antennas. Absence of voltage results in weak or no FM reception.

Speaker outputs follow a consistent two-wire per channel scheme, distinguished by base colors and striping. Phase must match factory wiring to prevent cancellation:

• Front Left (+) – Light green
• Front Left (-) – Light green/black stripe
• Front Right (+) – White
• Front Right (-) – White/black stripe
• Rear Left (+) – Gray
• Rear Left (-) – Gray/black stripe
• Rear Right (+) – Dark blue
• Rear Right (-) – Dark blue/white stripe

Crossing positive and negative leads during installation distorts audio, damages amplifiers, or trips built-in protections. Use crimp connectors rated for 16-18 AWG; soldering introduces resistance if not executed properly.

Additional connections include:

1. A blue wire with a white stripe (Blue/White) – Triggers external amplifiers or powered subwoofers at 12V when the stereo activates. Verify compatibility with aftermarket amplifiers requiring remote turn-on.
2. A purple wire (Purple) – Data communication line for steering wheel controls. Retain this for OEM interface retention; aftermarket adapters often require it.
3. A solid brown wire (Brown) – Mute function; grounding this wire temporarily silences the system. Useful for muting during calls or navigation prompts.

Before finalizing connections, power the system and test each function: tuner bands, CD/USB inputs, balance/fader adjustments, and responsiveness to steering wheel controls. If static or distortion occurs, recheck ground and speaker wire polarities.

Secure all harnesses away from rotating components, sharp edges, and heat sources using zip ties or conduit. Apply dielectric grease to connectors exposed to moisture to prevent corrosion.

For vehicles equipped with Bose or premium sound systems, a separate amplifier harness will be present. Identify these wires by their unique colors–typically dark green, violet, or orange with distinctive striping–and ensure they match the aftermarket unit’s amplifier outputs.
