Complete 2010 Chevy Traverse Stereo Wiring Diagram and Installation Guide

Begin by locating the rear right speaker wires–they’ll be labeled light green (positive) and dark green (negative). These correspond to the rear passenger-side tweeter and woofer. Never splice these directly; use a harness adapter instead to prevent signal degradation or shorts. Factory harnesses in this model utilize a 12-pin Molex connector; mismatching pins will fry the amplifier’s internal circuitry.

For the front door speakers, trace the wires from the harness to the kick panel. The gray (positive) and gray/black (negative) pair powers the driver’s side, while white (positive) and white/black (negative) feed the passenger side. Test continuity with a multimeter before connecting aftermarket components–resistance should read between 3.8 and 4.2 ohms. Anything outside this range indicates a damaged voice coil or loose ground.

Power and ground connections demand 10-gauge wire minimum–thinner wire risks voltage drop under bass-heavy loads. The yellow/black fuse link near the battery provides 12V constant; splicing here requires a 30-amp fuse inline. For accessory power (ignition-switched), the pink/black wire in the dash harness activates the system. Avoid tapping the cigarette lighter circuit–it’s prone to voltage spikes.

If retrofitting a digital interface, identify the CAN bus wires: orange (HS-CAN high) and orange/black (HS-CAN low). These carry steering wheel controls and vehicle data. Never connect aftermarket head units directly–use a PAC RP4-CH11 module to translate signals. Improper integration can trigger check-engine codes or disable stability control.

For subwoofer integration, the purple wire (amplified signal) and purple/black (ground) feed the factory amp. Capacitors won’t help here–upgrading to a 200W RMS-rated amp with a low-pass filter at 80Hz ensures clean bass output. Double-check ground connections at the chassis–paint or corrosion can cause intermittent failures.

Audio System Harness Guide for GM Lambda Crossover (Model Year Variant)

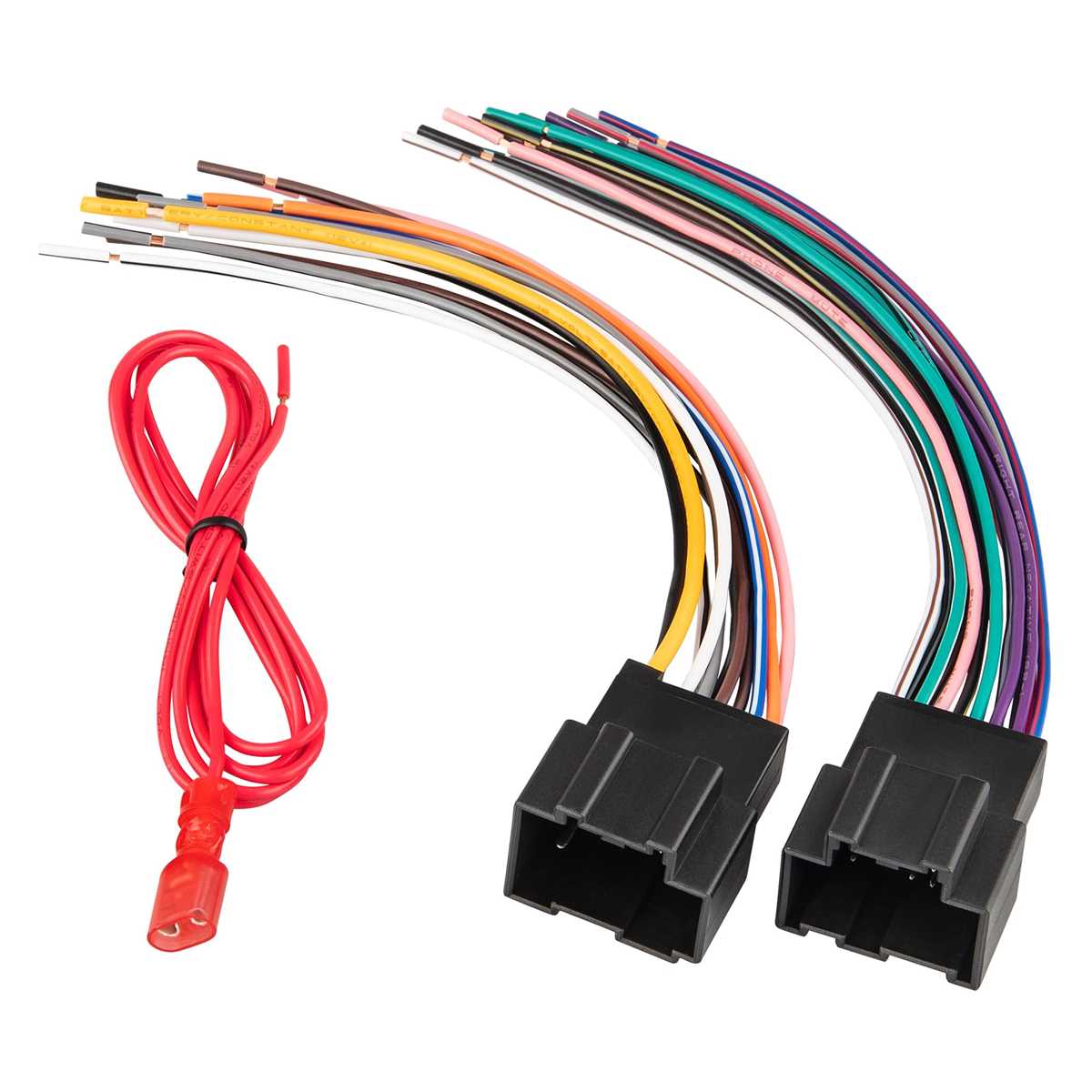

Locate the factory harness behind the head unit’s mounting bracket–pinout follows this configuration: constant 12V (orange, terminal 2), switched ignition (yellow, terminal 3), ground (black, terminal 4), front left positive (gray, terminal 5), front left negative (lt. blue, terminal 6), front right positive (white, terminal 7), front right negative (dk. blue, terminal 8), rear left positive (green, terminal 9), rear left negative (tan, terminal 10), rear right positive (purple, terminal 11), and rear right negative (brown, terminal 12). Aftermarket adapters (Metra 70-2103 or Axxess ASWC-1) snap directly into these slots; no splicing required. Verify fuse ratings (15A for constant, 10A for ignition) before energizing.

Troubleshooting Common Faults

If static persists on rear channels, inspect the rear amplifier’s ground strap (G104, beneath the driver’s side cargo panel)–corrosion here disrupts signal integrity. For dimmer-controlled illumination failures, trace the dimmer wire (lt. green/white stripe, terminal 14) to the BCM connector C1 (X3, pin 50); oxidation at this junction forces maximum brightness. When replacing speakers, match factory impedance (4 ohms) and power handling (50W RMS) to prevent voice coil burnout.

Finding the OEM Audio Connector in Your Vehicle

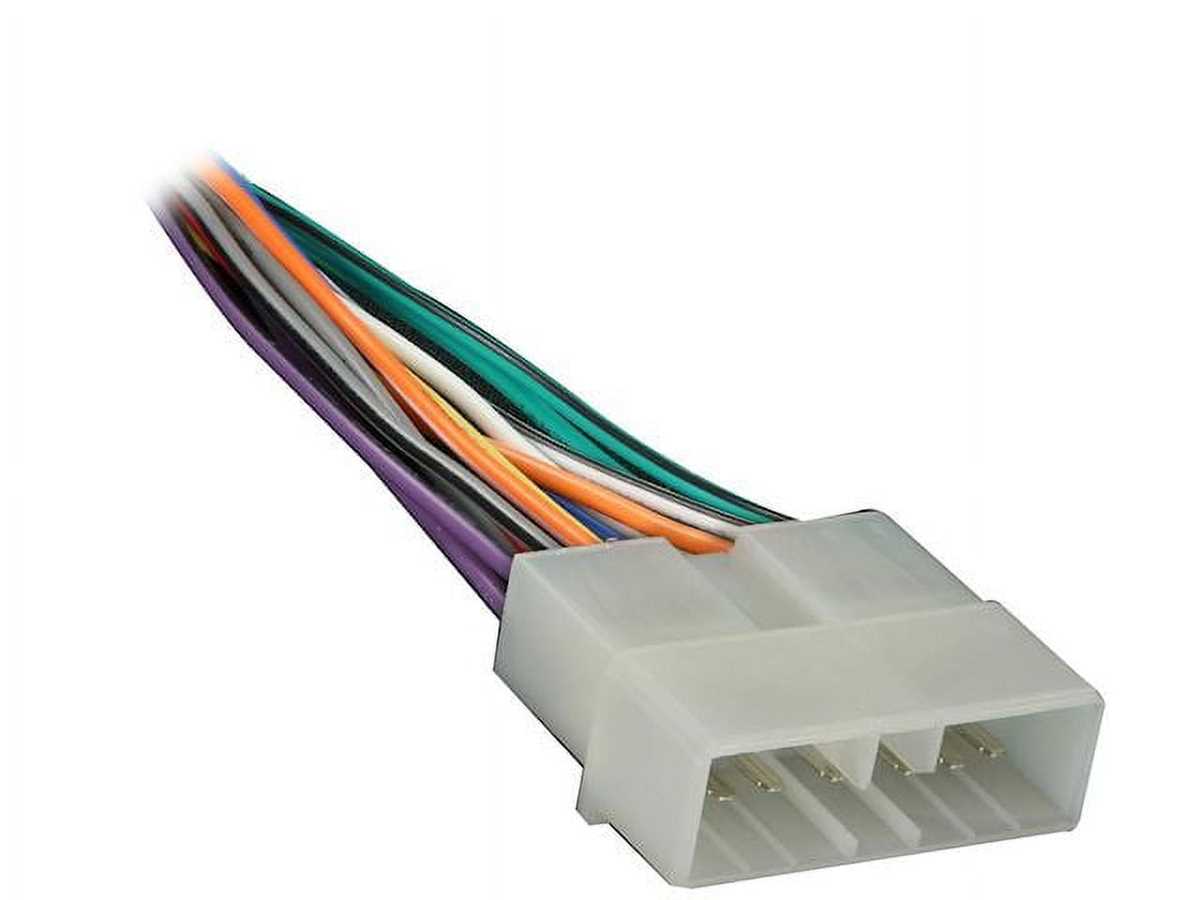

Begin by removing the trim panel surrounding the infotainment unit–this is typically secured with plastic clips and may require a trim removal tool to avoid damage. The factory harness is usually tucked behind the climate controls on the driver’s side, sitting in a recessed slot beneath the HVAC module. Look for a rectangular, 12-pin connector with color-coded leads: yellow for constant power, red for accessory, black for ground, orange with a white stripe for illumination, and purple for the vehicle’s data bus. If the connector isn’t immediately visible, check for a secondary harness adapter or a blank plastic cover hiding it–some models route it through the lower dash cavity near the fuse box.

Key Landmarks for Quick Identification

• Locate the dual climate control knobs–slide fingers behind the left knob housing to feel for a bundled set of wires terminating in a plastic plug.
• Trace the wiring loom from the back of the head unit; it often runs downward, merging with the main vehicle harness behind the knee bolster.
• Inspect the area adjacent to the driver’s side footwell for a second, smaller connector–this may supply power to the amplifier or rear seat entertainment.
• If the harness isn’t found, remove the lower dash panel (held by 3 screws and 5 clips) to access the steering column’s underside, where an auxiliary harness may be tucked.

Mark each wire with masking tape before disconnecting–labeling prevents misrouting during aftermarket integration. Use a multimeter to verify voltages: constant power should read 12V at all times, accessory power only when the ignition is on, and ground should show continuity to the chassis. If resistance exceeds 0.5 ohms on the ground lead, clean the mounting point or run a dedicated ground wire to the nearest unpainted metal surface.

Decoding Aftermarket Audio Harness Color Standards for GM Uplander Platform Models

Match the factory ISO connector wires precisely to avoid grounding faults. The 12-pin harness behind the OEM head unit uses the following color assignments:

• Yellow (B+): Constant +12V power feed, directly linked to the battery via a 10A fuse; confirmation requires multimeter testing with ignition off.
• Red (ACC): Switched +12V, active only when the ignition is in RUN or ACC mode; splice resistance below 0.2Ω ensures stable signal.
• Orange/White (ILL+): Illumination positive, dimmer-controlled for nighttime operation; verify by toggling headlight switch while monitoring voltage (0-12V expected).
• Brown (ILL-): Illumination negative reference; should show continuity to chassis ground under all conditions.
• Gray/Light Blue (ANT): Triggers powered antenna or amplifier remote turn-on; pulse extends 3-5 seconds post-ignition cut-off for memory retention.

Speaker outputs follow a standardized two-wire polarity convention per channel:

1. Front Left (+): Tan with black stripe
2. Front Left (-): Gray with black stripe
3. Front Right (+): Light green with black stripe
4. Front Right (-): Dark green with black stripe
5. Rear Left (+): Dark blue with white stripe
6. Rear Left (-): Light blue with white stripe
7. Rear Right (+): Violet with black stripe
8. Rear Right (-): Pink with black stripe

Critical Grounding and Data Bus Connections

Black wire (GND) must terminate at the vehicle’s chassis ground point near the firewall grommet–resistance above 0.1Ω indicates corrosion or improper crimping. For models equipped with OnStar or chimes module integration:

• White (DATA+) and Dark Green (DATA-) form a differential pair for CAN bus communication; reverse polarity disables safety alerts.
• Light Blue (SPEED) carries vehicle speed sensor pulses; splicing into aftermarket navigation systems requires maintaining waveform integrity to avoid GPS drift.

Subwoofer outputs (if present) split into a dedicated sub harness using Dark Blue/White (+) and Light Blue/White (-). Verify output with a 1kHz sine wave test tone–distortion below 0.5% confirms proper installation. Never combine speaker grounds; each negative lead should route individually to the head unit or amplifier common ground to prevent crosstalk.

Use a 4-channel oscilloscope to validate rear seat entertainment wiring. The auxiliary video feed utilizes Yellow/Black (CVBS) with composite sync, while Green/Black (RGB) carries component Y signal. For DVD audio, Orange (L+) and White (L-), Brown (R+) and Gray (R-) pairs must maintain 75Ω impedance across RCA adapters. Failure results in audio dropouts during DVD playback.

Step-by-Step Guide to Removing the Factory Head Unit Safely

Disconnect the vehicle’s negative battery terminal first–this prevents short circuits or accidental airbag deployment during removal. Use a 10mm socket to loosen the terminal clamp, then secure the cable away from the battery post. If the system has retained power settings (like radio presets), wait at least 10 minutes before proceeding to allow capacitors to discharge fully. Skipping this step risks damaging the module or triggering fault codes in the onboard computer.

Remove dashboard trim panels systematically. Start by prying off the climate control bezel (if equipped) using a plastic trim tool–insert it into the seam near the hazard button and gently twist to release clips. Next, detach the upper dash panel by removing two screws hidden behind the steering column cover and two more near the defroster vents. The lower trim piece around the shifter typically snaps off after pulling upward from the rear edge. For models with integrated HVAC controls, unscrew the single Phillips-head fastener securing the panel before lifting it free.

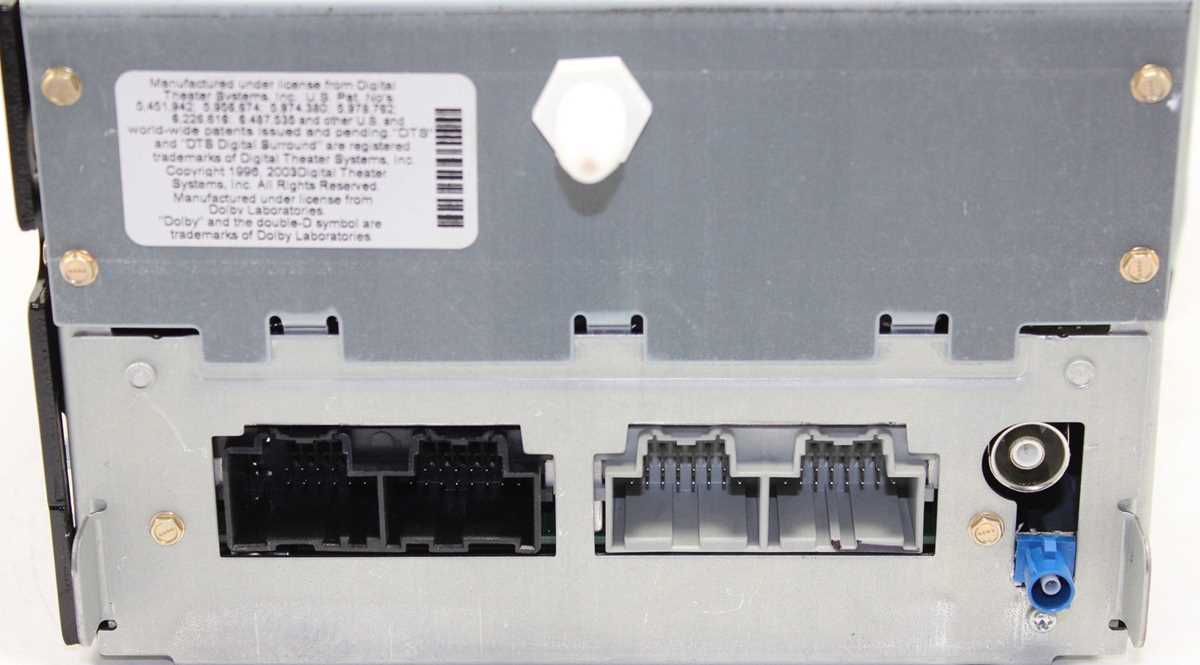

Unbolt the factory audio unit’s mounting bracket with a T20 Torx driver–four screws are located at the corners. Slide the module out carefully, supporting its weight to avoid straining the wiring harness. Press the release tabs on the rear connectors one at a time, rocking them side-to-side if stuck; forcing them can break plastic locking tabs. Label each plug with masking tape (e.g., “amp,” “antenna”) if reinstalling later. For units with fiber optic cables, pinch the white retention sleeve while pulling to prevent damaging the delicate core.
