Complete Guide to Wiring a 35 mm Audio Jack Connector

Begin by identifying the terminals on a common TRS plug: tip (left audio), ring (right audio or microphone), and sleeve (ground). Use a multimeter to confirm continuity between components before soldering. A balanced mono setup requires only the tip and sleeve, while stereo demands all three contacts.

For a microphone input, add a 2.2 kΩ resistor between the ring and sleeve to provide plug-in power (typically 2–5 V DC). Omitting this may result in no signal or distortion. Shielded cable is mandatory to reduce interference–use at least 24 AWG stranded wire for durability.

Test each connection with a continuity check after assembly. If audio cuts in and out, inspect solder joints for cold connections or bridging. Ensure the sleeve is securely grounded–fluctuating audio often traces back to a loose or faulty ground.

For headphone output, connect the left channel to the tip, right channel to the ring, and ground to the sleeve. If pairing with older equipment, verify impedance–low-impedance headphones (under 32 Ω) require less voltage swing, while high-impedance models (200 Ω+) need stronger amplification.

When adapting a TRRS plug (for headsets with microphones), the sleeve splits into two: one for ground, another for microphone return. Label wires before cutting–red typically marks right audio, green left, and white the microphone. Confusing these will swap channels or mute the mic entirely.

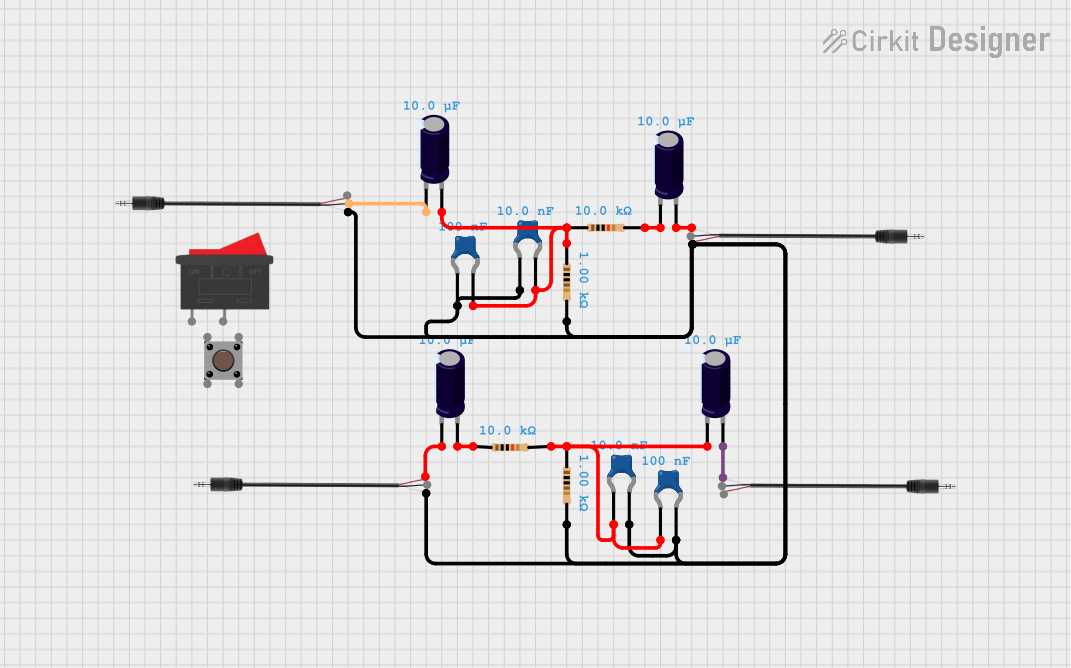

Schematic for Standard Audio Connector Assembly

Connect the tip terminal to the left audio channel input of your device using 24 AWG stranded copper wire for optimal signal integrity. Shielded cable with a braided ground reduces interference in lengths exceeding 1.5 meters.

Use a TRS (tip-ring-sleeve) configuration for stereo audio: tip carries left channel, ring delivers right channel, and sleeve serves as common ground. For mono signals, combine tip and ring connections or omit the ring entirely if the device supports TS format.

Solder joints should receive a 60/40 rosin-core tin alloy for reliable conductivity. Apply 320°C iron temperature with a dwell time of 2-3 seconds per joint to prevent cold solder defects while avoiding heat damage to insulation.

Test continuity with a multimeter set to 200Ω range. Each segment – tip, ring, sleeve – must register below 1 Ω against the ground pad before final assembly. Voltage checks should confirm no DC offset exceeds ±5 mV across channels.

Insulate exposed leads with heat-shrink tubing (polyolefin, 2:1 ratio) after testing. Tubing diameter should exceed the wire gauge by 0.5 mm to ensure snug fit. Activate the tubing with a heat gun at 200°C for 3 seconds per segment.

For four-conductor connectors (TRRS), assign sleeve sections as follows: base sleeve remains ground, second sleeve carries microphone input, while ring and tip retain stereo audio assignments. Use 3.3V bias voltage for electret microphones with a 2.2kΩ resistor to ground.

Keep cable bends above 5x wire diameter to prevent fatigue fractures in copper strands over repeated flex cycles. Secure strain relief with nylon cord ties at 30mm intervals from connector housing to maintain structural integrity under tension loads up to 10N.

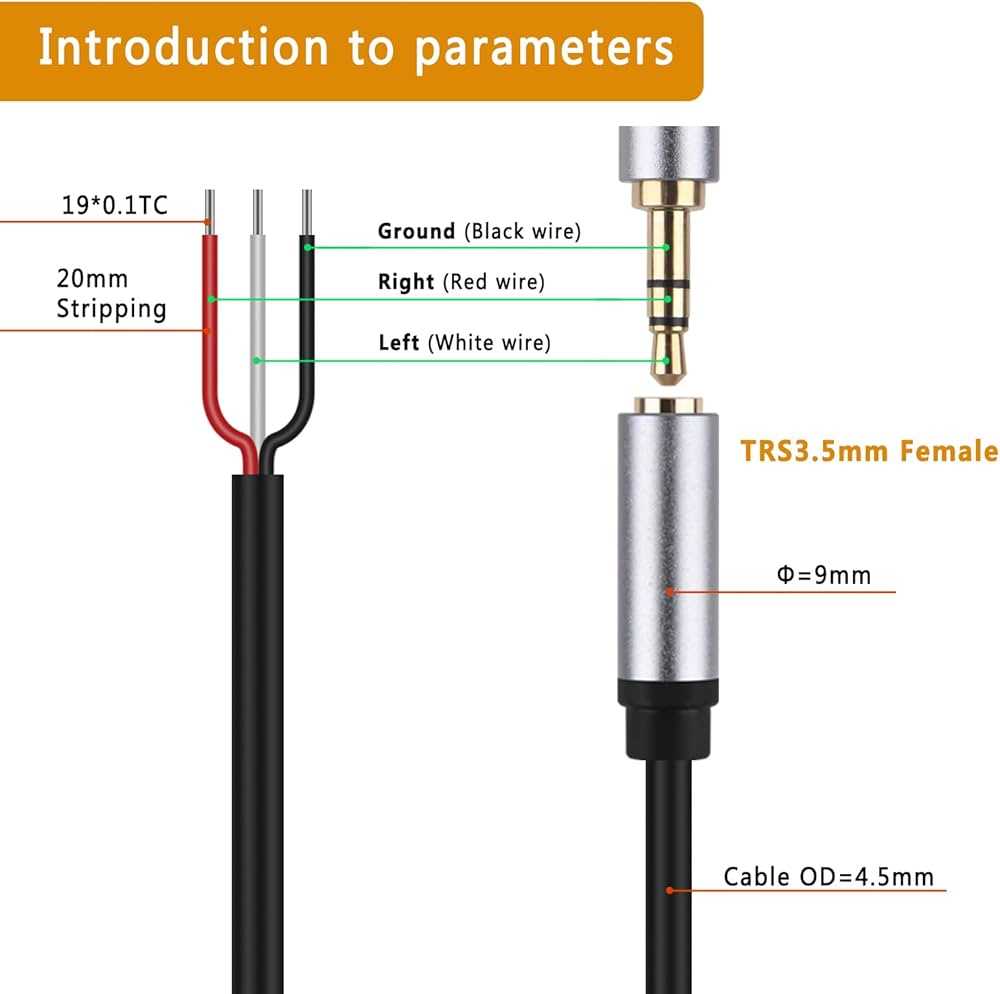

Standard Pin Configurations in TRS and TRRS Audio Plugs

Always connect the sleeve (longest segment) to ground for stable signal return–this prevents interference and crosstalk across channels. TRS plugs split into three sections: tip carries the left audio, ring handles right audio (or mono audio with a shared sleeve), while TRRS adds a fourth segment for microphone input or video signals in some devices.

For TRRS connectors used in headsets, the OMTP and CTIA standards differ critically. CTIA places ground on the second ring (counting from the tip), while OMTP assigns it to the sleeve. Verify the target device’s specification before soldering–mismatches mute audio or disable mic functionality. Multimeters in continuity mode confirm pin assignments quickly.

Compatibility Considerations

Apple’s iPhone-style headsets follow CTIA, whereas older Nokia and Sony Ericsson devices typically adhere to OMTP. Adapters exist to bridge these standards, but direct wiring avoids signal degradation. When modifying cables, use stranded copper wire (28-30 AWG) for flexibility and corrosion-resistant connectors–nickel-plated brass lasts longer than gold in high-wear scenarios.

Test each connection under load: plug the finished cable into a device and play pink noise through both channels, then check for balanced volume and absence of distortion. A 1kHz sine wave at -12dB verifies microphone input if present. Oscilloscopes detect phase issues, but handheld audio testers suffice for fieldwork.

Common Pitfalls

Avoid cold solder joints–heat the pad and wire equally before applying solder, ensuring a shiny, concave fillet. Insulate each segment with heat-shrink tubing (2:1 ratio) to prevent short circuits. TRRS cables intended for camcorders often repurpose the fourth segment for composite video; consult the device manual if colors (yellow, red, white) deviate from audio standards.

Shielding matters: braided copper sleeves reduce RF interference in high-noise environments like concert venues or workshops. For microphone-level signals, keep unshielded wire runs under 10cm to avoid hum. When building custom cables, label both ends immediately–white heat-shrink works well for marking tip/ring/sleeve assignments.

How to Properly Attach Conductors to a Mini Plug Connector

Choose a 24-30 AWG stranded copper wire for flexibility and durability. Solid-core wires risk breaking under vibration. Strip 3-4 mm of insulation from each lead–longer exposes risk shorting; shorter complicates soldering.

Pre-tin both the plug terminals and exposed wire ends. Apply flux to prevent oxidation. For a standard TRS (tip-ring-sleeve) mini connector, note the three terminals: tip (left channel), ring (right channel), sleeve (ground).

• Tip terminal: typically carries left audio or mono signal.
• Ring terminal: right audio channel or secondary mono lead.
• Sleeve: common ground for all channels.

Secure the connector in a vice or clamp. Heat the soldering iron to 350°C–excessive heat damages plastic housing; insufficient heat creates cold joints. Touch the iron to the terminal for 2 seconds before applying solder.

Align the pre-tinned wire to the terminal. Hold the iron on the joint for 1-2 seconds, then feed solder. Aim for a smooth, concave fillet–bulging solder indicates overheating or excess material. Let cool undisturbed for 30 seconds.

Repeat for each lead. For stereo connections, attach the left channel to the tip, right to the ring, and both grounds to the sleeve. Mono setups require only the tip and sleeve terminals.

Insulate each joint with heat-shrink tubing or electrical tape. Slide tubing over the wire before soldering, then reposition and heat. Verify connections with a multimeter–ohm readings should show continuity between wire and terminal, infinite resistance between adjacent terminals.

Reassemble the plug housing. Thread the strain relief over the cable before soldering to prevent wire fatigue. Verify audio playback by connecting to a device–static or intermittent signals suggest poor soldering or incorrect lead placement.

Locating Signal and Return Pins on Audio Connectors

Begin by examining the plug’s physical structure: a standard TRRS (tip-ring-ring-sleeve) audio connector splits into four segments. The sleeve, or the longest section at the base, is always the ground contact. Use a multimeter in continuity mode–connect one probe to the device’s internal ground (e.g., metal chassis or shielding) and touch the other to each plug segment until the meter beeps, confirming the ground sleeve.

Left and right audio channels follow the TRS (tip-ring-sleeve) convention, with the tip carrying the left signal and the first ring handling the right. For microphones, the second ring (adjacent to the ground sleeve) is the designated input. To verify, plug the connector into a known-working device, play stereo audio, and measure voltage between ground and each segment–left channel will show ~0.1–0.3V AC, right ~90° out of phase. Microphones exhibit DC bias (~2.5V) or AC voltage (~5–50mV) during speech.

Common Missteps and Corrections

• Assuming TRS plugs (three segments) carry microphone signals–these lack the fourth ring. Replace with TRRS if mic integration is critical.
• Confusing left/right order in non-standard connectors (e.g., OMTP vs. CTIA). Test with known stereo content; left channel should dominate when panned fully left.
• Overlooking shield continuity. If ground is intermittent, crackling or hum persists. Strip the cable further back to expose intact shielding.

For connectors with worn or missing markings, use color-coding as a fallback: copper/bare wire pairs with ground, red with right channel, green/white with left, and blue/gold with the mic. When soldering, apply heat-shrink tubing to insulate each segment, preventing short circuits. Test connections immediately–resistance between adjacent contacts should exceed 1MΩ; values below 1kΩ signal a fault.

Frequent Errors in Connecting Miniature Audio Connectors

Reverse the tip and sleeve on stereo plugs–this is the most persistent error, causing left and right channels to swap or one channel to vanish entirely. Verify polarity by checking continuity with a multimeter: the tip should carry the left signal, the ring the right (or mono, if applicable), and the sleeve must remain grounded. Confusing these leads to phase cancellation in stereo setups, especially in headphones without balanced wiring.

Ignore solder joint integrity at your peril. Cold or incomplete joints create intermittent connections, introducing crackling, dropouts, or total signal loss. Heat the pad and conductor evenly, apply rosin-core solder, and inspect for a shiny, concave meniscus. Avoid excessive solder–it can bridge adjacent contacts, shorting channels. For stranded wire, twist strands tightly before soldering to prevent stray filaments from causing shorts.

Neglecting strain relief guarantees early failure. Thread the cable through the connector’s strain relief opening *before* soldering–most hobbyists omit this step, leaving the joint vulnerable to mechanical stress. Secure the cable with a zip tie or shrink tube over the relief to distribute tension along the length rather than the soldered joints. A single tug without relief will rip wires from their pads.

Overlooking proper insulation between conductors invites shorts. Miniature plugs (TRS or TRRS) use millimeters of clearance between contacts; a single stray strand or excess solder can bridge them. Strip only 2-3mm of insulation–longer exposes vulnerable conductors. Use heat-shrink tubing over individual wires before assembly to prevent accidental contact, especially in TRRS configurations where mic and ground lines run adjacent.

Mismatching plug types with devices causes compatibility headaches. TS (tip-sleeve) mono plugs in stereo equipment mute one channel or distort output. Conversely, forcing a TRS stereo plug into a mono device risks shorting the right channel. Below is a compatibility matrix for reference:

Plug Type	Device	Result
TS Mono	Mono Input (e.g., guitar)	Full signal
TS Mono	Stereo Input	One channel only
TRS Stereo	Mono Input	Short risk; distorted output
TRRS (with mic)	Stereo Headphones	Mic signal ignored; audio works
TRRS (with mic)	Headset Input (3-pole)	Mic muted; possible damage

Assume all connectors follow identical pinouts–this assumption ruins devices. Apple’s TRRS standard (mic on sleeve, ground on second ring) conflicts with CTIA (ground on sleeve, mic on second ring). Swap these, and the microphone either fails or feeds hum into the audio path. Always verify manufacturer specs before soldering. If uncertain, trace connections with a multimeter: mic input typically measures ~2kΩ to ground, while audio outputs show

Ground Loop Pitfalls

Connecting grounds haphazardly creates ground loops, manifesting as 50/60Hz hum. In multi-device setups (e.g., amplifier + audio interface), tie all grounds to a single point–star grounding. Avoid daisy-chaining grounds through multiple connectors. For balanced signals, use TRS connectors with isolated grounds; unbalanced setups should share a dedicated ground wire back to the source.

Disregarding connector gender during repairs leads to reversed channels. A replacement male plug’s tip may align with the original’s ring, flipping left/right channels. Mark the original connector’s orientation before disassembly, or measure continuity to confirm pin assignments. For TRRS, note that some devices route the mic line through the shield–swapping this with ground can send DC voltage into the microphone, damaging it.

Final Assembly Oversights

Seal the connector shell improperly and moisture or debris will corrode connections. After soldering, wrap joints with a layer of self-fusing silicone tape before securing the shell. Ensure the strain relief grips the cable jacket, not just the conductors. For outdoor or pro audio use, apply dielectric grease inside the shell to prevent oxidation. A loose shell can rotate, stressing internal joints–tighten securely without over-compressing the cable.
