Complete Guide to Wiring a 7Pin Trailer Plug StepbyStep
Start with a 12-volt power source–typically the vehicle’s battery–routed through a relay for safety. The central connector (often pin 2 in standard configurations) carries the primary current and must use minimum 12-gauge wire to handle up to 20 amps reliably. Ground the system at a dedicated point on the frame, not through hitch components, to prevent voltage drops under load.
For lighting circuits, separate left and right turn signals with amber or red LEDs wired in parallel to the vehicle’s existing flasher unit. Brake lamps require a dual-function lead that activates both stop lights and running lamps when the pedal is pressed. Use weatherproof dielectric grease on all connections to resist corrosion from road salt and moisture.
Reverse lights need a direct feed from the vehicle’s backup circuit–never splice into the turn signal or brake lines. Auxiliary power (if present) should be fused within 30 cm of the battery with a 20-ampere fuse to protect against shorts. Test continuity with a multimeter before final assembly; resistance above 0.5 ohms indicates a faulty connection.
Label each lead with heat-shrink tubing or color-coded tape before terminating. Common sequences are yellow (left turn), green (right turn), brown (tail lamps), white (ground). Secure all wiring with zip ties every 30 cm to prevent chafing against sharp edges. Route long runs along the vehicle’s frame, avoiding moving parts and exhaust systems.
If integrating electric brakes, connect the blue lead to a proportional controller mounted within 1 meter of the driver’s seat. Calibrate the controller using a test trailer with known brake resistance. Ensure the ground return path is independent of the lighting circuit to avoid interference.
Connecting Vehicle and Towable Unit Electrical Systems
Start by verifying the color coding standard on both the tow vehicle’s socket and the caravan’s harness. North American setups typically follow this scheme: yellow for left turn/brake, green for right turn/brake, brown for running lights, white as ground, blue for auxiliary power, red for brake control output, and black for battery charging. European configurations often swap red and black assignments–always cross-check with the manufacturer’s manual to avoid mismatches.
Use a multimeter to test continuity between the connector body and each terminal before connecting. A reading above 0.5 ohms indicates corroded contacts or a broken ground path–clean terminals with a wire brush and dielectric grease to prevent future oxidation. For ABS-equipped units, ensure the blue circuit delivers 12V continuously when the ignition is on; many aftermarket brake controllers require this signal to function properly.
Mount the socket on a stable metal surface near the hitch, avoiding areas prone to water pooling. Route cables through a protective conduit if passing near moving parts or sharp edges–flexible spiral wrap works well for this. Secure excess length with zip ties, leaving enough slack to accommodate turning without strain but preventing loops that could snag or drag on the road.
Label both ends of the harness with heat-shrink tube markers matching the color code. This simplifies troubleshooting and future repairs, especially if modifications or repairs are needed after extended use. For LED-equipped units, confirm the harness includes a bypass converter if the vehicle’s lighting system isn’t LED-compatible–standard incandescent circuits may cause rapid flashing or hyper-flashing in modern towables.
Ground the white circuit directly to the chassis using a dedicated bolt, not through a painted surface. Poor grounding is the most common cause of intermittent lighting failures, especially in older vehicles where factory grounds may degrade over time. Use a star washer to ensure a solid mechanical and electrical connection, and coat the contact area with anti-seize compound if operating in humid or salty environments.
If the tow vehicle lacks a pre-installed harness, splice the adapter into the existing lighting circuits using T-tap connectors or soldered joints sealed with heat-shrink tubing. Avoid crimp connectors alone; vibrations from towing accelerate failure in unprotected joints. Test each function–turn signals, brakes, running lights–separately with the ignition on before finalizing the installation.
For units with electric brakes, connect the red circuit to a brake controller output wire, not directly to the tow vehicle’s brake light switch. Most proportional controllers require calibration after installation–follow the manufacturer’s procedure to adjust gain and response curves based on load weight. A poorly configured system can result in premature brake wear or unsafe stopping distances.

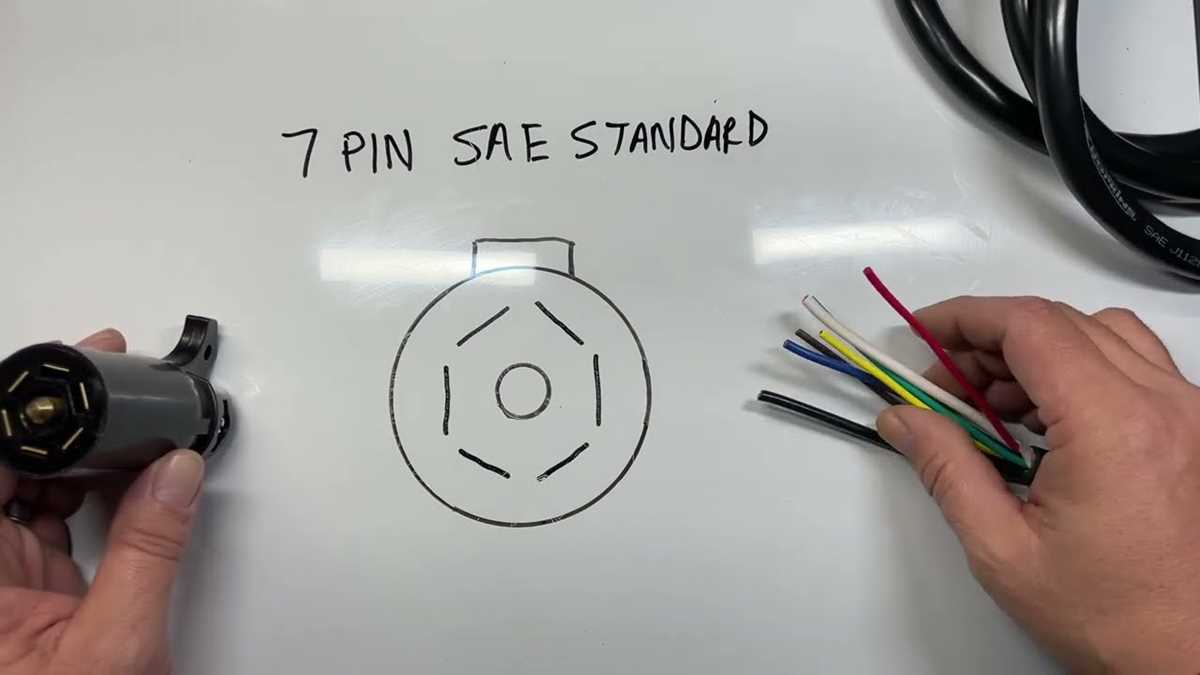

Decoding the Role of Each Contact in a Standard 7-Way Connector
Start by labeling each terminal on the socket before connecting wires. Position 1 (typically at the top) carries the brake controller signal–essential for synchronizing towing vehicle brakes with the attached unit. Use a dedicated circuit rated for 20A; incorrect gauges risk overheating or failure under load. Verify voltage at this point reaches 12-14V when brakes are engaged; deviations indicate faulty controllers or grounding issues.
The second slot (left auxiliary) often powers running lights or auxiliary equipment like reefer units. Confirm the fuse rating matches the expected draw–usually 10A for basic lighting, up to 30A for heavy-duty accessories. Avoid splicing into this line for unrelated devices; voltage drops of more than 0.5V across connections suggest corroded terminals or undersized wiring, warranting immediate replacement. For trailers with LED markers, ensure current draw aligns with the connector’s capacity–most standard designs handle 2-5A per circuit.
Handling Critical Safety Circuits
Slot 3 (ground) demands a direct, clean path to the tow vehicle’s chassis. Secure it with a crimped ring terminal and star washer; loose or painted surfaces cause intermittent failures. Measure resistance between this point and the vehicle’s negative terminal–values above 0.1Ω indicate poor conductivity, requiring sanding or bypassing the factory ground. Never combine this return path with other circuits; shared grounds create feedback loops and erratic behavior in brake or lighting systems.
Ensuring Reliable Power Delivery
The fourth terminal (tail/stoplights) merges brake and tail signals into a single output. Use a dual-filament bulb or a trailer-side relay to separate functions; improperly wired units cause brake lights to flicker when tail lamps activate. Check for proper diode isolation if integrating aftermarket controllers–backfeeding damages sensitive electronics. For 7-way adapters, ensure compatibility with PWM (pulse-width modulation) systems; some OEM brake controllers output modulated signals that conflict with older socket designs.
Fifth and seventh slots (right turn/brakes and reverse lights respectively) require polarity-aware connections. Miswired turn signals risk bulb failure or unexpected activation; test each function individually with a multimeter. Reverse light circuits often lack dedicated fuses–add a 15A inline fuse to prevent shorts from reaching the main harness. For trailers exceeding 7,000 lbs, verify that the tow vehicle’s alternator can handle the combined load; sustained draws above 30A necessitate a heavy-duty charging system.
Step-by-Step Guide to Properly Connecting a 7-Way Vehicle Socket
Begin by verifying the voltage of your tow vehicle’s existing harness. Most modern systems operate on a 12V DC circuit, but discrepancies can occur with older models or aftermarket setups. Use a multimeter to confirm: connect the red probe to the positive terminal of the battery and the black probe to the ground. The reading should stabilize at 12.6V for a fully charged system. If it deviates by more than 0.5V, inspect the battery or alternator before proceeding.
Identify each contact’s function by referencing the standard color-coding system. Mislabeling can lead to faulty signals or damaged components. Below is the universal configuration for North American and European setups:
| Position | Cable Color | Designated Function | Voltage Check |
|---|---|---|---|
| Center (1) | White | Ground | 0V (continuity to chassis) |
| Top Right (2) | Yellow | Left Turn/Stop | 12V flashing during activation |
| Top Left (3) | Green | Right Turn/Stop | 12V flashing during activation |
| Middle Right (4) | Brown | Tail/Marker Lights | 12V when headlights are on |
| Middle Left (5) | Blue | Electric Brakes | 12V during braking |
| Bottom Right (6) | Red | Backup Lights | 12V when reverse gear engaged |
| Bottom Left (7) | Black | Auxiliary Power/Battery | 12V constant (fused) |
Strip 3–5mm of insulation from each wire end using a precision stripper. Avoid nicking the copper strands, as this weakens conductivity. Twist the exposed strands clockwise to prevent fraying, then slide a 6mm heat-shrink sleeve over each wire before soldering. Apply rosin flux to the strands to improve joint integrity, then solder using a 60/40 lead-tin alloy for durability. Cap each connection with the sleeve, heating evenly until the sleeve contracts snugly.
Ground Connection Protocol
Attach the white ground wire directly to the tow vehicle’s chassis using a #10 stainless steel ring terminal. Sand the mounting point to bare metal, removing paint or corrosion. Secure with a zinc-plated bolt and lock washer; tighten to 12–15 Nm. For vehicles with aluminum frames, use a dedicated ground block or star washer to ensure low-resistance contact. Test continuity with a multimeter: probe the chassis and the socket’s ground contact–resistance should read under 0.5 ohms.
Route remaining cables neatly, avoiding moving parts, sharp edges, and exhaust components. Bundle wires every 15cm with spiral wrap or loom tape, maintaining a 5cm minimum clearance from hot surfaces. Use cable ties rated for outdoor use; trim excess length flush with the head to prevent snagging. For Pin 5 (blue), incorporate a relay if the tow vehicle lacks a brake controller–this prevents voltage drop over long runs. Connect the relay coil to the stop light circuit (typically the red/yellow wire in most vehicles), ensuring 12V triggers the relay when brakes are applied.
Validate each circuit with a test light or scan tool after installation. Activate turn signals, hazard lights, and brakes sequentially; verify illumination on both tow vehicle and attached load. For Pin 7 (black), confirm auxiliary power by connecting a 12V accessory–voltage should remain stable under load. If the circuit dims under load, check for loose connections or undersized wire gauge (minimum 12 AWG for runs under 5m). Finalize by sealing exposed terminals with dielectric grease, then install the socket’s protective cover to prevent moisture ingress.
