Complete 2010 Honda CRV Radio Wiring Diagram and Color Codes Guide
Before attempting any modifications, secure the 12-pin connector labeled A (front) and B (rear) behind the dashboard unit. Pin assignments follow this exact sequence: constant 12V (yellow), switched 12V (red), ground (black), left front (+) (white), left front (-) (gray), right front (+) (green), right front (-) (violet). Verify voltage with a multimeter–correct readings should show 11.8V–12.2V on power lines when the ignition is active. Reverse polarity risks damaging the amplifier.)

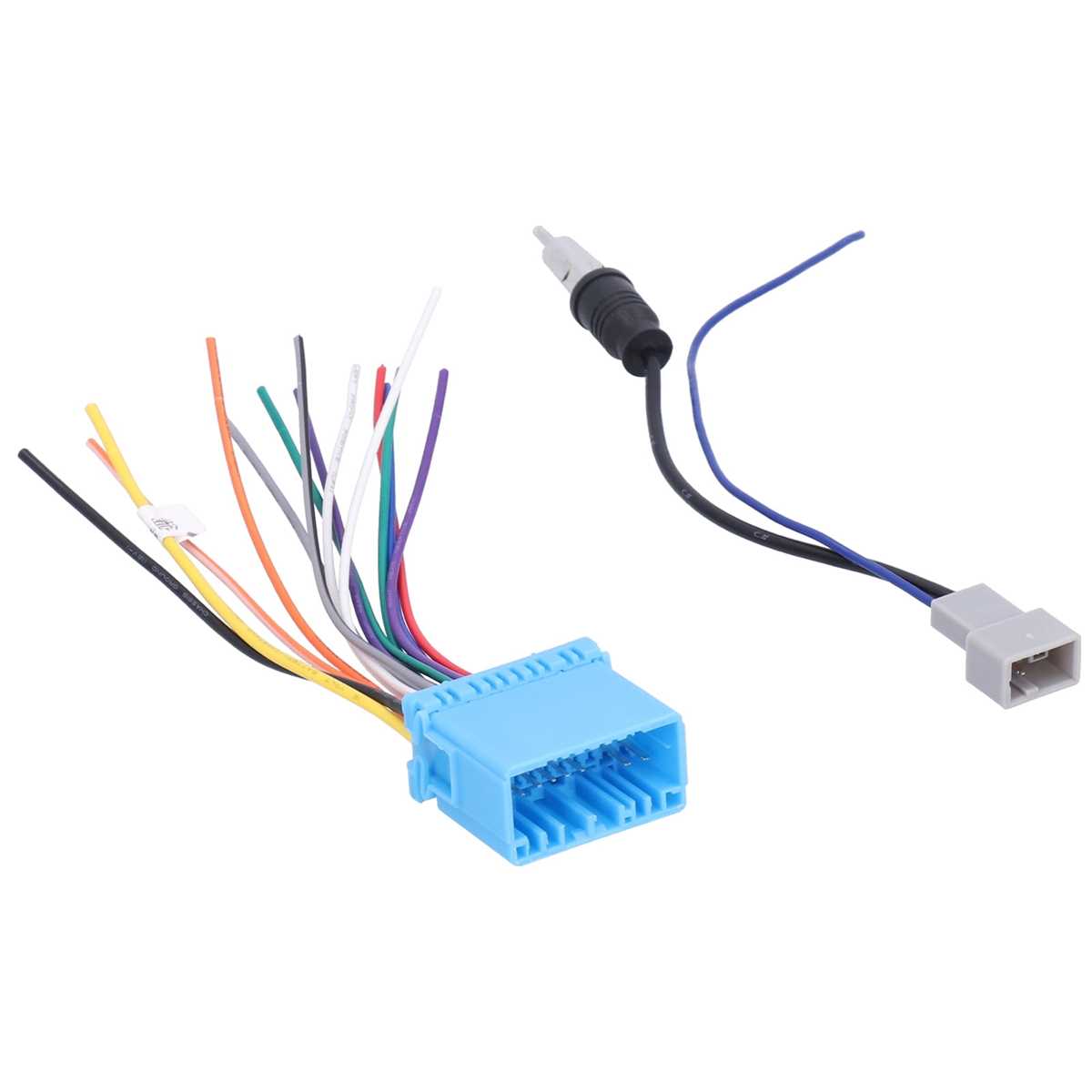

Aftermarket harness adapters like Metra 70-1721 or Scosche HON02 simplify installation by matching OEM pinouts directly. If soldering wires manually, use heat-shrink tubing to insulate joints–electrical tape degrades over time. For vehicles with navigation, retain the CAN bus pink/blue wire (pin 12) to maintain steering wheel controls. Disconnect the negative battery terminal before initiating work to prevent short circuits.
Should static persist after reconnection, check the antenna lead (blue/white)–a corroded or loose connection reduces signal strength. Factory amplifiers (if equipped) require the remote turn-on wire (blue) to function; bypassing it causes no sound output. For models with satellite radio, ensure the data wires (pink/light blue and pink/dark blue) are securely fastened to avoid intermittent connectivity issues.
Color-coded diagrams simplify troubleshooting, but discrepancies exist between production years–always cross-reference with a physical wiring sample from your specific trim. Use a 16-gauge wire for power and grounding to handle current loads safely. If integrating a backup camera, the yellow/black wire provides reverse signal trigger; tap it only when necessary to avoid false activations.
Vehicle Audio System Electrical Guide for 2010 CR-V Variant
Install a replacement stereo unit using these exact connections: the power lead connects to the yellow cable (constant 12V), while the ignition-controlled red wire requires linking to a switched 12V source. Ground the black wire to bare metal–scrape paint for solid contact. Left front speaker wires (white with stripes) demand 2–4 ohms impedance; match polarity to avoid phase cancellation. For steering wheel controls, splice into the grey/white data bus behind the dash–use a harness adapter to preserve functionality without cutting factory wires. Check fuse ratings: the audio system draws 10A; replace blown fuses with the same amperage. Avoid connecting the orange illumination wire directly to battery voltage–it regulates dimming via the vehicle’s lighting circuit.
- Verify cable colors before soldering: factory harnesses sometimes deviate; use a multimeter on continuity mode.
- Twist speaker wires to reduce interference–shield RCA cables for subwoofer outputs if retaining the factory amp.
- Aftermarket radios need an antenna adapter: the OEM coaxial plug won’t fit standard ISO connectors.
- Label all wires before disconnecting the old unit to prevent miswiring.
- Test all connections with a 9V battery before finalizing installation–speakers should emit a consistent pop.
Decoding Harness Color Schemes in Your Vehicle’s Audio Connectivity System
Begin by locating the 12-pin connector labeled “C” on the factory audio unit harness–this is the primary interface for power, signal, and speaker outputs. The white (WHT) wire carries constant 12V power from the battery, critical for memory retention in aftermarket units. Pair it with the black (BLK) ground wire, always secured to a bare metal chassis point with a 10mm bolt, ensuring resistance below 0.5 ohms for stable operation. Avoid twisting these with accessory wires (yellow (YEL))–doing so risks electrical noise and intermittent shutdowns.
The orange with white stripe (ORN/WHT) illumination wire regulates dimming functionality, syncing with instrument cluster brightness. Connect it to a 10K ohm resistor if installing LED components to prevent erratic backlight behavior. Speaker outputs use a resistance-coded scheme: front left positive (gray (GRY)), front right positive (light green (LT GRN)), rear left positive (purple (PUR)), and rear right positive (blue (BLU)). Their negative counterparts follow the same base color with a black stripe–never substitute solid colors for striped ones, as this reverses polarity and distorts audio.
For steering wheel control integration, the light blue with yellow stripe (LT BLU/YEL) wire transmits data signals. Use a 220-ohm resistor in series to protect the vehicle’s bus system from voltage spikes when splicing aftermarket adapters. The pink (PNK) wire serves as a speed-sensitive volume trigger–connect it only if the replacement head unit supports automatic gain adjustment, as mismatches cause abrupt sound cuts at highway speeds.
Verify each connection with a multimeter before powering the system: set to DC voltage, probe the male connector pins against chassis ground. A reading of 0V indicates a faulty ground; 12V confirms proper power delivery. Never splice speaker wires directly–use crimp connectors with heat-shrink tubing and 30-amp fuse links on all power cables to prevent short circuits. Label every wire with masking tape during disassembly to avoid misrouting, which can damage amplifier channels or trigger error codes in the CANbus network.
Step-by-Step Guide to Finding the Audio System Harness Behind the Center Console
Disconnect the negative terminal of the vehicle’s battery first to prevent short circuits or accidental airbag deployment while working near the dash. The primary harness connector for the factory sound unit is located behind the climate control panel–start by removing the trim bezel surrounding the HVAC and stereo controls. Use a plastic pry tool to gently release the clips securing the trim; work from the bottom edge upward to avoid breaking tabs. Once the bezel is free, detach the climate control module by unscrewing the two 8mm bolts at its base and carefully pulling it forward to access the wiring harness plugs behind.
| Tool Required | Steps to Access | Key Connection Points |
|---|---|---|
| 10mm socket wrench | Remove dashboard lower knee bolster (two bolts) | Yellow (constant 12V), red (switched 12V), black (ground) |
| Plastic trim removal tool | Release glove box hinges (press inward to unclip) | Blue/white (power antenna), purple (right rear speaker) |
| Phillips screwdriver | Unfasten rear of center console storage bin | Green (left front speaker), gray (right front speaker) |
After exposing the back of the climate control unit, look for a 24-pin white connector–this is the main interface for the OEM sound system. Trace the wires downward; if additional length is needed for testing or replacement, the harness can be extended by splicing in compatible leads (18-gauge wire with soldered connections and heat-shrink tubing). For vehicles with navigation, an additional 16-pin gray connector will be present–label each wire with masking tape before unplugging to avoid misalignment during reassembly. Reinstall components in reverse order, ensuring all clips snap securely into place before reattaching battery power.
Integrating Third-Party Audio Components with Factory Head Unit Connections
Locate the OEM speaker connectors behind the dash fascia. For the 2010 model variant, the front door tweeters and midrange drivers terminate in a 6-pin white plug labeled “A” and a 4-pin gray plug labeled “B” respectively. Rear full-range units use an 8-pin black connector marked “C.” Strip the aftermarket speaker leads to expose 5mm of copper, then crimp with 22-18 AWG butt splices pre-filled with dielectric grease. Match polarity by verifying the factory wire colors: solid white (positive) and white/black stripe (negative) for front tweeters, solid blue (positive) and blue/yellow stripe (negative) for rear drivers.
Verify impedance compatibility before bridging connections. Factory drivers typically present 4-ohm loads, while many aftermarket components specify 2-8 ohm ranges. Measure resistance across each speaker pair using a multimeter set to 200 ohms; values below 3 ohms risk overheating the head unit’s internal amplifier. For mismatched impedances, insert a line-output converter between the amplifier and aftermarket components, configuring gain to -12dB to prevent clipping. Avoid tapping the constant 12V feed from the fuse box (yellow/red wire at position 12) for power–this bypasses the ignition-controlled circuit and drains the battery.
Securing Connections in High-Vibration Zones
Apply adhesive-lined heat shrink tubing over splices in door panels to resist moisture ingress from window defrost cycles. Rear parcel shelf connections benefit from loom tape wrapped spirally over the harness to dampen vibrations from rear suspension travel. Use T-taps only for temporary testing; solder and heat shrink all permanent joins to eliminate corrosion-induced signal degradation. Route new wiring away from sharp metal edges by threading through existing harness bundles–door hinge cavities and seat belt tensioner pathways provide natural conduits.
Test each driver individually using a 1kHz sine wave at 50% head unit volume before reassembling trim panels. Observe speaker cones for linear excursion; distortion or asymmetry indicates reversed polarity or shorted connections. If rear fill channels produce unintended phase cancellation, swap the positive and negative leads at the amplifier’s RCA outputs rather than at the speaker terminals–this preserves correct radio frequency filtering built into the factory harness.
