Complete Wiring Diagram for 2010 Mercury Milan Car Radio Installation

Locate the fuse box cover beneath the dashboard on the driver’s side–this often contains a basic schematic for quick reference. For full circuit details, remove the center console panel first; hidden beneath the shift lever housing, you’ll find the main wiring harness connector labeled C204. This connector handles power, ground, antenna trigger, and speaker outputs in a 14-pin configuration.

Trace the yellow wire (constant 12V) from the harness to terminal 4B on the back of the audio unit–this supplies uninterrupted current regardless of ignition state. The red wire (switched 12V), connected to terminal 5B, activates only when the key is turned to ACC or ON. Ground is established via the black wire at terminal 8B, secured to the chassis behind the glovebox.

Speaker outputs follow a dual-wire setup: front left uses green/white (+) and green (-) at terminals 10B and 11B; front right pairs violet/white (+) and violet (-) at 12B and 13B. Rear channels match this pattern with gray/white (+) and gray (-) for the left (14B, 15B), and brown/white (+) with brown (-) for the right (16B, 17B). Verify continuity with a multimeter before reconnecting–resistance should read below 4 ohms per speaker.

For steering wheel control integration, the light blue/orange stripe wire at terminal 9B carries the data signal to the audio module. If controls are unresponsive, check the fuse labeled SW CTRL in the under-hood fuse panel (position 25, 7.5A). Replace the audio unit only after confirming all harness connections are free of corrosion, particularly around the module grounding point near the pedals.

Installation Guide for Audio System Electrical Connections

Locate the factory harness behind the dash panel beneath the steering column. Match the color-coded wires from the aftermarket unit’s connector to the vehicle’s OEM harness–light green (LG) with striped yellow (LG/Y) for left front speaker positive, gray (GY) with violet (V) for right front speaker positive, and solid brown (BN) for ground. Use crimp connectors or solder joints to prevent signal loss; avoid twist-and-tape methods which degrade over time.

Identifying Key Wires in the Main Power Bundle

Trace the 12-volt constant power wire–typically pink (PK) or red (R)–directly to the fuse box under the hood, bypassing ignition-controlled circuits. The accessory wire, often orange (O) with black stripe (O/BK), should connect to a switched power source activated by the keyfob. Verify correct voltage (12.2V–14.5V) with a multimeter before securing connections to prevent backfeeding.

For amplifier integration, splice the blue (BL) or blue/white (BL/W) remote turn-on wire from the new head unit into the stock amplifier’s trigger circuit; this wire carries a low-current signal (less than 200mA) to engage external power boosters without straining the vehicle’s electrical system.

Finding the Stock Audio System Plug Connection

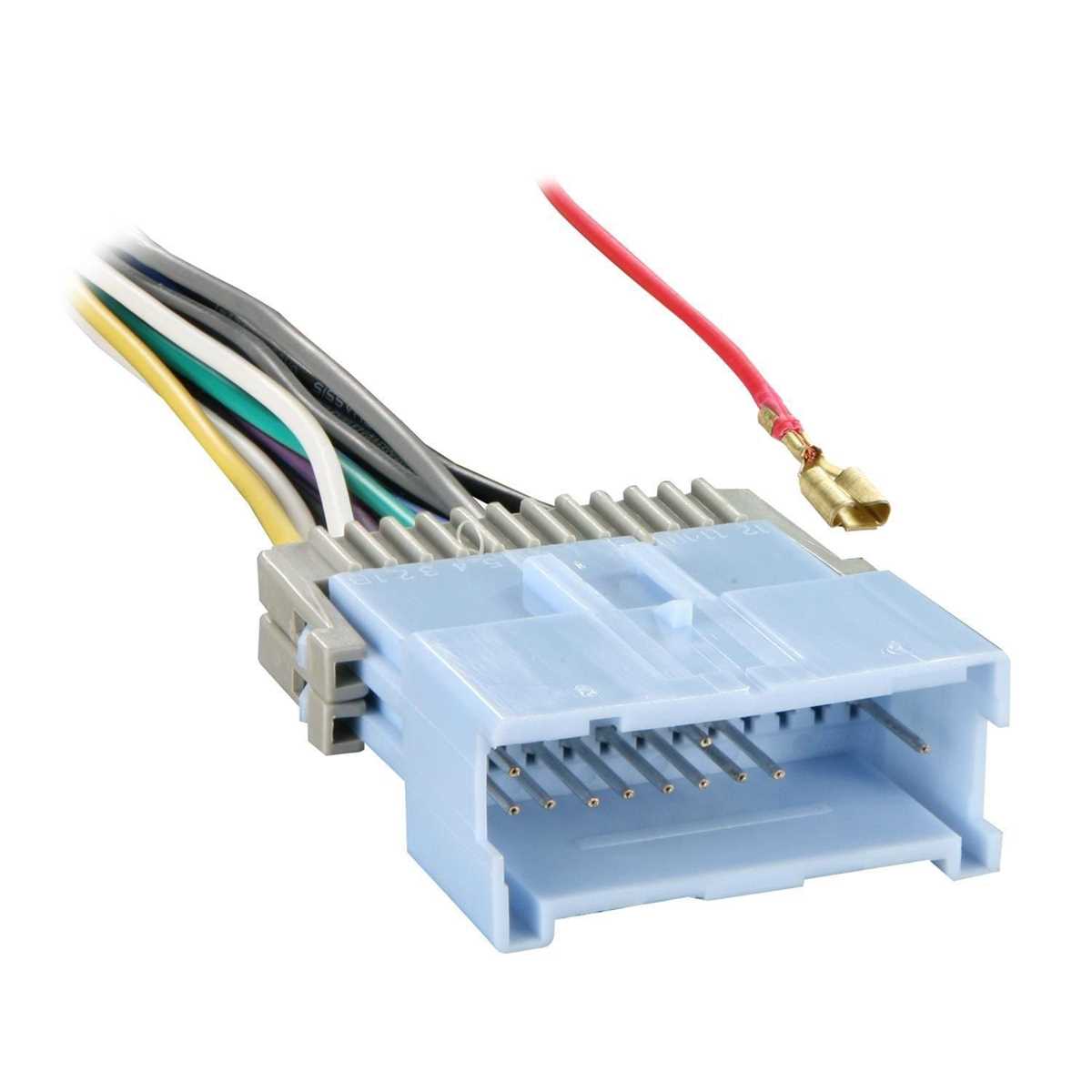

Check behind the center dash panel first–this connector is usually secured to the vehicle’s main harness with adhesive tape or a plastic clip. Peel back any trim starting from the driver’s side kick panel, as the harness often routes upward toward the climate controls. Use a flashlight to spot the bundle of colored wires; the plug will be a rectangular or trapezoidal socket with 12–24 pins.

• Meter the pinouts using a multimeter set to 12V DC: aftermarket harness adapters label the wires for power (yellow/constant, red/switched), ground (black), and speakers (front left/right: gray, purple; rear left/right: green, white).
• Avoid cutting wires–trace each cable back at least 4 inches to ensure no hidden splices or factory alarms are embedded in the harness.
• Release the plug gently with a trim removal tool; tugging can damage the locking tabs, which snap back into the mount under tension.

If the connector is absent or damaged, inspect the lower fuse block for an empty slot–some variants integrate the audio harness into the BCM (Body Control Module) output, identifiable by a smaller auxiliary plug hidden beneath the glovebox. Remove three 8mm bolts to access this secondary harness path.

Follow the primary harness upward past the HVAC housing–look for zip ties anchoring the wires near the firewall grommet. The factory plug may be tucked behind the pedal assembly; a mirror on a flexible stem assists in locating it without removing additional panels.

1. Disconnect the battery negative terminal before probing to prevent short circuits or airbag deployment interference.
2. Label each cable segment with masking tape if separating the harness from the dash for testing–factory colors fade and shrink tubing becomes brittle over time.
3. Verify continuity with a test light: the switched power wire (usually red) should illuminate only when the ignition is turned to ACC or ON.

The connector housing typically includes a release tab molded into the plastic–press it firmly while rocking the plug side-to-side to avoid bending the pins. If corrosion is visible, apply dielectric grease sparingly to the contacts before reconnecting to prevent intermittent faults.

For vehicles equipped with navigation or SYNC, an additional 8-pin mini connector may be present near the climate control module–locate it by tracing the thick coaxial cable leading from the display screen. This secondary harness carries data signals and must be handled with ESD-safe tools to avoid damaging the electronics.

Decoding Connector Hues for Audio System Integration

Locate the eight-pin power harness at the rear of the unit’s interface: the yellow lead delivers constant 12V supply, bypassing ignition switch circuits, while the red conductor activates only when the accessory position engages. Black wires serve as chassis ground; twist them tightly to ensure unbroken conductivity. Blue-striped cables (typically light blue with white tracer) carry amplified speaker signals to front-door tweeters–verify against resistance specs before splicing.

Signal Paths and Illumination Codes

Orange wires with brown stripes manage dimmer-controlled illumination–pair these with the vehicle’s dimmer switch output to synchronize brightness adjustments. Purple leads (either solid or paired with a thin black stripe) transmit right-rear speaker signals; test with a multimeter set to 4Ω for proper impedance. Avoid confusing these with gray wires, which carry left-rear audio output–crossing them swaps channels irreversibly.

For amplified systems, follow the dark green wire (sometimes banded with red) to the mute input; grounding this line silences external audio sources during phone calls or navigation prompts. White cables with black stripes handle left-front speaker signals–secure connections with solder and heat-shrink tubing to prevent corrosion from road salt exposure. Always cross-reference with a pinout diagram if hue variations exist between model revisions.

Check continuity on brown wires (single or double-striped) for antenna motor control; a break here causes erratic power antenna operation. Pink conductors (rarely found in base trims) may relay reverse-gear detection to video modules–insulate these separately to avoid short circuits. Use a non-contact voltage tester on gray-striped wires before handling; these can remain hot even after battery disconnection due to capacitor bleed.

Intermittent static often stems from poor grounding at the violet wire’s connection point–scrub corrosion from the chassis mounting surface before reattaching. If adding a subwoofer, splice the light green wire (banded with orange) to the RCA converter output–this line carries low-level preamp signals and requires shielded cable for interference suppression.

Step-by-Step Removal of the Factory Installed Audio System for Access

First, disconnect the negative terminal of the vehicle’s battery to prevent short circuits. Use a 10mm wrench to loosen the clamp and set the cable aside. Failure to do this may trigger airbag warnings or damage onboard electronics.

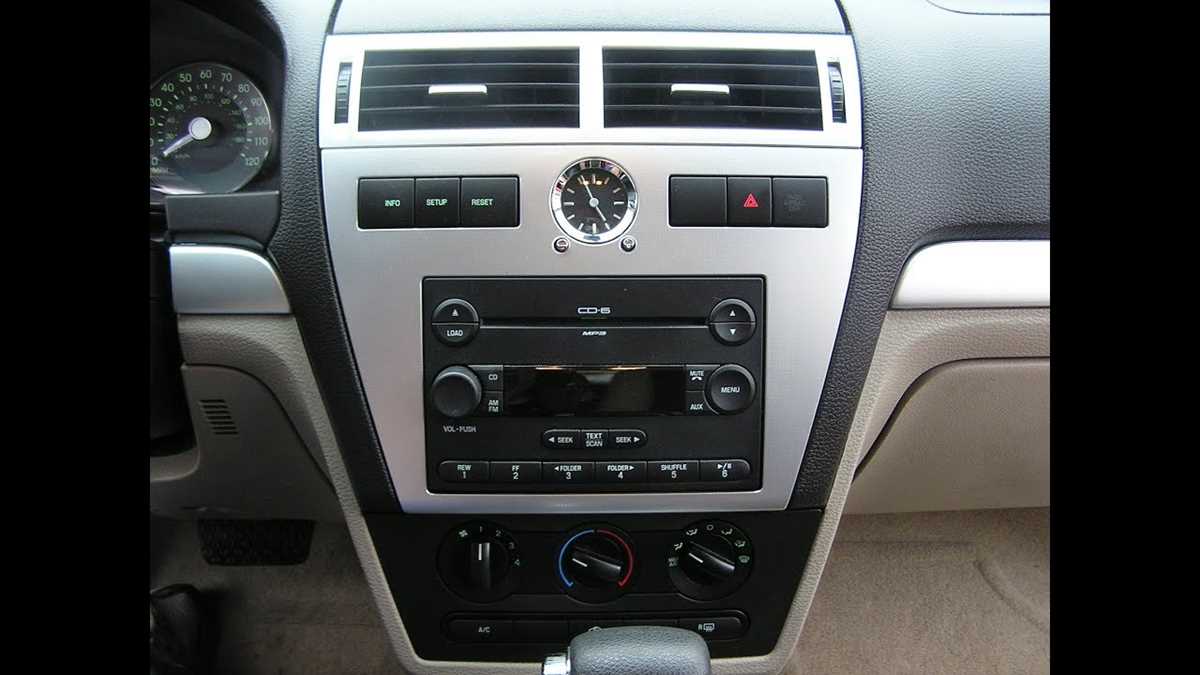

Locate the trim panel surrounding the climate controls and media interface. Insert a plastic pry tool into the seam at the bottom left corner, angling it upward to release the clips. Work clockwise, easing each clip free without forcing–excessive pressure can snap the retaining tabs.

• Remove the Phillips screws hidden beneath the ashtray compartment.
• Detach the cigarette lighter wiring harness by pressing the release tab.
• Slide the entire lower trim panel rearward to clear the shifter assembly.

Next, remove the four Torx T20 bolts securing the head unit to the dashboard frame. Two are visible at the top, while the lower pair requires tilting the unit forward. Use a magnetic screwdriver to avoid dropping fasteners into the dash cavity.

Pull the unit outward slowly to access the rear connectors. Press the release tab on the main harness plug and disconnect it. For models with satellite connectivity, remove the coaxial cable by rotating the locking collar counterclockwise. Label each connector with masking tape to streamline reinstallation.

If the unit resists, check for a hidden anti-theft pin near the bottom edge–some variants require depressing a recessed button with a small screwdriver. Ignoring this step risks damaging the mounting brackets.

1. Reinstall all components in reverse order, ensuring harnesses click securely into place.
2. Reconnect the battery terminal last to avoid voltage spikes.
3. Test power windows, locks, and climate controls before finalizing the installation.

Store removed screws and trim pieces in a labeled container. Reusing original hardware ensures proper fitment during reassembly, preventing rattles or misalignment.
