GMC Acadia 2011 Electrical System Diagram Full Guide and Wiring Schematics

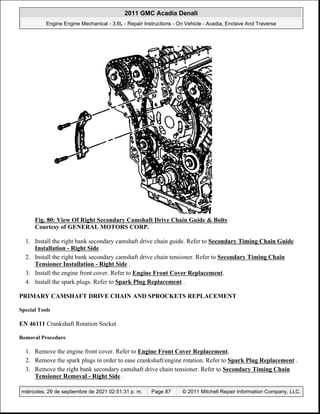

Obtain the precise circuit schematic for the denali trim variant directly from the official service manual. This document isolates critical connectors at the BCM (body control module), IPDM (integrated power distribution module), and ECM (engine control module), pinpointing voltage values and ground reference positions. Verify harness continuity first–inspect fuses #32 (10A) and #54 (15A) under the instrument panel before disassembly.

Focus on the rear gate actuator wiring–corrosion often initiates at the white-black (W-B) and yellow-red (Y-R) terminals. Measure resistance across these leads; expected readings should stay below 0.5 ohms. If values exceed 2 ohms, track the entire harness path along the roof rail to the third-row seat connector, where chafing commonly occurs near the B-pillar trim.

Trace the CAN bus network: start at the diagnostic link connector (DLC) located beneath the steering column. Confirm signal integrity with a scan tool–valid data packets should show consistent 2.5V–3.5V on pins 6 (CAN-H) and 14 (CAN-L). If voltage fluctuates erratically, inspect the purple-black (P-B) wire for shorts against the chassis near the left kick panel.

Locate the fuel pump relay circuit–remove the rear cargo trim to access the black 8-way connector (C152). Test for battery voltage on pin #4 (violet) during ignition-on cycles; absence indicates a faulty relay or break in the fuel delivery control line. Cross-reference this with the powertrain wiring matrix to isolate the exact splice point under the driver’s seat.

Electrical Schematic Reference for Your Mid-Size Crossover SUV

Locate the under-dash fuse block diagram sticker on the driver’s side kick panel–it’s the fastest way to trace circuits without tearing apart the harness. Each fuse position lists the connected systems: HVAC blower motor (F3), rear defroster relay (F6), and trailer brake controller (F12). Cross-reference the fuse amperage with the color-coded wires in the main harness bundle; red/white stripes (14 AWG) feed high-draw components, while brown/black (20 AWG) handle sensor signals. If the circuit tester shows voltage but no operation, probe the ground splice near the battery tray–corrosion here disrupts multiple subsystems.

For the power liftgate module, follow the purple wire from the rear hatch switch to connector C3 on the body control module (BCM). Pin 1 carries 12V constant, pin 2 returns to the switch, and pin 3 triggers the motor relay. If the motor hums but doesn’t move, check the yellow/black wire at the liftgate latch for continuity–frayed strands cause intermittent failures. The BCM also governs the auto-dimming mirror (red wire, pin 8) and rear camera (green/white, pin 15); any flickering display points to a weak ground at G101, behind the left D-pillar.

Tackling the trailer harness? Identify the seven-pin connector’s circuits: dark green (brake lights), light blue (turn/brake), and yellow (reverse lights). Use a multimeter to verify pin voltage before connecting–factory splices at the rear bumper often fail under load. For LED upgrades, bypass the load resistor near the left taillight housing, but retain the factory relay to prevent hyper-flashing. Always disconnect the negative battery terminal before probing airbag circuits (orange wire, SRS module) to avoid triggering diagnostic trouble codes.

Finding Key Electrical Connector Points in Your SUV

Begin by removing the lower dashboard panel on the driver’s side–two 7mm bolts secure it near the steering column. Behind it, you’ll expose the primary harness bundle running horizontally. Trace the thickest cable sheath (typically 2-3 inches in circumference) back toward the firewall; this contains critical power feeds for the ignition, fuse box, and accessory circuits. Label each branch with masking tape before disconnecting–color-coding saves hours during reassembly.

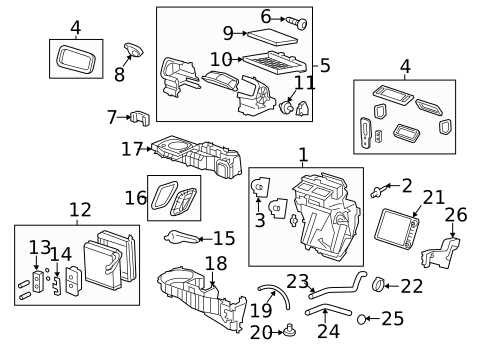

The central junction box sits behind the glovebox, accessible after releasing three plastic clips by hand. Inside, six multi-pin connectors (A through F) handle everything from the ECM to body control modules. Connector E, a 48-pin gray unit, carries signals for the automatic climate system and rear seat controls–verify continuity here if HVAC or rear defroster issues arise. Use a multimeter set to 20V DC; expected voltage at pin 12 (red wire) should read 12.4V with the key in the “ON” position.

Connector	Color	Pin Count	Key Systems	Test Point (Voltage)
A	Black	24	Lighting, turn signals	Pin 8: 12.0V
B	White	16	Anti-lock brakes	Pin 5: 5.0V reference
D	Blue	32	Infotainment, OnStar	Pin 19: 3.3V data

Under the hood, the main harness splits near the battery tray. A 60-pin orange connector (often misidentified as part of the under-hood fuse box) handles the starter solenoid and alternator field circuits. Check for corrosion on pin 37–this supplies ground to the PCM; resistance over 0.5 ohms indicates a poor connection. Route a temporary ground wire directly to the chassis if voltage drop exceeds 0.3V during cranking.

For rear electrical issues, crawl beneath the passenger-side quarter panel. The harness exits the cabin below the rear seat attachment point, wrapped in a split corrugated tube. Three inline connectors here serve the liftgate, fuel pump, and third-row seat motors–look for melted plastic on the white 8-pin plug (around 18 inches from the tailgate hinge) if liftgate malfunctions occur. Probe pin 2 with a test light while activating the latch; a dim pulse confirms a weak ground requiring cleanup or wire replacement.

Step-by-Step Guide to Interpreting the Powertrain Schematic

Locate the legend first–it’s typically a boxed section near the edge of the technical illustration. Each symbol corresponds to a specific component: solid circles denote ground points, dotted rectangles indicate connectors, and jagged lines represent fuses. Cross-reference the legend with the color codes printed along each circuit (e.g., “YEL” for yellow, “BLK/WHT” for black with white stripe). The legend also clarifies abbreviations like “IGN” for ignition feed or “BAT” for battery voltage–memorize these before tracing any path.

Isolate the circuit segment you need by following the thickest lines outward from the power source. For instance, if diagnosing the starter relay, trace the red battery cable from the positive terminal–marked “+”–through the main fuse block, then to the relay coil. Note splice points (small triangles or circles) where multiple branches split; these are critical failure junctures. Use a multimeter set to continuity mode to verify each segment: probe the start of a wire, then its end at the next component, ensuring no breaks hide between symbols.

Check fusible links and relays next–they’re depicted as small rectangles with internal numbering matching the fuse chart in the owner’s manual. A blown link will show infinite resistance; replace it with the same gauge (usually marked on the schematic, e.g., “10 AWG”). For relays, swap with a known-good spare from a non-critical circuit (like the horn) to confirm operation before purchasing replacements. Always disconnect the battery’s negative terminal before probing live circuits to prevent shorting adjacent wires.

Recognizing Power Distribution Panel and Relay Lead Hues for Diagnostics

Locate the under-dash panel near the driver’s left knee–black cover secured by plastic clips. Inside, fuse positions match the printed legend on the reverse of the cover. Each fuse slot corresponds to a colored strap: yellow (20A), green (30A), red (10A), blue (15A). Relays sit adjacent, marked by thick tan or gray connectors for the coil and black or dark brown for load circuits.

• Tan wire connected to relay pin 85 always delivers switched ignition power.
• Gray lead on pin 87 carries output to components like A/C clutch or cooling fans.
• Black wire at pin 86 grounds the relay coil–check for corrosion if resistance exceeds 0.2 ohms.

Use a multimeter set to 200 Ω continuity mode. Probe each relay socket without removing the relay: pin 30 should read 12 VDC from battery with ignition off if it’s a constant draw circuit. Pin 85 should show 12 VDC only when ignition is on–a missing voltage flags a broken tan feed or faulty ignition cylinder switch.

For circuit protection modules integrated beneath the relay tray, purple feeds signal power to the BCM, while pink wires (ignition-switched) feed the PCM and instrument cluster. If the cluster backlight flickers, compare pink wire voltage at the fuse and at the dash connector–more than 0.5 V drop indicates corroded terminals at the 10-way gray connector under the steering column.

Test relay operation by swapping identical relays (e.g., horn relay with blower relay). If the issue moves to the new circuit, the relay is faulty; if the problem stays, trace the gray or black wires back to the component, checking for chafing where harness wraps around the steering shaft or dives behind the glovebox.

1. Remove the relay.
2. Measure voltage at socket pin 30 (black/red stripe) against ground–should match battery voltage.
3. Jump socket pins 30 and 87 with a paperclip–listen for relay click or component activation.
4. If no activation, measure resistance between component terminals–acceptable range is 2-5 Ω for solenoids, 12-18 Ω for fan motors.
5. Trace white/orange wires for CAN bus–any splice introduces latency; factory crimps rarely fail.

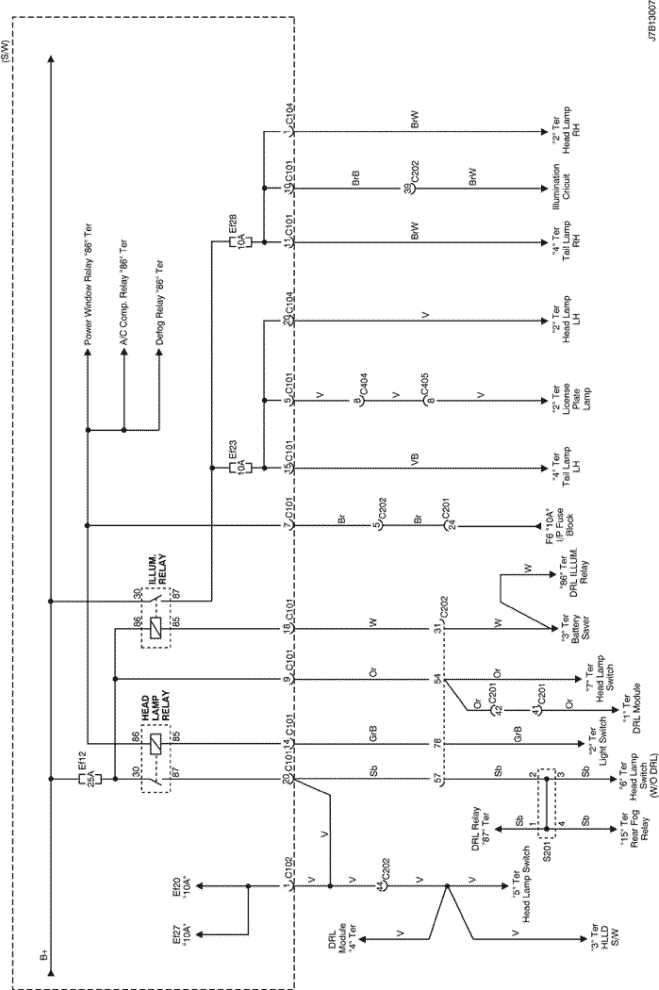

How to Diagnose Electrical Pathway Problems in Vehicle Windows and Illumination Systems

Start by isolating the affected circuit. Disconnect the battery’s negative terminal to prevent short circuits, then remove the door panel or light assembly housing. Inspect the harness connectors–corrosion, bent pins, or melted plastic signal a failed connection. Use a multimeter set to continuity mode to test pathways between the switch, relay, and motor or bulb. A reading above 0.5 ohms indicates resistance buildup; clean or replace the affected segment.

Power windows often fail due to broken regulator gears or faulty window switches. If the motor hums but the glass doesn’t move, the regulator is likely compromised. Check the motor’s voltage at the connector while pressing the switch–if 12V is present but the motor stalls, the regulator needs replacement. For intermittent operation, bypass the switch by jumping the terminals at the motor with a fused wire; if the window moves, the switch is defective.

• Front and rear illumination systems share common failure points: bulbs, fuses, and grounds. A non-functional brake light or turn signal often traces back to a blown 10A or 15A fuse in the under-dash panel–verify with the owner’s manual. If fuses blow repeatedly, inspect the socket for moisture or shorted wires.
• Dimmer-controlled interior lights may flicker or stay dim due to a failing rheostat. Test the control module’s output voltage–norm is 3-5V; anything below 1V suggests a replacement is needed.
• Headlight failures typically stem from corroded grounds near the headlamp assembly. Scratch the ground wire’s ring terminal clean, reattach, and coat with dielectric grease to prevent recurrence.

Use a wiring schematic to trace circuits methodically. Follow the color-coded leads–red/white usually carries power from the fuse box, black is ground, and green/yellow often signals output to components. Pinch or wiggle wires at harness bends (door jambs, under seats) while monitoring function; a responsive change confirms a break in that section. Strip insulation from suspected wires and solder/repair with heat-shrink tubing if damage is found.

Relays handle high-current tasks like window motors and headlights. Swap the suspect relay with a known-good one of the same part number (e.g., relays for horns and fog lights are often identical). If the problem transfers, replace the relay. For persistent issues, probe the relay socket’s terminals: 85/86 should show 12V when activated, 30/87 bridge when the coil closes. No voltage means a faulty trigger (switch or ECU).

Ground points cluster near the battery, chassis rails, and firewall. A weak ground causes dim lights, sluggish windows, or random sensor errors. Locate the ground bolt (often marked on schematics), remove, clean the mounting surface with a wire brush, and tighten securely. For door circuits, check the ground strap between the door and body–these corrode silently and mimic motor failures.

If all physical pathways test intact, the issue may lie in the body control module (BCM). Use a scan tool to check for communication errors (e.g., U1000, B1516). Reset the BCM by removing its fuse for 10 minutes; if codes persist, reflash or replace the module. For motorized seats or mirrors, the issue may be internal to the actuator–test motor resistance (should be 2-5 ohms) or disassemble to inspect gear wear.
