Complete Wiring Diagram Guide for 2012 Chevy Silverado Electrical Systems
Start by locating the under-hood fuse block near the driver’s side strut tower. The main wiring bundle exits the firewall through a grommet adjacent to the brake master cylinder, branching into three primary harnesses: engine management, lighting, and auxiliary circuits. Use a voltmeter to verify 12V constant power at pin 1 of the red connector–this confirms uninterrupted supply from the battery through the 100A mega fuse.
The engine control module (ECM) harness consists of 56 pins divided across two connectors: black (C1) and gray (C2). Focus on C1, pins 4 through 12, where CAN bus signals transmit at 500 kbps. A common failure occurs at pin 8, where corrosion disrupts the high-speed CAN-H line–clean with electrical contact cleaner and apply dielectric grease to prevent recurrence.
Avoid cutting into the body-side harness when splicing trailer wiring. Instead, tap into the OEM tow package connector behind the driver door kick panel. The brown wire (pin E) carries stopped/tail lamp voltage; connect this to your trailer’s 7-way plug via a relay to prevent exceeding the 10A circuit rating on turns.

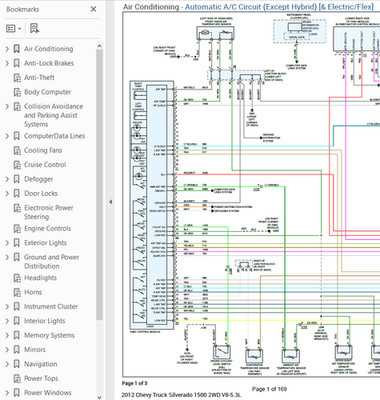

Download the official factory schematic from the manufacturer’s service portal using VIN decode to isolate engine code variations (L9H, LY5, etc.). Pay attention to the auxiliary power outlet circuit–fuses 17 and 18 (25A) protect both the front console and rear cargo area outlets, but the rear outlet shares ground with the fuel pump module, risking voltage drop if wired incorrectly.
For aftermarket radio installations, the violet/white wire in the dash harness provides switched power, but it only carries 700mA–bypass this by connecting directly to the orange wire (ignition-switched B+) at the under-dash fuse box for stable 10A supply. Confirm ground integrity at G101 behind the driver’s seat, where rust often weakens the chassis connection.
Electrical Schematic for Your Full-Size Pickup: Key Insights
Locate the underhood fuse block by tracing the main harness from the battery’s positive terminal to the driver-side corner near the windshield. Identify the red 10-gauge feed wire labeled “IGN 1” – this powers critical circuits like the ignition coil, fuel pump relay, and instrument cluster. Use a multimeter set to DC volts to confirm 12.6V across this wire and the chassis ground when the key is in the RUN position. If voltage drops below 10.5V, inspect the 30A fuse (position #3) and the 150A alternator fuse (position #2) in the same block before probing further.
Ground Points Matter Most
Three primary ground straps secure the powertrain’s electrical stability. G100 sits beneath the driver-side dashboard, linking the main harness to the firewall. G101 anchors the engine block to the chassis rail near the starter motor, while G110 connects the transmission case to the frame behind the transfer case. Clean each contact surface with 120-grit sandpaper, apply dielectric grease, and torque bolts to 12 ft-lbs. Loose or corroded grounds frequently mimic sensor failures, triggering P0335 (crankshaft position) or P0606 (ECM) codes.
For trailer lighting circuits, follow the brown wire from the rear marker lamps to the J5 connector under the bed. This 12-pin plug splits into the left and right trailer feeds, each protected by a 10A fuse in the interior fuse panel (positions #21 and #22). Test continuity from the connector terminals to the trailer plug using a tone generator – absent tone indicates a break in the factory harness or a failed splice near the spare tire carrier. Replace any damaged wire with 16-gauge TXL automotive wire, soldering joints and covering them with adhesive-lined heat shrink tubing.
When tracing blower motor issues, focus on the dark blue 18-gauge wire running from the HVAC control module to the blower resistor. This wire carries variable ground signals; a break here causes the fan to stop at one speed. Probe the resistor’s connector with a test light – if the light stays dim on all four speed settings, replace the resistor. If the light flickers, inspect the 30A fuse (position #1) in the underhood block and the purple 14-gauge feed wire from the battery to the fuse. Cut back the wire jacket if brittle, and terminate with crimp connectors rated for 25A current.
Finding Primary Electrical Bundle Attachments in the Engine Bay
Begin by locating the battery tray on the driver’s side; directly behind it, a rigid plastic conduit houses the central harness. Follow this conduit downward–it splits near the brake master cylinder, where two key connectors are secured to the firewall: a black 32-pin plug (powertrain signals) and a smaller 12-pin grey plug (accessory feeds). Disconnect the negative battery terminal before handling any terminals to prevent shorts.
Trace the harness along the inner fender toward the front; below the coolant reservoir sits a junction block mounted on the chassis rail. Three bolt-on tabs secure it–remove them with a 10-mm socket for access. Inside the block, three fusible links (thick red wires, each labeled 40 A, 60 A, or 80 A) supply current to the engine control module, starter solenoid, and alternator. Verify link integrity before reassembly by checking voltage drop across each link–any reading above 0.2 V indicates corrosion.
The main harness then routes underneath the intake manifold. To inspect this section, remove the intake plenum using an 8-mm socket; store bolts in a magnetic tray. Beneath the intake runners, locate a cylindrical connector–this is the manifold absolute pressure sensor plug. Two retaining clips hold it in place; release them with a small flathead screwdriver. Clean the contact pins with electrical cleaner and a fiberglass brush to eliminate carbon deposits that cause intermittent sensor failures.
| Connector Location | Number of Pins | Wire Gauge Range | Primary Function |
|---|---|---|---|
| Firewall (driver’s side) | 32 | 14-8 AWG | Powertrain signals |
| Chassis rail junction block | N/A (fusible link) | 6 AWG | High-current distribution |
| Intake manifold underside | 8 | 20-18 AWG | Sensor feeds |
At the front passenger side strut tower, another harness segment connects to the under-hood fuse box. Remove the plastic cover (two Phillips screws) to expose terminal strips. Measure voltage at each fuse slot while the ignition is on–slots F2, F3, and F4 should read 12 V ±0.5 V; any deviation signals a faulty connection or blown fuse. Re-seat the fuses firmly after testing.
Finally, inspect the right-side wheel well area where the harness exits the engine bay. The grommet sealing the firewall must be intact–any cracks or tears allow moisture ingress. Apply dielectric grease to the grommet’s perimeter before reinstalling. If corrosion is visible on the wires inside the cabin, strip back 1/2 inch of insulation, crimp on a new terminal, and seal with heat-shrink tubing to restore conductivity.
Inspection Tips for Oxidized Connectors
Use a multimeter set to continuity mode; probe between each pin and its corresponding harness wire to detect open circuits. If resistance exceeds 0.5 Ω, the terminal requires cleaning or replacement. For heavily corroded terminals, a brass bristle brush and contact cleaner yield better results than sandpaper, which can leave conductive residue.
Mapping Interior Power Distribution Housing and Relay Circuits
Locate the primary power distribution housing beneath the driver-side dashboard near the left knee bolster–access requires removing the lower trim panel secured by three 7mm screws. The central relay block includes slots A (15A ignition), B (20A IGN1), and C (25A IGN2), each feeding distinct branches: A handles instrument cluster illumination and radio, B powers HVAC controls and cigarette lighter, while C supplies high-draw components like heated seats. Trace red leads from slot A using a multimeter set to continuity mode; they terminate at the rear fuse array, where voltage drops correlate to failed relays if readings exceed 0.3V under load.
Relay positions 30, 85, 86, and 87 follow ISO pins–ground pin 85 connects to chassis via a white stripe-yellow wire (gauge 18 AWG) threaded through the firewall grommet near pedal assembly. Verify this path by probing pin 85 against chassis; expect 0.0Ω resistance. If infinite resistance appears, inspect the inline splice connector (part #15860367) behind the glove box–corrosion here disrupts fuel pump relay (position K6). Supply pin 30 ties directly to the battery-positive lug on the main distribution buss via a fusible link (orange/black, 10 AWG); bypass testing confirms link integrity if voltage matches battery levels at pin 30 with key-on.
Diagnosing Intermittent Drops in Circuit Paths
Strip insulation from suspect wires 12mm from terminal ends using a precision blade–avoid nicked strands which reduce current carrying capacity by 30%. For relay-switched circuits, pin 87 should show battery voltage only when the coil energizes; intermittent drops often stem from cracked relay sockets, solvable by swapping in a new socket (GM #12102531). For circuits sharing a ground buss (ex: door locks and interior lights), clean the grounding eyelet on the driver’s side A-pillar–oxidized contacts here raise resistance beyond 0.5Ω, causing erratic operation.
When tracing dome light feeds, follow the blue stripe-brown wire from the overhead console to the body control module (BCM); splices at connector C1 (24-pin) often fail due to pin misalignment. Re-seat C1 with dielectric grease (Mobil 1 7981) to prevent oxidation. For retained accessory power circuits, note the pink stripe-orange wire must maintain 12V at terminal G of the ignition switch; voltage loss here disables power windows and mirrors–replace the switch if drops occur while toggling the key.
