Ford F250 2012 Tail Light Wiring Color Code and Connection Guide
To repair illumination issues on your heavy-duty pickup, locate the harness connector near the bed’s right-side rear panel–marked by a gray plastic plug with five terminals. Pin #1 (white/orange stripe) powers the brake filament while pin #4 (brown/white stripe) handles running illumination. Cut the factory wrap 6 inches from the connector to inspect corrosion; sandpaper (#400 grit) clears oxidation faster than chemical cleaners on aluminum terminals.
Replace the entire pigtail if resistance exceeds 0.3 ohms across any wire–stock wiring uses 18-gauge copper-clad aluminum, prone to fatigue under vibration. For auxiliary trailer circuits, tap into pin #2 (green/black stripe) for left turn signaling; ensure all splices use heat-shrink tubing instead of electrical tape for durability under chassis wash pressure.
Color codes reverse after the splice cluster–verify with a multimeter set to continuity mode before reconnecting the bulb socket. OEM LEDs on newer builds require a load equalizer (part #HC3Z-13A600-D) when swapping to aftermarket bulbs to prevent hyper-flashing. Inspect the ground strap behind the taillamp housing; torque to 12 ft-lbs to prevent intermittent failures.
Avoid splicing into the trailer harness wire bundle (white/black stripe) for non-trailer applications–it’s rated for 10A continuous, insufficient for high-amperage brake controllers. When routing new conductors, secure with nylon clamps spaced 12 inches apart to prevent chafing against the frame rail. Use dielectric grease on all bullet connectors to stop water ingress; factory seals often fail after 80K miles.
Ford Super Duty Rear Lamps Electrical Guide
Begin by locating the main harness connector under the driver-side dashboard–pinouts differ between brake, turn signal, and running lamp circuits. The left-side assembly uses a gray 9-pin plug (C359), with terminals labeled as follows: pins 1-2 (brown/white) supply running illumination, pins 4-5 (yellow/black) handle brake activation, and pins 6-7 (red/light blue) manage reverse lights. Verify continuity with a multimeter before reassembly; corrosion on terminals 3 or 8 (ground, black) is a frequent failure point.
Replace the OEM pigtail if the insulation on the amber/white turn signal wire (pin 9) shows brittleness–aftermarket replacements often omit the anti-corrosion coating present on factory assemblies. Route new wiring along the frame rail using 16-gauge heat-shrink tubing, securing every 12 inches with nylon ties; avoid the transfer case where vibration accelerates fatigue. For auxiliary lamps, splice into the brake circuit at the trailer connector–use a relay to prevent voltage drop to the factory bulbs.

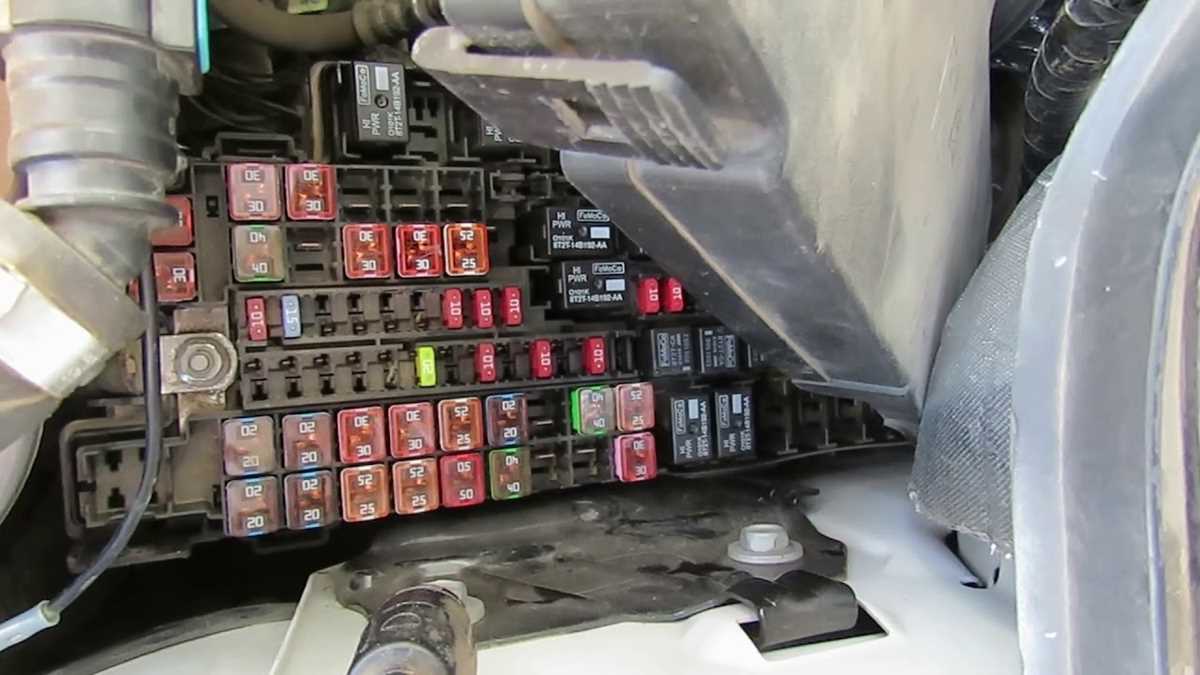

The high mount stop lamp circuit (C2066) runs separately through the headliner–access it by removing the third brake light housing. Its power lead (pink/light green) taps into the CHMSL fuse (F47, 10A) in the central junction box under the hood. If the unit fails, test the feed at the fuse holder with the ignition on; a reading below 11.8V indicates a short to the roof panel.
When upgrading to LED assemblies, bypass the factory load resistor by installing a 6-ohm fixed resistor in-line on each turn signal wire–alternatively, reprogram the GEM module with Forscan to disable bulb-out detection. Failure to address this will trigger the hazard flasher intermittently during operation.
Finding Rear Signal Connector Points on a Super Duty Truck
Begin by accessing the rear assembly behind the interior panel, adjacent to the spare wheel well on the driver’s side. The primary harness plug is secured with a 10mm bolt, concealed beneath a black plastic cover that snaps off by prying its edges. Pinout assignments are as follows:
| Wire Color | Function | Terminal ID |
|---|---|---|
| Red/Yellow Stripe | Stop illumination | A3 |
| Brown/White Stripe | Turn signal (left) | B7 |
| Gray/Orange Stripe | Running lamps | C2 |
The passenger-side interface mirrors this layout but replaces the second entry with Brown/Black Stripe (B8) for the right turn circuit. Disconnect the battery’s negative terminal before probing to prevent shorting adjacent pins, which can trigger fuse F43 in the under-dash fuse block.
Decoding Wire Roles in the Rear Lamp Harness of a Heavy-Duty Pickup
Trace the brown (BN) conductor–this is the primary feed for all running lamp filaments. Confirm continuity from the fuse block (position 18, 10A) through the bulkhead connector (C301, pin 23) to each rear assembly. If voltage drops below 11.5V at the socket, inspect the splice at the junction box (near the spare tire mount) where corrosion often disrupts this path.
- Dark green/yellow (DG/YL) stripe: Brake signal. Interrupts to the left side when the pedal is depressed–verify with a scan tool for codes C1439 (left) or C1441 (right).
- Light blue/red (LB/RD): Reverse lamp activation. Test by engaging gear; voltage should spike to 12.8V at the connector (T6, pin 6).
- White/orange (WH/OR): Turn signal (left). Pulses at 60-120 cycles per minute; oscilloscope readings should show a clean square wave.
- Gray/red (GY/RD): Turn signal (right). Same frequency as above, but interrupts the right-side circuit.
For troubleshooting flickering or dim operation on one side, first isolate the ground (black/tan, BK/TN) at the frame rail near the axle. Corrosion here mimics faulty bulbs–clean the mounting surface and re-torque to 18-22 lb-ft. If the issue persists, probe the harness for chafed insulation where it wraps the rear leaf spring hanger; the short often manifests as intermittent power loss during bumps.
How to Verify Rear Signal Circuit Integrity Using a Diagnostic Tool
Set the multimeter to continuity mode before probing any connectors. Locate the vehicle’s rear harness connector–typically near the bumper or inside the rear panel–and disconnect it. Touch one probe to the ground terminal and the other to each signal terminal in sequence. A beep or zero-ohm reading confirms a functional path; silence or infinite resistance indicates a break or corrosion.
Switch to DC voltage mode (20V range) for live circuit checks. Reconnect the harness and activate the corresponding switch on the dashboard. Probe the positive terminal while grounding the negative lead on bare metal. A reading between 11.5V and 14V confirms proper voltage delivery; anything below suggests a faulty relay, blown fuse, or chafed wire within the loom.
Inspect insulation integrity by gently flexing sections of the cable near connectors or stress points while monitoring resistance. A sudden fluctuation in readings reveals a hidden fracture–mark these areas for repair. Use a back-probe technique for connectors that cannot be disconnected: insert a fine probe alongside the existing terminal without damaging the seal to measure voltage without breaking the circuit.
Test ground connections by moving the multimeter’s negative probe to each ground terminal while keeping the positive probe on the signal input. Consistent voltage drop (ideally under 0.2V) confirms a solid ground; higher drops point to rusted terminals or loose mounting bolts. Repeat the process at the fuse box and switch terminals to isolate the fault source.
Compare readings against manufacturer specifications: Ford’s rear circuits typically operate at 12.8V nominal, with a tolerance of ±0.5V. Deviations beyond this range often trace back to the junction block beneath the dashboard or a faulty body control module. Document each measurement–volts, resistance, continuity–to build a troubleshooting map for efficient repairs.
Solving Rear Illumination Problems on Heavy-Duty Pickups
Check the ground connection at the G201 stud behind the rear bumper–corrosion here causes intermittent signal failure even when bulbs test functional. Use a multimeter to verify less than 0.2 ohms across the ground path; anything higher indicates oxidized terminals that need cleaning with a wire brush and dielectric grease repack. Replace any melted harness insulation near the frame rails where heat from exhaust components degrades the PVC coating over time.
Identifying Hidden Faults in Electrical Circuits
Flickering during braking? Peel back the bed-side liner to inspect the 3157 bulb socket tabs for discoloration–tin plating burns at 180°C, compromising contact. Swap the socket with a pigtail harness (Motorcraft WPT-1232) and apply nickel anti-seize paste to threads before reinstalling. Voltage drops below 11.8V at the lamp? Trace the red/yellow striped wire from the fuse box (Rear #8, 10A) under the dash; chafing often occurs where it exits the cabin grommet near the brake pedal bracket. Repair with heat-shrink solder connectors and reroute away from sharp edges.
