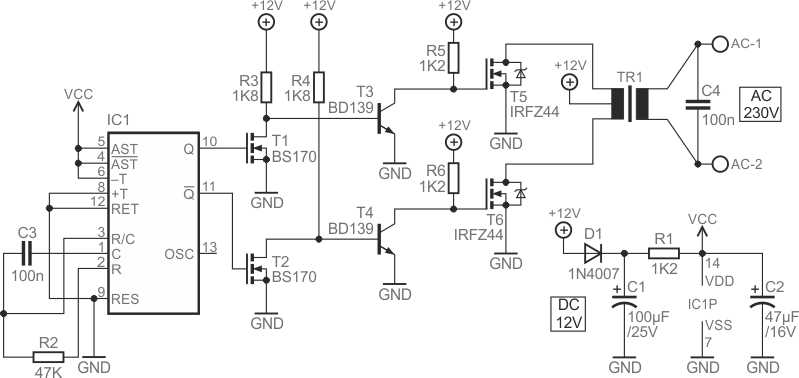

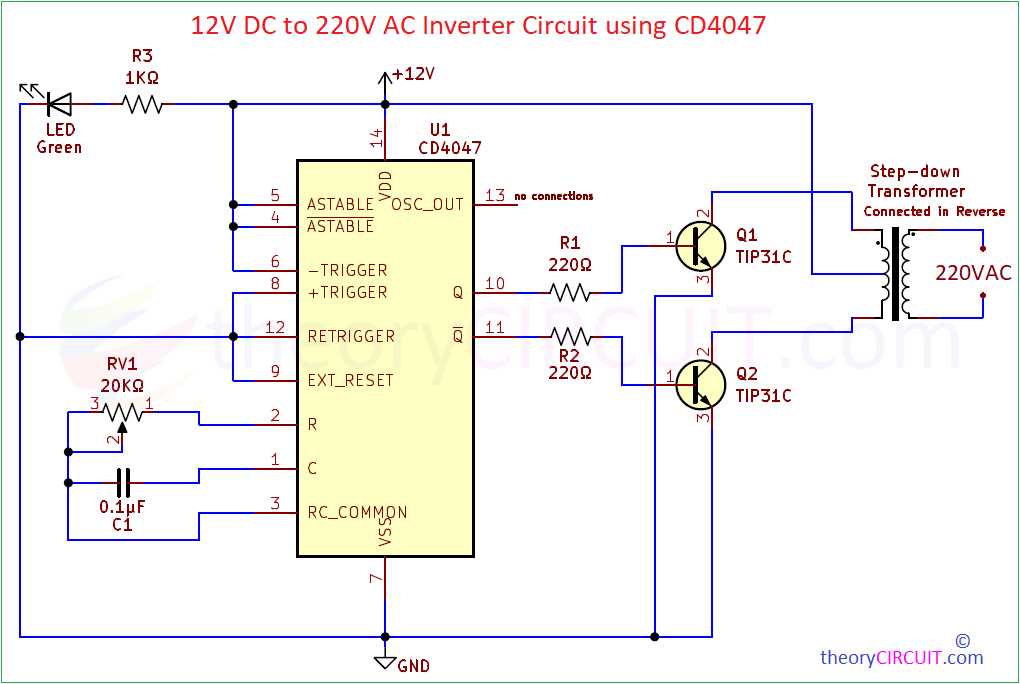

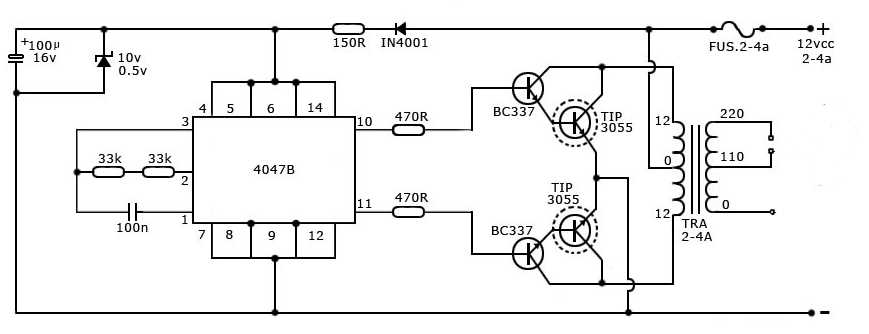

Complete CD4047 Inverter Circuit Schematic and Wiring Guide

For precise timing and oscillator applications requiring minimal components, a monostable/astable flip-flop IC paired with a complementary transistor output stage delivers stability and efficiency. Begin with a 14-pin CMOS microcontroller-compatible chip configured in astable mode–set C1 (0.1µF polyester) and R1 (47kΩ) to define the oscillation frequency at roughly 1.44/(R1*C1), yielding approximately 300Hz for these values. Adjust R1 (10kΩ–1MΩ) and C1 (1nF–10µF) to fine-tune the output waveform symmetry or duty cycle without sacrificing timing accuracy.

Implement a push-pull amplifier using two general-purpose transistors (e.g., 2N3904/2N3906 or BC547/BC557) to drive inductive or capacitive loads beyond the IC’s 10mA current limitation. Connect the IC’s buffered output to the base of Q1 via a 4.7kΩ resistor; Q1’s collector ties to the supply voltage through a 1kΩ resistor, while its emitter links to Q2’s base. Q2’s emitter grounds the circuit, and its collector outputs the inverted signal–ensure fast switching diodes (1N4148) clamp transient voltages to protect against back-EMF in inductive loads.

For low-power applications, bypass the supply pin (V_DD) with a 0.1µF ceramic capacitor positioned as close to the IC as possible to filter noise. If operating at voltages above 12V, insert a zener diode (5.1V) between the IC’s V_SS and ground to prevent latch-up. Test frequency stability across temperature ranges: expect less than ±5% drift between -40°C and +85°C if using quality capacitors (X7R dielectric).

To isolate sensitive loads, add an optocoupler (e.g., PC817) between the transistor stage and the load–this separates control circuitry from high-voltage or noisy environments while maintaining signal integrity. For high-current loads (>500mA), replace the transistor pair with a complementary MOSFET stage (IRF510/IRF9540) and recalculate gate resistors (1kΩ–10kΩ) to prevent shoot-through during switching transitions.

Building a Reliable Astable Oscillator with the MC14047B: Step-by-Step Assembly

Connect the timing capacitor between pins 1 (C) and 3 (RC) for standard operation. A 10nF polyester film capacitor delivers stable frequency output around 1kHz at 5V, while doubling the capacitance halves the oscillation rate. Ensure the capacitor’s voltage rating exceeds the supply voltage by at least 30% to prevent leakage-induced drift over time.

Pair the capacitor with a resistor wired between pin 3 (RC) and pin 2 (+V). A 100kΩ 1% tolerance metal film resistor yields consistent timing intervals, avoiding the error accumulation common with carbon composition types. For adjustable frequency needs, replace the fixed resistor with a 1MΩ multi-turn potentiometer, allowing fine-tuning without component swaps.

Power the IC from a regulated 5–15V DC source, connecting +V to pin 14 and ground to pin 7. Decouple the supply with a 100nF ceramic capacitor placed within 1cm of these pins to suppress high-frequency noise. Omitting this step risks erratic triggering, especially in noisy environments like switched-mode power supply circuits.

To extract the signal, tap the complementary outputs at pins 10 (Q) and 11 (Q̅). These outputs toggle 180° out of phase, providing alternating square waves ideal for driving complementary loads like H-bridge configurations. Use a 1kΩ resistor in series with each output when interfacing with MOSFET gates to limit current spikes during transitions.

For precision applications, add a 10µF tantalum capacitor between pin 8 (Astable Output) and ground. This stabilizes the duty cycle near 50%, counteracting asymmetry introduced by component tolerances. Omit this capacitor if asymmetric pulses (e.g., 30% duty cycle) are required, replacing it with a diode and resistor network between pins 1 and 3.

Mount the IC on a perforated board with ample spacing around timing components to minimize stray capacitance. Avoid routing high-impedance nodes near power traces, as parasitic coupling can introduce unintended frequency modulation. Test oscillation stability by monitoring pin 10 with an oscilloscope; ideal waveforms exhibit crisp edges with rise/fall times under 50ns.

Extend battery life in portable setups by inserting a PNP transistor (e.g., 2N3906) between the IC’s +V pin and the power source. Drive the transistor’s base via a 10kΩ resistor connected to pin 9 (Retriggerable Mode), enabling the IC only during active operation. This reduces standby current draw from milliamps to microamps without sacrificing performance.

Log failures by wiring LED indicators to pins 10 and 11 through 470Ω resistors. Rapid flashing confirms correct operation, while flickering or constant illumination signals timing capacitor degradation, incorrect resistor values, or insufficient decoupling. Replace suspect components systematically, testing after each swap to isolate intermittent faults.

Key Parts for Building a Monostable/Astable Multivibrator Power Conversion Setup

Select a dual complementary MOSFET pair like the IRF540N and IRF9540N for the switching stage. These handle 20A continuous current at 100V with a threshold voltage of 2-4V, minimizing heat dissipation. Pair them with a heatsink rated for 10°C/W or better–aluminum extrusions with 1mm fin spacing work well for passive cooling.

For timing control, procure a CMOS multivibrator IC in a 14-pin DIP package (MC14047B or equivalent). Ensure the batch has a maximum supply voltage tolerance of 18V and quiescent current below 10µA. Replace the IC socket if the circuit operates above 30°C ambient, as solder joint fatigue accelerates above this threshold.

Use polyester or polypropylene film capacitors rated for 250VAC for the timing and output stages. Avoid ceramic types–their capacitance drops under DC bias. For 50Hz output, a 22µF capacitor with ±5% tolerance stabilizes the oscillation frequency within 1Hz. For 60Hz, reduce to 18µF. Always verify capacitance at the target voltage using an LCR meter before soldering.

Essential Passive and Protection Elements

• Resistors: 1% metal film (0.25W) for timing paths–carbon types drift 3-5% per 1000 hours at 70°C.
• Diodes: 1N4007 for reverse polarity protection (1A/1000V) and UF4007 for snubber circuits (trr < 75ns).
• Ferrite core inductor: 1mH with 10A saturation current for output filtering. Wind with 1mm enameled copper wire, air gap adjusted for 10% ripple current.
• Fuse: 5A slow-blow type with a thermal cutoff rated for 125°C. Mount in a panel-mount holder, not PCB, to prevent trace heating.

A 12V SLA battery or LiFePO4 cell bank (4S configuration) serves as the primary power source. Calculate cable gauge using the formula AWG = (L × I × 0.04) / ΔV, where L is length in meters, I is current in amps, and ΔV is 0.4V maximum voltage drop. For 10A loads, 14AWG copper wire suffices for runs under 2m.

For high-voltage isolation, use a 1:10 toroidal transformer with a 0.5mm air gap or a flyback topology with a EE42 core. Wind primary with 3 strands of 0.4mm wire, secondary with 1 strand of 0.6mm wire spaced 2mm apart for 1kV+ isolation. Test insulation resistance with a megohmmeter at 500V for 60 seconds–readings below 10MΩ indicate pinhole defects.

1. PCB: FR-4 material, 2oz copper, 1.6mm thickness with a thermal relief diameter of 2mm for pad-to-plane connections.
2. Connectors: Screw terminal blocks rated for 20A/250VAC with a 6mm pitch. Avoid quick-connect spades–they fail at 12A sustained.
3. Enclosure: Ventilated ABS or polycarbonate with a IP54 rating. Mount the MOSFETs on the rear panel, oriented vertically to exploit chimney airflow.
4. Test points: Install 2.54mm pitch headers for scope probes. Label each with white-on-black labels for UV resistance.

Validation and Assembly Tips

Before powering the assembly, verify:

• All solder joints exhibit concave fillets–convex joints indicate cold joints with >10mΩ resistance.
• MOSFET body diodes conduct in one direction only (check with a DMM diode test mode).
• Timing capacitor polarity matches the PCB silkscreen–reversing it causes explosive failure within 200ms.

Assemble in stages: first the low-voltage logic, then power section. After each stage, power up with a current-limited supply (0.5A) and monitor for oscillations on a scope before proceeding.

Step-by-Step Assembly of the Astable Multivibrator Configuration

Select a 0.1µF timing capacitor with a voltage rating at least 1.5 times the supply voltage. Polypropylene or polyester film capacitors offer better frequency stability than ceramic types, especially for low-power oscillators. Ensure the leads are tinned if the component has raw copper terminals to prevent oxidation during soldering.

Solder the IC onto a perfboard with 2.54mm pitch, aligning pin 1 (marked by a dot or notch) to the top-left corner. Apply heat no longer than 3 seconds per joint to avoid damaging the CMOS substrate. Use a 16-pin DIP socket if prototyping; this simplifies troubleshooting and prevents thermal stress on the silicon die.

Connect the following components in this exact sequence to avoid parasitic oscillations:

• Pin 2 to a 100kΩ resistor, then to a 10kΩ trimpot for frequency adjustment.
• Pin 14 directly to the positive rail (3–15V, regulated).
• Pin 7 to the negative rail via a 0.01µF decoupling capacitor placed within 2mm of the pin.
• Pins 10 and 11 to two antiparallel LEDs (3mm) with 470Ω current-limiting resistors.

Before applying power, verify all connections with a multimeter in continuity mode. Probe between the positive rail and each IC pin–resistance should read >1MΩ for inputs and around 1–10kΩ for outputs. A low-resistance path indicates a short or incorrect wiring, which could damage the device upon energizing.

Apply 5V from a laboratory power supply, increasing voltage gradually while monitoring current draw. Nominal current should stabilize at 0.5–2mA; values above 5mA suggest a fault. Observe LED blinking–uneven intervals or constant illumination require recalibration of the trimpot. Adjust to achieve a 50% duty cycle within ±2% tolerance for symmetrical waveforms.

For enhanced load driving, buffer outputs with a 2N3904 transistor. Connect the emitter to ground, the collector to the load (e.g., a piezo buzzer), and the base via a 1kΩ resistor to Pin 10 or 11. Ensure the transistor’s breakdown voltage exceeds the supply voltage by at least 20% to prevent avalanche breakdown during switching transients.
