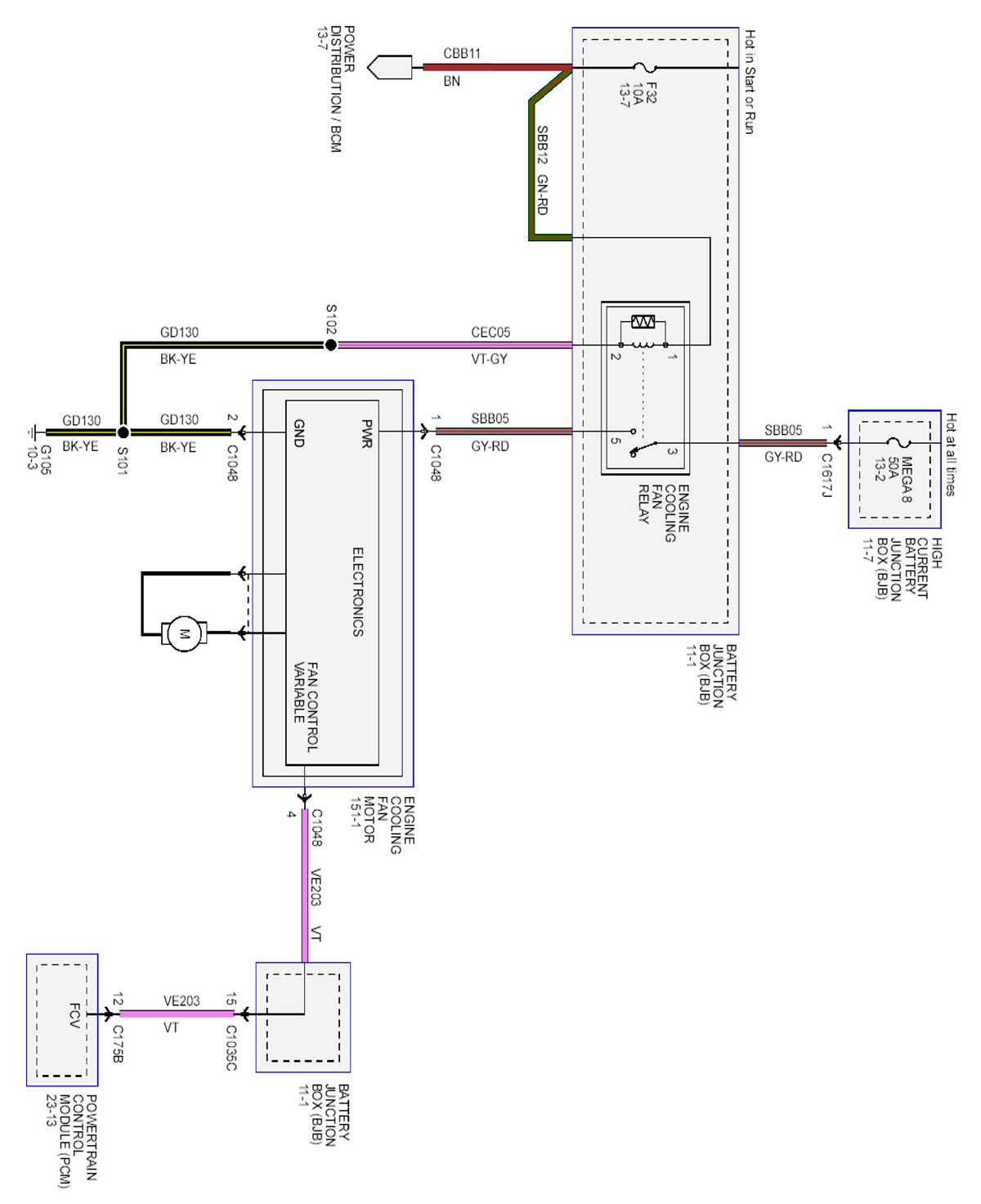

Ford Focus 2012 Cooling Fan Circuit Wiring Schematic and Troubleshooting Guide

If you’re troubleshooting overheating issues or replacing a malfunctioning motor in your compact sedan, start by locating the relay cluster near the passenger-side fuse box. Pin 87 of the primary control relay connects directly to the positive terminal of the radiator-mounted electric drive–this is your power feed. Ground reference typically routes through pin 31 on the same connector, secured to the chassis via a single bolt near the headlight assembly. Disconnect the battery before probing any circuits to avoid shorting sensitive modules.

For accurate testing, use a multimeter set to 20V DC range. Probe between the motor’s input lead (usually a thick red wire) and chassis ground; readings should jump to 12.6V–14.2V when the thermostatic switch closes (around 95°C). If voltage is absent, inspect the 30A fuse (labelled “RAD FAN”) and bypass the relay with a fused jumper wire to isolate faults. Replace the relay if coil resistance exceeds 80 ohms.

The secondary circuit kicks in under heavy thermal load–look for a green/yellow striped wire branching from the primary harness. This line, controlled by a second relay, engages the high-speed mode. Verify continuity between the ECM pin B132-7 and the motor’s secondary terminal; resistance should drop below 0.5 ohms when the cooling demand signal reaches 3.5V. Corrosion on the radiator-side connector is a common failure point–clean contacts with dielectric grease during reassembly.

When replacing components, match wire gauges: primary circuit uses 14 AWG for current handling, while sensor leads are 18 AWG. Crimp terminals with a butt splice rather than soldering; heat from the engine bay degrades soldered joints over time. Label all wires before disconnecting–factory schematics omit color codes for splices added during production.

Electrical Schematic for Vehicle Radiator Blower Assembly

Locate the primary relay first–it’s positioned behind the driver-side dashboard panel, adjacent to the fuse box (RHS-15A fuse). The wiring harness splits into three: a 12V power feed (red/orange stripe), a ground line (black), and a control wire (green/yellow stripe) leading to the engine control module. Use a multimeter set to 20V DC to verify continuity; probe the relay socket pins while activating the climate control to 70°F–this triggers the secondary speed circuit. If voltage drops below 10.5V at pin 87, inspect the relay coil or replace the unit entirely (Motorcraft part YG381).

Component Pinouts and Color-Coded Connections

Reference the following terminal assignments for troubleshooting:

• Connector C130 (blower motor plug): Pin 1 (red/orange) – constant battery input; Pin 2 (black) – ground; Pin 3 (green/yellow) – ECM signal.
• Connector C175A (radiator side plug): Pin A (dark blue/light blue) – high-speed output; Pin B (white/green) – low-speed output; Pin C (black/white) – shared ground.
• Relay socket: Pin 85 (green/yellow) – ECM trigger; Pin 86 (black) – chassis ground; Pin 87 (red/orange) – switched output; Pin 30 (red) – fused 12V input.

For dual-speed operation, the ECM grounds Pin 85 in sequences: 3.2Ω resistance across Pins 85 and 86 confirms relay functionality. Substituting a resistor with equivalent ohm rating (3.3Ω, ½W) can isolate ECM faults temporarily. Bypass the climate control module if fan response is sluggish–jumper Pin 85 to ground for on-demand engagement.

Trace corrosion at connector C175A with a DeoxIT application; oxidized terminals create resistance exceeding 0.2Ω, disrupting current flow. Replace wiring harness sections exhibiting chafed insulation (typically near the radiator support) with heat-shrink tubing sleeves–use cross-linked polyethylene (XLPE) rated for 125°C. For aftermarket upgrades, splice a dual-relay kit (e.g., Deka 9008) to split high/low circuits, ensuring separate fuse protection (25A for high, 15A for low). Log voltage waveforms at the ECM pin during load variations–normal operation shows a 0.3V ripple at 1kHz; deviations indicate failing alternator diodes or capacitor degradation.

Finding Electrical Link Points for the Vehicle’s Thermal Management Relay System

Begin beneath the driver-side dashboard by removing the lower trim panel secured with three 8mm bolts. Behind this panel, near the central fuse box, search for a rectangular two-pin connector with red and black leads–this mates directly to the primary motor control module. Trace the wires upward toward the firewall where they merge with the engine bay harness bundle. Use a multimeter set to continuity mode to confirm voltage swings between 0V and 12V during ignition cycles.

The secondary power coupling sits adjacent to the radiator’s lower support beam, partially obscured by the front grille support bracket. Disconnect the battery negative terminal first, then unclip the main engine harness retainer clip using a flathead screwdriver–this exposes a four-way weatherproof connector with blue, green, yellow, and purple conductors. Mark each terminal with tape before separation to prevent misalignment during reassembly.

• Red-positive input emerges from relay #47 in the under-hood fuse block.
• Black-ground attaches to chassis stud near the front tow hook.
• Blue-secondary trigger wire connects to the ECU.
• Green-speed sensor feedback loop.

Inspect the vehicle’s thermal regulator sensor pigtail–typically located mid-engine bay, mounted onto the upper coolant pipe flange. The connector here features two thin gauge wires colored brown and dark green, with the brown acting as signal output. Probe both wires with a voltage tester; expect 5V reference on brown and near 0V on dark green when coolant reaches 98°C.

Verifying Terminal Integrity

Gently pry open the connector shells using a small pick to inspect internal terminal corrosion. Clean with electrical contact spray and a nylon brush if oxidation is present–avoid steel wool as particles can remain lodged. Ensure locking tabs click audibly when reconnecting. Replace any visibly compromised pins; Ford module part #FL3Z-14A068-A fits most variants.

Behind the left front wheel well liner lies an inline diode pack critical to preventing reverse voltage spikes. Snap open the protective rubber boot to reveal a tiny black cylinder–this component often fails silently. Test continuity between both ends; resistance should measure under 2 ohms. If readings exceed 5 ohms, bypass temporally with an external 1N4007 diode while awaiting parts.

1. Disconnect battery negative cable.
2. Locate relay cluster above driver-side strut tower.
3. Remove relay #44 labeled “ELEC ENG FAN”.
4. Shake to listen for internal rattling.
5. Replace if damaged–#BR3Z-14326-A1A.

Decoding Connector Terminals and Cable Hues in Climate Control Motors

Begin by locating the dual-speed electric drive connector–typically a two-pin or three-pin plug–on the rear of the radiator assembly. The primary terminal (often marked as “High”) carries a solid orange lead with a 14-gauge thickness, delivering direct battery voltage when the system activates. Verify this first; if absent, trace the cable back to the fuse block (slot 37, 30A mini) before proceeding further.

Next, examine the low-speed circuit. The corresponding wire usually switches between light green with a yellow stripe (PG/YT) or dark green with an orange stripe (DG/OR), depending on build variations. This line routes through the powertrain control module (PCM), where a ground-side switch triggers the motor at ~1,200 RPM. Use a multimeter set to 20V DC scale: probe the connector’s low-side pin while cycling the A/C to confirm a 9-12V drop during engagement.

For models equipped with a single-speed variant, expect a gray wire with a violet stripe (GY/VT) interfacing with the auxiliary relay (position F5 in the under-hood junction box). This relay, unlike the dual-speed setup, receives a constant 12V feed via a red wire with a black stripe (RD/BK) and grounds through the chassis, simplifying troubleshooting. Check for continuity between the relay socket and motor plug–resistance should read 3-5 ohms; anything above 8 ohms indicates corrosion or a broken filament.

On three-pin connectors, the third terminal–usually a black or brown wire–serves as the dedicated ground return. This cable often routes directly to a body ground near the left front strut tower. Ensure the eyelet is free of paint, rust, or loose torque (spec: 10-12 Nm); even minor resistance here causes intermittent failures. If the motor runs erratically despite correct voltage, disassemble the plug and inspect for melted pins–a common failure point under sustained 18-22A loads.

Finally, cross-reference observed cable colors against the vehicle’s as-built data label, typically affixed to the radiator support or underhood fuse box lid. Variations exist between model years and regional specs, but the following pairs are recurrent: high-speed: orange to red; low-speed: PG/YT to DG/OR; ground: black to brown. When splicing repairs, match gauge sizes exactly–any undersized substitute risks overheating under peak current draw.

Isolate faults by disconnecting the motor and powering each circuit sequentially with a test light or ammeter. A proper high-side signal should illuminate the test light brightly without flickering, while low-side pulses should register as a steady 0.8-1.0A draw. No activity? Probe upstream at the climate control module connector (pin C14 for low, C15 for high) to isolate whether the issue lies in the trigger logic or downstream wiring.
