Full 2014 Chevy Silverado Trailer Wiring Diagram Guide and Installation

For reliable towing connectivity, install the factory harness designed for your heavy-duty pickup’s bed. Locate the seven-pin connector behind the rear bumper–it’s a standard OEM assembly for light-duty hauling. No modifications are needed if the system matches the manufacturer’s original specs, ensuring seamless compatibility with aftermarket brake controllers.

If corrosion or damage is present, bypass the stock connector entirely. Splice directly into the main loom using heat-shrink butt connectors rated for 10 AWG wire. The left-side reverse light circuit typically uses green insulation, while brown is reserved for tail lamps. Verify each circuit with a multimeter before soldering–prevent false signals from load equalizers.

The ground wire (black or white-striped) must terminate at the frame, not the bed sheet metal. A faulty chassis connection disrupts brake engagement, risking trailer instability. For integrated payload systems, attach auxiliary wiring through the cab-to-bed grommet near the driver-side taillight. Avoid routing wires near exhaust manifolds–heat melts insulation, causing intermittent shorts.

Test every function: running lamps, turn indicators, and stoplights. If LEDs flicker without load, insert a load resistor inline with the affected circuit. Half-ton models often lack brake output; install a standalone controller rated for 30 amps. Keep connections dry–apply dielectric grease on terminals before sealing.

Understanding Your Pickup’s Towing Electrical Layout

Start by locating the factory-installed tow connector beneath the rear bumper–it’s a seven-way round socket secured to the frame rail. Pin assignments follow SAE J560 standards: the top center slot delivers +12V constant power via a 40A fuse (check fuse box under the hood labeled “Trailer Battery”), while adjacent slots handle right/left turn signals, brake lights, reverse illumination, and ground. Avoid tapping wires directly; instead, use a factory harness extension matching the original color codes to prevent voltage drops.

Pin Position	Wire Color	Function	Testing Voltage
Center Top	Red	Constant +12V	11.8–12.5V
Right Middle	Brown	Running Lights	12V when headlights on
Left Middle	Green/Yellow Stripe	Left Turn/Brake	Flashing 12V, steady 12V with pedal press
Bottom Left	White	Ground	0Ω to chassis

Replace corroded connectors immediately–examine plugs for green oxidation on terminals, a common failure point after exposure to road salt. Use dielectric grease when reconnecting to prevent future corrosion; apply sparingly to metal contacts only. For trailers requiring electric brakes, verify the blue wire’s continuity to the brake controller; a multimeter should read 0V until brakes engage, then spike to 12V during activation.

If auxiliary functions like reversing lamps or auxiliary power feeds malfunction, trace circuits using a tone generator–attach the sender to the problematic wire at the vehicle connector and probe the corresponding pin on the trailer side. Noise interference from LED lights often requires inline suppressors; install them close to the light source rather than the vehicle for optimal signal clarity.

For trucks with integrated brake controllers, calibrate proportional gain before towing. Access the menu via the dash-mounted control (often labeled “Tow/Haul Mode”), then adjust sensitivity until trailer brakes engage smoothly without locking wheels at 20–25 mph. Test on a flat, dry surface; improper settings risk premature pad wear or loss of control.

Inspect lighting circuits monthly during towing season. Stress cracks in wire insulation near suspension components necessitate rerouting–avoid zip-tying wires to leaf springs or exhaust pipes. For fifth-wheel setups, ensure an additional heavy-duty relay isolates the pin box’s +12V feed from the factory connector’s power line to prevent fuse blowing under load.

Finding the Towing Electrical Link on Your Pickup

Start by raising the tailgate and inspecting the area directly beneath the rear bumper. The factory-installed plug is typically mounted to the frame rail on the driver’s side, tucked behind the plastic fascia panel. Look for a rectangular, seven-pin receptacle encased in a black plastic shroud; it may be partially concealed by road grime or undercoating, so wipe the surface clean with a rag.

If the primary connector is not visible, probe the inner face of the bumper beam where it meets the quarter panel. Some assembly plants secure the harness clamp higher, near the bed step or trailer hitch receiver. Use a flashlight–modern LED models with narrow beams penetrate tight spaces better than incandescent ones–and trace the bundle of colored cables emerging from the main chassis harness.

On vehicles equipped with a factory tow package, the plug-in port is pre-wired and should be accessible without removing trim. For base models, check for an empty cavity with a snap-on dust cap covering a blank panel; this indicates where the optional harness would terminate. Remove the cap by pulling outward with firm, steady pressure to avoid breaking the retaining clips.

The seven-pin arrangement follows an industry-standard layout: brown for running lights, green for right turn/stop, yellow for left turn/stop, white for ground, blue for electric brake control, red for auxiliary power (12V hot), and black for the reverse signal. Verify pin positions before attaching any aftermarket adapters–crossed circuits can damage the truck’s computer.

For extended cab and crew cab models, the harness may split into two segments–one feeding the rear bumper, another routing beneath the bed to accommodate clearance-sensor wiring. Locate the second connector by crawling underneath near the axle; it’s usually secured with zip ties or a molded clip. Cut ties carefully with diagonal cutters to avoid nicking insulation.

When dealing with corrosion, apply dielectric grease sparingly inside the male and female terminals. Avoid petroleum-based products; silicone compounds resist water intrusion longer. If terminals show pitting, clean lightly with a wire brush or electrical contact cleaner–never use abrasive pads, as they can degrade plating.

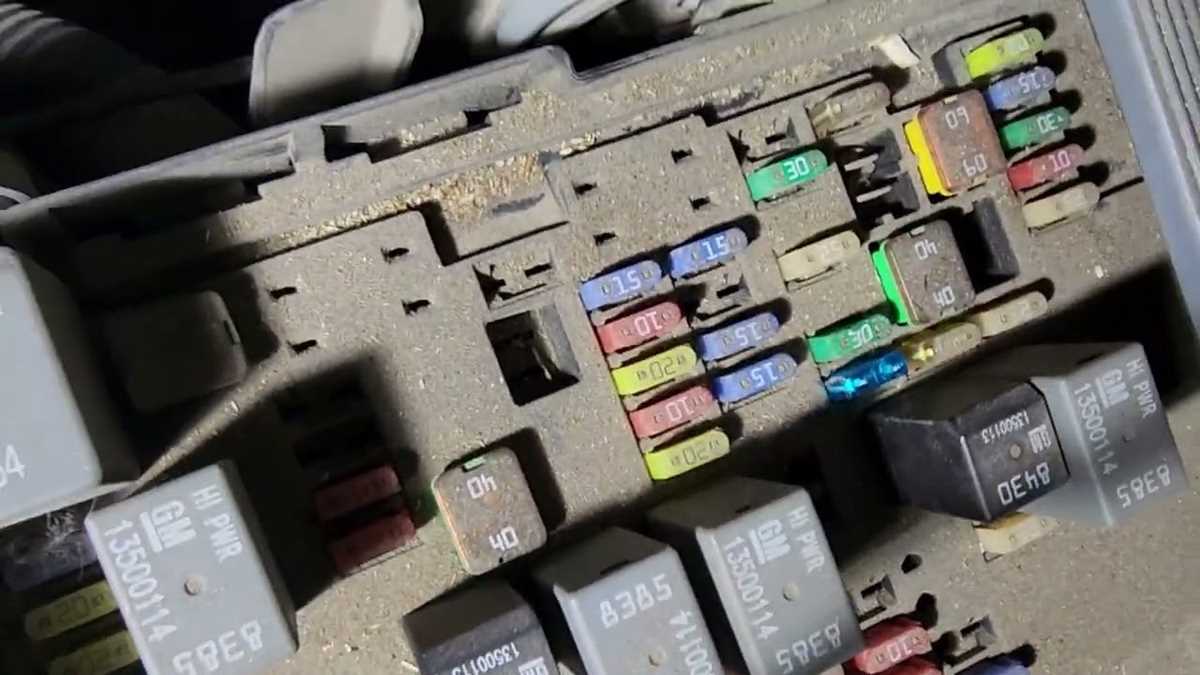

To test continuity without a trailer attached, use a multimeter set to DC voltage. Connect the black probe to chassis ground and touch each pin in sequence. A live circuit should read 12-14V when corresponding lights or brakes are activated. If readings fluctuate, inspect the fuses inside the instrument panel fuse block marked “TRAILER” or “TOW” and replace if cracked.

If the harness is missing entirely, follow the main wiring loom from the rear taillight assembly toward the frame. The loom diverges near the spare tire carrier, branching into a stub with taped ends. Strip back the tape to expose bare wires; match colors to the standard pinout and splice using crimp connectors–never twist and tape, as vibration will eventually loosen connections.

Step-by-Step Guide to Identifying Wire Colors and Functions

Locate the vehicle’s fuse box under the dashboard or in the engine bay–check the owner’s manual for the exact position. Remove the cover to expose the harness connectors, then trace the bundle leading to the rear of the pickup using a multimeter set to continuity mode. Probe the pins labeled “B+” (battery positive), “GND” (ground), “L” (left turn/brake), “R” (right turn/brake), and “T” (tail/running lights) to confirm their paths. Match each color code: white is typically ground, brown designates running lights, green controls the right circuits, yellow manages the left, and blue handles auxiliary functions like electric brakes.

Strip 1/4 inch of insulation from each wire using strippers rated for 14-16 AWG gauge, then insert the exposed ends into the corresponding female spade terminals. Crimp securely with a ratcheting crimper, ensuring no bare strands are exposed–use heat-shrink tubing to insulate the connection. For vehicles equipped with a factory tow package, the connector will already include a purple (reverse lights) and dark green (electric brake output) wire; skip improvisation and verify these signals with a 12V test light before attaching any load.

Test all functions by connecting a trailer simulator or a simple light array: toggle the turn signals, activate the brakes, and switch on the running lights–each circuit should illuminate independently without voltage drops. If flickering occurs, inspect the ground connection at the hitch mounting point, clean corroded surfaces with a wire brush, and apply dielectric grease to prevent future oxidation. For aftermarket additions, reference the ANSI/SAE J2859 standard for pin assignments and avoid splicing into non-trailer-specific circuits to prevent feedback into the vehicle’s computer.

Diagnosing Electrical Hookup Problems on Light Vehicles

Check the ground connection first–corrosion on the frame-mounted stud or loose attachment is the most frequent source of intermittent signal loss. Use a multimeter to confirm zero resistance between the plug’s ground terminal and the chassis; readings above 0.5 ohms indicate corrosion or a broken wire, often hidden inside the harness insulation. Replace the factory ground stud with a stainless-steel M8 bolt and star washer, torqued to 12-15 lb-ft, for a reliable low-resistance path.

Light Function Failures and Quick Fixes

Dim or flickering lamps typically point to voltage drop along the feed lines, especially when pulling draw-heavy LEDs that require a steady 11.8-13.5 V. Probe each pin at the tow connector while the lights are on: the left-turn circuit should measure no less than 12.0 V at full brightness; anything below 11.2 V signals excessive resistance in splices or connectors. Swap out factory butt splices with soldered, heat-shrunk joints using 16-gauge stranded copper wire and a 30 W iron set to 600 °F–this eliminates cold-solder cracks that cause intermittent opens.

Short circuits usually reveal themselves by blowing the tow vehicle’s 10 A fuse within seconds of plugging in the harness. Disconnect the front connector and use a continuity tester to isolate the faulty path: set one probe on the orange (12 V) pin, the other on each remaining pin in turn; any beep outside the expected circuits (yellow-left, green-right, brown-running) identifies a bare wire touching the frame or neighboring conductor. Tape loose wires individually with 3M Super 88 vinyl electrical tape, spiralling tightly from the end toward the connector to prevent water wicking; re-insert the fuse only after confirming all circuits open with the meter.
