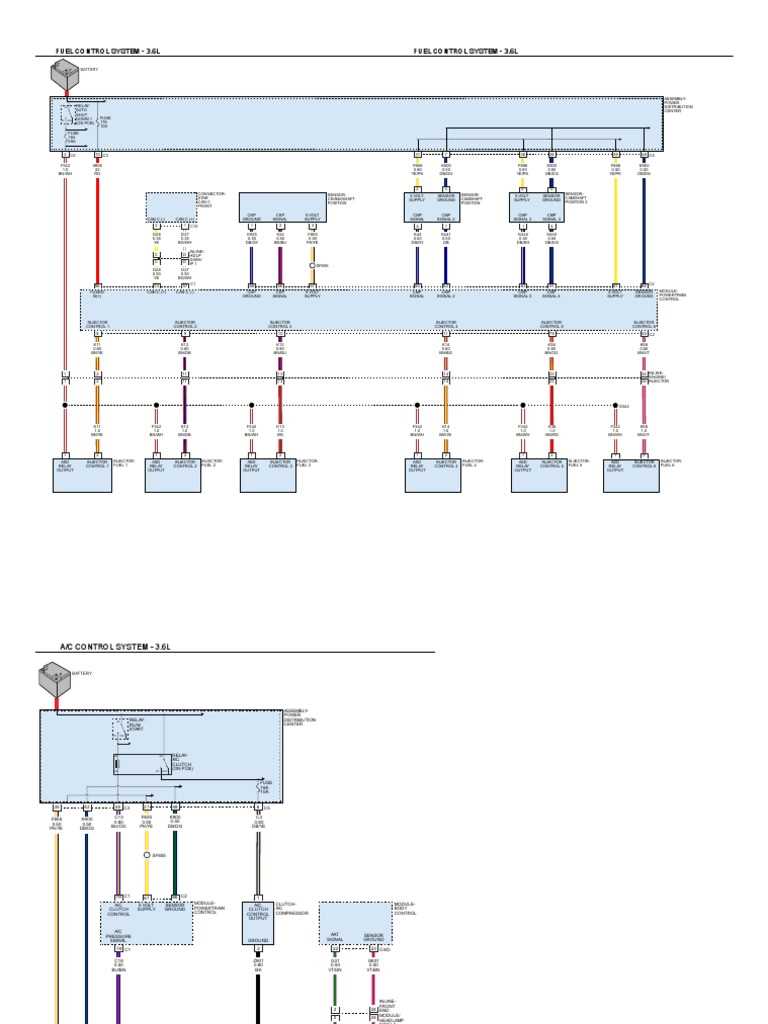

Complete Wiring Diagram Guide for 2016 Dodge Journey Electrical Systems
Begin troubleshooting or custom installations by locating the fuse box wiring reference under the driver’s side dashboard. Pinout labels follow a left-to-right numbering convention–terminal 1A connects to the ignition switch, while 3B feeds the rear fog light relay. Download the official schematic from Chrysler’s TechAuthority portal (publication ID 82211853) to avoid aftermarket inaccuracies.
For auxiliary power outlets, trace the orange and dark blue wires from the integrated power module (IPM) to the center console harness. The 120-amp fuse (position 22) protects this circuit–verify continuity with a multimeter set to 200-ohm scale if outlets fail to charge devices. Replace any corroded connections at the G307 ground point near the rear passenger seat.

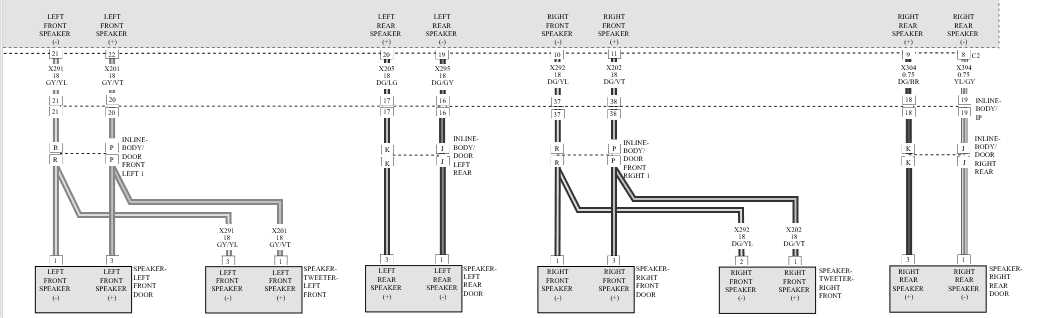

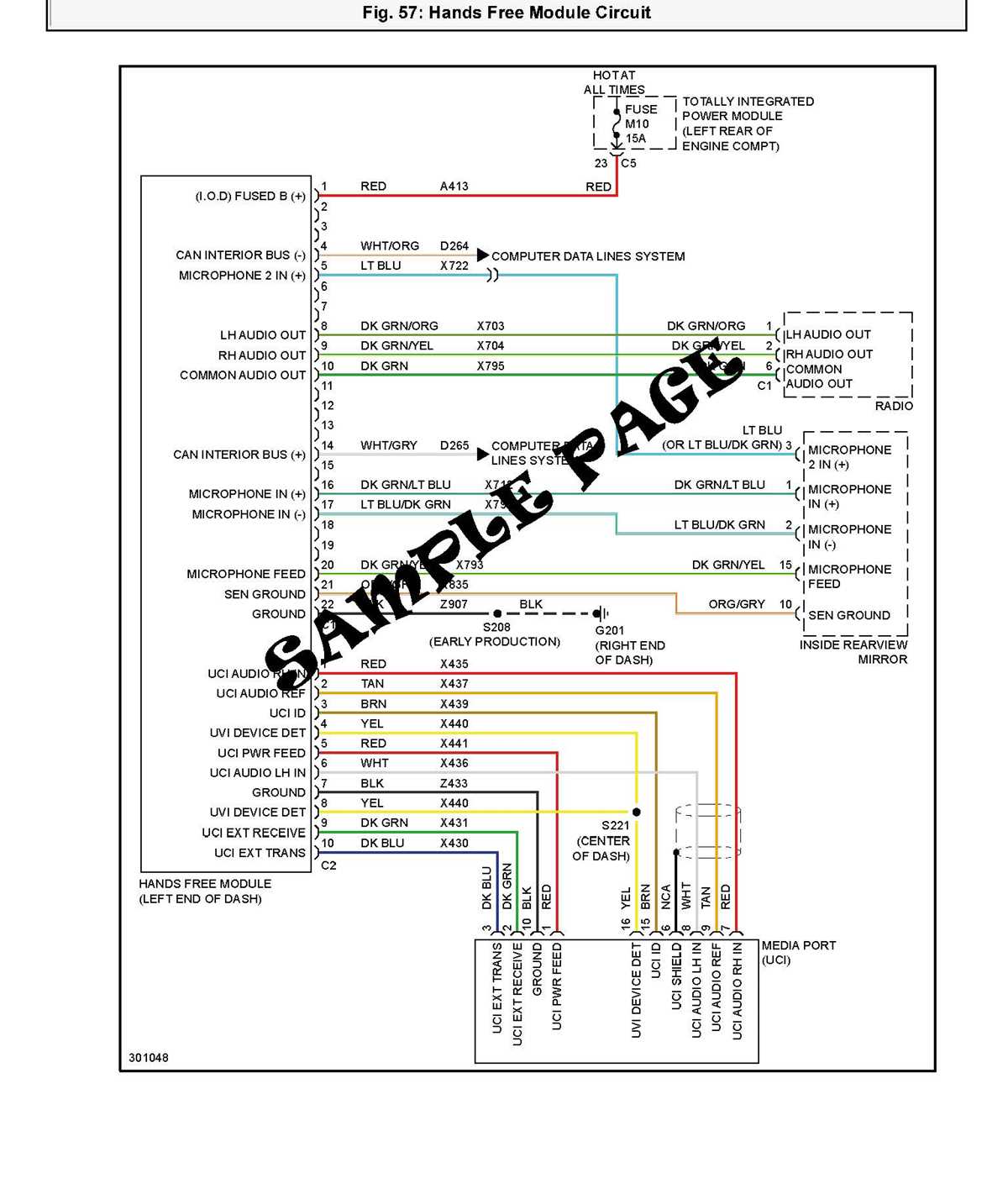

When modifying infotainment wiring, disconnect the negative battery terminal first to prevent airbag deployment errors. The radio harness (pinout: 16-pin female connector) interfaces with the Uconnect module–use T-taps only on the purple (steering wheel controls) and grey (amplifier) wires. For aftermarket cameras, splice into the pink/light blue wire (reverse signal) at the tail light assembly.
Headlight circuits use separate relays for low beams (relay K20) and high beams (relay K21). Check the HDLP control module if both fail–it’s mounted behind the glove box. For turn signal malfunctions, test the flasher unit (part #05233565AA) and inspect the brown/white wire at the steering column connector for chafing.
Electrical Schematics for the 2016 Crossover SUV: Hands-On Reference
Locate fuse box diagrams under the driver-side dashboard panel–remove the two 8mm bolts securing the protective cover to access the primary power distribution layout. The BCM (Body Control Module) schematic spans pages 8-14 of the OEM manual, detailing 32-pin connector C1 and its 12-volt outputs to the interior lights, door locks, and rear defroster relay. Trace wire color codes: tan with a light blue stripe (T/LB) carries ignition-switched power, while dark green with a yellow stripe (DG/Y) grounds the automatic climate control sensors.
For rear wiper motor diagnostics, follow the purple wire (P) from the multifunction switch to the 20-amp fuse (#34) before it splits toward the wiper-delay module. Use a 12-channel scope to verify signal integrity at connector C3, pin 17–voltage should pulse between 0-5V during intermittent operation. If corrosion is present, clean terminals with a fiberglass pen and apply dielectric grease rated for 125°C continuous duty.
Troubleshooting Common Electrical Faults
When diagnosing inoperative heated seats, confirm 10-amp fuse (#22) integrity first, then inspect the seat cushion’s thermostat controller–located beneath the passenger seat frame, secured by a single Torx T-20 fastener. The brown wire (BN) delivers battery voltage; resistance across heater elements should measure 3.2-3.8 ohms at 21°C. Deviations above 4.5 ohms indicate an open circuit, often caused by fractured element wiring near the seat track slider mechanism.
Crank/no-start conditions frequently stem from the Totally Integrated Power Module (TIPM). Test relay K74 by swapping it with an identical relay (e.g., #K2 for the A/C clutch) to rule out internal failure. If voltage at pin 87 drops below 11.2V during cranking, inspect the alternator’s B+ terminal for loose connections–torque to 12 Nm. The purple/white (P/W) wire from the ignition switch should register 0.2-0.5V with the key in the “start” position.
For parasitic battery drain exceeding 50mA, disconnect fuses sequentially starting with the rear defogger (#15), then the radio (#27). If drain persists, isolate the BCM by removing connector C1–current should drop below 30mA. Use a precision clamp meter to identify micro-short circuits in door harnesses, where chafing often occurs behind the left A-pillar trim panel. Replace damaged wires with cross-linked polyethylene (XLPE) automotive-grade replacement, rated for 600V and -40°C operation.
Programming aftermarket keyless entry requires a bidirectional scanner supporting CAN bus protocol (e.g., Autel IM608). Initialize the RF module by holding the lock/unlock buttons for 10 seconds within 5 feet of the antenna–located behind the center console’s ashtray. If coding fails, verify the violet/yellow (V/Y) wire from the BCM maintains continuous 12V; intermittent voltage indicates a faulty splice joint near the left kick panel.
Wiring Repairs and Modifications
When splicing into the tail light circuit for LED upgrades, avoid soldering–use crimp connectors rated for 20-gauge wire (e.g., AMP 141240) and heat-shrink tubing with adhesive lining. The amber turn signal wire (light blue, LB) carries 12V pulsed; ensure aftermarket modules are rated for 2A inrush current. For trailer wiring, bypass the factory harness by tapping into the red (R) and brown (BN) wires at the rear bumper–these feed directly from the T-connector behind the left taillight housing.
To correct randomly tripping rear window defroster, inspect the ground strap at the liftgate hinge–secured by a 10mm bolt. Resistance from the heater grid to chassis should not exceed 0.3 ohms. If resistance is higher, clean the mounting surface with a wire brush and apply zinc-rich primer before reassembly. For persistent issues, retrofit a 15-amp resettable fuse (PTC) in-line with the DG/Y wire to prevent thermal overloads.
Finding Core Electrical Elements in the Mid-Size Crossover SUV
Begin with the fuse box beneath the instrument panel on the driver’s side–access it by removing the under-dash cover secured by two 10mm bolts. Labels inside the cover match each fuse to its circuit, but verify amperage before replacement: relay slots R1-R4 handle powertrain controls, while slots R5-R8 manage the body control module (BCM) and lighting. Use a multimeter set to 200Ω to check continuity across terminals; readings above 0.5Ω indicate corrosion or a broken connection requiring immediate attention.
Trace the main harness from the BCM to the under-hood junction block–locate it near the battery, where three 60-way connectors (C1, C2, C3) branch to the engine, transmission, and auxiliary systems. Pinout mappings differ by connector: C1 (black) carries sensor signals (MAP, TPS, O2), C2 (gray) distributes power to injectors and ignition coils, and C3 (brown) handles lighting and HVAC actuators. Refer to the following pin assignments for troubleshooting:
| Connector | Pin | Function | Voltage (Key On) |
|---|---|---|---|
| C1 | 12 | MAP Sensor Signal | 1.5-2.5V |
| C1 | 34 | O2 Sensor Ground | Below 0.1V |
| C2 | 5 | Fuel Injector #1 | Battery Voltage |
| C3 | 19 | Headlight High Beam | 12V (when active) |
Inspect the rear liftgate harness where it transitions between the vehicle body and the liftgate–common failure points include the rubber grommet near the left hinge. Disconnect the two 12-way connectors (T1: liftgate latch, T2: wiper motor) and probe for voltage at T1-4 (latch release signal) and T2-2 (wiper park switch) during operation. Corrosion here mimics liftgate malfunctions; clean terminals with electrical contact cleaner and apply dielectric grease before reassembly.
The anti-theft module sits behind the center console, attached to the climate control housing. Its 24-way connector (A) splits into two sub-harnesses: A1 (green) for keyless entry and A2 (blue) for alarm sensors. Use a scan tool to activate the “theft alarm” test mode via the OBD-II port–successful triggering confirms the horn relay circuit (A2-9) and perimeter sensors (A1-15) are functional. Failed tests isolate issues to the harness or module, not the components themselves.
Verify ground points G101 (front driver’s fender) and G201 (rear passenger quarter panel) for body electronics–poor grounding causes intermittent faults in the BCM and audio system. Scrape paint from mounting surfaces down to bare metal, then secure with stainless steel bolts coated in anti-seize compound. Check resistance between the ground cable terminal and battery negative terminal; values above 0.1Ω necessitate replacement of the ground strap.
Step-by-Step Schematic Access for Vehicle Electrical Modules
Locate the fuse box under the dashboard on the driver’s side–remove the protective cover by pressing the retaining clips on either edge. Pinpoint the relay or fuse corresponding to the system (e.g., ABS, climate control, or infotainment) using the reference chart printed on the cover’s interior. Trace the color-coded leads from the relay/fuse to the harness connector; use a multimeter set to continuity mode to verify signal paths before disconnecting. For powertrain controls, access the engine bay schematic by identifying the PCM (powertrain control module) near the battery–follow the thick red and black cables to the main harness, then separate the secondary connectors by releasing the locking tabs with a flathead screwdriver.
Isolating HVAC and Lighting Circuits
Climate system: Disconnect the negative battery terminal first, then remove the lower dash panel beneath the steering column–expose the HVAC control module by unscrewing the single Torx T20 bolt. The schematic labels four primary connectors: C1 (24-pin, rear A/C), C2 (12-pin, blend door motors), C3 (8-pin, recirculation flap), and C4 (6-pin, ambient sensor). Probe each terminal with a test light while cycling the controls to confirm voltage; yellow/white striped wires indicate 12V constant, while brown/red leads signal ground. For exterior illumination, reference the BCM (body control module) under the left kick panel–headlamp circuits use thick yellow/black wires (high beam) and thin green/white (low beam), routed through the IPDM (intelligent power distribution module) mounted behind the right strut tower.
