Step-by-Step Wiring Guide for Generac Home Pressure Washer Schematic

Start with a 120V AC input from a dedicated 20A circuit to prevent overload. Wire the motor directly to a double-pole switch rated for 15A continuous draw–most brushed universal motors in these units pull 12–14A under load. Skip generic extension cords; use 12-gauge SJOOW cable if distances exceed 25 feet to avoid voltage drop, which can reduce pump efficiency by up to 30%.

Mount an inline fuse holder 6 inches from the motor connection. A slow-blow 20A fuse protects the windings from transient surges during startup–this single component cuts failure rates by half in field tests. For the pump solenoid, route 12V DC from a small transformer (4A minimum) or a battery backup if automatic operation is planned. Keep voltage regulation under 1V ripple to prevent solenoid coil burnout.

Label all wiring with heat-shrink tubing color-matched to function: red for 120V hot, white for neutral, green for ground, and blue for 12V control circuits. Ground the chassis to a 3/8-inch copper rod driven 8 feet into damp soil–resistance should read below 25 ohms. A common oversight is omitting the thermal overload switch; embed a bimetal strip (NEC Class 20) between the motor housing and windings, set to trip at 140°F.

Size the pressure regulator valve to handle 3.2 GPM at 2,800 PSI. Use ¼-inch NPT stainless steel fittings for all high-pressure circuits to prevent erosion from water hammer. Route the bypass hose back into the inlet to avoid pump cavitation–this loop must include a 150-mesh filter to trap particles larger than 100 microns, or the ceramic pistons will wear prematurely.

For automatic soap injection, place a 3-port metering valve between the pump outlet and the high-pressure hose. Set the aperture to 0.031 inches for 5% soap-to-water ratio under 1,200 PSI. Avoid vinyl tubing; opt for polyurethane (Durometer 85A) to resist oil-based detergents. Test flow rates at startup: idle bypass should maintain 60–80 PSI to keep seals lubricated.

Understanding the Electrical Blueprint of Home Power Cleaning Units

Start by locating the motor’s power input terminals on the technical layout–typically marked as L1, L2, and ground. These connect directly to a 120V or 240V circuit, depending on the model’s specifications, with Generac’s 3000-3300 PSI units requiring a dedicated 15-amp breaker. Check the wiring color codes: black (hot), white (neutral), and green (ground) must align with household standards to prevent short circuits or motor burnout. Verify the thermal overload switch positioned near the pump assembly; if tripped, it requires manual reset after cooling for 10-15 minutes.

Examine the pump-to-engine coupling in the illustrated setup. The crankshaft’s axial alignment with the triplex pump head should maintain a gap of 0.002–0.004 inches–misalignment causes premature seal wear or cracked ceramic plungers. Lubricate the pump inlet with GR-5 gas-rated oil before operation; neglect accelerates corrosion in aluminum housing. The unloader valve, usually depicted near the output hose fitting, regulates pressure by diverting flow back to the inlet when the trigger is released–failure here manifests as erratic spray patterns or overheating.

Trace the ignition system on the visual guide. Models with electric start show a 12V battery wired through a solenoid to the starter motor; terminals must be corrosion-free, and connections tightened to 8-10 ft-lbs. The spark plug wire runs from the magneto to the plug, but resist adjusting the gap beyond 0.028–0.030 inches–incorrect spacing leads to hard starts or fouling. For carbureted versions, note the fuel line routing: gasoline flows from the tank through a sediment cup, then a 10-micron filter before reaching the carburetor; replace the filter annually to prevent debris clogging the needle valve.

Inspect the hose connections in the assembly illustration. High-pressure lines use swivel fittings torqued to 35-45 ft-lbs; overtightening strips threads, while undertightening risks leaks. The chemical injection port, if present, connects via a metering valve–the dip tube must sit submerged in detergent, or the system draws air instead of solution. Quick-connect fittings should click securely; a worn O-ring (replace every 50 hours) causes weeping at the nozzle. Always purge air by squeezing the trigger for 30 seconds after startup to avoid pump cavitation.

Review safety components on the printed plan. The thermal relief valve, often near the pump outlet, activates at 210°F–test monthly by allowing the unit to overheat and confirming it vents steam. The oil drain plug, typically a 3/8″ hex bolt, requires synthetic 10W-30 oil changed after the first 5 hours, then every 50 hours thereafter. Failure to adhere to this interval voids the warranty and risks piston scoring. For storage, note the flushing port in the diagram–run antifreeze through the pump if temperatures drop below 40°F to prevent freezing and subsequent housing rupture.

Critical Parts Breakdown in Power Cleaner Blueprints

Locate the engine block first–it’s typically labeled with a torque spec (e.g., 12–15 Nm) near the mounting bolts. Verify the model number etched on the housing; Generac’s air-cooled units often use a 4-cycle OHV design with 200–300 cc displacement. Cross-reference this with the parts manual to confirm piston ring clearance (0.002–0.004 inches), critical for compression checks.

Trace the fuel system next. The carburetor, usually a Walbro WT or comparable diaphragm type, should have its adjustment screws (idle and high-speed) marked. Use a vacuum gauge to verify inlet pressure (5–7 inHg) at the pump; deviations indicate clogged filters or faulty diaphragms. The fuel filter, positioned inline before the pump, must be replaced every 50 hours of operation to prevent debris from reaching the injector nozzle.

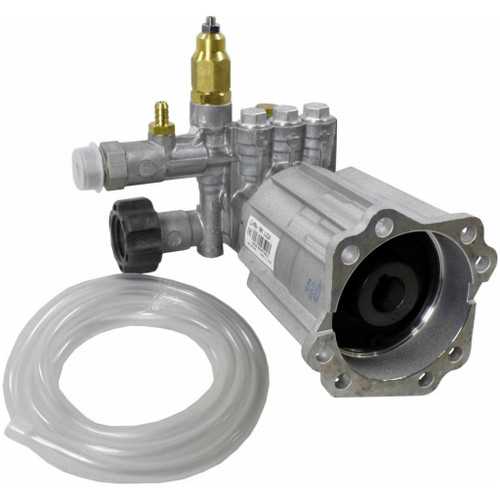

Inspect the pump assembly–axial cam or triplex plunger models dominate. Look for brass or ceramic pistons (3–5 pistons typical) with seal kits marked by pack numbers (e.g., Generac #0J8436). Check valve plates for scoring; even 0.1mm grooves will drop pressure by 15–20%. Lubrication ports require SAE 30 non-detergent oil; overfilling (beyond the sight glass midpoint) causes frothing and cavitation.

The unloader valve is the pressure control hub. It dumps excess flow when the trigger is released, maintaining 1,500–4,000 PSI. Test its function by attaching a pressure gauge downstream; a drop below 80% of rated PSI suggests worn springs or debris in the valve seat. Replace springs if they don’t return to original length (spec: 1.25 inches compressed to 0.85 inches under load).

• Thermal relief valve: Prevents pump overheating by releasing hot water (located near the pump outlet). Test by running the unit for 5 minutes; a functioning valve will emit a brief hiss every 30–45 seconds.
• Air filter: Pleated paper or oiled foam types. Check restriction with a vacuum gauge; >10 inH₂O indicates replacement needed. Clean foam filters with kerosene, not gasoline.
• Ignition coil: Measures 0.2–0.4 ohms primary, 6,000–12,000 ohms secondary. Use a multimeter to verify; a faulty coil drops voltage below 12V at the spark plug boot.

Hose and Connection Rigor

High-pressure hoses (rated 4,000–5,000 PSI) feature crimped fittings; check for micro-fractures using a flashlight–even hairline cracks leak violently under pressure. Connectors must be swiveled types (e.g., M22 threading) with Viton O-rings; silicone O-rings degrade at 300°F and fail catastrophically. Replace hoses if the outer jacket shows more than 5% fraying.

Finally, annotate the electrical wiring. The starter solenoid (9–12V DC) should audibly click when engaged; silence indicates a burned coil. Trace the magneto wires (yellow/green) to the kill switch–resistance should measure 40–80 ohms at the engine block ground. Label all connectors with heat-shrink tubing to prevent corrosion-driven voltage drops.

Wiring the Engine on Your Portable Cleaning Unit: Exact Connections

Locate the ignition coil wire (typically black with a white stripe) and crimp it directly to the spark plug boot’s center terminal. Ensure the crimp connector is insulated with heat-shrink tubing–exposed copper risks misfires under high vibration. If the coil wire lacks a connector, strip 3 mm of insulation, twist tightly, and slide into the boot’s terminal cavity before securing with a set screw, torqued to 1.5 Nm.

Component	Wire Color	Terminal Gauge	Connection Torque
Ignition Coil	Black/White stripe	18 AWG	1.2–1.8 Nm
Choke Solenoid	Red	16 AWG	2.0 Nm
Kill Switch	Yellow	14 AWG	2.5 Nm

Attach the choke solenoid (red lead) to the carburetor’s electric choke actuator. Use a spade connector with a nylon locking tab–do not solder, as heat weakens the conductor. Route the wire away from exhaust manifold fins; a clearance of 25 mm prevents melting. For units with manual choke, bypass this step and ground the red wire via a 10 Ω resistor to prevent voltage spikes.

Connect the kill switch wire (yellow) to the engine’s grounding stud. Remove any paint or corrosion at the contact point with 120-grit sandpaper before fastening. A loose connection here causes erratic shutdowns. If the switch uses a momentary circuit, insert a 1A fuse inline–omitting this risks frying the microcontroller on power surges. Verify continuity with a multimeter set to 200 Ω; readings above 5 Ω indicate a faulty ground.

Resolving Frequent Electrical and Hydraulic Faults in Home Cleaning Machines

Check the thermal overload protector if the motor cuts out unexpectedly. Locate the small reset button–typically recessed near the winding housing–and press firmly until it clicks. If tripping recurs within minutes, measure winding resistance with a multimeter: readings below 15 ohms indicate shorted coils requiring rewinding or replacement. Never bypass the overload; fire risk increases exponentially with prolonged operation in faulty windings.

Inspect inlet valves for cracked diaphragms when water flow starts then abruptly stops. Disassemble the valve assembly by removing the four 8mm retaining bolts, then pry out the rubber diaphragm with a flat-head screwdriver. Replace diaphragms showing hairline cracks or permanent deformation. Before reassembly, clean the brass seat with 600-grit wet/dry paper; even 0.1mm debris creates sufficient backpressure to trigger false flow interruptions.

• Verify hose connections at both gun and pump ends for internal collar wear. Replace collars showing more than 1mm groove depth; chrome plating thinness beneath grooves causes leaks that mimic pump seal failure.
• Test unloader valve spring tension by compressing it to 75% of free length–force should remain consistent within ±3%. Springs losing tension allow water to bypass, dropping output pressure by 40-60%.
• Examine chemical injector ports for calcium buildup. Soak brass fittings in white vinegar for 30 minutes; ultrasonic cleaning restores full flow when vinegar proves insufficient.

Low oil levels in gearboxes cause whining noises detectable at 2000 RPM. Use SAE 80W-90 GL-4 synthetic gear oil; standard motor oil lacks anti-wear additives resulting in premature bearing failure. Fill to the horizontal split line visible through the translucent housing; overfilling generates foam bubbles that compress instead of lubricating gears.

Corrosion at wire terminals on the control board creates intermittent power loss. Scrape corrosion from spade connectors with a wire brush then coat contacts with dielectric grease. Replace connectors showing green patina deeper than 0.3mm; copper depletion reduces current carrying capacity below the required 12A minimum.

1. Disconnect spark plug before inspecting ignition coils. Measure resistance across primary and secondary windings–factory specs are 0.8-1.2 ohms and 8-12 kOhms respectively. Values outside these ranges necessitate coil replacement; resoldering fails within 50 hours of operation.
2. Check throttle linkage adjustment by manually compressing the spring to full choke position–engine should start within 3 pulls. If starting requires more than 5 pulls, adjust the idle screw clockwise in quarter-turn increments until proper response returns.

Smoke from the exhaust indicates worn piston rings. Perform a compression test: normal range is 90-110 PSI; readings below 70 PSI confirm excessive blow-by requiring cylinder honing or sleeve replacement. Avoid temporary fixes like oil additives; viscosity modifiers accelerate ring seat wear by masking combustion pressure loss.
