Complete 2016 Kia Optima Radio Wiring Diagram Guide with Color Codes

Begin by sourcing the electrical schematic for the infotainment interface from the official service manual for your sedan. This document is often available through authorized repair platforms or specialty automotive forums–avoid third-party scans unless verified by trusted technicians. The wiring layout will be organized by color-coded harnesses, with key connections including the power feed (typically red or yellow, labeled 12V+), ground (black/brown), speaker outputs (striped pairs), and antenna lead (usually blue).

Identify the fuse box integration early; the audio setup frequently ties into the vehicle’s accessory circuit, drawing backup power even when the ignition is off. Check for fuse ratings (often 10A or 15A) to prevent short circuits during modifications. Speaker wires follow a consistent pattern: front left (+) and (-) channels correlate to solid/solid-striped pairs (e.g., white for front-left positive, white-black for negative), while rear channels use gray and green variants.

For aftermarket upgrades, isolate the OEM harness adapter before splicing–this preserves factory settings like steering wheel controls and vehicle-specific chimes. Use a multimeter to confirm voltage at each terminal (anticipate 4V-8V at speaker connections under test). If troubleshooting no-sound issues, prioritize verifying the head unit’s ground and constant power lines; intermittent failures commonly trace to corroded or loose connections at the chassis point.

When integrating new hardware, match impedance ratings (typically 4 ohms for factory speakers) to avoid overheating amplifiers. For navigation or USB retrofits, consult the IHU (Infotainment Head Unit) pinout–the CAN bus wires (green/orange) require specific termination resistance to maintain communication with the vehicle’s network.

Electrical Schematics for Your Vehicle’s Audio System

Locate the 12-pin harness behind the factory head unit–connectors C101 (yellow) and C102 (black) handle power distribution. Pin 1 (C101) delivers constant 12V from the battery, while pin 4 supplies switched power via the ignition. Ground wires occupy pins 6 and 12; bypassing these without a relay risks draining the battery overnight. For safe aftermarket integration, splice the orange illumination wire (pin 8) directly to the dash dimmer circuit to maintain factory lighting behavior.

• Antenna trigger: Purple (pin 3) activates the motorized mast–pair with a 10-amp fuse if retrofitting an external amplifier.
• Speaker outputs: Front left (+) white (pin 1), (-) white/black (pin 9); rear (+) gray (pin 5), (-) gray/black (pin 11).
• Mute lead: Pink (pin 2) silences audio during calls–verify compatibility with steering wheel controls before cutting.

For vehicles equipped with the UVO system, the blue/white data bus wire (pin 10) must remain intact to prevent dashboard warning lights. If removing the OEM unit entirely, terminate this wire with a 2.7kΩ resistor between pin 10 and ground to simulate the factory module’s load. Failure to do so may trigger service alerts within 48 hours. Aftermarket adapters like Metra 70-1004 or Axxess AX-ADKI-04 include pre-wired harnesses matching these pinouts–confirm wire gauge (minimum 18AWG) before soldering to avoid voltage drop.

Finding the Audio System Wire Bundle Connection in Your Compact Sedan

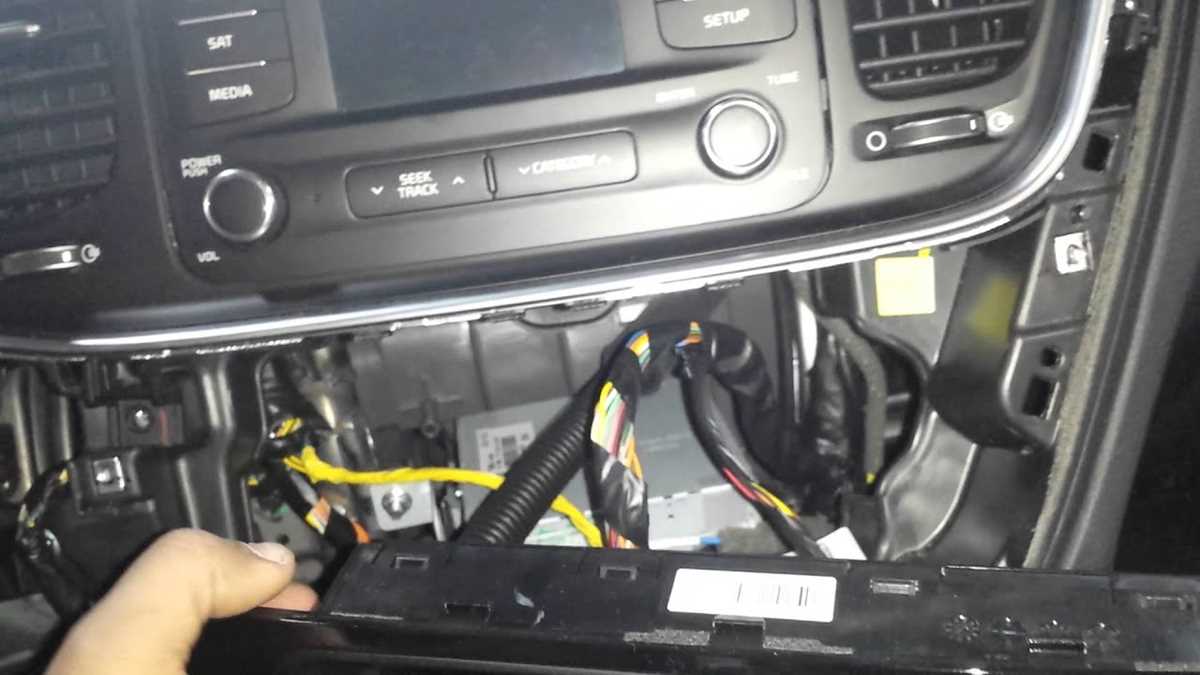

Start by removing the lower dash panel beneath the climate controls on the driver’s side–it’s secured with three 7mm screws and two push clips near the left edge. Behind this panel, you’ll see the primary entertainment module connector, a 24-pin rectangular plug labeled with a white “C” on the vehicle’s harness. Trace the bundle upward to locate the secondary 12-pin harness, which handles speaker outputs and power feeds, tucked behind the center console’s rear trim; gentle prying with a trim tool near the glove box release reveals this connection without damaging retaining clips.

The antenna lead is the lone coaxial cable, identifiable by its threaded collar and thin grey sheath–follow it upward to where it terminates at the metal chassis near the windshield pillar. Forground wires (illumination, ground, and constant 12V) are color-coded solid purple, brown, and yellow respectively; use a multimeter to verify voltages before splicing–yellow should read 12V continuous, brown 0V (ground), and purple 12V only when the ignition is in ACC or ON.

Standard Color Coding for Car Audio Harness Connections

Identify the vehicle’s audio harness by matching these primary wire colors to the aftermarket stereo connector:

• Yellow: Constant 12V power (battery) – connects directly to the car’s main power line without interruption.
• Red: Switched 12V (ignition) – powers the stereo only when the key is turned to ACC or ON.
• Black: Ground (chassis) – ensure a solid, corrosion-free connection to the vehicle’s metal frame.
• Blue/White: Power antenna or amplifier turn-on lead – supplies 12V to activate external amps or motorized antennas.
• Orange: Illumination/dimmer wire – adjusts display brightness in sync with headlights.
• Gray: Front right positive speaker output – verify polarity with a multimeter before connecting.
• Gray/Black: Front right negative speaker return – completes the circuit for balanced audio.
• White: Front left positive speaker output –route carefully to avoid shorting.
• White/Black: Front left negative speaker return – twist with positive wire to reduce interference.
• Green: Rear right positive speaker output – often runs through door or rear deck wiring.
• Green/Black: Rear right negative speaker return – check for continuity if rear speakers are silent.
• Purple: Rear left positive speaker output – may share a harness with other rear systems.
• Purple/Black: Rear left negative speaker return – secure connections to prevent intermittent audio.

Additional Wiring Details for Compatibility

Some harnesses include secondary connections for advanced features:

1. Pink: Memory backup or data bus – connects to retained accessory power for clock and settings.
2. Brown: Mute wire – disables audio during phone calls or navigation prompts in factory-integrated systems.
3. Light Green/Black: Reverse signal – triggers rear camera input when shifting into reverse.

Always cross-reference the harness with a multimeter set to DC voltage (20V range) before finalizing connections. Test each wire by probing with the key in both OFF and ON positions; incorrect connections can damage the stereo or vehicle electronics.

Troubleshooting Color Code Mismatches

If factory colors differ from aftermarket standards:

• Use a wiring diagram specific to the trim level, as luxury or navigation packages may alter wire functions.
• Label each wire with masking tape during removal to prevent misalignment during reinstallation.
• Solder and heat-shrink connections for long-term reliability, especially in high-current leads like power and ground.
• For hybrid or turbo models, verify that amplifier wires (blue/white) do not share circuits with fuel pumps or turbos to avoid electrical interference.

When integrating steering wheel controls, connect the factory interface module to the light blue (SWI) wire on the aftermarket harness. Failure to do so will result in non-functional buttons. For vehicles with premium sound systems, consult a dedicated amplifier bypass diagram to retain equalization settings.

Step-by-Step Guide to Installing an Aftermarket Audio System in Your Sedan

Disconnect the negative terminal of the vehicle’s battery before handling any electrical components. Locate the factory head unit harness behind the dashboard–typically on the driver’s side near the fuse box. Use a harness adapter matching your sedan’s make (e.g., Metra Axxess ASWC-1 for steering wheel controls) to simplify connections. Strip ¼ inch of insulation from each wire on the aftermarket harness and the adapter, then match them by function using this color code reference:

Factory Wire Color	Aftermarket Function
Yellow with black stripe	Constant 12V power
Red with black stripe	Switched 12V accessory
Black	Ground
White with black stripe	Front left positive
Gray with black stripe	Front right positive
Green with black stripe	Rear left positive
Violet with black stripe	Rear right positive

Twist corresponding wires together securely, then apply heat-shrink tubing or electrical tape to prevent shorts. Connect the antenna adapter to the FM input on the new unit and mount the dash kit using the manufacturer-provided screws–avoid overtightening to prevent cracking the plastic. Reconnect the battery, test all functions (volume, tuning, steering wheel controls), and secure loose wires with zip ties before reassembling the dashboard panels.

Locating Electrical Connections in Your Vehicle’s Audio System

Begin by isolating the constant 12V power feed–this wire remains live regardless of ignition state. In most installations, it’s clad in yellow insulation and typically links directly to the fuse box. Verify with a multimeter; absence of voltage here indicates a blown fuse or disconnected circuit upstream.

Identify the switched power lead, often in red, which energizes only when the key is turned. This line powers memory functions and must be routed through an inline fuse (10A) to prevent overload. Mishandling this connection risks draining the battery or causing electrical faults during playback.

Ground wires require meticulous attention. They’re usually black, bundled with other dark-colored conductors near the chassis. Strip paint from the mounting point to ensure a low-resistance path–poor grounding introduces noise, distortion, or intermittent operation. Use a star washer and secure with a bolt rated for electrical contact.

Speaker cables follow a consistent color-coding scheme: front left (±) in gray/white and gray/black, front right (±) in white/white and white/black, rear left (±) in green/white and green/black, and rear right (±) in purple/white and purple/black. The striped wire denotes the positive terminal. Cross-wiring these leads reverses polarity, compromising stereo imaging and bass response.

For amplifiers or aftermarket units, locate the remote turn-on wire (usually blue with a white stripe). This thin gauge lead triggers external devices when the head unit powers on. Test continuity while toggling the ignition to confirm functionality–failure here disables all connected peripherals.

Dim brown or orange wires regulate illumination intensity. These sync with the dashboard lighting circuit, adjusting display brightness in response to ambient conditions. Connecting these incorrectly may cause the interface to remain unlit or overly bright, straining visibility at night.

Shielded cables, often gray or tan with braided coverage, transmit low-level signals (RCA, USB, or navigation data). Avoid running these parallel to power cables–inductive interference degrades audio fidelity. Route through separate loom channels or use ferrite beads to suppress electromagnetic noise.

After verifying connections, reassemble panels in reverse order. Reattach climate controls and trim pieces securely–loose fittings create rattles or expose wiring to wear. Final test: power cycle all functions, including balance, fade, and equalizer settings, to confirm consistent signal flow across all channels.
