Complete 2019 Chevy Equinox Wiring Diagram Schematic and Guide
Begin by locating the fuse box under the dashboard on the driver’s side–panel JB3 backs up critical circuits for the powertrain control module (PCM) and body control module (BCM). Use a multimeter set to 20V DC to verify pin voltages at connectors X201 (PCM) and X202 (BCM), referencing terminal assignments in section 8A-150 of the official service manual. Fault codes P0606 or U0100 often trace to corroded ground straps near the passenger-side strut tower; clean with a wire brush and apply dielectric grease before reattaching.

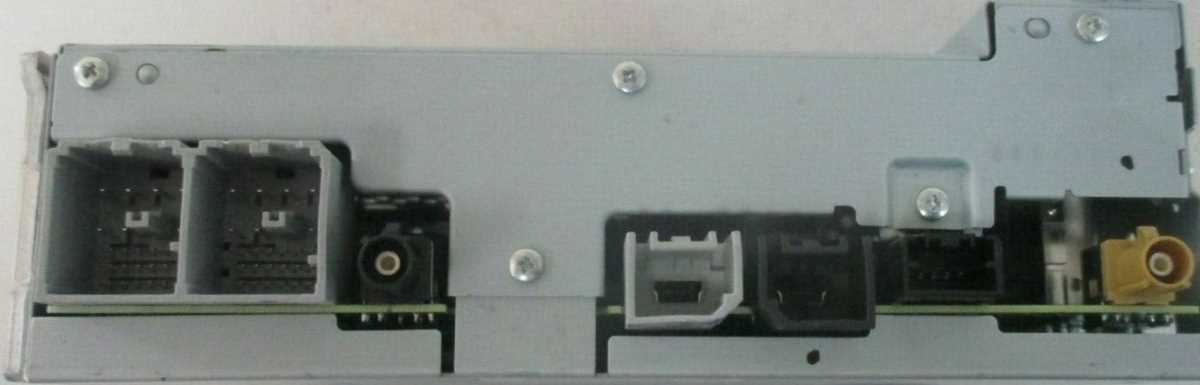

For the infotainment system, focus on connector C1103 (front of the center stack). Probe pins 12 (pink/black) and 14 (green/white) for steady 12V and 5V reference signals respectively. If the touchscreen fails intermittently, inspect the coaxial cable between the display and antenna module–visible damage requires full harness replacement, not splicing. The rear camera harness runs alongside the spare tire well; chafing against the heat shield is a known failure point–reinforce with loom tape rated to 125°C.
When troubleshooting the LED running lights, check relay K7 in the under-hood fuse block. Swap with a known-good relay (e.g., K8, used for the horn) to isolate faults. For custom modifications–such as hardwiring a dashcam–tap into fuse 45 (10A) in panel JB4, using a micro-add-a-circuit to preserve factory circuit protection. Avoid splicing into the CAN bus lines (pins 6 and 14 at connector X204) unless using a resistor-matched adapter; improper connections corrupt network communication, triggering multiple false codes.
Always cross-reference any schematic with the vehicle’s build label (located on the driver’s door jamb) to confirm exact trim and options. Variant codes APE (premium audio) or AX3 (trailer wiring prep) alter wiring paths, particularly for the amplifier and tow-harness connectors. If repairing damaged wires, use crimp splices rated to 20A and heat-shrink tubing with adhesive lining–do not rely on electrical tape alone.
Practical Electrical Schematic Reference for the Compact SUV Model
Begin by locating the fuse block under the dashboard on the driver’s side–remove the access panel by pressing the clips at its edges. Pinout identifiers for the BCM (Body Control Module) are labeled with alphanumeric codes, where X1-1 corresponds to the ignition feed and X2-4 to the left low-beam headlamp circuit. Verify continuity using a multimeter set to 200 ohms; resistance above 5 ohms indicates corrosion or a broken conductor.
Trace the harness from the under-hood junction box to the left front turn signal. The green wire with a yellow stripe (GY) carries the signal from the turn signal switch to the bulb socket–interruption here often causes hyper-flashing. Check the socket ground (black wire, BK) by probing the chassis; a voltage drop exceeding 0.2V suggests poor grounding. Reposition the ground connection to a bare metal surface if necessary.
The powertrain control module (PCM) communicates via CAN bus wires–orange with black (O BK) and white with black (W BK). Disconnect the battery before probing these circuits; shorts can damage modules. Use a scan tool to monitor live data while wiggling the harness near the bulkhead connector–fluctuations signal a chafed wire requiring reinsulation with heat-shrink tubing.
Common Circuit Paths and Color Codes
| Component | Wire Color | Connector Pin | Function |
|---|---|---|---|
| Blower Motor | Dark Blue (D BLU) | C3-8 | Speed Control |
| O2 Sensor Heater | Tan (TN) | X4-3 | Upstream Heater |
| Brake Pedal Switch | Light Green (LT GRN) | X1-12 | Brake Light Signal |
| Fuel Pump Relay | Pink (PNK) | F5-1 | Relay Coil Power |
Replace the headlight bulb sockets if the terminals show pitting; the T10 wedge base sockets degrade over time, leading to intermittent high beams. Inspect the windshield wiper motor connector–P6 for these circuits: violet (PPL) for park switch, dark green (DK GRN) for intermittent wipe input. Oxidation here mimics failures in the multifunction switch.
Storm damage often affects the rear liftgate latch mechanism. The latch solenoid connects via a gray harness plug (connector X5); severed wires at the hinge are common. Strip the insulation back 10mm, twist the strands tightly, and crimp with a 16-14 AWG butt connector before sealing with adhesive-lined shrink tubing.
Troubleshooting Steps for Intermittent Electrical Faults
Start with the data link connector (DLC) located behind the lower instrument panel cover. Probe pins 6 (CAN-H) and 14 (CAN-L) with an oscilloscope; signal amplitude should remain between 2.5V and 3.5V. Deviations point to a faulty termination resistor or water intrusion in the fuse block. For parasitic drains, remove fuses one by one while monitoring current draw with an ammeter–normal values range from 30-50mA.
Locating the Authorized Electrical Schematic for Your Compact SUV
The primary source for the vehicle’s electrical blueprints is the manufacturer’s service portal. For GM models, access ACDelco’s technical documents section, where official repair manuals, including circuit layouts, are hosted. Requires registration, but the PDFs are unrestricted for verified users. Search by VIN or model series to retrieve the exact document–filter for “electrical system” or “schematics” to bypass unrelated materials.
Alternative Verified Sources
Third-party repair databases like ALLDATA or Mitchell1 aggregate OEM schematics under subscription plans. These platforms index diagrams by component (e.g., lighting, powertrain modules) and include step-by-step troubleshooting notes. Some forums–GM-Trucks.com or EquinoxForum.net–share direct links to uploaded files, but verify the file’s origin against the OEM version to avoid obsolete or modified copies.
Physical dealerships retain printed manuals for internal use, though they rarely distribute these copies. Request a PDF version through the service department–some technicians may email the document if you cite diagnostic needs. Avoid generic “repair manual” sellers on Amazon or eBay; these often compile outdated aftermarket diagrams missing OEM-specific annotations like fuse ratings or wire gauge details.
For immediate access without subscriptions, check SlideShare or Scribd using precise queries like “GM crossover electrical layout” followed by the model year. Narrow results by uploading a sample diagram to reverse-image search tools like TinEye–this surfaces identical files on less-known forums or DIY mechanic blogs, where enthusiasts share verified scans.
Mastering Color Codes in Your SUV’s Electrical Schematic
Begin by identifying the harness’s primary color groups: solid hues denote main circuits, while stripes indicate secondary functions or signal paths. Red wires typically carry constant 12V power, while orange stripes on black ground wires often represent fused ignition feeds. Refer to the service manual’s legend–codes like “LBK” (light blue) with a “DK GRN” (dark green) stripe correlate to specific sensors, such as the throttle position or mass airflow inputs.
Trace the harness route physically to confirm coding. A yellow wire with a purple stripe (“YEL/PPL”) in the engine compartment likely handles the fuel injector circuit, while a brown wire (“BRN”) with a white stripe (“WHT”) under the dashboard connects to parking brake or ABS modules. Use a multimeter to verify voltage: solid colors should register 12V; striped pairs may show 5V reference or ground shifts under load.
Cross-reference anomalies with OEM documentation. Black wires with a red stripe (“BLK/RED”) serve as ground returns, but a single “RED” wire near the battery may split into multiple branches–inspect terminals for corrosion or improper splices. For hybrid variants, purple (“PPL”) wires often denote high-voltage circuits; never probe these without proper safety gear or training.
Replace or repair damaged segments by matching exact gauge and insulation. A frayed “ORN/WHT” (orange/white) wire in the door jamb harness controls power mirror adjustments–use heat-shrink tubing rated for 105°C. For aftermarket modifications, preserve the original color-coding scheme to avoid diagnostic errors; third-party schematics often invert stripe positions, causing improper pin assignments.
Step-by-Step Method to Trace Circuits Using the Electrical Schematic
Locate the fuse box layout in the vehicle’s technical manual first. Mark each fuse number next to its corresponding circuit on the schematic to eliminate guesswork.
Identify the component causing the issue–whether a sensor, relay, or actuator–then follow its power feed backward to the fuse. Colored lines on the chart indicate wire gauge and routing paths.
Use a multimeter set to continuity mode to verify connections between pins. Probe the connector directly at the component, not the harness side, to avoid false readings from damaged wires.
Trace ground paths separately since corrosion or loose fasteners often disrupt these circuits. Check chassis grounds labeled Gxx in the guide, commonly found near the battery or strut tower.
Pay attention to splice points marked Sxx, where multiple branches converge. Faults here affect downstream systems, requiring isolation of each branch for testing.
Avoid probing live circuits without disconnecting the battery first. Voltage spikes can damage modules. For relays, manually override them by jumpering terminals 30 and 87 on the socket to test load-side functionality.
Advanced Tracing for Intermittent Faults
Shake the harness while monitoring the multimeter for voltage drops. Focus on areas where wires bend–door jambs, behind dash panels, or near engine mounts–as insulation wear is common here.
Final Verification
Compare meter readings with the schematic’s expected values. If voltage differs by more than 0.5V from specifications, inspect connectors for bent pins, heat damage, or oxidation.
