Complete Wiring Diagram for 2019 Chevy Silverado Trailer Brake Lights and Connectors
For reliable towing, begin by matching the connector type to your vehicle’s factory harness. Most heavy-duty models use a 7-pin round plug, while standard variants often include a 4-flat adapter. Locate the access panel beneath the rear bumper–remove the plastic cover to expose the pre-wired socket. If corrosion is present, clean terminals with a wire brush before connecting adapters to avoid voltage drops.
Connect the yellow wire to the left turn/brake circuit, the green wire to the right turn/brake, and the brown wire to the running lights. Ground the white wire directly to the chassis using a self-tapping screw; avoid painted surfaces to prevent resistance. For auxiliary systems, link the blue wire to the electronic brake controller and verify functionality with a test light before hitching.
If the factory wiring lacks a dedicated brake output, install an inline fuse (20-30 amps) on the red wire power feed to protect the circuit. Use dielectric grease on all connections to prevent moisture intrusion. Cross-check with a multimeter: voltage should read 12V at each function when activated. Faulty signals often trace back to blown bulbs or improper grounding–inspect trailer lights and connections if intermittent failures occur.
Replace damaged wires with 14-gauge automotive cable for lighting circuits and 12-gauge for brake controllers. Avoid splicing near moving parts; secure loose wires with anti-chafing tape and zip ties every 6 inches. If integrating aftermarket modules, ensure compatibility with the CAN bus system by consulting the owner’s manual for pin-out specifications. Always disconnect the battery before working on electrical systems to prevent shorts.
Guide to Electrical Connections for Pickup Towing Harness
Locate the 7-way round connector under the rear bumper, typically mounted near the hitch receiver. Verify power delivery to each pin using a multimeter: terminal 1 (white) should ground at 0V, pin 2 (brown) provides running lights at 12V, pin 4 (yellow) handles left turn/brake at 12V pulsed, pin 5 (green) manages right turn/brake identically, pin 6 (red) supplies auxiliary brake signal at 12V, and pin 7 (blue) enables electric brake controller output at 12V when engaged.

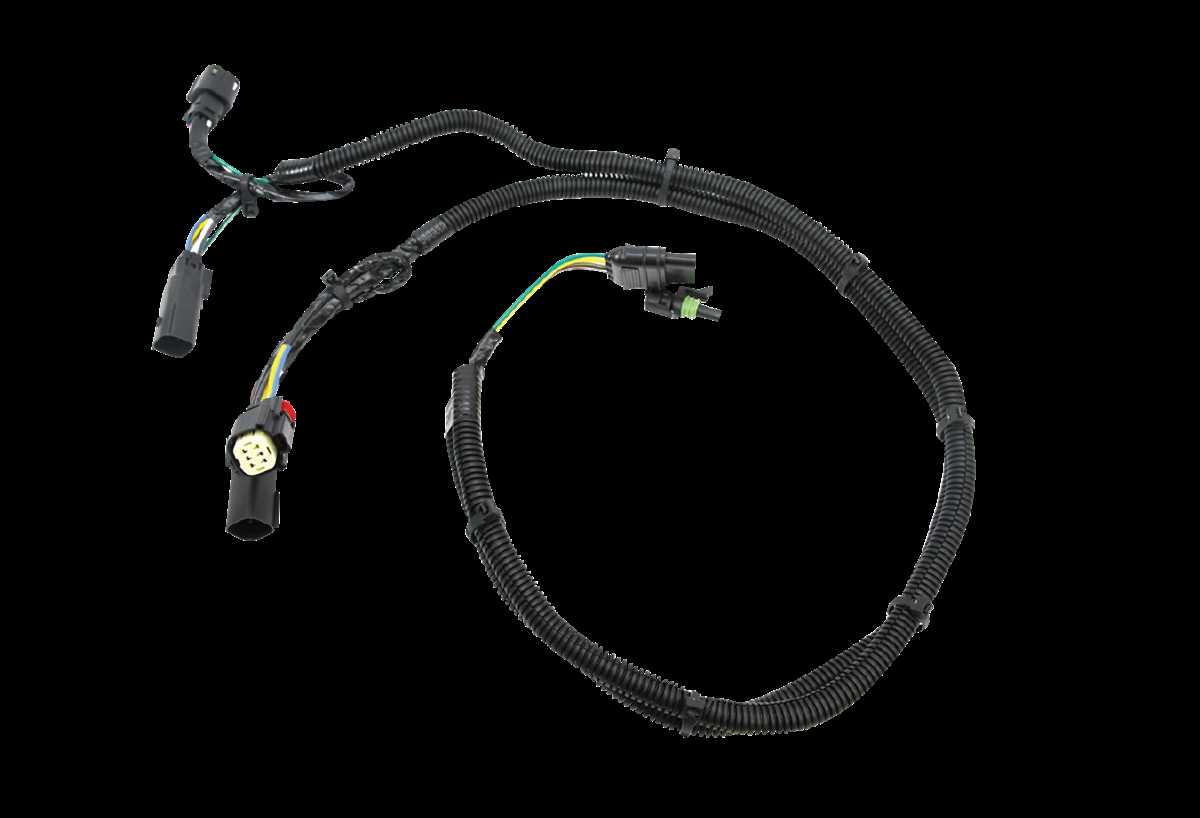

Inspect the factory harness for frayed insulation or corroded terminals–common failures occur at the junction where wires enter the vehicle frame. Clean oxidation with a wire brush, then apply dielectric grease before reconnecting. If corrosion persists, replace the affected section with 12-gauge tinned copper wire, maintaining color coding to prevent circuit confusion.
For aftermarket brake controllers, splice the controller’s black lead into the pickup’s blue brake output wire using a heat-shrink butted connector. Avoid Scotchlok-style taps, as vibration loosens them over time. Secure all splices with adhesive-lined heat shrink to prevent moisture ingress, which causes intermittent failures during wet conditions.
Test all functions before towing: activate hazards, brakes, and marker lights while observing trailer LEDs. If any circuit remains inactive, trace the path upstream–check the fuse box (rear compartment, row C, fuse #21 for 20A lighting) and relay (identified by “Trailer” label in the central junction block). Bypasses are inadvisable; restore factory routing exactly.
For vehicles with integrated trailering packages, ensure the body control module (BCM) recognizes accessory load. Access diagnostic mode via the OBD-II port using a bidirectional scan tool, then navigate to “Trailer Configuration” to confirm module status. If disabled, enable the setting to restore full functionality–failure to do so results in deactivated brake output and erratic lighting.
When extending wires for custom setups, use marine-grade cable (UL 1426) rated for 75°C minimum. Route new runs through existing frame channels and secure every 12 inches with nylon zip ties, avoiding sharp edges that abrade insulation. Label both ends of each wire with sleeve markers for future maintenance; mislabeled circuits create irreversible damage when servicing later.
Finding the Electrical Connector for Towing on Your Pickup
Check behind the rear bumper on the driver’s side–this is where the primary harness exits the frame. Look for a rectangular black plug, roughly 2.5 inches wide, secured with a retaining clip. If it’s missing, trace the factory loom along the frame rail toward the taillight assembly.
Disconnect the battery before probing the harness to prevent shorts. Use a trim removal tool to pry away the plastic cover beneath the bumper; the connector hides behind it. Avoid yanking wires–gently push the clip’s release tab to separate the halves.
Inside the cab, the optional brake controller taps into a separate harness under the dashboard near the fuse box. It uses a round 7-pin adapter; locate the red/white power wire first–it’s always hot and fused at 30A.
| Wire Color | Function | Location |
|---|---|---|
| Brown | Running lights | Right taillight module |
| Yellow | Left turn/stop | Left taillight module |
| Green | Right turn/stop | Right taillight module |
| White | Ground | Frame stud behind bumper |
If the plug feels loose, inspect the pins for corrosion. Clean with electrical contact spray; never use sandpaper–it damages the gold plating. The pins must click securely when mated; a loose fit causes intermittent faults.
For extended mirrors or a gooseneck setup, an auxiliary harness runs along the driver-side frame rail. Peel back the wheel-well liner to expose a gray junction box–this houses the additional circuits for trailer brakes and auxiliary power.
Under the hood, the power distribution block contains relays labeled “TRAILER” or “AUX BATT.” Verify the relay clicks when activating the tow/haul mode. If silent, swap with a known-good relay from the underhood spare bank.
Test circuits with a multimeter set to 12V DC. Probe the plug’s center pin (blue wire) for brake output while pressing the pedal–voltage should rise to 12V. No voltage indicates a controller calibration issue; reset via the instrument cluster menu under “Towing Settings.”
How to Verify Electrical Hookup Integrity for Towing Setups
Begin with a 12V test light or digital multimeter to confirm power delivery. Attach the ground clamp of the tester to the vehicle’s frame or a clean metal surface near the connector. Probe each pin in the seven-way plug–ground (white), running lights (brown), left turn/brake (yellow), right turn/brake (green), electric brakes (blue), auxiliary power (black), and reverse lights (purple). A consistent 12V reading on the running lights and auxiliary circuits confirms active power; absent voltage indicates a blown fuse, faulty relay, or severed cable.
- For turn signals, activate the lever and check both yellow and green pins. If only one illuminates, inspect the bulbs on the hauled unit–they may be dual-filament types requiring both filaments intact.
- Electric brake pins (blue) should show zero volts until the brake controller is engaged; if voltage persists, the controller or internal wiring is misconfigured.
- Reverse light circuits (purple) only energize when shifted into reverse–verify this with the engine running and transmission in the correct gear.
If voltage checks pass but the hauled unit’s lights remain dark, shift focus to the plug housing. Corrosion or debris inside the socket disrupts contact even with intact cables. Use a wire brush to clean each terminal, then apply dielectric grease to prevent future oxidation. For receptacles with push-in connections, ensure each pin snaps securely–loose fits are a common failure point.
Next, isolate ground faults by running a dedicated cable from the seven-way ground to the hauled unit’s frame. Poor chassis grounds often mimic wiring defects due to high resistance. If lights now function, locate and sand the original grounding point; paint, rust, or undercoating frequently sabotages conductivity.
Trace cables from the connector back to their origin. Squat under the vehicle and follow the harness, noting any chafing against sharp edges or suspension components. Twisted, pinched, or heat-damaged wires require replacement–patch kits rarely restore full reliability. Use a tone generator to identify severed strands hidden under tape or loom.
Test brake controllers separately. Connect a brake magnet simulator between the blue wire and ground, then activate the controller at varying output levels. The simulator should emit a hum proportional to voltage; silence or erratic response indicates controller damage or incorrect calibration. Recalibrate per the manual–most models need the vehicle stationary and transmission in neutral.
Final verification involves a load test. Attach a fully lit hauled unit and monitor voltage at the plug during operation–drops below 11V under load hint at inadequate gauge wires or failing alternator. Repeat the sequence after dark to check for interference with headlamp circuits, a symptom of shared ground paths or insufficient insulation on auxiliary feeds.
Troubleshooting Electrical Hookups for Your Pickup’s Towing Setup
Check the ground connection first if lights fail intermittently. Locate the white wire at the vehicle’s rear harness–it must attach directly to bare metal without paint, rust, or corrosion. Sand the contact point with 120-grit sandpaper, apply dielectric grease, and secure with a star washer. A weak ground causes dim or flickering signals even with a perfect plug.
Faulty module symptoms:
- Left turn signal blinks at twice the normal rate
- Brake lights stay on when the tow unit is unplugged
- Reverse lamps fail on both sides
Replace the factory TBCM (tow/brake control module) behind the left rear fascia panel. Disconnect battery negative cable, remove three Torx T20 screws, swap the module, and reinitialize via the dashboard menu under “Towing Settings.”
Pigtail corrosion on 7-way connectors often starts inside the pins. Remove the plug, inspect for green or white buildup, and clean with a pipe cleaner dipped in electrical contact cleaner. Prevent future issues by inserting a dielectric plug saver that keeps moisture out while parked. For OEM-style connectors, use a new connector housing rated IP67; third-party plugs frequently leak.
Incorrect pin assignments in aftermarket harnesses mimic bulb-out alarms. Verify each pin with a multimeter set to 20 V DC:
- Pin 1: 12 V auxiliary (yellow)
- Pin 2: Brake & blinker (red)
- Pin 3: Left turn (yellow)
- Pin 4: Ground (white)
- Pin 5: Right turn (green)
- Pin 6: Brake (brown, sometimes absent)
- Pin 7: Backup (purple)
Match wire colors exactly; swapping red and purple causes brake lights to engage when shifting into reverse.
Short-to-power faults trip the vehicle’s fuse instantly. Unplug the harness, pull fuse #34 (20 A) in the under-dash box, then probe each wire harness side for continuity to ground with the ignition on. Any hot wire that reads below 1 Ω indicates a short. Trace the wire visually, looking for melted insulation against sharp frame edges or exhaust manifolds. Fix by rerouting the wire through split-loom tubing secured with zip ties every 6 inches.
LED incompatibility shows as hyper-flashing or bulb-error messages on the dash. Install an inline load resistor (50 W, 6 Ω) between the turn/brake signal wire and ground for each affected light circuit. Mount resistors at least 12 inches away from plastic components to avoid heat damage. For integrated trailer brakes, bypass the onboard diagnostics by splicing in a dedicated brake controller harness that isolates the brake output wire (typically blue) from the tow module.
