Complete 2019 Nissan Altima Electrical System Wiring Diagram Schematics
Start by locating the fuse box under the dashboard on the driver’s side–reference slot 12 for the ignition system and slot 8 for the headlight circuit. The main harness connects here via a 16-pin white connector; trace the red wire with a black stripe to the engine control module. If voltage drops below 11.8V at pin 3, inspect the ground connection at G101, near the left strut tower.
Primary power distribution occurs through the IPDM (Intelligent Power Distribution Module), integrated behind the glove compartment. Check for corrosion on the 6-pin brown connector–this feeds the cooling fans and fuel pump relay. For audio system issues, probe the 12-pin gray connector at the back of the head unit; pin 9 carries the ANC (Active Noise Cancellation) signal, linked directly to the microphone harness.
Transmission control wiring branches from the TCM (Transmission Control Module) via a 24-pin green connector. Pin 18 delivers throttle position data; resistance should read 1.5–2.5 kΩ across the sensor. If the ABS warning activates, test the wheel speed sensors–front left runs through a twisted pair (black/white and black/green) terminating at the ABS actuator, resistance 1.2–1.7 kΩ.
Critical junctions include the BCM (Body Control Module) harness split near the steering column. The 32-pin black connector handles door locks, window motors, and interior lighting–pins 4, 11, and 22 route to the driver-side door. For HVAC faults, verify the blower motor feed at the 5-pin blue connector; nominal current draw ranges from 4.2A (low) to 18.5A (high).
Oxygen sensor pre- and post-catalytic converters use identical 4-wire harnesses. Measure heater circuit resistance at 8–14 Ω; signal wires (black and gray) should fluctuate between 0.1V–0.9V during closed-loop operation. The EVAP system vent solenoid, mounted near the charcoal canister, uses a 2-pin connector–voltage at pin 1 should toggle between 0V (closed) and 12V (open).
Automotive Circuit Blueprint Walkthrough
Locate the fuse box under the dashboard on the driver’s side–labelled “J/B” in official schematics–before disconnecting any connector. Pin configuration differs between harness types: the 16-pin M12 plug (black) carries ignition inputs, while the 8-pin M8 (grey) handles lighting circuits. Cross-reference each wire’s color code with the table below to avoid misrouting power feeds, especially the yellow/black stripe (15A memory feed) and solid pink (10A ignition-switched line).
Ground points spread across three zones: GND1 (chassis mount near the brake pedal), GND2 (under the rear seat, torque spec 12 Nm), and GND3 (strut tower, 9 Nm). Verify zero resistance between GND1 and the negative battery terminal before proceeding–readings above 0.2 Ω indicate corrosion requiring dielectric grease application. Route new circuits at least 50 mm from rotating components or exhaust manifolds to prevent heat degradation.
Critical Connector Pinouts
| Connector | Pin | Function | Expected Voltage (Key ON) |
|---|---|---|---|
| M12 (Black) | 1 | Ignition Switch Input | 12.4–13.2 V |
| M8 (Grey) | 3 | Low-Beam Relay Control | 0.8–1.5 V |
| F12 (Blue) | 7 | CAN-H (Powertrain) | 2.3–2.7 V |
Replace all splices with soldered joints and heat-shrink tubing (minimum 3:1 shrink ratio). Avoid crimp connectors for high-current paths like starter solenoid (orange, 25 mm² cross-section) or cooling fan (green/yellow, 4 mm²). For aftermarket additions, tap into the red/black wire (fuse #32, 10A) at the under-hood relay box–never bridge directly to the battery positive without a 30A fuse within 15 cm of the connection point.
Test continuity with a milliohm meter across suspected shorts, focusing on door jamb switches (brown/white stripe) and trunk latch circuits (purple). Disconnect the battery negative cable before probing airbag-related wires (solid yellow, resistor-coded), as improper contact triggers fault codes requiring dealer reset. Keep harnesses secured every 150 mm using spiral wrap or nylon ties–never use metal clamps near fuel lines or ABS sensors.
How to Access the Complete Electrical Blueprint for Your Recent Sedan Model

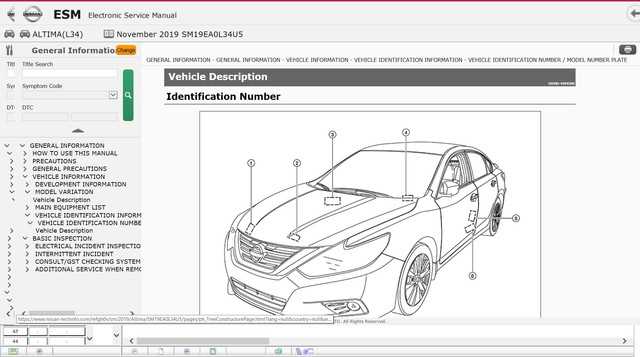

Obtain the official service manual from the manufacturer’s regional portal. For North American models, visit nissan-techinfo.com and select the correct year under “Vehicle Publications.” Search for the “Electrical Wiring Harness Layout” section–typically listed as part of the “Body Electrical” or “Chassis Electrical” chapters. The document will include detailed schematics for the BCM, ECM, fuse box, and sensor circuits, labeled with color codes (e.g., “B = Black,” “R/Y = Red with Yellow stripe”) and connector pinouts. Verify the subscription cost (usually $20–$30 for 24-hour access) and download the PDF directly. Avoid third-party forums; these often omit critical revisions like TSB updates or mid-year wiring changes.
Alternative Methods for Offline Access
- Factory Repair Shops: Authorized dealers receive quarterly updates on a secure USB drive (Nissan’s “Consult-III Plus” system). Request a technician to print the relevant pages for the powertrain, lighting, or infotainment systems–specify the VIN to confirm compatibility with adaptive features like ProPILOT.
- Aftermarket Publishers: Purchase a Haynes or Chilton manual, but cross-reference their diagrams with the official service manual. These publishers often simplify complex harnesses and omit splice points critical for troubleshooting CAN bus faults (e.g., code U1000).
- Vehicle-Specific Forums: Sites like altimaforums.com archive member-uploaded scans of factory schematics. Focus on threads with attachments labeled “FSM” or “EWD” and check the upload date–revisions after April 2020 include corrections for the VC-Turbo engine’s sensor array.
For European or Middle Eastern variants, consult nissan-techinfo.eu for localized wiring adaptations, such as the intelligent key system’s antenna loop routing. Always confirm the document’s revision number matches your build month (found on the driver’s side door jamb).
Critical Power Modules and Their Circuit Linkages
Begin troubleshooting by verifying the integrity of the battery-to-starter relay connections. Locate the M60 relay under the hood in the fuse box; pin 30 (thick red/black stripe) carries 12V constant from the positive terminal, while pin 87 (red/yellow) feeds the starter solenoid. Resistance between these should read below 0.5 ohms–any deviation signals corrosion or a faulty relay. For ignition-controlled circuits, trace the white/blue wire (pin 85) back to the IPDM, ensuring continuity; a break here disables cranking.
Sensor and Actuator Harness Pinouts
- Throttle Position Sensor (TPS): Purple (signal), gray (5V ref), black/white (ground)–pins 1, 2, and 3 respectively. Voltage at pin 1 should sweep 0.5V to 4.5V linearly from closed to wide-open throttle.
- Oxygen Sensors: Upstream (bank 1) uses black (signal) and gray (heater) wires; downstream (bank 2) reverses these. Heater resistance must fall between 2.5-4.5 ohms at room temp–exceeding this indicates internal failure.
- Fuel Injectors: Each injector has a single pink/black wire (12V pulse) and a ground shared via the body harness. Measure pulse width at idle (2.5-3.5ms) using an oscilloscope; no signal confirms a blown fuse (No. 34, 10A) or PCM issue.
For the headlight harness, isolate the brown/white wire (low beam control) and brown/yellow (high beam) at the combination switch. Check for 12V at the brown/white when the stalk is pulled–absence points to a failed relay (No. 4) or open in the tan/black wire leading from the switch to the relay coil. Ground integrity is equally critical; the black wire at the headlight connector must show zero ohms to chassis ground, otherwise corrosion at the frame bolt or spliced ground (G301) requires cleaning.
Step-by-Step Process to Trace Electrical Pathways for Targeted Vehicle Circuits
Begin by disconnecting the battery’s negative terminal to prevent short circuits or accidental power surges during tracing. Use a multimeter set to continuity mode to verify no residual current remains in the circuit before proceeding. This eliminates risks and ensures accurate readings when probing connections.
Locate the fuse box or relay panel associated with the target system–commonly found under the dashboard or in the engine compartment. Extract the relevant fuse or relay to isolate the circuit, confirming its removal with the multimeter. Label each extracted component with masking tape to avoid reinstallation errors later.
Identify the primary power source feeding the circuit by consulting the vehicle’s electrical schematic. Trace the thickest gauge line from the fuse to its first connection point, typically a splice, switch, or sensor. Mark this path with a dry-erase marker on a clear plastic sheet overlaying the schematic for reference.
Use a wire probe or alligator clip attached to the multimeter’s positive lead to penetrate the insulation at select junctions while the negative lead remains grounded to the chassis. Measure voltage drop across suspected connections; values above 0.1V indicate resistance issues requiring further inspection.
If the circuit branches, follow each sub-path methodically, checking for degraded splices or corrosion at connectors. Apply dielectric grease to cleaned terminals before reassembly to prevent future oxidation, particularly in high-moisture zones like door jambs or undercarriage areas.
For circuits involving modules (e.g., ECM or BCM), verify power at the module’s pins using a breakout box or back-probing tool. Confirm ground paths by measuring resistance between the module’s ground pin and battery negative–readings should be near 0 ohms. Replace or resolder any compromised ground straps immediately.
Test actuators (motors, solenoids) by applying direct power from a 12V source, bypassing the circuit temporarily to isolate faults. Listen for unusual noises or check for consistent operation; intermittent failures often point to worn brushes or binding mechanisms requiring lubrication or replacement.
Reassemble the circuit incrementally, starting from the power source and verifying each connection with the multimeter before reintroducing the fuse or relay. Reconnect the battery last, then test the system under operational conditions–monitoring for voltage stability and proper function across all modes (e.g., low/high settings, intermittent operation).
