Complete F550 Trailer Wiring Diagram Guide for 2020 Model Ford Trucks

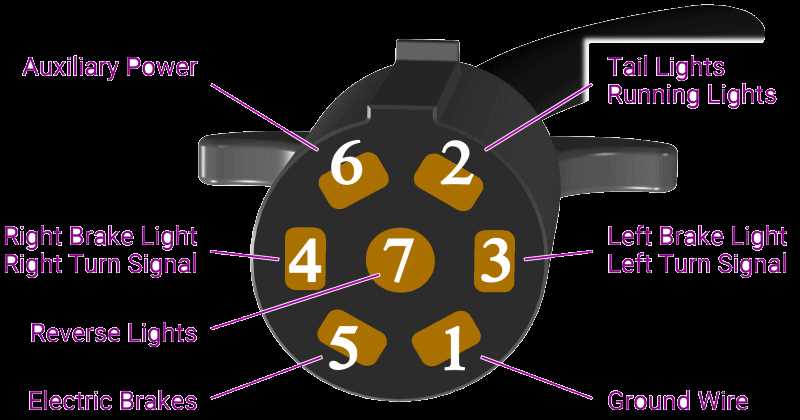

Start by identifying the correct color codes for the seven-pin connector on your chassis. Most late-model pickups follow a standardized color scheme: brown (running lights), yellow (left turn/brake), green (right turn/brake), white (ground), blue (electric brakes), red (auxiliary power), and black (battery charge). Verify these against the factory harness using a multimeter before splicing.
For brake controller integration, route the blue wire directly from the connector to the controller’s output terminal. Avoid daisy-chaining through relays–this creates voltage drop and inconsistent braking. Instead, run a dedicated 10-gauge wire from the controller to the pin box, protecting it with a 30-amp circuit breaker within 7 inches of the vehicle battery.
Grounding is critical: attach the white wire to a clean, unpainted chassis point near the rear bumper. Corrosion at the ground can mimic electrical shorts–use dielectric grease on all connections. For auxiliary circuits, fuse the red wire at 20 amps; overloading risks melting the factory harness.
When troubleshooting flickering lights, check for loose pins in the connector–wiggle each wire while monitoring the trailer. If lights work intermittently, test the brown wire’s continuity back to the fuse block; a single corroded splice can disrupt the entire circuit.

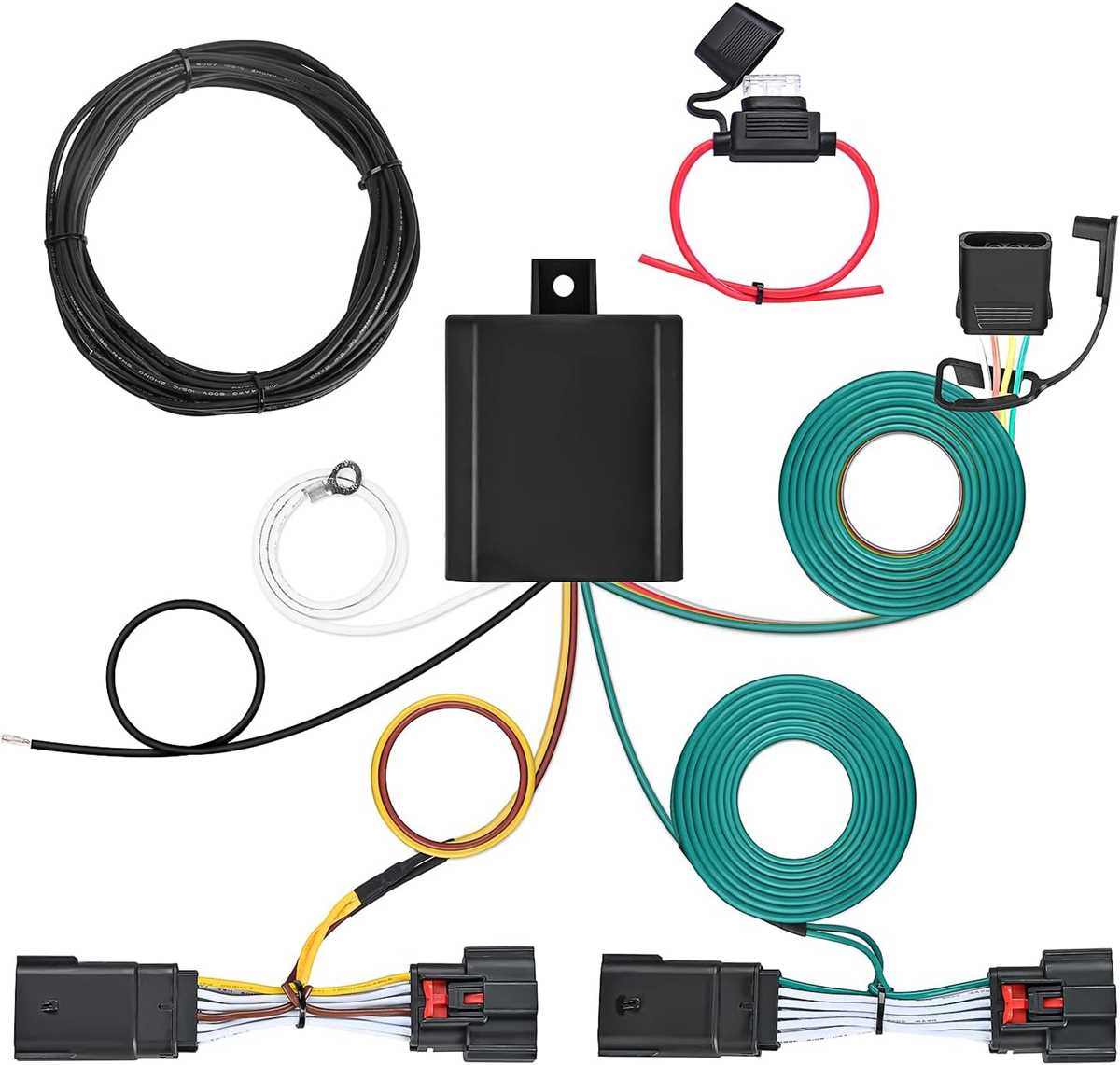

For custom configurations, use a modular pin box adapter like Bargman or Pollak–they eliminate hardwiring and allow quick swaps between trailers. Always match wire gauge to load: 12-gauge for lighting, 10-gauge for brakes, and 8-gauge for heavy-duty charging circuits.
Never rely on factory wiring alone for high-amperage loads. Add an independent 50-amp breaker and battery isolator if powering refrigerators or hydraulics–this prevents parasitic draw from draining the vehicle’s battery.
Ford Heavy-Duty Truck Electrical Connector Guide for Towing
For the Super Duty chassis, locate the factory-installed 7-pin connector beneath the rear bumper driver’s side, verifying the color-coded wiring matches OEM specifications before modification. The following pin assignments apply: yellow–left turn/brake (gauge 12), green–right turn/brake (gauge 12), brown–tail/running lights (gauge 14), white–ground (minimum 10-gauge stranded copper), blue–auxiliary power (fused at 30A max), black–battery hot (fused at 40A), and red–reverse lights (optional, 14-gauge). Use a multimeter to confirm no voltage drop exceeds 0.5V between pin and trailer plug when testing under a 20-amp load for each circuit. Substituting aftermarket harnesses voids Ford’s corrosion-warranty on the connector pins unless sealed with dielectric grease rated to -40°C.
Route all new cable runs through existing chassis grommets, securing with nylon zip-ties spaced no farther than 18 inches apart; avoid sharp edges and moving suspension components. If integrating a brake controller, splice the purple wire (output) directly to the blue pin on the truck-side plug, ensuring the inline fuse matches the controller’s amperage rating–typically 7A for proportional units and 20A for time-delay models. Ground the system at the frame rail adjacent to the rear crossmember using a star washer and zinc-plated bolt; never rely on sheet metal or painted surfaces.
How to Find the Pre-Installed Electrical Bundle for Towing Connections on a Heavy-Duty Ford Chassis
Begin by lowering the spare tire beneath the rear axle to expose the underside frame rail. The OEM harness runs along the driver-side frame, secured with plastic clips approximately 12 inches forward of the rear bumper. Trace the bundle from the battery junction box–locate the two 10-gauge red wires exiting the box near the power distribution module, identifiable by their orange-striped insulation. These lead directly to the factory tow plug interface, typically hidden behind a rectangular black cover mounted on the frame crossmember.
Key Connection Points and Color Codes
| Function | Wire Color (Primary) | Gauge | Location Reference |
|---|---|---|---|
| Stop Lamps | White/Red Stripe | 14 | Behind rear tail light cluster |
| Left Turn/Marker | Yellow | 14 | Near factory plug receptacle, left frame side |
| Right Turn/Marker | Green | 14 | Near factory plug receptacle, right frame side |
| Ground | Black | 12 | Bolted to chassis near rear crossmember |
| Electric Brakes | Blue | 12 | Passes through firewall grommet at driver’s side dash |
| Auxiliary Power | Red/Brown Stripe | 10 | Terminal block inside rear bumper |
If the plug isn’t visible, remove the plastic fascia beneath the rear step bumper–this exposes the harness connector. Mating the new pigtail requires unbolting the factory bracket; resist prying aggressively, as the retaining clips snap into frame-mounted tabs. For bypassing integrated brake controllers, splice directly into the blue conductor at the first grommet behind the rear wheel well; use solder-seal connectors rated for 20 amps to prevent corrosion within the frame cavity.
Step-by-Step Guide to Fitting a 7-Pin Plug on Your Heavy-Duty Pickup
Begin by locating the rear factory harness under the chassis. On Ford’s Super Duty models, it’s mounted near the driver-side frame rail, secured with a black plastic clip. Release the clip by squeezing its tabs and pull the harness downward. You’ll see a 12-pin rectangular connector–this is the OEM interface for lighting and braking signals. Avoid cutting into this connector; instead, purchase a dedicated pigtail adapter (Ford part #15K809) that mates directly without splicing.
Mount the 7-pin receptacle bracket to the factory step bumper using the existing bolt holes. Torque the bolts to 25 lb-ft to prevent vibrations from loosening the mount. If the bumper lacks pre-drilled holes, mark and drill two 5/16-inch holes centered 2.25 inches apart. Deburr the edges, apply dielectric grease, then secure the bracket with Grade 8 bolts and lock washers. This placement keeps the plug within 18 inches of the ground for safe coupling.
Unpack the pigtail adapter and match each wire color to the receptacle’s terminal:
- White – Ground (bolted to frame 8 inches from the plug)
- Brown – Running lights (circuit #134)
- Green – Right turn/stop (circuit #131)
- Yellow – Left turn/stop (circuit #132)
- Blue – Electric brakes/auxiliary (circuit #138)
- Black – 12V hot lead (fused at 30A)
- Red – Backup lights (if equipped, circuit #159)
Use a crimp tool to attach each wire to the corresponding spade terminal, then insert into the receptacle housing. Lock each terminal by pressing the plastic tab until it clicks.
Route the harness along the frame rail, securing it every 12 inches with cable straps. Keep the wires away from sharp edges and the exhaust system–maintain at least 3 inches of clearance from moving parts. At the rear axle, loop the harness upward onto the bracket to prevent sagging. For diesel models, avoid routing near the DEF tank to prevent corrosion from urea exposure.
Testing and Final Checks
Connect a test light or multimeter to each pin while an assistant activates the corresponding function inside the cab:
- Activate hazard flashers: both turn/stop circuits should pulse.
- Engage brake pedal: stop lamps should illuminate steadily.
- Shift into reverse: backup lights should energize.
- Verify brake controller output: blue wire should show 12V when toggling the controller.
If any signal fails, recheck crimps and ensure ground wire is solidly bolted to bare metal. Clean the ground contact point with a wire brush if resistance exceeds 0.2 ohms.
Seal the receptacle with dielectric silicone and cover unused terminals with rubber boots. Apply anti-seize to all bolted connections, then reattach the step bumper. Lower the tailgate to confirm no wires are pinched. Cycle all lights and brakes once more before hitching to verify consistent operation under load.
Decoding Connector Hues and Electrical Roles in Heavy-Duty Towing Setups
Begin by locating the seven-pin plug on the vehicle’s rear–the standard configuration includes distinct color-coded leads for immediate identification. The white wire serves as the ground, critical for stabilizing voltage across all circuits; verify its solid connection to the chassis to prevent erratic signaling. Attach a multimeter set to continuity mode between this lead and the frame–readings above 0.5 ohms indicate corrosion or loose terminals requiring cleaning with a wire brush and dielectric grease application.
The brown conductor powers the running lights, drawing directly from the taillight circuit. Test it by activating the vehicle’s parking lamps; if illumination is dim or absent, trace the path back through the fuse box, checking for blown 10-amp fuses or chafed insulation near the rear bumper. The yellow and green leads control the left and right turn signals, respectively–swap the bulb tester between these while engaging the blinker lever to confirm each side blinks independently without cross-wiring interference.
For brake activation, the red wire delivers a 12V pulse synchronized with the brake pedal; use a circuit tester to ensure voltage spikes to full system levels (typically 12.8V–14.5V) when depressed. If the signal’s weak, inspect the brake switch mounted above the pedal arm–adjust its plunger gap to 0.5mm for optimal contact. The blue auxiliary line often handles electric brakes or reverse lights; consult the manufacturer’s pinout to avoid misrouting, as incorrect connections may trip the vehicle’s BCM (Body Control Module).
Isolate the black hot lead (if present) for high-amperage accessories like winches or hydraulic pumps–this circuit bypasses the standard lighting relay and should route through a dedicated 40-amp circuit breaker. Secure all splices with heat-shrink tubing rated for 90°C minimum, ensuring moisture resistance; avoid electrical tape alone, which degrades under UV exposure. Label each connection with adhesive sleeves matching the OE color scheme to simplify future troubleshooting.
Verify load capacity before adding accessories: the factory harness supports 30 amps total across all circuits, but exceeding this risks melting connectors. Install an inline fuse (15A–20A) on any added circuits, positioning it within 18 inches of the power source. For vehicles with integrated trailer brake controllers, confirm the violet/blue striped wire aligns with the controller’s output–mismatches here disable brake modulation, requiring manual gain adjustments via the controller interface.
