Complete 2022 RAM 2500 Electrical System Wiring Diagram Guide
The modular fuse block layout under the driver-side dashboard consolidates primary circuits–starter relay, auxiliary brake controller feeds, and trailer tow module outputs–into a single access panel. Pin assignments follow a color-coded 14 AWG loom: solid red for ignition-switched 12V+, black/yellow for ground returns, and violet for CAN bus signals. Verify continuity with a multimeter set to 200Ω range before disconnecting any connector.
Trace the main harness from the battery positive terminal to the alternator’s B+ stud; the inline fusible link (rated 120A) sits within six inches of the connection. Mid-loom splices near the transmission crossmember feed the transfer case motor solenoid (tan/black wire) and engagement sensors–failure here mimics torque split issues.
Isolate trailer wiring faults by probing the seven-way connector at the rear bumper: pin J (center) carries constant 12V for auxiliary lighting, L supplies brake output. Use a load tester (minimum 30A capacity) to confirm voltage drop under full load–exceeding 0.5V indicates corroded terminals or undersized ground straps.
Onboard computer ports reside behind the glovebox; OBD-II port mirrors BCM signals but excludes powertrain control module data. For full diagnostics, access the under-hood diagnostic connector (T-shaped, near the coolant reservoir)–pinout includes lon-controlled outputs for PTO engagement and exhaust brake solenoids.

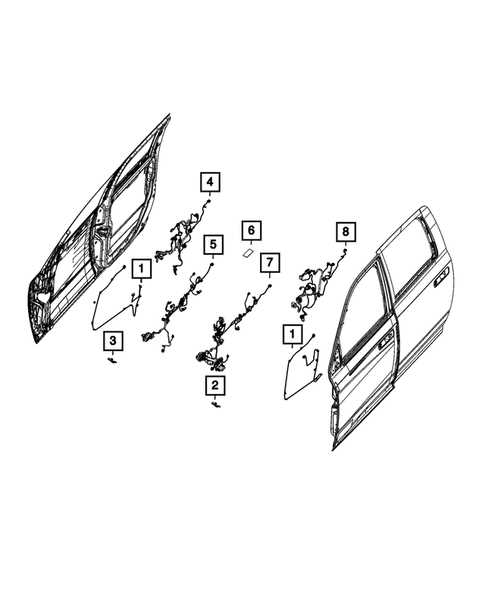

Replacement harness segments must match original gauge specifications: front axle disconnect circuits use 18 AWG (red/light blue) while rear frame circuits require 12 AWG (solid orange). Secure splices with adhesive-lined heat shrink tubing; avoid solder-only repairs due to vibration-induced fatigue.

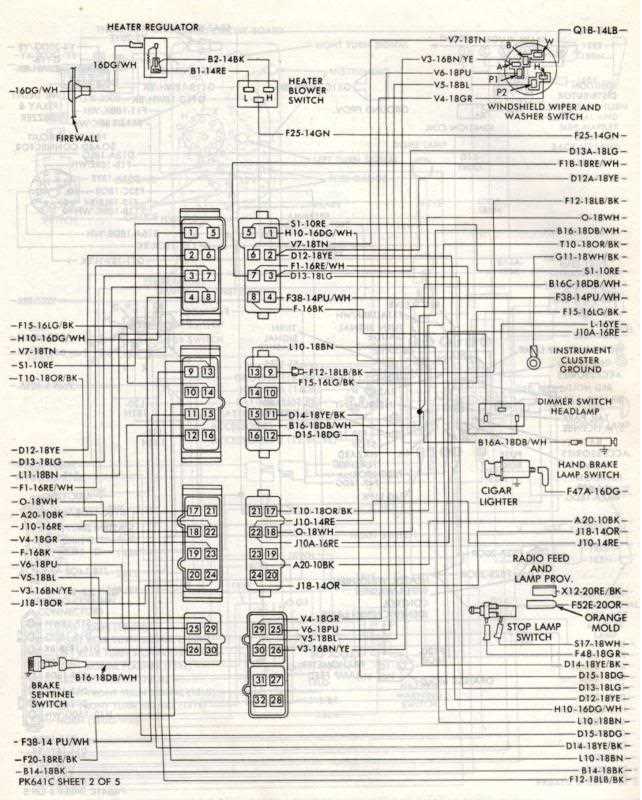

Heavy-Duty Pickup Electrical Schematic: Hands-On Reference
Locate the fuse box under the driver’s side dashboard first–label F2 houses the ignition relay and should match a 30A rating. If the relay clicks but the starter doesn’t engage, probe terminal 87 with a multimeter; expect battery voltage during cranking. Absence indicates a corroded pin in connector C3, traceable behind the brake booster.
For trailer lighting faults, disconnect the seven-pin plug and check each pin with a test light grounded to the frame. Pin assignments differ between standard and upfit configurations:
| Pin | Standard (A) | Upfit (B) |
|---|---|---|
| 1 | Left turn & brake | Auxiliary power (12V) |
| 4 | Tail lights | Reverse signal |
| 7 | Ground | Right turn & brake |
Swap pins 1 and 7 if auxiliary equipment draws more than 15A–library schematic LS-1042 confirms rear harness rerouting paths. Sealing splice points with adhesive-lined heat shrink prevents chafing where wires pass through the frame rails.
Sensor Calibration Without Diagnostic Tool
Disconnect the battery for 10 minutes to reset the PCM if throttle response hesitates. Reconnect the negative cable last, then toggle the key to on (not start) five times, pausing 3 seconds each cycle. The transmission should relearn shift points while idling; drive 15 mph in manual mode to complete adaptation.
Defective DEF heater circuits trigger derate codes–probe connector X6 pin 2 for 12V after the block heater cycles. If voltage drops below 11.8V, inspect the inline fuse marked DEF HTR in the under-hood relay center. Replace the 10A fuse with factory specification only; aftermarket equivalents melt under sustained DEF pump loads.
Dashboard backlight flicker traces to the dimmer module behind the left A-pillar–unclip the module and inspect for oxidation on the six-pin header. Clean contacts with electrical cleaner, then apply dielectric grease. If flicker persists, jumper pins 3 and 5 with a 120Ω resistor; revised schematics label this as the pulse-width modulation bypass for non-OEM LED clusters.
Finding the Full Electrical Schematic for Your Heavy-Duty Pickup
The official service manual from Stellantis is the most reliable source for a factory-approved schematic. Download the PDF for the model year directly from the manufacturer’s technical portal–search for “DSI Electronic Service Manual” and filter by your vehicle’s series. Paywall-protected versions include color-coded wire gauges, fuse box maps, and connector pinouts straight from the engineering team.
Aftermarket publishers like Mitchell1 and Chilton provide simplified subsets, but often omit critical ECM branch circuits. If opting for these, verify the edition covers both cab and chassis wiring–some manuals only illustrate interior harnesses. Subscriptions typically grant access within 24 hours, though offline snapshots of individual pages violate copyright.
Dealer-Accessed Diagrams
Dealership technicians pull schematics through the DealerCONNECT system, which splits documentation into three segments: engine bay, under-dash, and rear frame. Requesting a printed copy from service departments may incur fees, yet the blown-up A3 sheets clearly label splice points and ground locations absent in digital thumbnails. Ask for the “Module Architecture Diagram” overlay–it cross-references CAN bus modules with physical wire paths.
Third-party diagnostics software–such as Snap-on MODIS or Autel MaxiSys–bundles interactive schematics, though updates lag factory revisions by 30–60 days. Key in the specific trim’s VIN to prevent mismatched diagrams; even identical models differ between gas and diesel variants. Wire colors and pin numbers sync with the on-screen scanner, allowing probe tracing without printed guides.
For open-source alternatives, forums specializing in truck repairs host user-uploaded scans, yet caution is necessary: watermarked files often truncate crucial sections. Niche Discord servers and Telegram groups share vetted PDFs–post the exact trim package to receive the correct schematic instead of generics that skip trailer brake circuits or auxiliary lighting options.
Identifying Key Electrical Components in the Heavy-Duty Truck Circuit Layout
Locate the fuse box first–it typically sits beneath the dashboard on the driver’s side or inside the engine compartment. Trace the power distribution module adjacent to the battery; this unit consolidates high-current feeds to critical systems like the starter, alternator, and main relay panel. Use a multimeter to verify voltage at each terminal, ensuring readings match the schematic’s color-coded lines (red for 12V+, black for ground, yellow for switched circuits). Discrepancies often pinpoint corroded connectors or faulty relays.
Decoding Sensor and Actuator Circuits
Focus on the engine control module’s pinout–map each wire to its corresponding function using the legend (e.g., turbocharger boost sensor, fuel injector triggers). Pay extra attention to shielded cables; these carry low-voltage signals from knock sensors and oxygen probes and are prone to interference. Probe with a scope set to 1V/div to confirm signal integrity; erratic waveforms suggest damaged shielding or grounding issues. Replace any burnt pins immediately–many failures stem from overlooked connection points.

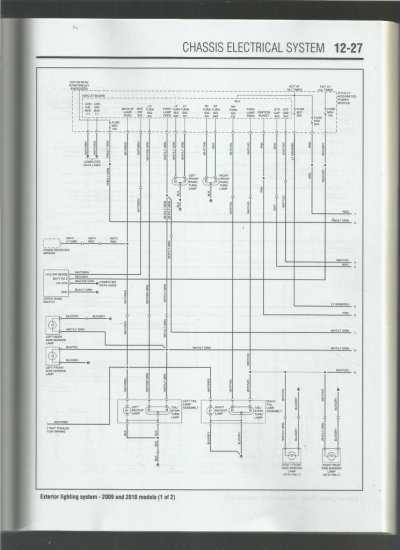

Examine the lighting harness next, particularly the trailer brake and marker light circuits. These high-draw paths often use heavier gauge wires (12-14 AWG) and are susceptible to chafe near suspension components. Inspect for fraying at junction blocks; corrosion here mimics burnt bulbs. Test continuity with a load test–shorted circuits drop below 0.5 ohms. For programmable modules like the body control unit, flash codes via OBD-II before disassembly; some configurations reset after battery disconnect.
Grounding straps demand special scrutiny. Major systems rely on dedicated straps bolted to the chassis or engine block–loose bolts create intermittent faults that diagnostics rarely catch. Scrub contact surfaces with a wire brush and apply dielectric grease to prevent oxidation. Label every disconnected wire with masking tape and note its position; misplaced connectors during reassembly can trigger unintended warnings. For aftermarket upgrades, cross-reference the factory blueprint with the new component’s manual–alterations to CAN bus networks may require resistor packs to maintain signal stability.
Tracing Electrical Circuits for Powertrain and Drivetrain Systems
Locate the powertrain control module (PCM) harness connector using the vehicle’s service manual–pin assignments differ between diesel and gasoline engines. For 6.7L Cummins configurations, the PCM interface resides near the firewall on the driver side; on Hemi variants, check the passenger-side engine bay. Disconnect the battery negative terminal before probing any connectors to prevent short circuits or module resets.
Identify the CAN bus lines by their twisted-pair wiring: typically yellow and green with striped markings. Use a multimeter set to 200Ω to verify resistance between CAN HIGH and CAN LOW–readings should fall between 55–65Ω. Deviations outside this range indicate damaged conductors, corroded terminals, or terminated resistors at junction points.
Follow the transmission control module (TCM) feed wires from the bulkhead connector to the internal harness. On heavy-duty platforms, the TCM shares data links with the PCM via a dedicated 16-pin connector, often labeled “C3.” Trace the purple (VPWR) and tan (GND) wires back to the main fuse box, confirming continuity with a test light or voltmeter.
Inspect solenoid control lines at the transmission case–each shift solenoid connects via colored wires matching the schematic’s pinout. For example, SOL1 (forward clutch) uses a dark blue wire, while SOL5 (torque converter clutch) employs a pink/black tracer. Back-probe the connector with a scan tool while cycling gears to monitor real-time voltage swings (0V–12V).
Common Failure Points
- Ground straps: Corrosion at the chassis mounting points increases resistance, disrupting sensor signals. Clean mating surfaces with a wire brush and apply dielectric grease.
- Fuse links: The 30A “TRANSMISSION” fuse powers critical sensors; replace blown units with identical amperage–never override with higher-rated alternatives.
- Battery voltage: Parasitic draws from idle modules drain power. Measure voltage drop at the TCM harness during key-off states; readings above 0.5V require parasitic draw testing.
- Junction splices: Located under the dashboard, splice points for TCM signals degrade. Use heat-shrink butt connectors when repairing severed cables.
For 6-speed automatic torque converters, verify the torque converter clutch (TCC) solenoid circuit connects directly to the TCM. The solenoid’s resistance should measure 10–15Ω; values outside this range require solenoid replacement. If the TCC fails to engage, check the brake pedal switch signal–depress the pedal while monitoring the TCM’s input voltage (should toggle between 0V and 5V).
Diagnose intermittent shifting faults by monitoring the vehicle speed sensor (VSS) waveform with an oscilloscope. A healthy VSS produces a clean sine wave; distorted signals indicate gear tooth damage or wheel-speed sensor misalignment. Replace the sensor if adjusting the air gap (0.02–0.04 inches) fails to restore signal clarity.
Advanced Probing Techniques
- Use a breakout box for PCM/TCM connectors to isolate signals without back-probing, which risks damaging pins.
- Apply cylinder-specific compression readings to PCM data–misfires often correlate with erratic fuel injector pulses (measure at 2–4ms pulse width).
- Cross-reference PIDs with manufacturer-specific codes: “P0730” (incorrect gear ratio) demands verification of the transmission fluid temperature (TFT) sensor and input/output speed sensors.
- For diesel engines, trace the exhaust brake solenoid wires to the PCM for PWM control–faulty exhaust braking often stems from open circuits in the yellow/black cable.
When replacing damaged harness sections, match wire gauge (typically 18–20 AWG for sensor feeds) and routing paths. Secure new cables with factory-style loom clamps every 12 inches to prevent chafing. Post-repair, clear adaptive shift values via a scan tool to reset learned clutch and torque converter behaviors.
