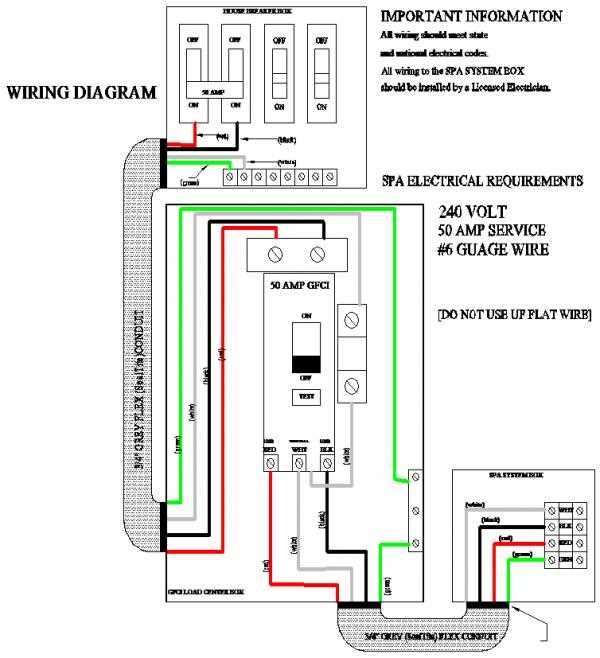

Step-by-Step Guide to Wiring a 220V Hot Tub with Electrical Diagram
For any spa operating at 240 volts, use a dedicated 50-amp double-pole circuit breaker matched to 8 AWG copper conductors–or 6 AWG aluminum if running longer than 50 feet. Connect the black and red wires to the breaker’s terminals, with the bare or green grounding conductor secured to the panel’s ground bus. Verify the junction box’s NEMA 3R rating for outdoor exposure and confirm torque values on terminals per manufacturer specs–typically 12–18 lb-in for lugs under 100 amps.
Route conduit between the spa’s controller and the main panel using schedule 40 PVC or rigid metal conduit (RMC) for underground runs. Maintain a minimum 18-inch burial depth for non-metallic conduit; if using RMC, 6 inches suffices. Terminate wires in a weatherproof disconnect rated for the spa’s amperage, positioned within 5 feet of the unit and in direct line of sight from the control panel.
Avoid mixing wire gauges–undersized conductors generate heat, risking insulation failure. If your spa exceeds 50 amps, upsize to 6 AWG copper and a 60-amp breaker. Bond all metal components–pumps, heaters, rails–to the grounding system with #8 AWG solid copper; this prevents stray voltage hazards. Test continuity between the spa’s grounding lug and the main panel’s ground bus before powering up–readings should be <1 ohm.
Label the circuit at the breaker and disconnect with “Spa – 240V – 50A” in indelible ink. Use heat-shrink tubing or liquid electrical tape on splices to prevent moisture ingress. If installing GFCI protection, ensure it’s factory-assembled in the disconnect–field-installed GFCIs on high-amperage circuits often fail prematurely.
Electrical Installation Guide for Spa Equipment
Begin by verifying your home’s electrical service panel can handle an additional 50–60 amp circuit. Most modern spa units require a dedicated double-pole breaker rated for 40–60 amps to ensure stable current delivery without tripping safeguards.
Use only 6 AWG or thicker copper conductors for the main power run from the breaker panel to the spa disconnect box. Smaller gauges risk overheating under prolonged load. Route cables through rigid or liquid-tight conduit for outdoor installations to prevent moisture ingress and mechanical damage.
Install a GFCI-protected disconnect switch within 5 feet of the spa, but outside the splash zone, to meet NEC 680.42 requirements. This switch must handle the full amperage of the circuit and lock in the open position for maintenance safety.
| Wire Gauge | Max Ampacity* | Conduit Size (Liquid-Tight) |
|---|---|---|
| 6 AWG | 65 A | ¾” |
| 8 AWG | 50 A | ½” |
| 10 AWG | 35 A | ½” |
*Ambient temperature 86°F (30°C) or lower.
Connect conductors to the spa’s control box using a terminal block or direct burial splice kit. Strip insulation cleanly, avoiding nicked strands, and torque lugs to manufacturer specifications–typically 15–20 lb-in for 6 AWG wire–to prevent arcing or high-resistance failures.
Test continuity between all conductors and ground before energizing. Use a multimeter set to ohms; readings should show near-zero resistance between phase conductors and infinite resistance between phase and ground. Confirm the GFCI trips at 5 mA or less during a simulated ground fault test.
Label all breakers and disconnects clearly with “Spa Equipment” and the circuit amp rating. Include emergency shutdown instructions near the spa pad for guests or maintenance personnel. Minimize bends in conduit runs to reduce voltage drop over long distances (target
Seal all outdoor conduit openings with silicone or duct seal compound to keep out moisture and pests. Ensure bonding between all metallic components–including pumps, heaters, and structural frames–to create an equipotential plane that reduces stray voltage hazards. Retest all connections annually, particularly after severe weather or electrical storms.
Selecting the Proper Conductor Size for 240V Spa Installations
For most residential spa units rated up to 50 amperes, 6 AWG copper conductors are the minimum requirement. This gauge supports continuous loads of 55A at 75°C, accounting for the 80% breaker derating rule. Exceeding this current draw–common in models with dual pumps and heating elements–demands 4 AWG, which handles 70A under the same conditions. Consult the manufacturer’s technical specifications: mismatches risk overheating and nuisance tripping.
Aluminum conductors offer cost savings but require one size larger than copper–4 AWG aluminum matches 6 AWG copper’s capacity. Verify local codes: some jurisdictions prohibit aluminum for branch circuits due to termination compatibility concerns. Distance also affects selection: voltage drop calculations recommened a 3 AWG copper upgrade for runs exceeding 100 feet, maintaining performance under startup surges.
Environmental and Termination Factors
Ambient temperature adjustments are critical. Conductors in conduit exposed to direct sunlight or buried in warm climates may need derating. A 6 AWG copper wire rated for 55A at 75°C drops to 44A at 90°C–requiring upsizing. Stranded wire (Class B or C) improves termination flexibility, especially for compression lugs. Solid wire is discouraged: vibration from pumps can cause connector fatigue over time.
Breaker selection must align with conductor ampacity. A 50A circuit paired with 6 AWG copper (55A max) leaves minimal margin; a 60A breaker violates code. GFCI protection is mandatory–choose breakers with a 30mA trip rating for personnel safety. Avoid backfeeding: dedicated circuits require no shared neutrals or multi-wire branch configurations, eliminating interference risks.
Step-by-Step Installation of a Dedicated 50-Amp Circuit for Spa Equipment
Shut off power at the main service panel before handling any electrical components. Use a non-contact voltage tester to confirm all conductors are de-energized. Failure to verify this step risks severe injury or equipment damage.
Select a two-pole, 50-amp breaker compatible with your panel type–typically a 240-volt model for residential applications. Match the breaker’s frame size and interrupting rating to the panel specifications; most modern units require a 10,000 AIC rating. Consult the panel’s label for exact requirements.
Route wiring from the breaker panel to the spa location using 6 AWG copper conductors or 4 AWG aluminum, enclosed in rigid conduit for outdoor installations. Schedule 40 PVC or EMT is recommended for durability. Maintain a minimum burial depth of 18 inches for direct burial cables or 6 inches when protected by conduit. Avoid sharp bends in conduit to prevent conductor damage.
- 120% derating rule applies if conductors pass through thermal insulation: increase wire size by one gauge if running through attic spaces or walls with insulation.
- Use weatherproof junction boxes for outdoor splices, rated at least NEMA 3R.
- Label all disconnects and subpanels with “Spa Circuit – 50A” to prevent accidental energization.
Install a disconnect switch within sight of the spa, no more than 50 feet away, per NEC 680.12. A subpanel with a lockable cover satisfies this requirement. Mount the disconnect at a minimum height of 5 feet above grade to deter tampering while ensuring accessibility. Include ground fault circuit interrupter (GFCI) protection in the disconnect or breaker if not factory-integrated.

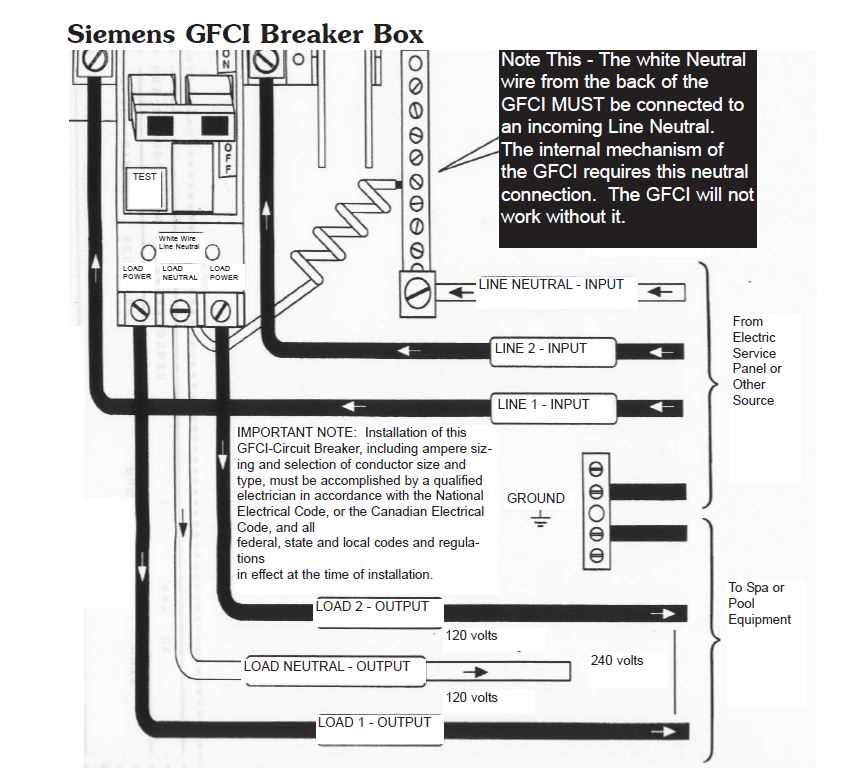

Connect conductors to the breaker and spa terminal block as follows:
- Attach the two ungrounded (hot) conductors–typically black and red–to the breaker’s terminal screws. Torque to 20 in-lbs using a calibrated screwdriver.
- Secure the white (neutral) conductor to the neutral bus bar in the panel if required by the spa manufacturer. Some newer models omit neutral; verify with the equipment manual.
- Connect the green or bare grounding conductor to the grounding bus bar and run a separate 6 AWG grounding wire to the spa’s bonding lug, creating an equipotential bonding grid.
- Tighten all terminal connections to the manufacturer’s specified torque–usually between 15 and 25 in-lbs–to prevent overheating.
Before energizing, test continuity between all conductors and ground using a multimeter. Resistance should read near zero ohms for grounded circuits and infinite on ungrounded conductors. Verify GFCI functionality by pressing the “Test” button–the breaker should trip within 5 milliseconds of simulated fault current (typically 5 mA). Reset and retest.
After confirming all connections, restore power at the main panel. Monitor the spa’s initial operation for abnormal voltage drops–no more than 3% loss at the equipment terminals is acceptable on a 240-volt circuit. Record the installation date, breaker size, and wire type in the panel’s directory to comply with NEC 408.4 requirements.
How to Safely Establish Grounding for High-Voltage Spa Equipment
Connect a dedicated 8 AWG copper grounding conductor directly from the main electrical panel’s grounding bus to the spa’s control box. Ensure the conductor is continuous, without splices, and secured with irreversible compression connectors rated for outdoor use. The grounding bus in the panel must be bonded to the service neutral at the main disconnect only–never elsewhere in the circuit–to prevent parallel grounding paths.
A ground fault circuit interrupter (GFCI) rated for 50 amps or higher must protect the entire circuit, including all pumps, heaters, and auxiliary components. Test the GFCI monthly using its integrated test button; if tripping occurs without load, inspect for improper neutral-ground bonds downstream of the interrupter. Verify torque specs on all grounding lugs (typically 20-25 lb-in for 8 AWG conductors) using a calibrated torque screwdriver to prevent loosening from thermal cycling.
Drive a ground rod at least 8 feet into undisturbed earth, spaced no closer than 6 feet from the spa’s location. Use copper-clad steel rods with a minimum diameter of 5/8 inch, and bond them to the spa’s grounding system with a separate 8 AWG conductor. Where soil resistance exceeds 25 ohms (measured with a clamp-on ground tester), install additional rods at 6-foot intervals until readings drop below this threshold. Avoid rocky or sandy soil; pre-soak the installation site if necessary to lower resistance.
All metal components within 5 feet of the spa–handrails, covers, ladders, and adjacent decking–must be bonded to the grounding system using 6 AWG solid copper wire. Scrape paint or corrosion from bonding points to ensure bare-metal contact, and secure connections with stainless steel clamps. Exposed bonding conductors should be sleeved in non-metallic conduit where vulnerable to physical damage, such as near foot traffic or landscaping equipment.
After installation, measure the system’s ground continuity with a multimeter set to ohms; readings between the spa’s grounding terminal and the ground rod should not exceed 1 ohm. If values are higher, recheck all connections for oxidation, loose fittings, or undersized conductors. Label the grounding conductor at both ends with permanent, weatherproof markers specifying “EQUIPMENT GROUND” to prevent accidental disconnection during future maintenance.
