Complete Guide to Wiring a 220V Water Heater with Step-by-Step Diagram
Connect a dual-pole, 30-amp breaker to a dedicated 10-gauge copper conductor pair–black and red–feeding the load terminals. Ground the system using an 8-gauge bare copper wire tied to the main service panel’s bus bar, ensuring continuity back to the grounding electrode. Use UL-listed terminal blocks rated for 250VAC/30A at the unit’s inlet; avoid twist-on connectors due to heat cycling risks.
Label each conductor with heat-resistant shrink tubing–black for L1, red for L2–before securing them under torque-controlled terminals. Verify line-to-line voltage at 230-240VAC with a true-RMS multimeter under full load; deviations beyond ±5% indicate faulty breaker calibration or loose connections. Install a Class A GFCI breaker rated for 30mA trip sensitivity if local codes mandate ground-fault protection.
Route conductors through ½-inch EMT conduit with pull-through bends to minimize voltage drop; derate wire ampacity by 20% for bundled runs exceeding 50 feet. Terminate the neutral bus (if present) only to the grounding conductor at the first disconnect past the meter–never splice it through the unit. Test insulation resistance between each live conductor and ground using a 1,000V megohmmeter; readings below 100MΩ require immediate cable replacement.
Locate the thermal cutout sensor–typically a Klixon 220°C or equivalent–within 2 inches of the heating element’s flange. Wire it in series with the L1 conductor using 16-gauge high-temp silicone leads; confirm continuity with a low-ohm tester before energizing. Fit a manual disconnect switch adjacent to the unit, rated for 30A/250VAC, with lockout provisions for maintenance. Avoid backfeeding through small-appliance circuits–dedicated subpanels shall feed only the immersion load.
Electrical Hookup for High-Voltage Storage Tanks: Step-by-Step
Before handling any terminal connections, verify the circuit breaker supplying power to the appliance is switched off–use a non-contact voltage tester to confirm absence of current at both the breaker panel and the unit’s junction box. For 240-volt storage tanks, standard dedicated circuits require either a 30-amp breaker paired with 10 AWG copper conductors or a 20-amp breaker with 12 AWG copper if manufacturer specifications permit a reduced load. Always cross-reference the appliance’s data plate to confirm exact amperage and conductor gauge; deviations risk overheating and voiding UL certification.

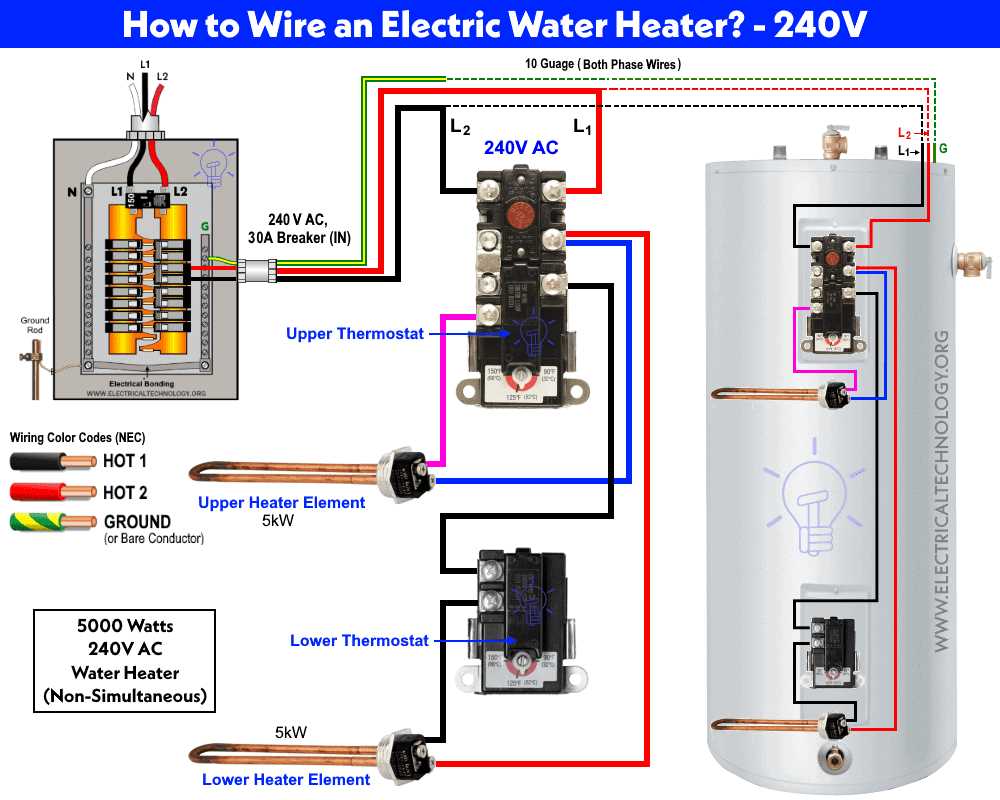

Installation follows a straightforward dual-hot approach: attach black and red conductors from the circuit to the tank’s L1 and L2 terminals, securing them with torque screwdriver calibrated to 12–15 in-lbs to prevent loose connections–loose terminals lead to arcing and premature failure. Green grounding wire must connect to the designated ground screw inside the junction box; never omit grounding, even if local codes seemingly relax requirements. For added protection, route conductors through flexible conduit if the tank’s location isn’t permanently fixed, ensuring vibration resistance during expansion cycles.
Critical Wiring Checks Before Energizing
- Measure resistance across L1 and L2 terminals: expect 10–30 ohms for functional elements; infinite resistance indicates open circuit.
- Inspect conduit fill: total conductor area should not exceed 40% of available conduit space when using NM-B cable through PVC or EMT.
- Avoid exceeding 15 feet of unsupported NM-B cable between straps; secure every 4.5 feet to prevent sagging and potential short circuits.
- Confirm thermostat differential: set high-limit cutoff to 140°F or below to prevent scald hazards if mixing valves aren’t installed.
Once connections verify, energize the circuit and monitor current draw during initial heating cycle–expected values typically range between 22–28 amps for 4,500-watt variants under steady-state operation. Deviations above 30 amps signal potential electrode arcing or compromised insulation, warranting immediate power cutoff and inspection. Keep the surrounding area clear of combustibles; sustained high surface temperatures–up to 120°F on exposed tank surfaces–pose fire risks to improperly stored materials within three feet.
Essential Gear for Installing a Dual-Voltage Appliance
Use a non-contact voltage tester (minimum 400V AC sensitivity) to verify circuits before handling. Confirm the breaker panel accommodates a 30-amp double-pole switch rated for copper wire–most residential panels accept #10 AWG, but check the appliance’s label for deviations (some industrial models require #8). Include wire strippers with marked notches for #10 and #8, alongside crimping pliers rated for insulated terminals. Opt for UL-listed copper conductors–avoid aluminum due to higher resistance at connection points.
- Flathead and Phillips screwdrivers: #2 Phillips for terminal screws, 1/4-inch flathead for securing the junction box cover
- Cable ripper: Removes outer sheathing without nicking insulation–choose one with a cutting depth of 0.2 inches
- Fish tape: 1/4-inch steel for pulling cable through conduit; lubricate with silicone-based pull string compound
- Junction box: 4-inch square, 18 cubic-inch minimum capacity, with grounding screw
- Wire nuts: Red (ideally tinned copper) for #10 conductors; verify torque specifications–most require 12 in-lbs
- Conduit bender: EMT-specific, 1/2-inch size, with angle markings for 22.5° and 45° offsets
- Grounding clamp: Bronze alloy, sized for 1/2-inch pipe, with a stainless steel set screw
- Multimeter: True RMS, minimum 600V AC range, fused leads for current measurements up to 10A
- Heat-shrink tubing: Polyolefin, 3:1 shrink ratio, 1/4-inch diameter–apply with a 900°F heat gun
- Torque screwdriver: Adjustable range 10–50 in-lbs for terminal screws to prevent overtightening
Store all tools in a molded plastic organizer (minimum 12 compartments) to prevent moisture corrosion–condensation is common in utility spaces. Label each compartment with the tool’s function and torque specifications where applicable.
Installation Guide for a Dual-Voltage Hot Liquid Storage Unit
Before handling any electrical components, cut power at the main circuit breaker. Verify absence of current using a non-contact voltage tester on both incoming terminals. Failure to confirm power disconnection risks severe injury or equipment damage.
Identify the appliance’s labeled connection block. Most units require a dedicated double-pole 30-amp breaker feeding 10-gauge copper conductors. Smaller units may use 20-amp circuits with 12-gauge wire, but check manufacturer specifications–some industrial models demand 8-gauge for extended runs.
Strip approximately 0.5 inches of insulation from each conductor end. Insert the black wire into the brass terminal marked “L1” and the red wire into “L2.” Tighten terminal screws to 20 inch-pounds of torque–loose connections generate heat and reduce efficiency. Secure the bare or green grounding wire to the designated grounding terminal.
For installations exceeding 50 feet from the breaker panel, calculate voltage drop using the formula: (length × current × resistance factor) ÷ 1000. A 10% drop compromises heating performance; if calculations exceed this threshold, upsize conductors one gauge size. Ensure the breaker matches the wire gauge–mismatches create fire hazards.
After securing all connections, restore power and test operation. Listen for unusual sounds: clicking relays, hissing, or popping indicate faults. Monitor the initial heating cycle–temperature should rise steadily to 120°F within 30 minutes for 4500-watt models. Irregular heating warrants immediate power disconnection and inspection for loose terminals or damaged elements.
Troubleshooting Common Issues
If the unit fails to activate, verify the thermostat adjustment hasn’t been set below ambient temperature. Check for tripped breakers or blown fuses; some panels use dual 30-amp fuses instead of a breaker. Test continuity across the heating element with a multimeter–resistance should read between 10-16 ohms for standard units.
For recessed installations in utility closets, maintain a 12-inch clearance around the unit for airflow. Insulate exposed pipes with foam sleeves to prevent heat loss, but avoid covering the pressure relief valve or electrical junction box–these require unobstructed access for safety checks. Label the breaker panel clearly to prevent accidental shutdowns during maintenance.
Selecting and Installing the Proper Overcurrent Protection for High-Voltage Appliances
Begin by locating your main service panel and verifying the available amperage capacity. Dual-pole breakers for 240-volt appliances must match the device’s rated current draw–consult the manufacturer’s label for exact values. For most residential units, a 30-amp breaker with 10-gauge copper conductors is standard; smaller 20-amp breakers may suffice for compact models. Never exceed 80% of the breaker’s continuous load rating to prevent nuisance tripping or overheating.
Use a clamp meter to confirm the existing circuit’s load before installation. Compare the measured current against the appliance’s requirements–discrepancies suggest undersized wiring or outdated protection. Below is a reference table for common breaker sizes and compatible conductor gauges:
| Breaker Amperage | Minimum Copper Wire Gauge | Maximum Continuous Load (Amps) |
|---|---|---|
| 15 | 14 AWG | 12 |
| 20 | 12 AWG | 16 |
| 30 | 10 AWG | 24 |
| 40 | 8 AWG | 32 |
Shut off the main power source before handling the panel–even a minor arc fault at these voltages can cause severe injury or fire. Route conductors through approved conduit if exposed to physical damage; NM-B cable is acceptable for dry, protected areas. Terminate wires to the breaker’s lugs with a torque screwdriver set to the manufacturer’s specifications (typically 18-20 in-lbs for 10-30 amp breakers). Misaligned or loose connections generate heat and degrade performance over time.
Test the circuit with a non-contact voltage tester after installation. Energize the breaker and verify the appliance operates without tripping. If the breaker trips repeatedly, disconnect the load and measure resistance across each conductor–values below 1 ohm indicate proper continuity, while higher readings suggest damaged wiring or faulty terminals. Replace any compromised components before re-energizing. Label the breaker clearly in the panel directory to aid future maintenance.
