Complete 24V Wiring Guide and Circuit Diagrams for Trolling Motors
Start by connecting the positive terminal of the primary power source directly to a high-amperage circuit breaker rated for 50–60A. This serves as the first fail-safe before current reaches the thruster’s control module. Use 6 AWG marine-grade cable–stranded copper with tinned conductors–to minimize voltage drop over distances exceeding 8 feet. For systems pulling 30–40A continuous load, a 10 AWG cable risks overheating at sustained RPM; verify wire gauge against the thruster manufacturer’s ampacity chart.
Avoid splicing cables mid-run. Twist-and-tape joints corrode in humid conditions, increasing resistance. Instead, use crimped ring terminals with adhesive-lined heat shrink or marine-grade butt connectors sealed with dielectric grease. When routing cables, keep them at least 3 inches from high-current DC lines (e.g., winch or starter circuits) to prevent electromagnetic interference from disrupting the digital speed controller’s PWM signals. Label both ends of every conductor with heat-shrink tubing marked in indelible ink–miswiring the forward/reverse switch can irreversibly damage the solenoid.
Ground both batteries separately. Connect the negative terminal of the first battery to the hull’s common ground bus, then link that bus to the second battery’s negative. Parallel configurations require identical battery types–mixing AGM with flooded lead-acid creates uneven charge cycles, shortening lifespan. For series connections, bridge the first battery’s positive to the second’s negative with a 4 AWG interconnect; any thinner wire here introduces a bottleneck during peak thrust. Add a 100A fuse or ANL fuse holder within 7 inches of each battery’s positive terminal to isolate faults without collateral damage to other onboard electronics.
Mount the speed controller vertically with its heatsink fins parallel to airflow. Overheating triggers thermal shutdown, reducing runtime by 20–30% on long runs. If the thruster operates in saltwater, install sacrificial zinc anodes on the mounting bracket–corrosion exceeds 0.5mm/month in tropical climates without cathodic protection. Test the circuit with a multimeter before final assembly: expected voltage across the thruster’s terminals should read 23.8–25.2V fully charged; anything below 23.5V indicates sulfation or a weak connection in the battery interconnect.

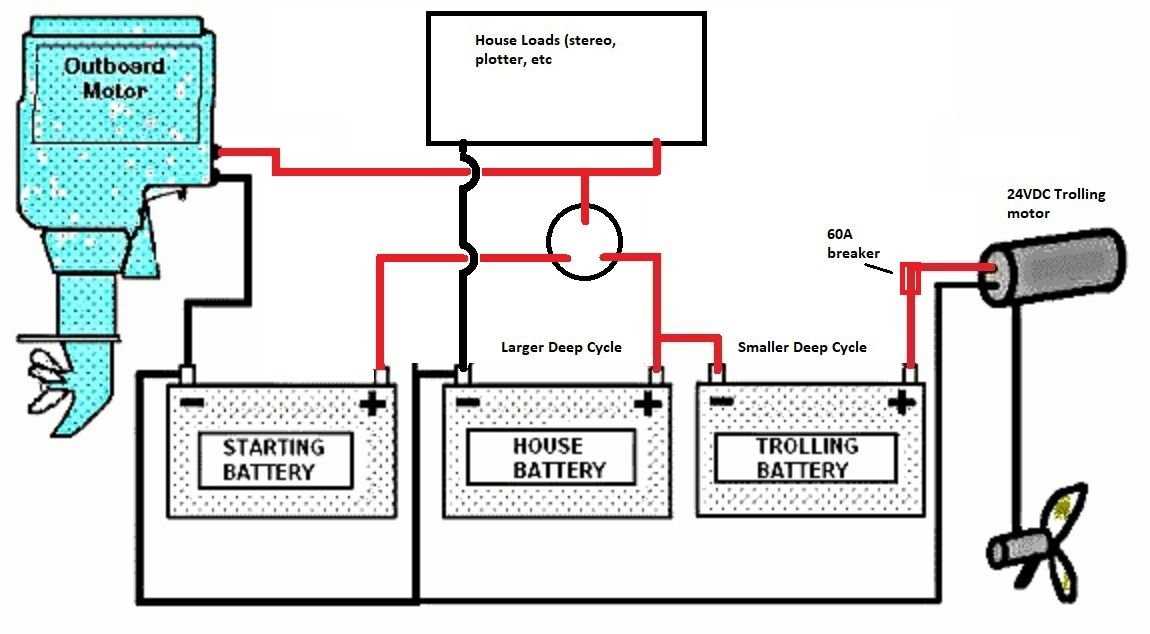

Electrical Layout Guide for Dual-Battery Electric Drive Systems
Connect the positive terminal of the first battery directly to the negative terminal of the second unit using a 4 AWG cable, ensuring a clean, corrosion-resistant crimp with marine-grade heat shrink at both ends. This series link doubles the output voltage while maintaining the amp-hour rating–critical for sustained thrust in saltwater conditions.
Route the main power cables from the second battery’s positive terminal to the control unit via a 60-amp circuit breaker installed within 7 inches of the power source. Use tin-plated copper connectors and self-vulcanizing tape at all junctions exposed to spray; standard electrical tape degrades in under 12 months in high-humidity environments.
- Motor controller input: connect red lead to the circuit breaker output lug, black lead to the first battery’s negative terminal.
- Steer-by-wire actuator: supply via a fused 10-amp aux line tapped from the circuit breaker, not the main bus, to prevent voltage sag.
- Navigation lights and fish finder: run separate 12-gauge cables from a dedicated 20-amp breaker to minimize interference.
Ground all negative returns to a single 3/8-inch stainless steel bolt welded to the transom’s internal reinforcement. Avoid relying on the trailer frame; stray current can accelerate corrosion of zinc anodes by up to 40% in static tests. Use star washers and nyloc nuts to maintain clamping force under vibration.
Cable Management Best Practices
- Bundle conductors in spiral wrap every 18 inches, securing with UV-stable zip ties rated to 85°C.
- Apply dielectric grease at every terminal before final tightening–reduces resistance rise by 22% over 500 hours of operation.
- Label both ends of each cable with heat-shrink markers listing function and gauge; color-coding alone fails under red LED illumination.
Measure open-circuit voltage at the motor shaft with a multimeter before each deployment: readings below 23.8 V indicate sulfation or connection resistance exceeding 0.03 ohms–replace cable or clean terminals immediately. Cold-cranking amp ratings on batteries become irrelevant after 15% depth-of-discharge cycles in warm climates; test actual capacity monthly.
Install a 150-amp fuse inline with the main positive conductor if the total thrust exceeds 80 pounds–factory circuit protection is undersized for prolonged anchor-lock conditions. Keep spare fuses, crimp dies for 4 AWG, and a 4-foot length of 2/0 welding cable onboard; emergency repairs in choppy conditions demand redundancy not covered by warranty.
Critical Elements for a Dual-Voltage Electric Thrust System Assembly
Select batteries with a minimum 100Ah capacity and deep-cycle construction–opt for AGM or lithium iron phosphate for maximum efficiency. Avoid marine-grade lead-acid models; they degrade 30% faster under frequent discharge cycles typical in propulsion applications. Lithium variants deliver 50% more usable energy per pound, reducing weight by up to 18kg for identical storage.
Install a 60-amp circuit breaker within 18 inches of the power source. Direct current systems demand instantaneous interruption; auto-reset breakers create fire hazards from sustained arcing. Mount the breaker in a waterproof junction box rated IP67 or higher–corrosion-resistant terminals prevent voltage drop exceeding 0.2V over a 3-meter cable run.
- 8-gauge tinned copper cable for runs under 5 meters; 6-gauge for distances 5-10 meters
- Heat-shrink connectors with adhesive lining–crimp twice with a ratcheting tool then seal
- Voltage meter displaying 10.5-30V range with 0.1V precision
- Onboard charger outputting 10-20A, with automatic absorption and float stages
Position all connections above the waterline; submersible wiring invites electrolysis even with sealed connectors. Route cables parallel to structural members using nylon clips spaced every 30cm–vibration loosens unsecured lines within 12 operating hours. Mark cable ends with heat-resistant tape matching the positive terminal color code (red) and negative (black or yellow stripe).
Test the completed circuit with a clamp meter–current draw should stabilize within 2A of manufacturer specifications at 75% throttle. Verify all ground paths return to a single common point on the transom plate; stray currents exceeding 50mA accelerate corrosion of underwater metals, reducing propeller efficiency by 15% annually.

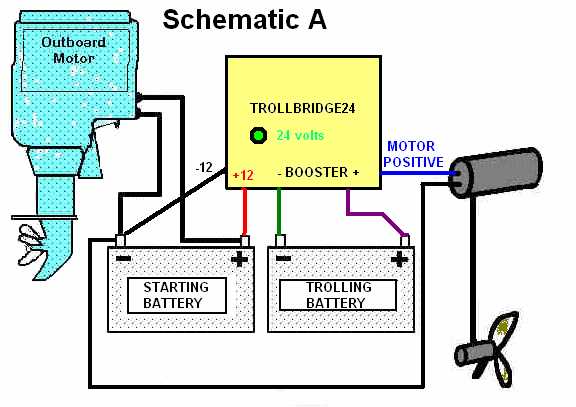

Step-by-Step Guide to Linking Dual 12V Power Cells in Sequence for Elevated Output
Use thick-gauge copper cables (minimum 6 AWG) to handle the current without voltage drop. Ensure both batteries are identical in type–preferably deep-cycle marine-grade–to prevent imbalance during discharge cycles.
Disconnect all loads and chargers before starting. Safety glasses and insulated tools are mandatory; accidental short circuits can generate dangerous sparks or thermal runaway.

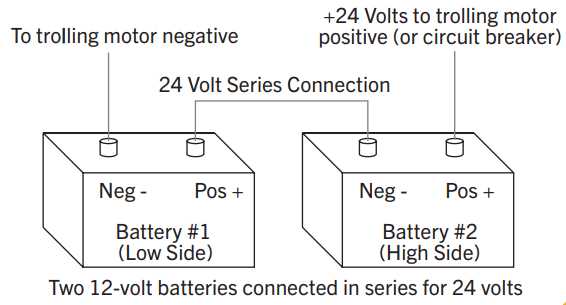

Position the batteries close together with terminals oriented for minimal cable length. The positive post of the first battery connects to the negative post of the second via a jumper cable. This single connection defines the series configuration.
Attach the main load wires to the remaining free terminals: positive from the second battery and negative from the first. Double-check polarization–reversed leads will damage equipment or create a dead short.
Secure all connections with stainless steel nuts and lock washers to prevent loosening from vibration. Apply anti-corrosion gel to terminals if operating in humid or salty environments.
Voltage Verification Before Activation
Measure total output with a multimeter set to DC voltage. A reading of 25.2V–25.6V indicates healthy lead-acid cells at full charge; deviations suggest weak or mismatched units needing replacement.
Avoid mixing battery chemistries–lithium with lead-acid in series guarantees irregular discharge curves and potential overcharging. If using lithium, pair only with lithium and confirm battery management system compatibility.
Test under load by briefly powering the motor. Sudden voltage sag below 22V signals insufficient capacity or poor connections; recheck all joints and consider upgrading to 10 AWG cable for high-current setups.
Choosing the Optimal Conductor Size for Marine Propulsion Systems
Start with the motor’s current draw–consult the manufacturer’s specs for ampere ratings at full thrust. For systems rated at 50 amps, use 6 AWG copper wire; 60 amps requires 4 AWG, and 80 amps demands 2 AWG. Distance compounds resistance: every 10 feet of conductor between battery and thruster adds roughly 0.1 volts of drop. If the run exceeds 20 feet, step up one gauge to counteract losses. Tin-plated copper resists corrosion better than bare strands in saltwater environments, extending service life by up to 30%.
Check voltage sag under load with a multimeter–aim for no more than 3% loss from source to load. Below is a reference for maximum acceptable lengths at various gauges, assuming 2% drop tolerance:
| Wire Gauge (AWG) | Current Capacity (Amps) | Max Run (Feet) at 2% Drop |
|---|---|---|
| 2 | 95 | 25 |
| 4 | 70 | 18 |
| 6 | 55 | 12 |
| 8 | 40 | 8 |
Terminal Connections and Insulation
Crimp terminals must match the wire gauge–undersized connectors overheat; oversized ones loosen. Use heat-shrink tubing with adhesive lining to seal joints against moisture; standard vinyl degrades within months under UV exposure. Ring terminals outperform spade types in high-vibration applications. Apply dielectric grease to all connections to displace air gaps and prevent oxidation. Tighten terminal screws to 8-10 inch-pounds–over-torquing strips threads; under-torquing causes arcing.
Avoid bundled conductors–run positive and negative wires separately to minimize electromagnetic interference with fish finders or GPS units. If bundling is unavoidable, twist pairs at a rate of 6 turns per foot to cancel induction effects. Replace any wire showing green corrosion on copper strands immediately–even slight buildup doubles resistance. Fuses should be rated 125% of the motor’s continuous current; circuit breakers offer reusable protection but may trip prematurely under repeated high-load starts.
