StepbyStep Guide to Wiring a 277V to 120V Transformer Connection
Use a step-down converter rated for 2:1 input-to-output reduction to safely bridge industrial power lines to residential appliances. Verify the unit’s label confirms compatibility with 480/277V three-phase inputs and single-phase 115-125V outputs before proceeding. Select a model with a kVA capacity at least 20% higher than the total wattage of connected devices to prevent overheating.
Mount the converter on a non-conductive surface within 15 feet of the incoming line to minimize voltage drop. Connect the primary side to the high-voltage source using 6 AWG copper wire or thicker, securing terminals with torque wrenches set to manufacturer specifications–typically 21 in-lbs for lugs. Ground both the converter chassis and secondary output to a dedicated earth rod buried at least 8 feet deep, using 4 AWG bare copper wire for bonding.
Route the low-voltage output through a fused disconnect switch before distribution. Install a 20A double-pole breaker on the secondary side to isolate faults without disrupting the entire setup. Label each conductor with voltage ratings–red for hot, white for neutral, green for ground–and include a warning sign near the junction box: “High-voltage input: authorized personnel only.”
Test continuity with a multimeter after wiring but before energizing. Set the meter to ohms (Ω) scale and probe each terminal pair; readings should show near-zero resistance. Energize the circuit in stages–first the primary input, then the secondary output–monitoring for abnormal humming, heat, or arcing. If present, immediately de-energize and recheck terminal tightness.

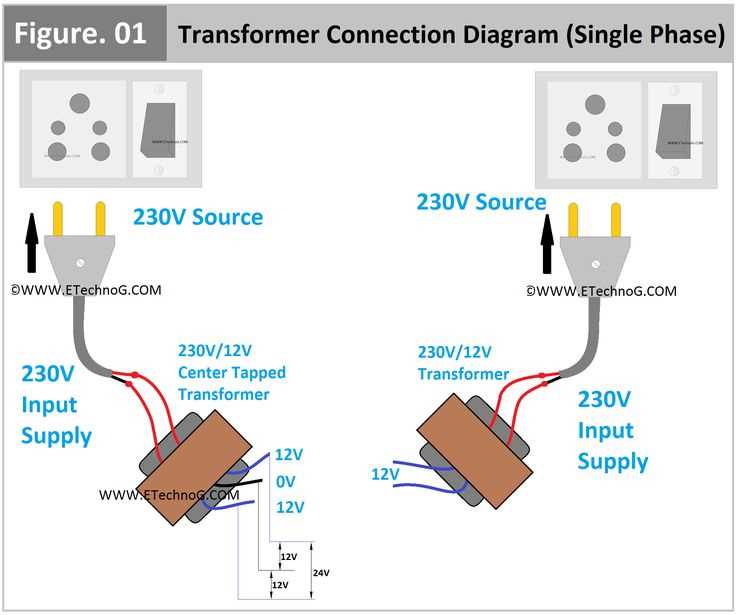

Step-Down Voltage Converter Connection Guide
Start by identifying the primary coil terminals–typically labeled H1 and H2 for the higher input side–then connect the 480V phase-to-neutral line to H1 and neutral to H2. On the secondary side, link X1 to the load’s hot wire and X2 to neutral, ensuring polarity matches the intended circuit path. Use 10 AWG copper wire for currents up to 30 amps to prevent overheating, and secure all splices with UL-listed wire nuts rated for 90°C.
Ground the enclosure and core to the system’s grounding busbar using a 6 AWG bare copper conductor, bonding it directly to the chassis if no separate ground terminal exists. For single-phase conversion, verify the secondary output with a multimeter–expect 208V line-to-line if configuring a dual-voltage model–then adjust tap settings to fine-tune the output to 115V if necessary. Avoid exceeding 80% of the unit’s VA rating to maintain efficiency under continuous loads, such as LED drivers or control panels.
Critical safeguards: Install a 3-amp fuse on the secondary side upstream of the load to protect against short circuits, and label all terminals with indelible markers to prevent miswiring. If pairing with a disconnect switch, locate it within 10 feet of the device, per NEC 450.13, and lock it in the “off” position during maintenance.
Key Components Required for High-Voltage to Low-Voltage Conversion Systems
Select a core device with a turns ratio of 2.31:1 (e.g., 480:208/120 or 347:148/120 variants) and a kVA rating exceeding expected load by 15–20%. For single-phase loads under 5 kVA, toroidal units reduce stray magnetic fields by 30% compared to E-I laminations. Ensure copper windings for currents above 10A; aluminum suffices only for intermittent or low-duty-cycle applications. Mount the unit on a 1/4″ steel base if ambient noise exceeds 50 dB or vibration is present.
Ancillary Parts for Safe Step-Down Implementation
Fuse primary circuits with Class RK5 time-delay elements sized at 125% of full-load amps; secondary protection requires fast-acting fuses rated at 150%. Use stranded THHN wire–#8 AWG for 10A, #2 AWG for 60A–with color-coded insulation (black/red for live, white for neutral, green for ground). Install a surge arrestor (e.g., Siemens QSA2) with a clamping voltage under 400V. For outdoor setups, add a NEMA 3R enclosure with silica gel desiccant to limit moisture intrusion below 40% relative humidity.
Step-by-Step Installation for Step-Down Voltage Conversion Equipment
First, confirm the input and output terminals on the unit match the power source (277-volt circuit) and the required reduced voltage (120-volt load). Identify the primary side labeled “H” for high voltage and the secondary side marked “X” for low voltage. Verify the nameplate data to ensure compatibility with the current and wattage demands of connected devices–overloading risks overheating or component failure.
De-energize the supply lines before handling any connections. Use a multimeter to test for absence of voltage across all conductors. Strip 1/2 inch of insulation from each wire end, then secure them to the designated terminals with torque-rated screwdrivers. Primary leads (H1, H2) attach to the 277-volt lines, while secondary outputs (X1, X2) link to the 120-volt circuit. Tighten all connections to manufacturer-specified torque values to prevent arcing or loose terminations.
Ground the chassis by connecting the grounding lug to the facility’s earth ground busbar. For isolation configurations, bond the secondary neutral (X0, if present) to the grounding system only at the service panel–not locally at the converter–to avoid ground loops. Label all conductors clearly with heat-shrink tubing or permanent markers to denote function: line, load, neutral, and ground.
Re-energize the supply and measure the output voltage between the secondary terminals. Fluctuations beyond ±3% of 120 volts indicate incorrect tap settings, reversed polarity, or a damaged core. If discrepancies persist, isolate the system and inspect for loose connections, burnt contacts, or incorrect phasing. Install an appropriately sized circuit protector (fuse or breaker) on the output side to safeguard downstream equipment from surges or short circuits.
Run a full-load test by connecting the intended devices. Monitor temperature rise at the enclosure and terminals–excessive heat suggests undersized conductors or inadequate cooling. Record voltage, current, and thermal readings for baseline performance tracking. Document the setup in the electrical schematics, including wire gauges, breaker sizes, and load calculations for future maintenance or expansion.
Critical Errors to Sidestep When Linking High-Line Voltage to Step-Down Units
Misidentifying input and output leads ranks as the most frequent and hazardous error. A 480Y/277 source requires clear labeling of line-side connections–L1, L2, and neutral–before attaching any load. Reverse polarity, even momentarily, can destroy windings or trip protective devices. Always verify phase sequence with a multimeter set to AC voltage; expected readings between line conductors should match system specifications±10%. Neutral-to-ground bonds must remain exclusive to the service panel–connecting them at the conversion device creates parallel paths, inviting fault currents.
Overlooking short-circuit protection invites catastrophic failures. High-line supplies demand appropriately sized fuses or breakers on both primary and secondary sides. A 30A primary circuit breaker paired with 20A secondary protection balances load demands without sacrificing safety margins. Use inverse-time trip characteristics for motors or inductive loads to prevent nuisance tripping during inrush. Ignoring these values risks overheating insulation, leading to thermal runaway–visible as discolored terminals or bubbled varnish.
- Skipping ground continuity tests leaves undetected faults. Measure resistance between the enclosure and neutral bus; readings above 0.1Ω indicate compromised connections.
- Using undersized conductors introduces voltage drop under load. For a 100-foot run at 20A, 12 AWG copper loses ~5.5V–swap to 10 AWG to stay below 3% drop.
- Assuming “quiet” loads ignore harmonic distortion. Switching power supplies draw non-linear currents, necessitating K-rated or toroidal units to avoid overheating.
Taping or insulating unused taps improperly leads to arcing. Manufacturer diagrams often show multiple voltage selections–cover unused terminals with approved high-temperature mastic, not standard electrical tape, which degrades at operating temperatures. Double-check torque specifications for terminal screws; loose connections create hot spots, measured with an infrared thermometer as localized temperature spikes exceeding 60°C.
Neglecting load calculations before installation wastes energy or damages equipment. A unit rated for 1 kVA handles 8.3A on the low side–exceeding this by 20% shortens lifespan by 40%. Account for diversity factors in multi-circuit installations; sum connected loads, then apply a 1.25 derating factor. Document all assumptions: example–three 15A circuits at 80% utilization equals 36A, requiring a minimum 5 kVA unit.
How to Calculate Correct Fuse Rating and Conductor Size for High-Line to Low-Line Voltage Step-Down
Start by determining the maximum continuous current the secondary circuit will draw using the VA rating of the device. Divide the apparent power (VA) by the output voltage (e.g., 120) to find amperage: I = VA / V. For a 1500VA unit, this equals 12.5A. Apply a 125% safety factor for continuous loads, raising the value to 15.6A. Select a fuse with a nominal rating slightly above this adjusted current–typically 16A or 20A depending on standard fuse sizes.
For conductor selection, consult NEC Table 310.16 or local equivalent codes for ampacity based on insulation type, ambient temperature, and installation method. A 15.6A load on a 60°C THHN copper wire requires at least 14 AWG (20A ampacity in free air). In conduit or bundled cables, derating applies: 16A necessitates 12 AWG (25A ampacity) for three current-carrying conductors at 75°C. Account for voltage drop over long runs; a 3% drop is often acceptable. Use VD = (2 × L × I × R) / 1000 where L is length in feet, I is current, and R is wire resistance per 1000 ft (2.5Ω for 14 AWG).
Primary side protection demands separate consideration. Calculate primary current using I = VA / V, substituting the higher-line voltage (e.g., 277). A 1500VA device draws 5.4A on the input side. Apply the same 125% factor, resulting in 6.75A. Fuses should be rated no higher than the conductor’s ampacity while exceeding this value. For primary wiring, 14 AWG copper suffices (15A ampacity at 60°C), but use 12 AWG if combining secondary and primary conductors in a shared conduit to meet derating rules.
Critical Overcurrent Device and Conductor Pairings
| Load (VA) | Secondary Current (A) | Fuse Rating (A) | Min. Wire Gauge (AWG) | Primary Current (A) | Primary Fuse (A) |
|---|---|---|---|---|---|
| 500 | 4.2 | 5 | 18 | 1.8 | 2.5 |
| 1000 | 8.3 | 10 | 16 | 3.6 | 5 |
| 2000 | 16.7 | 20 | 12 | 7.2 | 10 |
| 3000 | 25.0 | 30 | 10 | 10.8 | 15 |
Ambient temperature corrections are non-negotiable. If wires operate in 100°F+ environments, apply NEC Table 310.15(B)(1)(1) derating factors. A 20A-rated 10 AWG cue wire drops to 16A at 104°F. Overhead installations or enclosed spaces exacerbate heat retention–opt for wire gauges one size larger than calculated minimums. For European or Australian installations, use IEC 60364 standards: 16A circuits mandate 2.5 mm² copper, with fuses not exceeding 130% of nominal current.
Short-circuit protection requires fuses or breakers with interrupting ratings exceeding potential fault currents. A 10kA rating is standard for residential panels, but industrial applications may need 50kA. Verify manufacturer specs for the voltage conversion device; some units integrate thermal cutoffs, allowing smaller upstream fuses. Avoid relying solely on internal protection–always include external overcurrent devices sized as above.
Final verification involves multimeter testing under load. Measure actual current draw on both sides of the voltage conversion device. If readings exceed 80% of fuse or conductor ratings, upgrade components immediately. Document all calculations and component selections for future reference or inspections–compliance failures often result from undocumented deviations, not design errors.
