How to Wire Three Lights to One Switch Step-by-Step Guide
Start with a 14-gauge cable running from the circuit breaker to the wall-mounted actuator. Ensure the cable includes a ground wire, neutral (white), and hot conductor (black or red). Use a junction box rated for the amperage–typically 15A for residential setups. If the total wattage of connected devices exceeds 1,440W, upgrade to 12-gauge wiring to prevent overheating.
From the actuator, run another 14-gauge cable to the first fixture. Strip ½ inch of insulation from the ends of each conductor. Connect the hot wire from the actuator to the fixture’s brass terminal, the neutral to the silver terminal, and the ground to the green screw. Secure connections with wire nuts or lever connectors–instead of twisting alone–to avoid loosening under thermal expansion.
For additional fixtures, extend the circuit using daisy-chain method: attach hot, neutral, and ground wires from the first terminal block to the next. Avoid loops–keep all splices inside an approved junction box. Label each branch with tape to track function during future repairs. Test continuity with a multimeter before energizing the circuit: expect 120V between hot and neutral, 0V ground to neutral.

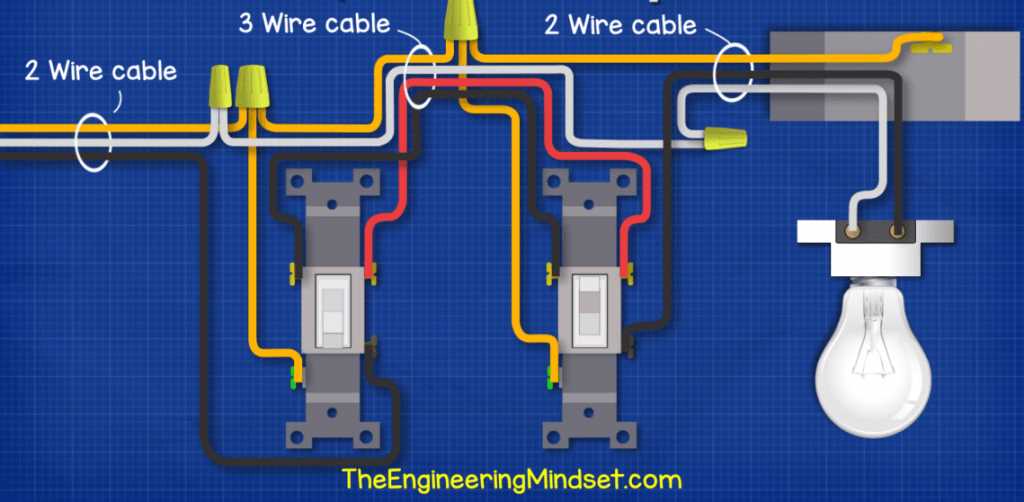

If dimming is required, replace the standard actuator with a dimmer-rated model. Verify compatibility with LED or CFL bulbs–some dimmers require a minimum load of 40W. Install the dimmer according to manufacturer’s torque specifications (usually 12-14 in-lbs) to prevent arcing. For three-way setups, add a second actuator using 14/3 cable (black, red, white, ground) and configure traveler wires between the two controls.
Before covering junction boxes, torque all screws to the panel’s specified value–loose connections cause resistance heating. Use a torque screwdriver calibrated to the local electrical code. Seal boxes with appropriate knockout seals to prevent dust ingress. Verify all splices are tucked neatly inside, without exposed copper touching adjacent terminals. Energize the circuit and check each fixture with a non-contact voltage tester.
Connecting Three Fixtures to a Single Control: Installation Guide
Use 12- or 14-gauge electrical cable for the entire circuit to handle the combined current of all three apparatuses safely. Run a 12/2 cable from the breaker panel to the toggle location, then a 12/3 cable from the toggle to the first device. Daisy-chain each subsequent unit with additional 12/2 cables, connecting the black (live) and white (neutral) conductors at every junction box in series. Secure all ground wires with a wire nut and attach them to each device’s grounding screw. Test with a non-contact voltage tester before restoring power.
Key Safety Steps
- Shut off the corresponding breaker and verify deactivation with a multimeter.
- Label every cable at both ends to avoid confusion during installation.
- Use junction boxes rated for the wattage of your fixtures–minimum 20 cubic inches for three 12-gauge wires.
- Keep the total wattage below 80% of the circuit’s capacity (e.g., 960W max for a 12A circuit).
- Coil excess cable neatly inside boxes to prevent overheating.
For dimmable setups, substitute the standard toggle with a dimmer compatible with the fixture type–LED, halogen, or incandescent. Install a separate 12/3 cable between the dimmer and the first unit, using the red conductor for the switched live. Ensure all connected devices are dimmable; non-dimmable models may flicker or fail. Check manufacturer specifications for minimum load requirements–some dimmers need at least 20W to function correctly.
Essential Equipment for Connecting Three Fixtures to an Electrical Control
Begin with a non-contact voltage tester (minimum 1000V CAT III rating) to verify circuit de-energization before handling conductors. Choose models with audible and visual indicators for low-light conditions.
Conductor and Junction Requirements
Select 14 AWG copper wire (for 15-amp circuits) or 12 AWG (for 20-amp circuits) with THHN/THWN-2 insulation rated for 90°C dry locations. Include 6–8 feet of red and black wire for switched feeds, plus matching white neutrals and bare/green grounding conductors. Calculate total length with 20% extra to account for stripping, connections, and routing errors.
Secure all splices with UL-listed wire nuts sized for the conductor count: yellow (3–4 wires), red (4–6 wires), or tan (6–8 wires). For exposed splices in attics or basements, use insulated crimp connectors (e.g., Buchanan 11-0501) paired with a ratcheting crimping tool (10–12 AWG range).
Control Mechanism and Safety Components
Install a single-pole toggle or Decora-style mechanism with an amperage rating matching the circuit breaker (15A or 20A). Verify the device has side-wired screw terminals or push-in slots (backstab) rated for the conductor gauge. For moisture-prone areas, use weatherproof variants with neoprene gaskets (e.g., Leviton 1221-W).
Grounding is non-negotiable: include a grounding pigtail (minimum 6 inches of 12 AWG bare copper) for the control device and a grounding bus bar if retrofitting a metal junction box. For plastic boxes, use self-tapping grounding screws (green, #10-32 thread) to secure the grounding conductor.
Use metal or PVC junction boxes sized for the fixture count: 4″ square (for 3 devices) or octagonal (for single termination points). Select boxes with integral clamps or knockout holes matching the cable type (NM-B, UF-B, or conduit). For new installations, opt for deep (3.5″) boxes to accommodate bulky splices and ensure 6 cubic inches of volume per conductor.
Label all conductors with heat-shrink tubing or numbered wire markers before terminating. Include a permanent marker and masking tape for on-site annotations. For final circuit verification, employ a multimeter (minimum 600V AC range) with diode-check functionality for troubleshooting miswired neutrals or grounds.
Stock a fiberglass or insulated screwdriver (4-in-1 type), wire strippers (10–22 AWG), and needle-nose pliers for shaping conductor hooks. For conduit installations, add a conduit bender (1/2″ EMT) and fish tape (25 feet) to pull cable through concealed pathways. Always keep a Class C fire extinguisher within 10 feet of the workspace.
How to Install Multiple Fixtures in Parallel Using a Single Control
Begin by cutting the power at the circuit breaker–verify absence of voltage with a non-contact tester before handling any conductors. Run a 12 AWG NM-B cable from the power source to the control location, leaving an 8-inch tail for connections. Attach the black (hot) wire from the incoming line to the common terminal of the control device, securing it with a wire nut if splicing is required. Extend three separate 12 AWG cables from the control’s load terminal to each fixture–each cable must contain a hot (black), neutral (white), and ground (bare/green) conductor. At the first fixture box, connect the incoming black conductor to the fixture’s hot terminal, then daisy-chain a second black wire to the next fixture, repeating the process for all three units while maintaining isolation between neutrals and grounds to prevent parallel path violations.
Securing Connections and Testing
Twist grounds together at each junction box, terminating them to the box (if metallic) or leaving them wire-nutted for non-metallic enclosures. Neutrals should follow the same branching pattern as hots–connect the incoming white to each fixture’s neutral terminal, then extend a pigtail to the next unit. Cap all splices with UL-listed connectors, ensuring no exposed copper remains. Restore power and toggle the control–if any fixture fails to illuminate, check for reversed neutrals, loose connections at wire nuts, or improper grounding paths using a multimeter to measure 120V across each hot-neutral pair.
Identifying and Preparing Conductors for a Triple-Fixture Control Setup
Turn off the mains breaker feeding the area where the connections will be made–confirm with a non-contact voltage tester before handling any wires. Expose at least 12mm of copper on each conductor, ensuring strands are tightly twisted; frayed ends increase resistance and create potential failure points. Label all wires with masking tape or colored sleeves: black or red (hot), white (neutral), bare or green (ground), and an additional traveler wire if dual-control is intended.
| Wire Type | Standard Gauge (AWG) | Safe Current Load (Amps) | Max. Circuit Breaker Rating (Amps) |
|---|---|---|---|
| 14 | 2.08 mm² | 15 | 15 |
| 12 | 3.31 mm² | 20 | 20 |
| 10 | 5.26 mm² | 30 | 30 |
Use wire strippers calibrated for the gauge–14 AWG for 15-amp circuits, 12 AWG for 20-amp–to prevent nicking conductors, which weakens them under load. Remove oxidation from copper with emery cloth if wires have sat unused; clean connections reduce voltage drop. Group all neutrals in the same junction box segment: mixing circuits can cause nuisance tripping. Verify ground continuity from the panel to the metal box and each fixture frame–bonding clips must be tight, without paint or rust.
For a three-way application, identify the common terminal on the toggle–usually darker-colored or marked “COM”–and mark it clearly. Travelers (brass terminals) must use identical pairs; swapping them causes irregular operation. Align wire nuts with the conductor count: yellow for 3-4 wires (12-14 AWG), red for 4-5 wires (10-12 AWG). Twist clockwise, apply moderate pressure, and tug gently to ensure no slippage. Wrap each nut with electrical tape for extra security.
Push grouped conductors neatly into the box, avoiding sharp edges; staple cables within 200mm of entry points if running through studs. Re-check polarity with a multimeter: hot-to-neutral should read 120V (240V for international supplies), hot-to-ground near zero. Snap the cover plate on before restoring power to detect any immediate issues–humming or warmth indicates a loose connection needing re-tightening.
