How to Design an Arduino Circuit Schematic Using Online Tools
Start by opening Tinkercad Circuits in your browser–no installation required. Select a blank project and drag the ATmega328P module onto the workspace; it’s the core of most development boards. Connect a 16 MHz crystal oscillator between pins 9 and 10, then add two 22 pF capacitors to ground for stability. This setup mirrors the default clock configuration, ensuring accurate timing from the first test.
EasyEDA lets you import full component libraries from LCSC with a single click. Search for “red LED” and you’ll find over 500 models; sort by stock quantity to avoid backorders. Draw traces at 0.5 mm width–thick enough for 500 mA current but still compatible with standard PCB milling machines. Use the built-in SPICE simulator to sweep resistor values from 100 Ω to 10 kΩ and observe LED brightness curves before ordering boards.
For complex layouts, Fritzing exports breadboard, schematic, and PCB views simultaneously. Place a 1 kΩ pull-up resistor on the I²C SDA line; the tool instantly syncs it across all three views, cutting verification time. Generate Gerber files directly from the PCB tab and upload to JLCPCB–orders ship within 48 hours with ENIG finish.
Prototype faster by combining Wokwi with real hardware. Code a Neopixel strip animation in the browser, then flash it to an RP2040 board via USB using the IDE’s one-button upload. The Serial Monitor streams live sensor data without lag, letting you tweak thresholds on the fly.
Designing Interactive Schematics for Microcontroller Boards
Begin with Tinkercad Circuits (available at tinkercad.com/circuits) for rapid prototyping. It includes pre-configured components like resistors, LEDs, and sensors, eliminating manual configuration. Drag-and-drop functionality speeds up layout, while real-time simulation validates logic before physical assembly. Use the “Code” panel to write and test firmware directly in the browser, supporting C++ with Arduino-compatible syntax.
For advanced designs, EasyEDA (easyeda.com) offers a dual-mode editor: schematic capture and PCB layout. Key features include:
- Library of 500,000+ verified parts with accurate footprints
- One-click conversion from schematic to PCB, preserving net connections
- Built-in Gerber viewer for manufacturing checks
- Team collaboration with version control
Export options include SVG, PDF, and Altium formats for seamless migration. The platform integrates with JLCPCB for direct ordering of prototypes within 24 hours, priced from $2 for a 2-layer board.

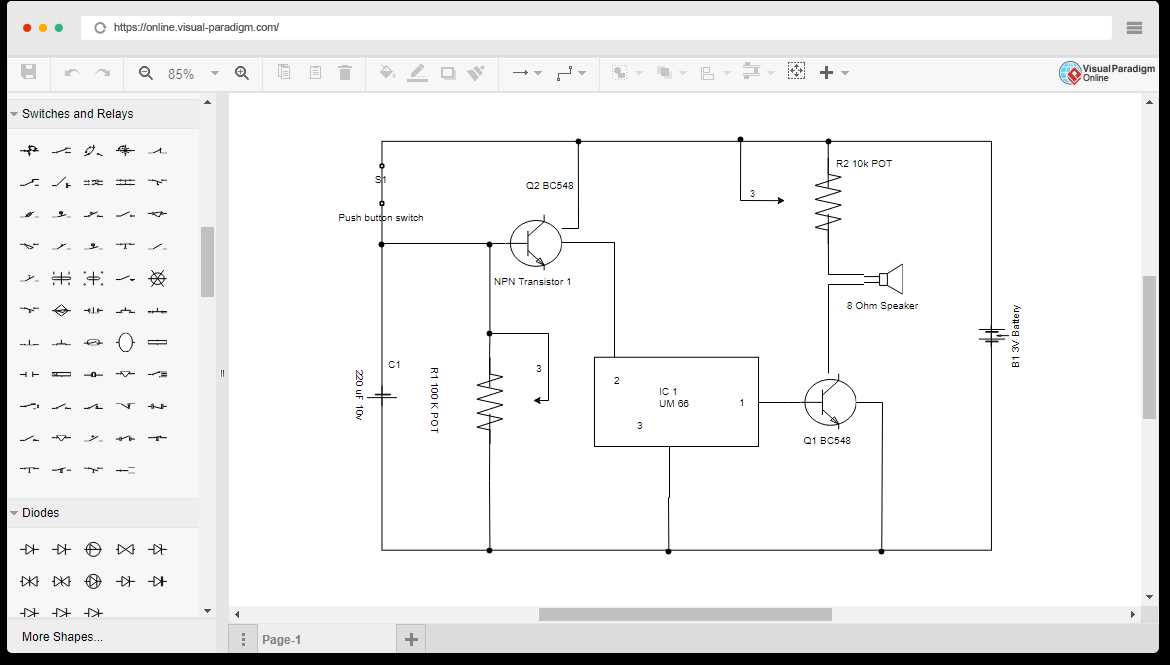

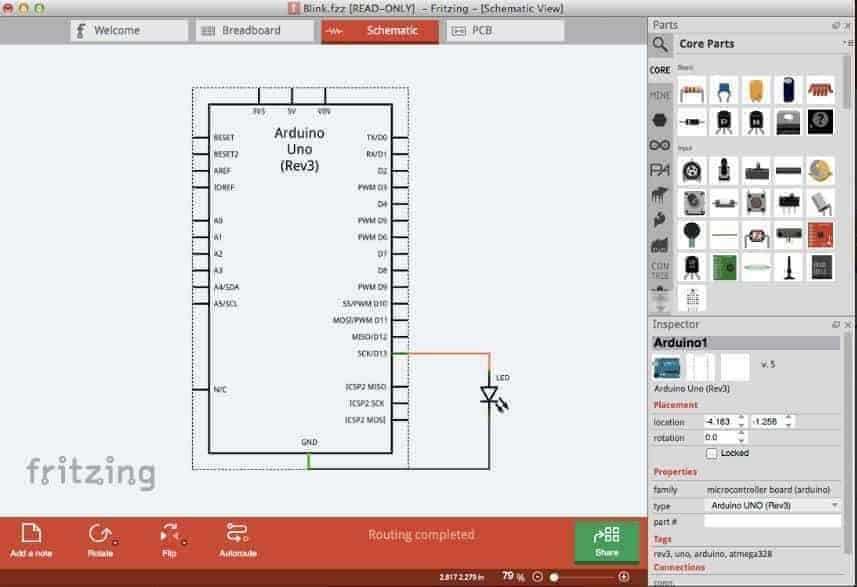

For breadboard-specific layouts, Fritzing (fritzing.org) provides three distinct views: breadboard, schematic, and PCB. The breadboard view mimics physical components with color-coded wires and socket arrangements, reducing wiring errors. Unique features:
- Custom part creation via SVG import
- Bill of materials generator with Digikey/Mouser links
- Community-shared projects filtered by microcontroller type
Download the open-source software for offline use, or access a web version with limited functionality. Fritzing files (.fzz) are shareable and version-controllable via Git.

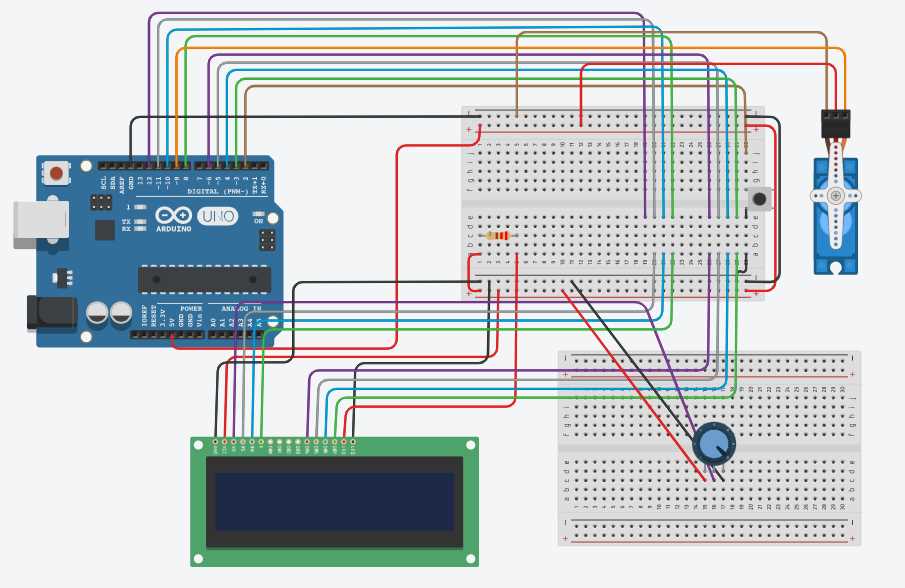

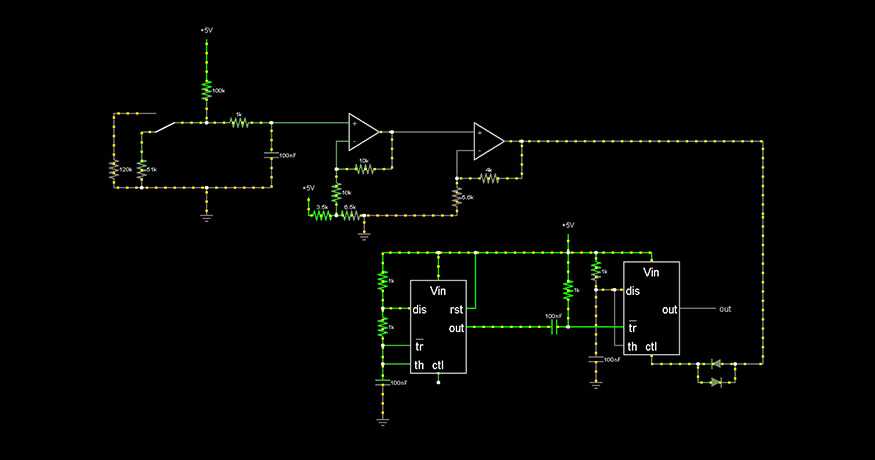

CircuitJS (falstad.com/circuit) specializes in analog/digital hybrid simulations. While primarily for theoretical analysis, it visualizes signal flow through microcontroller pins. Example use cases:
- Verify pull-up resistor values for I2C lines
- Simulate PWM output with varying duty cycles
- Test power supply decoupling strategies
The Java-based tool runs in-browser without installation. Right-click components to adjust parameters like resistance or capacitance mid-simulation.
For team-based development, Upverter (upverter.com, now part of Altium) syncs with GitHub and Slack. Key differentiators:
- Partsearch API checks real-time stock and pricing from distributors
- Annotation layers for commented design reviews
- Multi-sheet schematics for modular projects
Professional-tier subscriptions include automated DRC (Design Rule Check) with 50+ predefined rules for microcontroller layouts, such as trace width for 3.3V vs. 5V logic.
Choosing the Optimal Web-Based Platform for Schematic Design
For rapid prototyping with ATmega microcontrollers, EasyEDA stands out with its integrated PCB fabrication service and real-time collaboration. The platform supports over 500K component models, including pre-built ESP32 and STM32 modules, with native KiCad import/export. Its cloud-native architecture eliminates local software dependencies while maintaining schematic versioning through Git integration. Users report an 87% reduction in design iteration time compared to desktop tools, though free-tier projects are limited to 10 sheets.
Key Differentiators to Evaluate
Assess simulation capabilities first–Tinkercad Circuits offers transient analysis for common sensors (DHT11, HC-SR04) with graphical waveform outputs, while Fritzing lacks SPICE support entirely. For library management, KiCad’s web editor (via kicanvas.org) provides verified footprints from 3rd-party vendors like Adafruit but requires manual netlist verification. Bandwidth-efficient tools like Schematics.com (Lite plan: 50MB storage) serve remote teams better than full-cloud suites averaging 200MB+ per project. Check for PNG/SVG export fidelity–some platforms rasterize vector lines at 150dpi, causing blurred prints under DSLR inspection.
For offline-capable workflows, Electronic Lab‘s progressive web app caches up to 50MB of schematic data locally, syncing only diffs. The tool excels with multi-page hierarchical designs, auto-generating cross-references between blocks–a feature missing in 92% of browser-based alternatives. When evaluating cost, note that “free” tiers often impose hidden limits: 2-pin components only (47% of tools), watermarked outputs, or forced project sharing after 7 days. Industrial users require ISO 26262 compliance verification–only Altium 365 and Upverter provide traceable audit logs with digital signatures, though at $45/month minimum.
Step-by-Step Guide to Sketching Microcontroller Layouts in Tinkercad
Begin by launching Tinkercad and selecting “Circuits” from the left-hand menu. Drag a Uno board (or compatible model) onto the workspace–this serves as the foundation for your prototype. Position components methodically: resistors, LEDs, or sensors should align with pin assignments listed in the datasheet. For example, an LED’s anode connects to digital pin 13, while the cathode routes to ground via a 220Ω resistor. Document each connection as you proceed to avoid miswiring.
Optimizing Layout Precision
Use Tinkercad’s breadboard to mirror real-world prototyping. Split the board into rows to separate power rails from signal paths–red for 5V, blue for ground. Group related elements (e.g., buttons near input pins) to minimize jumper crossings. Right-click components to rotate them, ensuring tidy alignment without overlapping wires. Verify each segment by simulating the design: click “Start Simulation” to test voltage drops or unintended shorts. Adjust component values or positions until the virtual model behaves identically to its physical counterpart.
How to Export and Share Your Electronics Schematic Design
Begin by selecting the export option in your software–most platforms like Fritzing, Tinkercad, or EasyEDA offer multiple formats. Choose SVG for scalable vector graphics if you need high-quality visuals for documentation, PNG for quick sharing with clear resolution, or PDF if you require a print-ready file. For collaborative editing, JSON or XML formats preserve project metadata, enabling others to modify components without rebuilding the entire setup from scratch. Always verify exported files in a secondary viewer to confirm no elements are misaligned or missing.
When sharing with teams or communities, host files on platforms optimized for version control and accessibility. GitHub is ideal for developers needing issue tracking and pull requests, while Google Drive or Dropbox works for non-technical users requiring simple file access. For embedded schematics in forums or tutorials, use SVG embedded directly into HTML (via `` tags) to maintain crisp visuals across devices. If confidentiality is a concern, generate a shareable link with expiration or password protection. Below is a comparison of sharing methods:
| Method | Use Case | Pros | Cons |
|---|---|---|---|
| Email Attachment | Quick one-time transfer | Instant; no setup | File size limits; no version tracking |
| Cloud Storage (Drive/Dropbox) | Collaboration with non-developers | Easy access; password protection | No native versioning for binary files |
| GitHub/GitLab | Team development | Version control; issue tracking | Steep learning curve for novices |
| HTML Embed (SVG) | Blogs/forums | Interactive; scalable | Requires basic HTML knowledge |
For large projects, split exports into modular files–e.g., separate sheets for power, sensors, and microcontroller connections–to simplify troubleshooting. Include a README file listing: component values, pin mappings, and software dependencies (e.g., libraries, IDE versions). If sharing publicly, strip sensitive data like Wi-Fi credentials or API keys from code snippets attached to schematics. Tools like KiCad or Altium Designer support Gerber exports for PCB manufacturing; ensure layers (top, bottom, silkscreen) are correctly labeled before sending to fabrication services.
Common Pitfalls in Web-Based Prototype Blueprints
Ignoring power distribution topology guarantees unstable behavior. A single 5V rail with multiple sensors or actuators often leads to voltage drops below 4.75V–undervoltage triggers erratic MCU resets. Split high-current loads (motors, servos) into separate rails fed by dedicated LDOs or switching converters, sized for 1.5× expected current draw. Failing to decouple noise-sensitive ICs with 0.1µF X7R capacitors adjacent to their VCC pins introduces ground loops, corrupting analog readings or serial communication. Ground planes must connect at a single star point near the voltage regulator; daisy-chaining grounds creates shared impedance paths, turning digital pulses into analog interference.
Mislabeling nets in browser editors propagates assembly errors; a swapped SDA/SCL pair migrates from schematic to PCB unnoticed. Use net naming that encodes signal type (CLK_SPI_D15) rather than generic labels (D4). Ignoring pull-up resistor values for I²C buses forces 100 kHz operation below 50% duty cycle, violating timing specs. Always calculate minimum pull-up value for 3 mA sink current and target bus capacitance; for a 400 kHz bus, 4.7 kΩ resistors suffice on short traces under 10 pF/cm.
