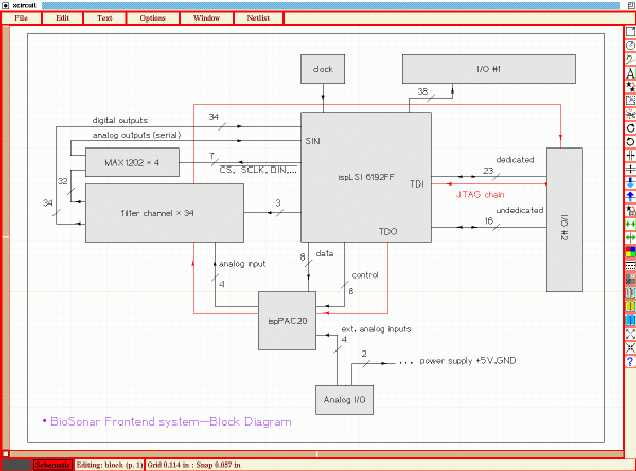

Best Free Tools for Drawing Circuit Diagrams in 2024

KiCad remains the most versatile open-source platform for designing electrical layouts. It handles everything from simple breadboard sketches to complex multilayer boards with built-in 3D visualization. The intuitive component library includes thousands of pre-built symbols, while the integrated footprint editor eliminates guesswork when translating designs into physical form. Real-time design rule checks prevent common errors before production, saving hours of debugging. Available for Windows, macOS, and Linux, it outperforms many commercial alternatives in stability and feature depth.

QElectroTech excels where clarity matters most–documentation and teaching. Its drag-and-drop interface creates clean, scalable diagrams ideal for technical manuals or educational materials. The tool automatically numbers components and generates a bill of materials, reducing manual work. Export options include vector formats like SVG and PDF, ensuring crisp prints even for large posters. Unlike some alternatives, it avoids bloated interfaces, keeping only essential tools visible. The project’s active community regularly adds new symbols, covering niche components often missing elsewhere.

For lightweight needs, LibrePCB offers a minimalist approach without sacrificing power. It simplifies the workflow by separating schematic capture from PCB layout, making it easier for beginners. Native support for Gerber and Excellon formats means finished designs can go straight to fabrication with no conversion steps. The tool also includes a unique “project” system, grouping related schematics, PCBs, and production files into a single folder–eliminating version mismatch headaches. Built on Qt, it runs smoothly even on older hardware.

Fritzing bridges the gap between virtual design and hands-on prototyping. Its unique breadboard view replicates physical connections, helping users transition from breadboards to final designs. The tool includes an extensive parts library with accurate footprints for Arduino, Raspberry Pi, and other maker platforms. While less suited for professional PCB manufacturing, its focus on education and rapid iteration makes it ideal for hobbyists. Exporting to solderable PCB layouts requires just one click, unlike other programs needing multiple conversion steps.

For Windows users who prefer an all-in-one solution, DesignSpark PCB combines schematic capture, layout, and simulation. The simulation engine models signal integrity, thermal behavior, and power distribution–features usually reserved for expensive EDA suites. Cloud-based collaboration allows teams to work on the same project simultaneously, with changes tracked in real time. The tool’s auto-router handles complex traces efficiently, though manual adjustments often yield better results. Integrated STEP export enables seamless transition to mechanical CAD for enclosure design.

Best Tools for Drawing Electronic Schematics Without Cost

KiCad stands as the leading open-source solution for professional-grade designs. It supports multilingual interfaces, hierarchical sheets, and seamless PCB integration. The built-in 3D viewer and extensive component libraries (over 20,000 symbols) eliminate the need for third-party plugins. Compatibility extends to Windows, Linux, and macOS, with nightly builds offering cutting-edge features.

Key advantages:

Feature	Details
Export formats	SVG, PDF, Gerber, Eagle XML
Simulator	Ngspice for SPICE analysis
Customization	Python scripting for automation
Community	Active forums, 1,000+ GitHub contributors

For users seeking simpler alternatives, Fritzing provides an intuitive drag-and-drop interface ideal for beginners and educators. While less powerful than KiCad, it excels in quick breadboard-to-schematic conversions and includes a parts editor for custom components. The software offers three distinct views: schematic, breadboard, and PCB layout, all synchronized in real-time.

LibrePCB emerges as a lightweight but capable contender, focusing on cross-platform compatibility and a clean user interface. It features a strict project management system where each design consists of separate files for symbols, footprints, and devices. The built-in marketplace allows users to share and download verified component libraries, reducing setup time.

Comparison of lightweight options:

Tool	Strengths	Limitations
Fritzing	Visual breadboard representation	Limited simulation capabilities
LibrePCB	Project-based file structure	Smaller community support
QElectroTech	Extensive symbol library	Outdated UI design

For specialized needs, QElectroTech offers an extensive collection of industry-standard symbols (IEC, ANSI) and supports complex multi-page projects. Its element catalog includes predefined layouts for electrical installations, making it popular among industrial designers. However, the interface feels dated compared to modern tools.

Users requiring cloud-based solutions should consider EasyEDA, which combines schematic capture with PCB design and manufacturing services. The platform allows collaborative editing and includes a vast part library from LCSC. While the free tier offers generous resources, export limitations apply to non-paid accounts.

For mobile users, ElectroDroid provides Android tools including a schematic editor optimized for touch interfaces. It bundles calculation utilities for resistor color codes, voltage dividers, and Ohm’s law, making it a handy reference for fieldwork. The editor supports basic netlist exports but lacks advanced PCB features.

Best 5 No-Cost Schematic Design Applications for New Engineers in 2024

KiCad leads with open-source flexibility and zero hidden costs. The platform integrates schematic capture, PCB layout, and 3D visualization in one workflow. Beginners benefit from an extensive library of pre-made components and active community forums where answers to common issues surface quickly. The application exports designs to Gerber files for direct fabrication, eliminating manual intermediary steps. Regular updates introduce features like improved netlist synchronization, reducing errors during prototyping transitions.

EasyEDA combines cloud accessibility with robust local tools, requiring only a web browser to start. Its drag-and-drop interface simplifies component placement, while real-time collaboration lets teams edit simultaneously. The built-in simulation module supports SPICE models, allowing voltage and current analysis without external plugins. Projects sync automatically to Google Drive or local storage, safeguarding progress. A curated marketplace offers verified modules, accelerating prototyping for sensor or power electronics projects.

Fritzing excels for hobbyists and educators with breadboard-centric design views. Three distinct tabs–schematic, PCB, and breadboard–let users verify physical connections alongside abstract layouts. Export options include vector graphics for documentation or SVG files for laser-cut enclosures. The application’s focus on physical representation reduces decoupling errors common in purely abstract tools. While less suited for complex multi-layer boards, it shines for quick validation of Arduino or Raspberry Pi expansions.

Tinkercad Circuits targets absolute beginners with an intuitive block-based editor. Users design by connecting virtual Arduino boards, LEDs, and resistors in a sandbox environment. Integrated code simulation lets sketches execute in-browser, providing instant feedback on logic flaws. The platform exports complete Arduino projects as ZIP files, ready for upload to physical hardware. While limited to basic analog/digital projects, its simplicity makes it ideal for STEM classrooms introducing electronics fundamentals.

QElectroTech prioritizes clarity with clean vector-based diagrams optimized for documentation. The application formats outputs for DIN standards, ensuring compatibility with technical manuals or educational materials. Custom symbol creation allows alignment with institutional naming conventions, while the batch-processing feature applies global changes across multiple sheets. Lightweight and portable, it runs on low-spec devices without lag. Professionals use it alongside specialized CAM tools, leveraging its strengths in schematic organization rather than PCB routing.

Each tool addresses distinct pain points: KiCad for full-cycle design, EasyEDA for remote collaboration, Fritzing for physical prototyping, Tinkercad for education, and QElectroTech for standardized documentation. Selection depends on the project’s scope–breadboarding vs. industrial PCB production–and skill level. Most offer cross-platform support, with KiCad providing native builds for Linux, macOS, and Windows, while others rely on browser or portable executables.

Performance varies under load: EasyEDA handles 1000+ component designs smoothly due to cloud offloading, whereas Fritzing may slow with complex breadboard layouts. For offline work, KiCad and QElectroTech remain entirely local, avoiding cloud dependency risks. Users upgrading from beginner tools often migrate to KiCad for its balance of simplicity and depth, citing its hierarchical schematics and plug-in ecosystem as differentiators.

Designing High-Quality Electronic Blueprints Using Cost-Free Tools

Begin with KiCad, an open-source suite that rivals commercial alternatives. Download the latest stable release from its official repository–versions older than 7.0 lack critical features like differential pair routing and native DXF import. Configure default grid settings (0.254mm for imperial projects, 0.5mm for metric) before placing a single component to avoid alignment issues later.

Import custom component libraries to avoid errors. KiCad’s default symbol library lacks modern parts like USB-C connectors or BGA footprints. Create a personal library folder (/kicad/custom_libs/) and populate it with verified models from manufacturer datasheets or repositories like SnapEDA and Ultra Librarian. Verify each footprint’s courtyard (CrtYd) layer–this prevents assembly conflicts during prototype runs.

• Use KiCad’s PCB Calculator for precise trace width calculations. Input your board’s copper weight (typically 1oz for standard FR4) and desired current (1A for signal traces, up to 5A for power). The calculator outputs minimum widths and clearance values–override the auto-router’s defaults with these figures to prevent overheating.
• Assign net classes (File → Board Setup → Net Classes) for different trace types. For example:
• Power nets: 0.3mm width, 0.2mm clearance
• Signal nets: 0.15mm width, 0.12mm clearance
• High-speed nets (e.g., DDR): 0.12mm width with length matching
• Enable Design Rules Check (DRC) early and run it after every major edit. Configure DRC to flag violations like:
• Silk-to-pad clearance (<0.2mm)
• Annular ring violations for vias (≥0.1mm)
• Courtyard overlaps (≥0.1mm)

Qucs (Quite Universal Circuit Simulator) handles pre-layout validation for analog and RF designs. Export your schematic from KiCad as a .sch file, then import it into Qucs for SPICE simulation. For accurate results:

1. Define component models. Replace generic diodes/resistors with manufacturer SPICE models (e.g., 1N4148.mod for switching diodes).
2. Set analysis parameters:

   DC Sweep: 0V to 5V, 0.1V steps for op-amp circuits.

   AC Analysis: 1Hz to 1GHz, 10 points/decade for filters.

   Transient: 1μs steps for 10ms duration.

3. Use QucsStudio (a fork with improved GUI) if importing hierarchical schematics from KiCad.

EasyEDA (desktop version) bridges schematic capture and PCB layout when KiCad’s workflow feels cumbersome. Its strength lies in cloud-based collaboration, but the offline editor suffices for solo projects. Key steps:

• Sync your KiCad schematic via .json export/import. EasyEDA’s library often has missing footprints–create custom parts with:
• Accurate silk screen (≥0.15mm line width)
• 3D model references (for mechanical checks)
• Assembly variants (e.g., for SMD vs. THT components)
• Use the Gerber Viewer to verify outputs before ordering. Focus on:
• Drill hits (missing holes indicate misaligned layers)
• Solder mask expansion (0.1mm over pads)
• Board outline precision (±0.05mm for panelization)

For RF/microwave designs, supplement KiCad with AppCAD (Avago’s legacy tool). It calculates microstrip impedances, via inductance, and transmission line losses–critical for boards operating above 100MHz. Follow this sequence:

1. Measure your substrate (εr, typically 4.3 for FR4; 3.4 for Rogers RO4350).
2. Input trace geometry (0.2mm width, 35μm copper thickness).
3. Adjust for target impedance (50Ω for RF, 100Ω for differential pairs).
4. Validate AppCAD’s outputs in KiCad’s PCB Calculator under the Transmission Line tab.

LibrePCB shines for multi-board projects requiring synchronized libraries. Its version control system prevents footprint/symbol drift across designs. Workarounds for limitations:

• Missing 3D models: Export STEP files from FreeCAD and assign them in LibrePCB’s Package Editor.
• No differential pair routing: Use manual neck-downs (0.1mm width for 50Ω traces) and meander lengths for phase matching.
• Import KiCad projects by converting .sch/.kicad_pcb files to .lpp via KiCad2LibrePCB script (Python 3.9+ required).

Finalize outputs with Gerbv (Gerbv Viewer) to catch fabrication errors. Cross-check:

• Gerber files (.gbr): Confirm all layers (copper, silk, mask, outline) align via Layer → Toggle Visibility.
• NC Drill files (.txt): Verify drill sizes (≥0.3mm for through-hole; 0.2mm for vias) and hitting all pad centers.
• Pick-and-place files (.csv): Ensure component rotations (0°, 90°, 180°, 270°) match footprints and reference designators are unique.

Export IPC-2581 or ODB++ format if your manufacturer supports it–this reduces CAM preparation time by bundling all layers, nets, and components into a single file.
