3 Pin Flasher Relay Wiring Guide and Circuit Diagram Explained

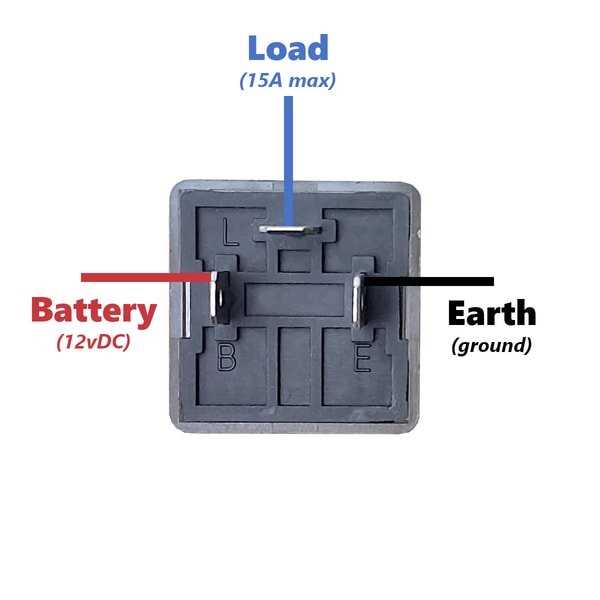

Start by identifying the load output, input power, and control trigger contacts on your signal switch. Most units label these as “L” (load), “B” or “30” (battery feed), and “E” or “49” (activation terminal). Confirm the labeling matches your device–some manufacturers invert the load and input terminals. Use a multimeter in continuity mode to verify: connect the probe to the suspected load terminal and momentarily ground the activation contact; the meter should beep if correct.
For standard installations, attach the positive battery line directly to the input terminal using 16-gauge wire or thicker. Splice in a 20A fuse no farther than 15 cm from the connection to prevent short-circuit damage. Route the load terminal to your turn signal bulbs through the existing loom, ensuring insulation is stripped no more than 6 mm to avoid exposed copper contacting chassis ground. The activation terminal connects to the turn signal switch; if your vehicle uses a separate hazard warning system, link this contact to both the turn signal and hazard switches via a junction box to avoid signal conflicts.
Grounding requirements vary: some units have a built-in ground via the mounting tab, while others require a dedicated wire. Test before finalizing: power the input, momentarily bridge the activation terminal to ground, and check for a steady click from the switch’s internal mechanism. No click indicates a loose connection–re-examine all joints for cold solder points or stripped threads. For vehicles with LED bulbs, add a 6-ohm, 50W load resistor across each bulb socket to prevent rapid flashing, ensuring the resistor’s body sits away from plastic components to avoid heat damage.
Troubleshooting sequence: if signals flash too quickly, verify the load resistance meets the switch’s minimum requirement (typically 21W per bulb). If flashing stops entirely, check the activation terminal’s voltage with the switch engaged–it should toggle between 12V and 0V when operating. Replace the unit if the coil amperage exceeds 150mA with the circuit energized, as this signals internal wear. Always reconnect the battery’s negative terminal last to prevent accidental shorts during installation.
Connecting a Three-Terminal Turn Signal Device: Step-by-Step Guide
Locate the power source terminal marked “B” or “+” on your device. Connect this directly to a 12V battery positive lead or a fused ignition circuit. Use 16-gauge wire for standard automotive applications; thicker 14-gauge is recommended for high-current setups exceeding 5 amps. Secure connections with solder or crimp connectors, then insulate with heat-shrink tubing to prevent corrosion.
Identify the load output labeled “L” or “S” on the unit. This connects to your turn signal bulbs or LED assemblies. For single-filament bulbs, run a single wire from this terminal to each bulb socket. Dual-filament setups require an additional wire from the parking light terminal on the bulb to the appropriate circuit. Test with a multimeter before finalizing – expect 0.2-0.5 ohms resistance between this output and ground when active.
Ground Connection and Voltage Drop Testing
Attach the remaining terminal (typically marked “E” or “-“) to a solid chassis ground point using 12-gauge braided wire for optimal conductivity. Avoid sheet metal rivets; drill and tap a dedicated hole near the installation site. Verify ground integrity by checking for less than 0.1V drop between the device’s ground terminal and battery negative while operating at full load. Replace any corroded or oversized ground wires immediately.
For sequential LED installations, connect a 150-ohm resistor between the load output and each LED cluster. This prevents hyperflashing caused by low current draw. Standard incandescent bulbs may require a load equalizer if replacing with LEDs – these typically connect between the load wire and ground, mimicking the resistance of a traditional bulb at 1-2 ohms.
After wiring completion, validate operation by activating both turn signals. Expect 60-120 flashes per minute; adjust timing if outside this range using an inline potentiometer if your device supports it. For audible confirmation, add a piezoceramic buzzer between the power input and load output terminals. Test all connections with a digital thermometer during extended operation – temperatures above 80°C indicate potential overheating issues requiring immediate troubleshooting.
Identifying the Terminals on a 3-Contact Signal Switch

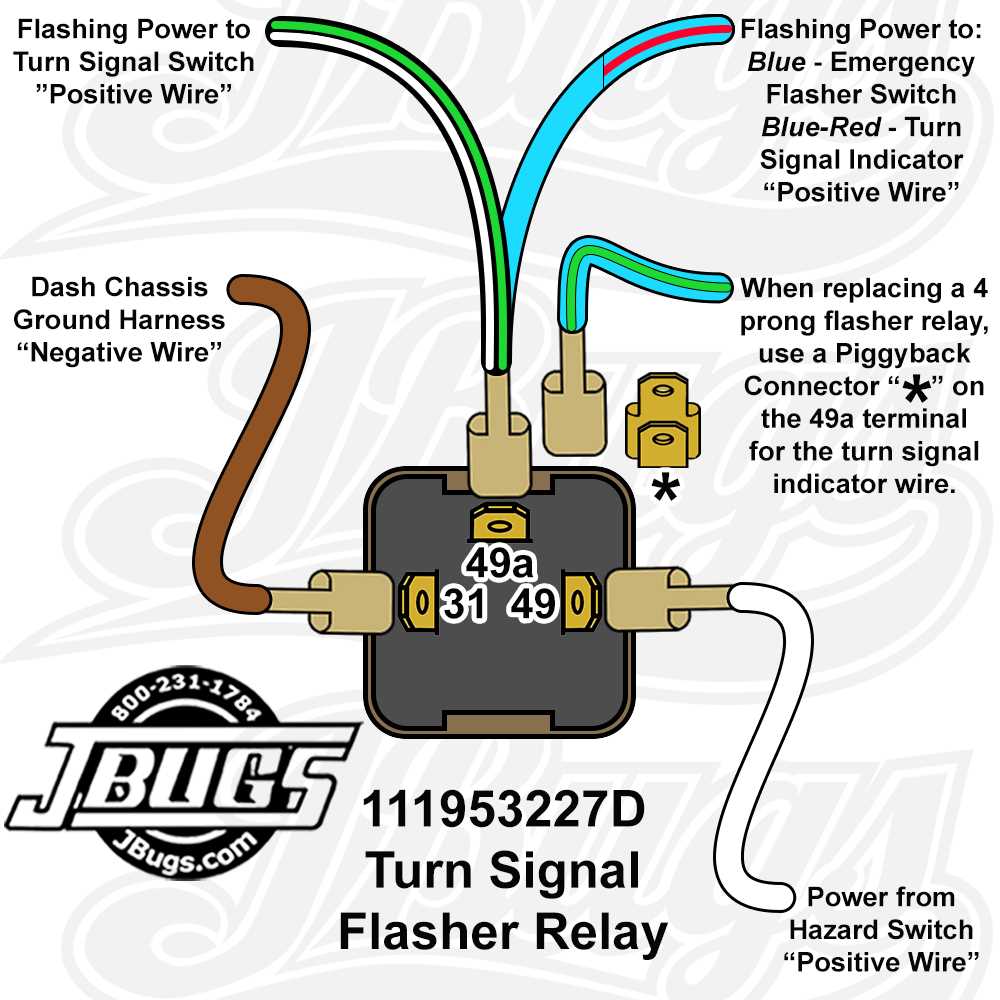

Locate the terminal marked 49–this connects to the positive feed from the vehicle’s fuse box, typically via a yellow or white lead. The opposite end, labeled 31, grounds the circuit and must attach to a clean metal surface or the chassis; corrosion here causes erratic blinking. Between them sits 49a, the output to the turn indicators; verify polarity with a test light before securing connections, as reversed wiring risks damaging the switch unit.
- 49: Power input, accepts 12V from ignition-switched source; measure voltage here first to confirm consistent supply.
- 31: Return path, requires zero resistance–scrub paint or rust before fastening.
- 49a: Signal output, pulses to front and rear lamps; trace continuity with a multimeter while cycling the lever.
Replace any terminal showing heat discoloration or melted insulation–these defects disrupt timing and lamp brightness. For aftermarket units, cross-reference markings against the stock replacement; minor deviations can cause circuit overload or rapid flashing.
Step-by-Step Guide to Connecting Turn Signal Circuits
Begin by identifying the signal control module’s power input terminal–typically marked with a “+” symbol–and connect it to the vehicle’s 12V fuse box using 16-gauge wire. Ensure the fuse rating matches the system’s load (usually 10A for standard setups). Route the wire away from hot surfaces or sharp edges, securing it with wire loom or adhesive clips every 6–8 inches to prevent vibration damage. Test the connection with a multimeter before proceeding: voltage should read 12–14V with the ignition on.
Locate the ground reference point on the module–a bolt or bare metal surface on the chassis–and attach a 14-gauge wire. Use a star washer between the wire terminal and chassis to maintain conductivity, especially if the surface has paint or corrosion. Tighten the connection to 12–15 lb-ft torque; loose grounds cause intermittent flashing or hyper-blink. For vehicles with aluminum frames, use a dedicated grounding busbar instead of direct chassis attachment to avoid oxidation issues.
Component Compatibility Check
| Wire Gauge | Max Current (A) | Recommended Application |
|---|---|---|
| 18 | 7 | LED signal lights (low load) |
| 16 | 10 | Most halogen/incandescent bulbs |
| 14 | 15 | High-intensity or dual-filament bulbs |
| 12 | 20 | Heavy-duty or auxiliary lighting |
Attach the signal output terminal to the turn light circuit using color-coded wires: yellow for left, green for right (standard on most vehicles). If modifying a factory circuit, trace the existing harness to the bulb socket and splice into the wire 4–6 inches from the socket to avoid heat damage. For aftermarket setups, use waterproof butt connectors crimped with a ratcheting tool–avoid solder alone, as vibration can crack joints over time. Apply dielectric grease inside connectors to prevent moisture ingress.

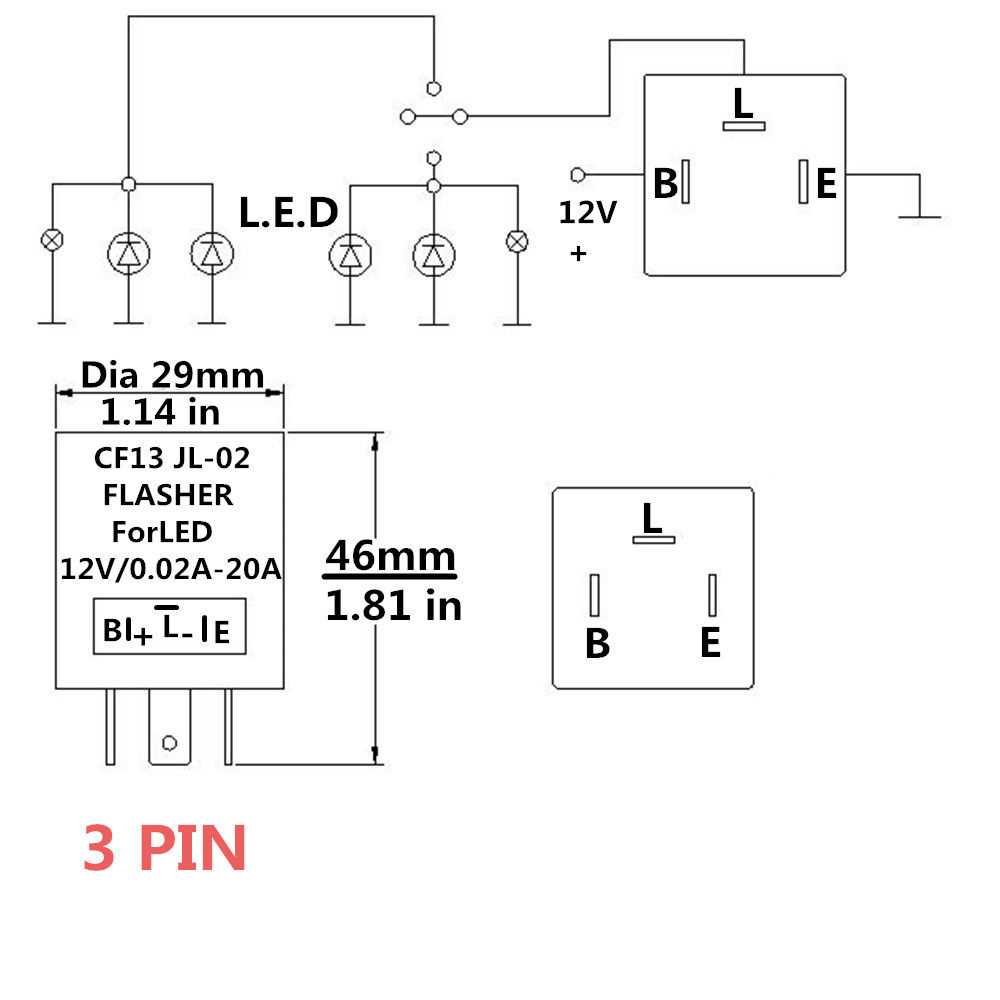

Verify circuit integrity by activating each signal in sequence. A rapid blink (hyper-flash) indicates an LED load mismatch; install a load resistor (typically 6Ω/50W) in parallel with the LED bulb to correct this. For vehicles with self-canceling stalks, ensure the module’s cancel terminal connects to the stalk’s feedback wire–consult a wiring schematic for your specific make/model, as wire colors vary (e.g., Ford uses dark blue for cancel feedback, GM uses pink). Finalize the setup by securing all connections with shrink tubing and rechecking ground continuity.
Mount the control module in a dry, ventilated area–under the dashboard or inside a fender well–using zip ties or a bracket. Avoid locating it near heat sources like exhaust manifolds or radiators, as temperatures above 85°C (185°F) can trigger premature failure. For motorcycles or narrow installations, opt for compact solid-state modules with thermal protection. Test all functions (front/rear/emergency) before reassembling trim panels: a single failure point often traces back to a loose ground or inadequate wire gauge.
Common Errors in Installing a Turn Signal Control Unit
Incorrect terminal order causes immediate malfunctions. The 12V input, load output, and grounding contact must follow the manufacturer’s specified sequence–mixing them leads to silence or constant illumination. Verify compatibility with LEDs before installation; standard mechanical units draw more current than electronic bulbs, risking hyper-flashing or burnout. Test continuity with a multimeter after securing connections: a reading of 1-3 ohms confirms proper contact, while infinite resistance signals a faulty link.
Skipping Load Resistance Checks
- Replace all bulbs simultaneously to prevent uneven current draw.
- Add a fixed 6Ω resistor across LED circuits if retrofitting.
- Measure amperage at the load terminal–modern vehicles seldom exceed 2.1A per side, but exceeding 3A indicates a short.
- Non-functional cornering lights often stem from shared grounding issues; isolate grounds for each circuit.
Overlooking fuse ratings creates fire hazards. A typical turn signal circuit requires a 7.5-10A fuse–using higher values masks overheating risks. Route wires away from sharp edges and moving parts; chafing invites intermittent failures. Secure connections with heat-shrink tubing rather than electrical tape to prevent corrosion in damp climates. Aftermarket units with adjustable flash rates may conflict with hazard functions; match timing specifications to OEM settings for consistent behavior.
