3 Wire Fan Delay Klixon Connection Guide and Circuit Schematic

Start with the third conductor–the neutral return–attached directly to the motor’s negative terminal or chassis ground. Route the live feed through the thermal cutout’s normally closed contacts, securing the connection with a crimp terminal or solder joint rated for 20A minimum. Verify continuity across the switch before energizing; a multimeter reading of less than 0.5Ω confirms proper contact.

Position the cutout within 25 mm of the motor winding or heatsink to ensure rapid temperature detection. Use 18-gauge stranded copper leads for signal paths, sheathing each in 3 mm silicone sleeving to prevent abrasion against moving parts. Label each lead with heat-shrink tubing marked L (line), N (neutral), and S (sensor) to eliminate misconnection during maintenance.

For delayed engagement, install a 25 μF capacitor across the switch contacts with a 10 kΩ bleeder resistor. This creates a 2.5-second delay upon power restoration, preventing motor surges during transient voltage spikes. Test under load by simulating overheating with a 100 W heat gun; the cutout must open within 3 seconds at 105°C.

Ground the motor housing separately using a 16-gauge green conductor terminated at a star washer under an M6 bolt. Avoid daisy-chaining grounds through the thermal switch; parasitic currents can corrupt temperature sensing accuracy. If the assembly lacks a dedicated ground stud, drill a 3.5 mm pilot hole and tap for M4 threads, deburring with a conical countersink.

Seal the junction box with dielectric grease and a silicone gasket rated for -40°C to +125°C. Use Wago 221 series clamps for field-terminated connections; their spring-loaded design withstands 10G vibration per IEC 60529. Mark the enclosure with IP67 warning labels if exposed to outdoor conditions or washdown cycles.

Connecting a Three-Lead Cooling Device with Thermal Cutoff Integration

For immediate implementation, connect the primary voltage supply to the thermal protector’s fixed terminal (typically marked L or IN). The moving contact (often labeled T or OUT) must feed directly into the motor’s input lead, ensuring the circuit breaks under overheating conditions. Use a 0.75 mm² cross-section conductor for currents up to 5 A to prevent voltage drop across the 15–20 cm run between components.

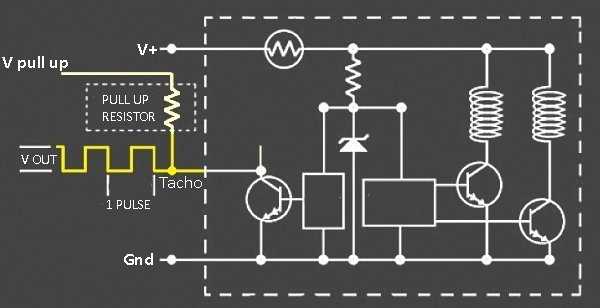

Attach the tachometer signal lead (usually blue) to the control module’s designated RPM input–consult the board’s datasheet for pull-up resistor requirements (typically 4.7 kΩ to VCC). If the module lacks native pull-up support, place the resistor between the signal line and 5 V or 12 V, depending on sensor specifications. Avoid grounding this conductor; interference may trigger false speed readings.

Ground the third conductor (commonly black) at a single dedicated point on the chassis or power distribution block, isolating it from high-current returns. Resistance between this ground and the power source’s negative terminal should not exceed 0.1 Ω; verify with a multimeter before energizing. For PWM-controlled systems, route this line through a 10 µF ceramic capacitor to suppress transients that could reset the thermal cutoff prematurely.

Troubleshooting Override Scenarios

If the thermal protector trips before reaching the target operational temperature (e.g., 90°C), measure the free-air speed of the impeller–restricted airflow due to dust accumulation can reduce cooling efficiency by 30–40%, elevating local temperatures. Replace the bimetallic element if cycling occurs within 3 minutes of activation; standard KSD-9700 variants require ≥180-second cooldown periods. For systems exceeding 30 W, verify conductor gauge against the IEC 60335-1 derating curve–insufficient current capacity degrades protection response time.

Alternative Termination Methods

In applications where the control module expects a normally closed contact, invert the thermal protector’s wiring: connect the input voltage to the moving terminal (T/OUT) and route the fixed terminal (L/IN) to the impeller. Add a flyback diode (1N4007) across the motor’s terminals if switching noise causes erratic cutoff behavior, orienting the cathode toward the positive supply. For 24 VDC setups, select a protector with a 5 A rating minimum–lower thresholds may fail under sustained inrush currents during startup sequences.

Understanding the Tri-Lead Cooling Device Timing Mechanism Elements

Install a thermal cutoff switch rated 5–15°C above the motor’s steady-state operating temperature to prevent premature cycling. A 70°C KSD301 variant with silver contacts ensures rapid response without false triggers under load fluctuations.

Select a relay with a 10A coil current rating to match the system’s inductive kick–opt for a SPDT configuration to isolate the holding circuit from power spikes. Verify relay contact gap exceeds 0.5mm to avoid welding during surge conditions typical in 24VDC setups.

Critical Component Pairings

• Capacitor: Use a 470µF 35V electrolytic placed parallel to the holding coil to extend rotation persistence for 3–5 seconds post-shutdown. Polarize correctly–reverse polarity causes violent failure.
• Resistor: A 1kΩ 1W carbon film resistor limits inrush to the relay coil during initial energization, preventing current spikes that degrade solder joints.
• Diode: Fit a 1N4007 across the coil leads (cathode to positive) to clamp back-EMF exceeding 150V, protecting nearby semiconductors.

Route leads through grommeted chassis openings only–avoid sharp bends tighter than 3× the conductor diameter to prevent work-hardening fractures. Tin all splices with 60/40 rosin-core solder; acid-core residue corrodes copper within days.

Test thermal cutoff activation via controlled hot-air source while monitoring contact continuity with a multimeter in diode-check mode. A 1.2°C lag between sensor and switch response is acceptable–exceeding 3°C indicates poor thermal bonding or oxidized surfaces.

1. Ensure the ambient housing temperature never drops below −10°C–gel-filled capacitors lose capacitance linearly below freezing, skewing timing.
2. Avoid placing the resistor adjacent to aluminum heatsinks; radiant heat skews resistance ±5% at 60°C.
3. Secure relay mounting with nylon standoffs–metal contact induces eddy currents that mis-trigger the holding circuit.

Step-by-Step Connection Guide for Thermal Protector in Cooling Loop Circuits

Identify the thermal cutoff device terminals first–most models have two leads marked for input and output. Confirm the rated current capacity aligns with the motor’s specifications, typically 5–15A for standard applications. Check voltage compatibility: 120VAC/240VAC or 12VDC/24VDC variants exist, so match the protector to the power source precisely.

Disconnect the circuit from all power before handling any components. Use insulated tools to prevent accidental shorting. Locate the motor’s positive lead–this will serve as the primary attachment point for the protector’s incoming terminal. Some setups require a separate relay for larger loads; verify if your configuration demands this.

Solder or crimp the protector’s first lead to the motor’s power input, ensuring a secure mechanical and electrical bond. Heat-shrink tubing or electrical tape should cover exposed joints to prevent oxidation or unintended contact. For three-connector motors, the second lead attaches to the tachometer output, but here, we focus on the basic two-lead thermal integration.

Route the protector’s second lead to the power source’s return path or ground, depending on your scheme. In single-phase AC setups, this often connects to the neutral line after the switch. For DC installations, link it directly to the negative bus or chassis ground. Avoid daisy-chaining grounds–each path should have a dedicated return.

Testing and Calibration

Apply power incrementally using a variac or bench supply to monitor startup behavior. The protector should remain closed at room temperature. Use an ohmmeter to verify continuity before full voltage application. If the device opens prematurely, check for loose connections or incorrect current ratings.

Simulate overheating by gently warming the protector with a heat gun (do not exceed 120°C). Observe the circuit response–it should break within 5–10 seconds at the rated trip temperature (commonly 90–110°C). Recooling should restore conductivity within 30–60 seconds; if not, the unit may be faulty.

Integrate a bypass timer if extended operation post-cooldown is needed. A 555 IC in monostable mode or a programmable relay can reintroduce power after a set interval. Calculate the delay using T = 1.1 * R * C, where R is in ohms and C in farads. For a 30-second hold-off, pair 1MΩ with 22µF.

Finalize the assembly by securing the protector adjacent to the motor windings with thermal adhesive or a mounting clip. Ensure airflow around the device isn’t obstructed, as this skews trip accuracy. Label the circuit clearly–note the protector’s reset characteristics and exact placement for future diagnostics.

Troubleshooting Common Issues in Thermal Cutoff Loop Configurations

If the cooling system activates intermittently or fails to engage under load, start by verifying the bimetallic switch’s calibration. Use a multimeter to measure resistance across the contact terminals at ambient temperature–values should align with the device’s datasheet (typically <1Ω for closed contacts, >1MΩ when open). For units with adjustable thresholds, confirm settings match the thermal profile of the heat source; misalignment by even 5°C can cause premature cycling or delayed response. Replace the switch if readings drift outside specifications, as internal oxidation or fatigue often compromises reliability without visible damage.

• Check for corroded connectors–clean with contact spray and re-seat the leads using crimp terminals rated for the current draw (e.g., 18 AWG for <10A).
• Inspect the capacitor in timed setups: bulging, leaks, or ESR values exceeding 20% of nominal indicate failure; swap for an identical voltage/rating (e.g., 22µF 50V).
• Test the control module’s transistor (e.g., MJE13007) or relay coil with a diode tester–open circuits or reduced voltage retention (<90% of supply) signal degradation.
• For PWM-driven variants, probe the signal line: pulses narrower than 1ms or missing high states (>3.3V) suggest driver IC failure (common in SG3525-based circuits).
• Examine thermal paste application on sensors–uneven coverage (>0.5mm gaps) skews temperature readings; reapply non-silicone compound for consistent thermal coupling.
• Ensure the power supply’s ripple voltage stays below 100mV pp at the rated input; noise spikes from poor regulation can trigger false resets.

Excessive vibration may loosen mounting screws on heatsinks, increasing thermal resistance–use thread-locking adhesive on M4 or larger fasteners. For NTC-based overheat protection, verify sensor placement: distance >10mm from airflow edges or heat sinks distorts readings by 10-15°C. Log data over 24 hours to detect sporadic faults; a rolling average outside ±2°C of the baseline confirms drift.
