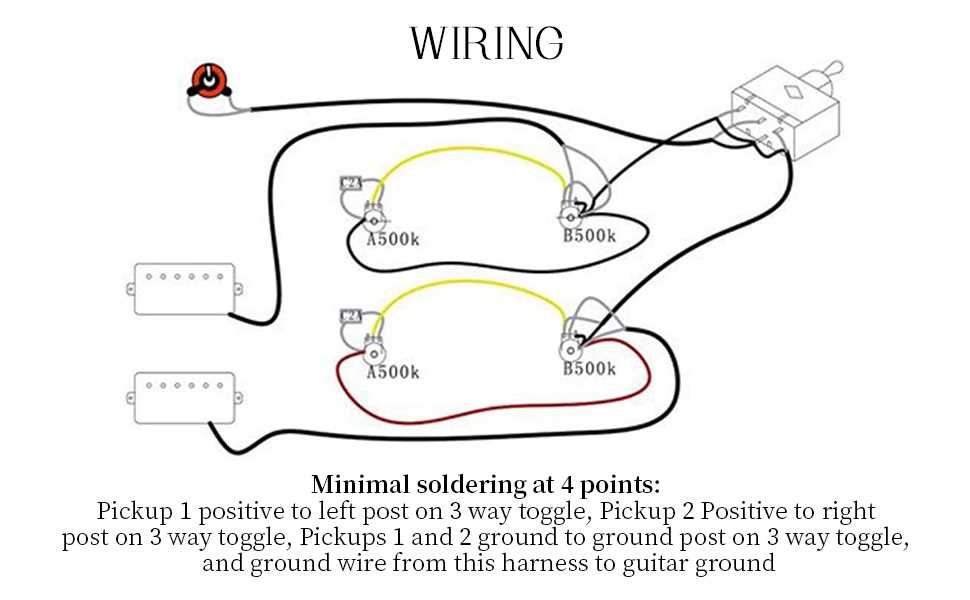

Step-by-Step 3 Wire Humbucker Pickup Wiring Guide with Diagram

Start by identifying the hot lead, ground, and coil-split terminal in your split-core assembly. The hot lead–typically the color-coded center tap–carries the signal to the output jack. The ground terminal, usually bare copper or black, connects to the guitar’s shielding cavity. The remaining terminal enables single-coil mode when grounded; pairing it with the hot lead bypasses one coil section.

Use a 500k audio potentiometer for volume and a push-pull potentiometer or mini-toggle for dual-mode switching. Solder the coil-split terminal to the switch’s grounding lug–the switch leg should toggle between open and closed. A 0.022μF capacitor between tone pot lugs preserves high-frequency roll-off when engaged.

Route all connections through braided signal cable or tinned copper shield to minimize RF interference. Avoid solder bridges between adjacent terminals; use rosin-core solder rated for 60/40 tin-lead composition. Test continuity with a multimeter across each joint before closing the control cavity–resistance between hot and ground should read 7.8–8.2kΩ in full hum-canceling mode, dropping to 3.8–4.2kΩ in single-coil configuration.

Mount components in a grounded metal shielding box if noise persists. Use nut drivers sized for 1/4″ hardware to secure controls without stripping threads. Label each terminal with heat-shrink tubing or colored tape–red for hot, black for ground, and blue for split-coil–before final reassembly.

Simplified Schematic for Three-Terminal Coil Pair Integration

Begin by identifying the source lead (common ground), output terminal, and split coil connection on your device’s data sheet–most makers assign black as ground, white as splitter, and red as hot. Verify polarity with a multimeter: when active, the hot lead should read ~8kΩ against ground, while the splitter measures ~4kΩ across each coil segment. If readings deviate, suspect reversed polarity or internal shorts.

Solder the ground to the bridge or volume casing using shielded cable; avoid solid-core for mobile installations. Connect the splitter to a push-pull potentiometer lug marked “middle” or “neck coil phase reversal.” Route the hot lead directly to the volume input lug, bypassing tone circuits unless treble bleed is desired. Test for quiet operation–hiss suggests loose shielding or poor grounding paths.

Use .047µF Orange Drop capacitors for treble retention during volume swells; .022µF values suit darker tones. Avoid ceramic caps–they introduce microphonic noise. For series-parallel switching, wire a DPDT switch so the splitter toggles between full and half coil modes; ensure the switch throws match the data sheet’s phase diagrams to prevent out-of-phase cancellation.

Pre-tinned copper leads reduce oxidation–solder joints should appear concave, never bulbous. Heat sinks (small alligator clips) prevent meltback on enamel-coated leads. If soldering near plastic bobbins, use a 60-watt iron with a chiseled tip to minimize dwell time.

Phase alignment matters: neck and bridge units must share polarity when in parallel. Flip the bridge’s leads if hum persists when both are active. Shield splitters individually–twisted pairs only work if both coils remain ungrounded, which risks RF interference.

For balanced output, add a 1kΩ resistor in series with the splitter, then parallel it to a 150pF capacitor to ground. This attenuates high-frequency noise without affecting low-end response. Measure frequency response with a spectrum analyzer–peaks above 5kHz may require .01µF bypass caps on volume pots.

Document every modification: label solder points on a template, photograph stages, and log resistance changes post-soldering. Maintain a spare harness with stock connections–bench testing saves debugging time during live modifications.

Understanding Coil Magnet Connection Coding and Roles

Start by matching shielded conductors to their manufacturer standards–Seymour Duncan, DiMarzio, and Gibson each use distinct color schemes. Ignoring these will risk phase cancellation or dead outputs. The core signals typically include:

• Hot lead (red, white, or cream): Carries the primary amplified signal to the output jack. If misconnected, volume drops drastically or disappears entirely.
• Ground path (black or bare copper): Completes the circuit loop. Soldering this incorrectly introduces 60-cycle buzz.
• Coil split/tap conductor (green, yellow, or blue): Enables single-coil mode when paired with a push-pull pot. Interchanging this with the ground path kills tonal versatility.

Soldering joints demand 63/37 rosin-core tin–acetate flux causes oxidation within months. Maintain consistent heat exposure; extended soldering melts insulation, shorting adjacent strands. Trim stray strands to prevent accidental shorts, especially near the selector switch contacts.

Phase alignment checks require an audio probe or multimeter continuity test. Probe the bobbin outputs while tapping each coil–identical polarity readings indicate correct alignment. Reversed polarity results in thin, nasal tones on bridge and neck positions combined.

For parallel coil configurations, the split lead must link to the pot’s switch lug, not directly to ground. Series hookups require bridging the coil tap to the ground reference internally; bypassing this step eliminates hum cancellation while retaining output strength.

Cable gauge matters: 22 AWG suffices for short runs under 12 inches, but switching to 20 AWG reduces high-frequency roll-off in longer circuits (over 18 inches). Shielding braids should overlap 80% minimum–gaps invite RF interference.

Brand-specific color variances exist beyond the standard schemes. EMG’s aftermarket replacements often use red/black for active setups, while Fender’s vintage clones might substitute yellow for green coil taps. Always cross-reference the spec sheet before making connections.

Final continuity validation involves strumming open chords while toggling pickup selectors. Silence during transition signals loose connections; a dull “pop” suggests cold solder joints. Reflow suspect pads with additional tin and fresh flux to restore crisp articulation.

Step-by-Step Guide to Soldering a Triple-Lead Coil Assembly

Begin by stripping 3–4 mm of insulation from each lead end using precision strippers calibrated for 24–28 AWG gauge. Excessive stripping risks shorting adjacent traces, while too little prevents proper solder adhesion. Pre-tin both the coil terminals and corresponding connection points on the output jack or selector switch with a temperature-controlled iron set to 350°C. Apply flux to eliminate oxidation; rosin-core solder (60/40 alloy) ensures mechanically robust joints without overheating the enamel-coated conductors.

Identify the ground lead–typically the bare or silver-shielded strand–and secure it to the guitar’s metal cavity or potentiometer casing. Use a star washer between the terminal and chassis for a gas-tight connection, preventing signal degradation from microphonics. For split-coil configurations, the remaining two leads (hot and series link) must be paired according to phase: solder the hot to the output terminal and the series link to the adjacent coil’s hot if parallel operation is desired, or leave it floating for single-coil mode.

Heat sink sensitive areas with a clamp or hemostat when soldering near bobbin edges to avoid melting the formvar coating. Check continuity after each joint with a multimeter set to 200 Ω range–expect 6–12 kΩ across the hot and ground leads for standard dual-coil units, or 3–6 kΩ when split. Use heat-shrink tubing on exposed joints to prevent accidental shorts against the back of potentiometers or routing channels.

Route leads through the control cavity using pre-drilled paths, maintaining a minimum 5 mm clearance from sharp edges to prevent abrasion. Secure excess length with cloth tape or small zip ties, avoiding plastic clips that may melt under prolonged heat from components. For active electronics, ensure the preamp’s power lead does not run parallel to signal paths–crossing perpendicularly reduces noise induction.

Component	Solder Temperature (°C)	Flux Type	Gauge (AWG)
Output Jack	320–360	Rosin-core	22–24
Ground Lug	380 (brief)	No-clean liquid	20–22
Selector Switch	310–340	Water-soluble	24–26
Coil Terminals	300–330	Rosin-core	26–28

Inspect joints under 5x magnification for cold solder defects–dull, grainy connections must be reheated with fresh flux. Test tone with all potentiometers at maximum to isolate buzzing: a clean signal indicates proper grounding, while intermittent noise suggests a floating ground or reversed polarity. For series/parallel switching, use a DPDT mini-toggle–solder the middle lugs to the coil lead pair and route the outer lugs to the switch’s ON positions.

Seal the cavity with conductive shielding paint if EMI persists, but avoid covering component terminals. Ground the shielding to the main ground point, not the signal path. For offset or angled installations, bend leads at 90° using needlenose pliers rather than sharp bends, which risk fracturing the conductor. Trim excess lead length only after confirming correct operation to allow for adjustments.

Finalize by securing all components with thread-locking adhesive on potentiometer nuts and jack plates to prevent loosening from vibration. Use a nylon washers between metal surfaces to eliminate ground loops in multi-pickup configurations. Verify phase alignment by striking the low E string while toggling between positions–out-of-phase signals produce a thin, hollow tone, requiring lead swaps or capacitor addition (typically 0.0022 µF).
