Building and Analyzing TTL Logic Gate Circuit Schematics

Start with a 74LS00 quad NAND gate for basic signal conditioning. This chip operates at 5V with a propagation delay of 10ns and consumes 2mA per gate. Connect inputs to pull-up resistors (1kΩ–10kΩ) to prevent floating states in high-impedance environments. Ground unused pins through 0.1µF decoupling capacitors placed within 2cm of the IC to suppress noise transients.

For level translation, use the 74HCT family when interfacing 3.3V microcontrollers with 5V logic. The HCT series accepts 2V thresholds while driving full 5V outputs, eliminating the need for external voltage dividers. Keep trace lengths under 15cm between the driver and load to avoid signal reflection–match impedance at 50Ω for high-speed applications above 10MHz.

Add a 330Ω series resistor on clock or reset lines to limit current during edge transitions. For long cables, terminate with a 220Ω resistor in parallel with a 47pF capacitor to ground to reduce ringing. Test signal integrity with an oscilloscope at 10× probe setting: overshoot should stay below 20% of the logic-high voltage, and rise/fall times should not exceed 50ns.

Power distribution requires a star topology with a dedicated 10µF tantalum capacitor at the main 5V rail and 0.1µF ceramics at each IC. Avoid daisy-chaining grounds–route them directly to a single point near the PSU. For battery-powered setups, use a Schottky diode (e.g., 1N5817) on the power input to block reverse current during power-down.

To isolate sensitive sections, employ optocouplers (PC817) with a 1kΩ input resistor for 20mA LED drive. Keep isolation voltage above 3kV for industrial environments. For pulse-width-modulated outputs, filter harmonics with a 10kHz low-pass RC network (1kΩ + 10nF) to prevent crosstalk on adjacent traces.

Building Logic Schematics: A Hands-On Approach

Begin by sourcing 74LS-series ICs–they tolerate 5V rails well and handle standard loads without overheating. Each gate draws ~2mA per input; exceed this and risk signal degradation. For prototyping, breadboards work but insert 0.1µF decoupling caps near power pins to suppress noise spikes. Altera Quartus or Kicad automatically flags incompatible pin assignments, so verify connections before soldering. If analog behavior appears (e.g., slow rise times), swapping to 74HC-series can restore expected digital crispness.

Debugging Gate-by-Gate

Attach a logic probe or oscilloscope directly to gate outputs; floating TTL inputs interpret as HIGH–always pull unused inputs LOW via 1kΩ resistors. Inverter chains (e.g., 74LS04) oscillate if wired in feedback loops; use a 10kΩ resistor and 1nF cap to stabilize. For multi-layer schematics, color-code nets: red for power, blue for ground, green for data lines. If propagation delays exceed 20ns per gate, split cascaded paths into shorter segments or switch to faster 74ACT variants.

Soldering through-hole ICs? Use sockets–DIP packages warp under 300°C for more than 3 seconds. Clean flux residue immediately to prevent leakage currents corrupting outputs. When daisy-chaining multiple gates, insert Schmitt triggers (74LS14) on clock lines to reject sub-Vih noise; a single trigger effectively sharpens edges over 10MHz signals. Final tip: store unused ICs in antistatic foam; even brief exposure to 10V ESD destroys internal junctions.

Key Elements and Notation in Transistor-Transistor Logic Schematics

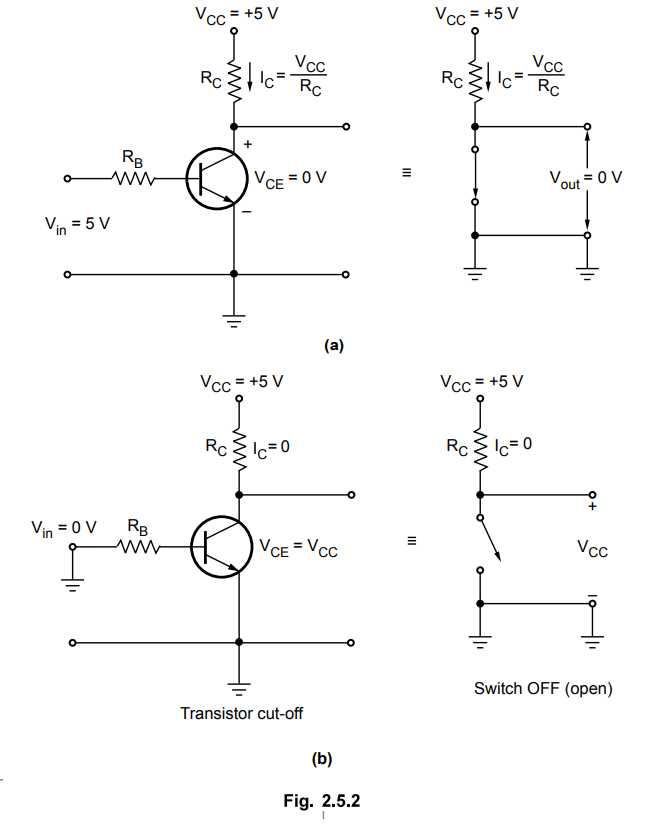

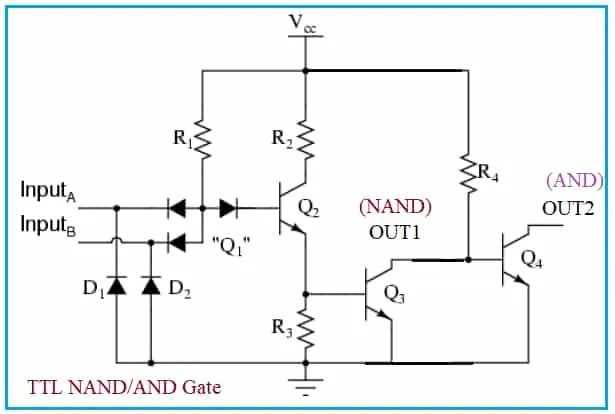

Start by identifying the NAND gate as the foundational block in most logic designs. Its symbol–a rectangle with a small circle at the output–denotes inversion, and it accepts two or more inputs. Standard notation places a “74” prefix for commercial parts (e.g., 7400) and “54” for military-grade versions, each featuring a unique suffix for specific logic functions. Keep a datasheet reference nearby; input/output voltage thresholds (V_IL ≦ 0.8 V, V_IH ≥ 2.0 V) dictate signal integrity.

• Resistors: Pull-up/pull-down values between 1 kΩ–10 kΩ maintain signal levels during floating states.
• Diodes: Base-emitter junctions protect against negative transients; clamp voltages to −0.7 V.
• Transistors: Multi-emitter configurations (like in the 7400) drive outputs via totem-pole stages; collector saturation (V_CE(sat) ≦ 0.4 V) ensures valid logic low.

Note the distinction between open-collector and totem-pole outputs. Open-collector gates (e.g., 7403) require external pull-ups for logic high, while totem-pole outputs source current directly, reducing delay by ≈5 ns. Use open-collector for wired-OR functionality but account for slower rise times due to RC effects.

Fan-out calculations determine loading limits. A standard gate (7400) typically supports 10 unit loads (UL) per output; exceeding this degrades noise margins. One UL equals a 1.6 mA sink current or 40 µA source current at 25°C. Derate by 20% for 70°C operations.

1. Gate inputs: Each input adds ≈1.6 mA to the sink demand.
2. Schottky versions (74S/74LS) halve current requirements, enabling higher fan-out.
3. Line capacitance: Keep traces under 15 pF to avoid propagation delays >10 ns.

Decoupling capacitors (0.1 µF ceramic) mitigate supply fluctuations. Place them within 2 cm of the power pins; inadequate decoupling induces latch-up in Schottky families (V_CC transients >0.4 V). Ground bounce–described by L × di/dt–worsens with shared return paths; reserve dedicated vias for high-speed outputs.

Differentiate between enabled and disabled states of three-state buffers (e.g., 74125). The active-high enable pin (↑) drives the output, while disabling (↓) forces high impedance, isolating the bus. Overextended tri-state durations risk bus contention; limit to

Propagation delay (t_PLH/t_PHL) varies by family: standard (10 ns), low-power (33 ns), Schottky (3 ns). Temperature coefficients (+0.3%/°C for 74LS) and supply tolerance (±5%) shift thresholds; simulate worst-case scenarios in SPICE for critical paths. Avoid cascading more than five gates without retiming to preserve edge rates.

How to Read and Interpret Logic Gate Wiring Schematics

Begin by identifying the power rails–typically marked +5V and GND–at the top and bottom of the layout. These lines supply reference voltages to all gates in the arrangement, ensuring consistent high (logic 1) and low (logic 0) states. Check for decoupling capacitors near these rails; their placement prevents noise from distorting signal integrity. If absent, suspect unreliable behavior during switching transitions.

Examine input pins first: each gate’s data sheet specifies whether internal pull-ups, pull-downs, or open-collector configurations exist. For example, standard NAND gates often include weak pull-ups, meaning unconnected inputs default to high. Conversely, gates like 74LS04 (inverter) require explicit driving–floating inputs risk undefined states, causing erratic outputs. Always trace inputs back to their source, whether another gate, sensor, or manual switch, to confirm expected logic levels.

Trace the output paths next. Note how outputs connect: directly to downstream gates, through load resistors, or via bus lines. Some gates, particularly open-collector types, need external pull-ups to reach high. Measure voltage drop across outputs during active operation–0.4V or less for low, 2.4V or above for high–using an oscilloscope to detect glitches. If outputs fan out to multiple loads, verify the gate’s drive strength matches the combined input capacitance; exceeding this causes slow rise times.

Observe the feedback loops–common in latches and flip-flops–where output lines loop back to inputs. Misplaced feedback creates oscillations or metastable states, appearing as rapid, unpredictable toggling. Use a logic analyzer to capture timing relationships; clock signals should lead data signals by at least setup and hold times specified in the data sheet. For sequential logic, confirm proper reset and enable lines; asynchronous resets may trigger accidentally if left floating or driven improperly.

Troubleshooting Common Wiring Errors

Look for reversed polarity on diode-protected inputs; backward connections clamp signals but degrade voltage levels. Verify ground connections–star grounding reduces noise, while daisy-chained grounds cause voltage offsets. Check solder bridges or cold joints on prototyping boards; a single faulty connection mimics gate failure. Test suspected gates in isolation by injecting known high/low signals–replace parts only after confirming wiring integrity, as misinterpreted connections waste time and components.

Step-by-Step Assembly of a Logic NAND Gate on a Prototyping Board

Begin by securing a 74LS00 IC, ensuring pin 1 aligns with the notch or dot on the chip’s casing. Insert it across the central gap of the prototyping board, bridging rows so each leg rests in a separate column. Avoid bending pins–press evenly until the IC sits flush. Verify the datasheet: pins 7 (GND) and 14 (VCC) must connect to the correct rails, or the chip will overheat within seconds.

Connect power rails first: link the negative rail to pin 7 (ground) and the positive rail to pin 14 (5V supply). Use a regulated power source–fluctuations above 5.25V risk permanent damage. Install decoupling capacitors (0.1µF ceramic) between the power pins and ground, placing them as close to the IC as possible to filter noise and prevent glitches during switching.

Building the Input and Output Nodes

• Attach input leads to pins 1 (A) and 2 (B). Use 22AWG solid wire, stripping 5mm of insulation and bending a 90° hook for secure insertion. Avoid loose connections–they introduce voltage drops and unreliable logic levels.
• Wire the output node (pin 3) to an LED indicator. Series a 220Ω resistor to limit current to ~10mA; exceeding this risks burning the LED or stressing the IC’s output stage.
• Add pull-down resistors (10kΩ) to unused inputs. Floating pins act as antennas, picking up stray signals and causing erratic behavior. The 74LS00’s internal structure pulls outputs high by default, so proper grounding is critical.

Test functionality by toggling inputs. Apply 0V (ground) to one input and 5V to the other; the LED should illuminate only when both inputs are high (5V). Reverse the combination–if the LED stays dark when either input is low, the gate operates correctly. Persistent glow at low inputs suggests a wiring fault or a short–recheck connections with a multimeter in continuity mode.

Debugging Common Issues

1. No output? Probe pin 14 with a voltmeter. If below 4.75V, the power supply is inadequate or the decoupling capacitor is missing.
2. LED flickers? Swap the IC–thermal damage from previous misuse can cause intermittent failure. Handle replacements by the edges to avoid static discharge.
3. Output stuck high? Inspect for solder bridges or misplaced wires. Trace the signal path with a logic probe; a floating input will register as indeterminate voltage (∼1.5V).
4. Heat on the IC? Disconnect power immediately. Overloading the output (e.g., omitting the LED series resistor) draws excessive current, triggering thermal shutdown within minutes.
