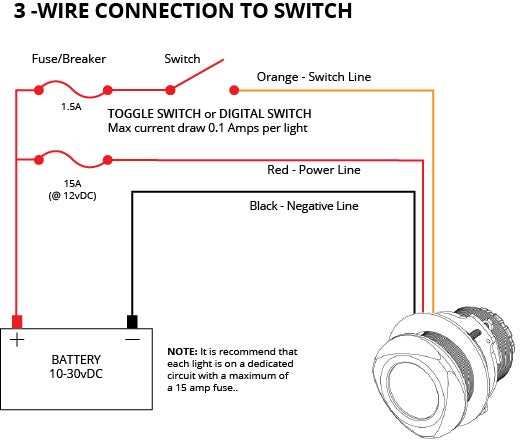

How to Connect a 3 Wire Electrical Circuit Step by Step Guide
Begin by identifying the phase (hot), neutral, and ground conductors in your setup. The phase lead typically uses red or black insulation, the neutral–white or gray, and the ground–bare copper or green. Verify colors match local electrical codes; deviations require tracing each line with a multimeter set to AC voltage. Measure 120V between phase and neutral, 0V between neutral and ground, and ensure ground integrity with a continuity test.
Terminate connections in a junction box using screw terminals, wire nuts, or crimp connectors. For screw terminals, strip 0.5–0.75 inches of insulation, form a hook, and secure it clockwise around the screw. Torque should be 12–15 inch-pounds; overtightening risks conductor damage. Wire nuts require twisting conductors together firmly–tug-test each joint to confirm grip. Crimp connectors need a ratcheting crimper for proper compression.
For motor or appliance installations, follow the manufacturer’s pinout layout. A common arrangement pairs phase with the L1 terminal, neutral with N, and ground with the chassis. Miswiring risks short circuits; always de-energize the circuit before handling. Label each conductor at both ends to prevent future confusion.
Use 14–12 AWG conductors for 15–20 amp circuits. Larger loads (30+ amps) require 10 AWG or thicker. Check the ampacity chart against your conductor’s material; copper tolerates higher current than aluminum. Soldering is optional but improves longevity; use rosin flux and avoid acidic types to prevent corrosion.
Test the completed setup with a non-contact voltage tester first, then a multimeter. Confirm no voltage leakage between conductors and the ground. If tripping occurs, isolate the issue by disconnecting loads sequentially. Always replace damaged insulation with heat-shrink tubing or electrical tape rated for 600V.

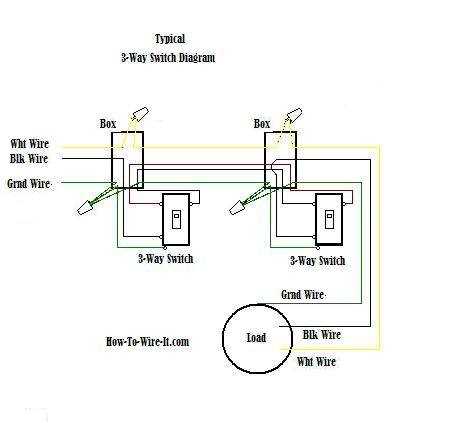

3-Way Connection Layouts: Step-by-Step Application
Use color-coded conductors to simplify tracing: black for the common terminal, red for travelers, and white as neutral (or re-marked with black tape if used as a hot lead). Ensure compatibility with switches rated for 15A or 20A circuits to prevent overheating–verify ratings stamped on device housing before installation.
Mount switches in standard junction boxes, allowing 6–8 inches of excess conductor length for trimming or repositioning. Strip ¾ inch of insulation from each end, bend the exposed copper into a hook, and secure under terminal screws with clockwise tightening–never wrap counterclockwise or leave loose strands.
Identify the common terminal (darker or brass-colored screw) on each switch; attach the black conductor here. Route red travelers between corresponding screw terminals on both switches–confusing these connections will break the circuit. Label conductors temporarily with masking tape if working in dim conditions.
Test continuity with a multimeter before energizing: set to ohms (Ω), probe both red lead terminals–zero resistance confirms a working circuit. Probe black to red; infinite resistance ensures no short. Repeat after restoring power to verify 120V between hot and neutral at each switch location.
For intermediate additions (like a receptacle between switches), splice into travelers with twist-on connectors rated for 600V, then secure with insulating tape. Avoid backstab connections–these fail under sustained load, especially in high-traffic areas like stairwells or hallways.
Ground all metal boxes and switch yokes to a bare copper lead attached to the green screw in the box. If retrofitting older installations without grounded boxes, use insulated bushings to protect conductors from abrasion on knockout edges. Verify grounding paths by checking for continuity from switch yoke to panel neutral.
Group conductors neatly with nylon zip ties every 8–10 inches to prevent shifting inside oversized boxes. Leave ¼ inch slack near terminals to accommodate slight movement–heat cycling causes minute expansion/contraction that can loosen tight connections over time.
Document final layouts with digital photographs and label switch plates with simple diagrams (e.g., “Left = Kitchen Lights”). For commercial setups, attach a one-line schematic inside the cover of nearby electrical panels–this reduces troubleshooting time for future maintenance.
Identifying the Correct Conductors for a 3-Lead Configuration
Begin by locating the live, return, and ground leads in any 3-lead circuit. The live conductor will register 110–240 VAC relative to ground, while the return lead sits near zero volts–both measured with a multimeter set to AC mode. Ground must connect to the chassis or earth terminal, showing negligible voltage against any other point. Reverse polarity often trips breakers or damages devices, so verify before energizing.
Common color codes reduce guesswork. In North American systems, the live lead is typically black or red, the return white or gray, and ground bare copper or green. European installations often use brown for live, blue for return, and green-yellow for ground. Industrial machinery may deviate, so consult the schematic attached to the equipment. Never assume; cross-reference markings printed on the insulation or connectors.
Test continuity to confirm lead roles. Disconnect power, then probe pairs with a continuity tester. The return and ground leads should show no connection; the live lead remains isolated from both. Shorts between any two indicate mislabeling or internal faults. Internal motor circuits, for instance, often tie return directly to the frame–identify this by tracing connections back to the main terminal block.
Use a clamp meter to inspect active current flow. With the circuit active, clamp each conductor individually–expect near-zero amps on ground, balanced load between live and return. Differential currents exceeding 30 mA suggest leakage or improper grounding. Thermography can reveal hotspots where mismatched leads cause resistance heating, visible as irregular temperature rises above ambient.
| Lead Type | Expected Voltage (VAC) | Resistance to Ground (Ω) | Continuity with Return |
|---|---|---|---|
| Live | 110–240 | >1M | Open |
| Return | Closed | ||
| Ground | 0 | Open |
Label cada conductor immediately after verification. Use heat-shrink tubing printed with “L”, “N”, or “GND” to prevent future confusion. Tag concealed leads inside junction boxes or conduit entries–hidden mistakes waste hours during later troubleshooting. Photographs of connections serve as backup references, especially in complex installations where multiple circuits converge.
Situational Variations Requiring Extra Caution
Split-phase systems add a second live conductor for 240 VAC appliances. Here, both hot leads measure 120 VAC against return but 240 VAC across each other–do not mix them with single-phase setups. Step-down transformers introduce another layer; secondary windings may lack a return, requiring derivation from ground or a midpoint connection. Switched circuits, like those in multi-speed fans, often repurpose the return as a control lead–verify against the schematic during operation.
Step-by-Step Connection for 3-Terminal Sensors and Actuators
Identify the power, signal, and ground terminals before making connections. Most 3-terminal devices label them as VCC, OUT, and GND. Verify these markings in the datasheet–confusing them risks permanent damage to components.
Connect the power terminal (VCC) to a stable voltage source matching the device’s requirements–typically 5V, 12V, or 24V. Use a regulated supply; noise or spikes can distort readings or trigger false actuation. For low-power sensors, a bypass capacitor (0.1µF) near the power terminal stabilizes operation.
Attach the ground terminal (GND) to the system’s common return path. Ensure this line is uninterrupted back to the power source. Floating ground increases susceptibility to interference, especially in analog sensors detecting small signals.
Signal Line Configuration
Route the output terminal (OUT) to the controller’s input–analog, digital, or PWM, depending on the device. For analog signals (e.g., 4-20mA sensors), connect directly to an ADC pin. For digital outputs (e.g., Hall effect sensors), use a pull-up or pull-down resistor if the controller lacks internal biasing.
Isolate long signal paths with twisted pairs or shielded cables. Ground the shield at one end only–either the sensor or controller–to prevent ground loops. For high-frequency actuators (e.g., solenoids), add a flyback diode across the terminals to suppress voltage transients during switching.
Test continuity and voltage levels at each terminal before powering the full system. Use a multimeter to verify the OUT line matches expected ranges (e.g., 0-5V for 5V sensors). If readings fluctuate erratically, recheck ground integrity and power supply noise.
Final Validation Checks
Calibrate sensors after physical installation. Many devices require a warm-up period (30-60 seconds) for stable operation. Actuators like relays may need a logic-level MOSFET or transistor if the controller’s output current is insufficient (typically
Common Mistakes When Connecting a 3-Conductor Setup and How to Prevent Them
Reversing the neutral and live leads is a frequent error that disrupts device functionality. In a 3-conductor setup, the neutral (typically white) must connect to the corresponding terminal–never swap it with the hot conductor (usually black or red). Verify with a multimeter: measure between the hot and neutral–voltage should match the supply (e.g., 120V). If reversed, devices may power on but run inefficiently or pose a fire risk.
- Mismatched conductor gauges: Using thinner conductors than required (e.g., 14 AWG for a 20A circuit) causes overheating. Always match gauge to breaker rating–12 AWG for 20A, 10 AWG for 30A.
- Skipping insulation checks: Nicked or damaged sheathing exposes cores, risking shorts. Inspect each segment before securing connections. Replace compromised sections entirely.
- Incorrect grounding: Omitting or improperly attaching the earth lead (green/bare) invites shock hazards. Terminate it to a grounded junction or busbar–never leave it floating or looped around screws.
Termination Errors That Cause Hidden Failures
Loose connections generate heat, degrading terminals over time. Tighten screws firmly but avoid stripping–use a torque screwdriver set to manufacturer specs (often 12–15 in-lbs for residential terminals). For push-in connectors, tug gently to confirm the core stays seated; some brands require a twisting motion to lock.
- Mixing conductor types: Copper and aluminum expand/contract differently, corroding at junctions. Use special connectors (e.g., Al/Cu) or coat with antioxidant paste.
- Ignoring polarity in switched setups: Reversing hot/load on a switch renders controls unreliable. Test with a non-contact voltage detector–current should flow only when the switch is on.
- Overcrowding junction boxes: Exceeding fill capacity (~2.0 cubic inches per #14 conductor) violates code and impedes heat dissipation. Upgrade to a larger box or splice outside if space is tight.
Failure to label branches leads to confusion during maintenance. Tag each conductor at both ends with its purpose (e.g., “SWITCH LEG,” “COMMON NEUTRAL”). Use colored shrink tubing or permanent markers–avoid tape that peels off. For multi-circuit runs, photograph the layout before closing the box.
