Complete Guide to 24V Starter Relay Wiring Schematic and Installation
For a dual-voltage electrical activation circuit, use a 4-pin SPST switch with these terminal assignments: terminal 85 connects to the control source, terminal 86 grounds the circuit, terminal 30 receives power from the battery via a fuse rated for 15A, and terminal 87 delivers output to the solenoid trigger. Verify the circuit with a multimeter set to 20V DC scale–probes on terminals 85 and 86 should read 23-25V when the ignition is engaged. Any deviation indicates corrosion at the relay socket or a faulty ground connection.
Install a diode across terminals 85 and 86 (cathode to 85) to suppress voltage spikes. Avoid generic diodes–use a 1N4007 or equivalent with a 1kV peak reverse voltage rating. Heat-shrink the diode leads to prevent short circuits. If the circuit fails to disengage after ignition cutoff, check the diode polarity first; reversed installation causes persistent activation.
Route power cables through a separate 10-gauge conduit if ambient temperatures exceed 60°C. Copper-clad aluminum wiring degrades under sustained 30A loads–opt for tinned copper instead. Secure all connections with crimp terminals rated for 40A; soldering introduces failure points from vibration. Test the circuit under load by simulating cranking conditions–apply 12V to the solenoid trigger and measure voltage drop across the switch. A drop exceeding 0.5V signals resistance in the circuit requiring immediate tracing.
Label all wires with heat-resistant sleeves: red for power input, black for ground, yellow for control signal, and blue for output. Avoid nylon ties near moving components–they degrade under UV exposure and engine heat. For marine or high-humidity environments, apply dielectric grease to all terminals before assembly. Replace the switch every 3 years if operated daily, as contact wear reduces reliability over time.
Dual-Voltage Solenoid Circuit Layout for Heavy Machinery
Connect the control coil’s positive terminal to the ignition switch’s auxiliary post, ensuring a 10-amp fuse rated at 32 volts sits within 15 cm of the fuse holder. The negative return should trace a direct path to the engine block, bypassing any chassis ground junctions to prevent voltage drop. Use 4 AWG copper wire for the main motor path, soldering all joints and sealing them with adhesive-lined heat shrink to resist corrosion in high-vibration applications. For automatic disengagement, wire a 100-ohm resistor across the coil terminals to dissipate inductive spikes; failure to do so risks pitting the starter contactor’s silver-plated surfaces within 500 cycles.
Label each terminal with heat-resistant tags: “IN+,” “IN-,” “OUT+,” and “OUT-” to match the schematic’s pinout precisely–misalignment here can reverse polarity, frying the solenoid’s internal diode and voiding OEM warranties. If integrating a glow plug controller, isolate its trigger circuit with a 3-amp fast-blow fuse and route it through a 250-volt varistor to clamp transients exceeding 60 volts. Test continuity with a 500-ohm load bank before connecting the battery bank; readings below 0.2 ohms indicate faulty crimps that must be redone using hydraulic crimpers, not pliers. For cold-weather starts, pre-charge capacitors (470 µF, 100V) across the coil reduce delay to under 200 ms.

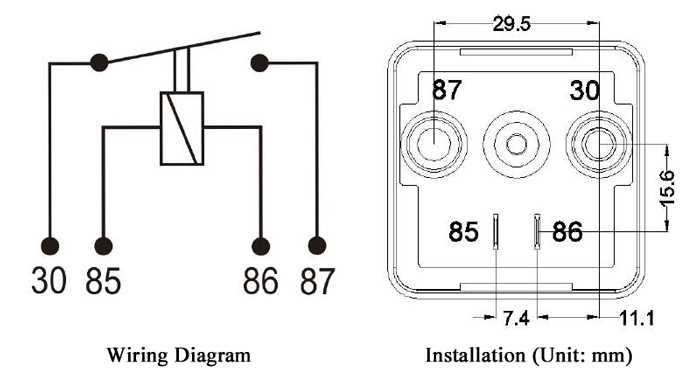

How to Identify the Correct Terminals on an Electrical Switching Component
Locate the markings on the housing of the switching unit–most manufacturers etch or emboss terminal designations like 85, 86, 87, and 30 near each post. If markings are absent or worn, refer to the technical datasheet for the specific model, as pin layouts vary by brand and series.
Check the input and output sides by tracing the thickest cable, typically connected to the main power terminal. This is usually the post labeled 30 and handles the higher current load. The thinner wires often lead to the control circuit, such as 85 (ground) and 86 (trigger).
Use a multimeter in continuity mode to verify connections. Place one probe on a known ground (e.g., vehicle chassis) and touch the other to each terminal. The post that shows negligible resistance (0.1–0.3 ohms) is likely 85. Repeat the process with the switching contact (87) while energizing the trigger circuit to confirm its closed state.
- Terminal 30: Common power input/output, always connected to the high-current path.
- Terminal 85: Typically grounded; completes the control circuit when activated.
- Terminal 86: Receives the activation signal (e.g., from ignition or sensor).
- Terminal 87: Normally open contact; delivers power when the unit is engaged.
- Terminal 87a (if present): Normally closed contact; disconnects when the coil is energized.
For units with a spare contact (87a), note that it mirrors the function of 87 but in reverse. Verify this by testing continuity between 30 and 87a with the coil de-energized–they should show near-zero resistance. When the coil is powered, continuity should shift to 30 and 87.
Inspect the physical construction of the terminals. The control circuit posts (85 and 86) are often smaller in diameter, while the high-current posts (30 and 87) have larger, sturdier studs or blades. Some variants use spade or bullet connectors for the control side and threaded studs for the power side.
If the component lacks any markings, compare it to a known schematic for the vehicle or equipment model. Cross-reference the wire colors and gauge:
- Heavy-gauge wires (4–10 AWG) usually connect to 30 and 87.
- Light-gauge wires (14–18 AWG) typically serve 85 or 86.
For polarity-sensitive configurations, confirm the coil side by testing voltage drop across 85 and 86 while activating the circuit. A reading of ~28V DC (or ~12V in split systems) indicates correct orientation. Reversing these terminals may prevent activation or cause premature failure.
Step-by-Step Guide to Installing an Electrical Switching Module in a Heavy-Duty Compression-Ignition Powerplant
Disconnect the primary power source by removing the negative terminal from the battery bank first, followed by the positive. This sequence prevents accidental short circuits during component handling. Use a 10mm wrench for standard terminals or an 8mm for smaller bolts on auxiliary connections. Label each cable with masking tape to track their original positions–confusion during reassembly leads to prolonged troubleshooting.
Locate the control unit near the engine block, typically adjacent to the flywheel housing. Heavy-duty applications often house it in a weatherproof enclosure mounted on the chassis rail. If replacing an existing module, note the orientation of mounting brackets; incorrect alignment may interfere with engagement mechanisms. For new installations, secure the unit with grade-8 bolts and thread-locking compound to withstand vibration.
| Connection Type | Wire Gauge (AWG) | Terminal Crimping Tool | Insulation Requirement |
|---|---|---|---|
| Battery input | 4-2 | Heavy-duty hydraulic | Heat-shrink double-wall |
| Solenoid trigger | 12-10 | Ratchet-style | Standard PVC |
| Ground strap | 2-0 | Bolting (no crimp) | None (bare copper) |
Route the supply cables through a corrugated conduit, securing them with zip ties every 150mm to prevent chafing against sharp edges. Maintain a 50mm clearance from moving components like belts or fan blades. Use dielectric grease on all electrical junctions to inhibit corrosion–particularly critical in high-moisture environments. For solenoid-triggered circuits, employ a diode across the coil terminals to suppress voltage spikes that can damage onboard electronics.
Integrating Auxiliary Safety Circuits
Incorporate a normally-open safety switch in series with the control circuit to disable operation when the engine cover is open. Install an ammeter inline with the primary feed to monitor current draw–excessive values indicate worn brushes or binding pinions. For multi-battery systems, use a battery isolator to prevent backfeeding. Verify all connections with a multimeter set to continuity mode before energizing the system; reversed polarity will destroy solid-state components immediately.
Before final assembly, bench-test the assembled control mechanism by applying 28 volts to the input terminals. Listen for a distinctive click confirming solenoid engagement. If absent, check for voltage drop across the coil–values below 22 volts indicate high-resistance connections. Once operational, secure all terminal covers and apply a thin coat of corrosion inhibitor to exposed metal surfaces. Reconnect the battery in reverse order (positive first) and crank the engine with the ignition key, observing a maximum 2-second engagement period.
Key Errors in Heavy-Duty Solenoid Circuit Hookups and Prevention
Misidentifying terminal polarity ranks as the most frequent installation error. On a typical dual-coil electromagnetic switch, the control circuit input–usually marked S or 50–must connect to the ignition trigger, while the high-current output (B or 30) links directly to the battery’s positive post via heavy-gauge cable, preferably 4 AWG or thicker. Reversing these connections, even momentarily, risks energizing the main circuit prematurely, causing arcing at the contacts that accelerates pitting and reduces service life by up to 60%. Always cross-reference the component datasheet–terminal layout varies between sealed and accessible-contact models–and employ a multimeter in continuity mode to verify paths before final tightening.
Another critical oversight involves neglecting ground integrity: the solenoid’s mounting surface must be bare metal, free of paint, oxide, or corrosion, with a dedicated strap no thinner than 2 AWG connecting to the chassis ground. A common but flawed shortcut–using a sheet-metal screw into a rusted frame–introduces milliohms of resistance, which under peak cranking current (400–600A) translates to voltage drop exceeding 0.5V, sufficient to prevent full engagement of the plunger. Prep surfaces with a wire brush and apply dielectric grease before securing the strap; for vehicles operating in wet environments, marine-grade tin-plated terminals reduce galvanic corrosion by 70%.
